Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

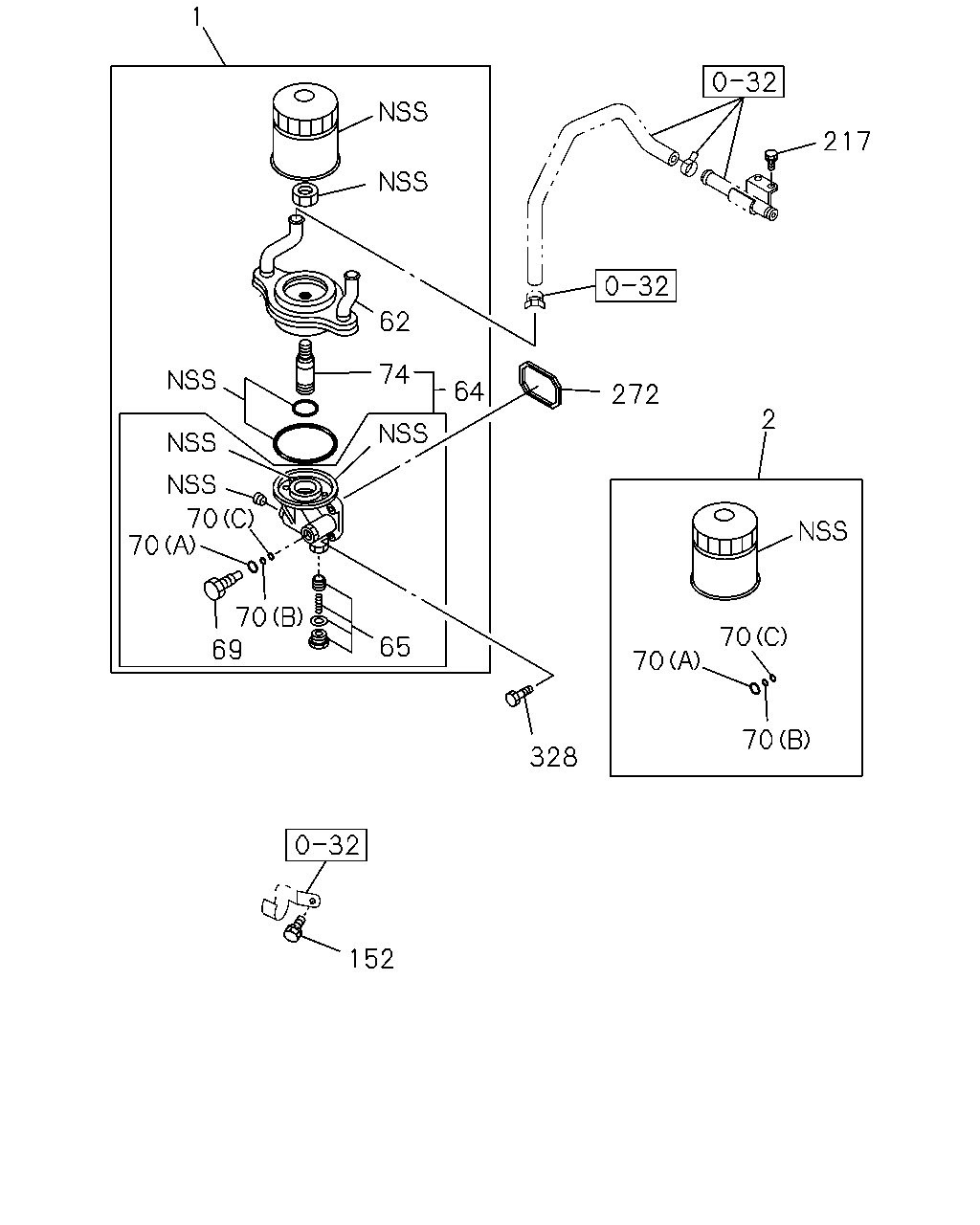

0-50 — OIL COOLER AND OIL FILTER
(#95882) — 54 parça
Tümü
A - C223 ENG
B - 4JA1 ENG
◀
[050A] C223 ENG (25 parça)
[050A] 4JA1 ENG (29 parça)
▶
1
62
64
74
272
2
70
70
70
328
152
65
69
70
70
70
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FILTER & COOLER ASM; OIL
8-94454-858-2
01
1
9009-9601
●
2
ELEMENT; OIL FILTER
8-94325-769-0
01
1
9009-9601
●
2
ELEMENT; OIL FILTER
IDN
8-97049-708-1
01
1
9602-0311
●
2
ELEMENT; OIL FILTER
IDN
8-97957-675-1
01
1
0312-
●
62
COOLER ASM; OIL
8-94325-768-0
01
1
9009-9601
●
62
COOLER ASM; OIL
IDN
8-97117-254-1
01
1
9602-
●
64
BODY; OIL FILTER & OIL COOLER
8-94334-903-1
01
1
9009-9601
●
64
BODY; OIL FILTER & OIL COOLER
8-97135-351-0
01
1
9602-
●
65
VALVE; OIL COOLER
8-94450-772-0
01
1
9009-9601
●
65
VALVE; OIL COOLER
8-94450-772-0
01
1
9602-
●
69
PLUG; BODY,OIL FILTER
8-94167-883-0
01
1
9009-9601
●
69
PLUG; BODY,OIL FILTER
8-94167-883-0
01
1
9602-
●
70
GASKET; PLUG,OIL FILTER
(A) ID=13.6
8-94167-884-0
01
1
9009-9601
●
70
GASKET; PLUG,OIL FILTER
(A) ID=13.6
8-94167-884-0
01
1
9602-
●
70
GASKET; PLUG,OIL FILTER
(B) ID=8.8
8-94167-885-0
01
1
9009-9601
●
70
GASKET; PLUG,OIL FILTER
(B) ID=8.8
8-94167-885-0
01
1
9602-
●
70
GASKET; PLUG,OIL FILTER
(C) ID=6.8
8-94167-886-0
01
1
9009-9601
●
70
GASKET; PLUG,OIL FILTER
(C) ID=6.8
8-94167-886-0
01
1
9602-
●
74
PIPE ASM; CENTER
8-94334-904-0
01
1
9009-9601
●
152
BOLT; CLIP,OIL COOLER HOSE
M8X12 W/LK WASHER
9-01900-812-0
01
1
9009-9204
●
152
BOLT; CLIP,OIL COOLER HOSE
M8X12 W/LK WASHER
0-50040-812-0
01
1
9205-9601
●
217
BOLT; CONNECTOR
M6X12 W/LK WASHER
0-50040-612-0
02
1
9009-9601
●
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94425-298-0
01
1
9009-9307
●
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97065-983-0
01
1
9308-9601
●
328
BOLT; OIL FILTER
M8X30 W/LK WASHER
0-50040-830-0
04
1
9009-9601
●
564
62
63
469
65
70
70
70
69
329
374
362
30
70
70
70
2
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
ELEMENT; OIL FILTER
8-94325-769-0
01
1
9009-9601
●
2
ELEMENT; OIL FILTER
IDN
8-97049-708-1
01
1
9602-0311
●
2
ELEMENT; OIL FILTER
IDN
8-97957-675-1
01
1
0312-
●
30
PIPE ASM; OIL COOLER
8-94475-204-1
01
1
9602-
●
62
COOLER ASM; OIL
8-94325-768-0
01
1
9009-9601
●
62
COOLER ASM; OIL
IDN
8-97117-254-1
01
1
9602-
●
63
GASKET; COOLER TO BRKT
8-94383-720-0
01
1
9602-
●
64
BODY; OIL FILTER & OIL COOLER
8-94334-903-1
01
1
9009-9601
●
64
BODY; OIL FILTER & OIL COOLER
8-97135-351-0
01
1
9602-
●
65
VALVE; OIL COOLER
8-94450-772-0
01
1
9009-9601
●
65
VALVE; OIL COOLER
8-94450-772-0
01
1
9602-
●
69
PLUG; BODY,OIL FILTER
8-94167-883-0
01
1
9009-9601
●
69
PLUG; BODY,OIL FILTER
8-94167-883-0
01
1
9602-
●
70
GASKET; PLUG,OIL FILTER
(A) ID=13.6
8-94167-884-0
01
1
9009-9601
●
70
GASKET; PLUG,OIL FILTER
(A) ID=13.6
8-94167-884-0
01
1
9602-
●
70
GASKET; PLUG,OIL FILTER
(B) ID=8.8
8-94167-885-0
01
1
9009-9601
●
70
GASKET; PLUG,OIL FILTER
(B) ID=8.8
8-94167-885-0
01
1
9602-
●
70
GASKET; PLUG,OIL FILTER
(C) ID=6.8
8-94167-886-0
01
1
9009-9601
●
70
GASKET; PLUG,OIL FILTER
(C) ID=6.8
8-94167-886-0
01
1
9602-
●
329
BOLT; OIL FILTER
M8X30 W/LK WASHER
0-50040-830-0
02
1
9602-9906
●
329
BOLT; OIL FILTER
M8X25 FLANGE
0-28080-825-0
02
1
9907-0512
●
329
BOLT; OIL FILTER
M8X25 FLANGE
0-28050-825-0
02
1
0601-
●
362
NUT; OIL FILTER
M8 FLANGE
0-91150-108-0
02
1
9602-0602
●
362
NUT; OIL FILTER
M8 FLANGE
0-91180-108-0
02
1
0603-
●
374
STUD; OIL FILTER
M8X25 L=37
9-04110-825-0
02
1
9602-0604
●
374
STUD; OIL FILTER
M8X25 L=37
0-41010-825-0
02
1
0605-
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97065-983-1
01
1
9602-0706
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98087-965-0
01
1
0707-
●
564
COOLER ASM; OIL,W/O FILTER
8-97117-964-1
01
1
9602-
●
