0-40 — FUEL INJECTION SYSTEM (#95878) — 138 parça

34 36 36 37 38 39 139 44 45 42 41 149 33 35 31 48 49 51 53 35 33 46 47 43 44 140 32 31 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	5-15300-109-1	04	1	9009-9601	●
31	NOZZLE ASM; INJ	8-97091-051-0	04	1	9602-		●
32	HOLDER ASM; NOZZLE	8-94114-514-0	04	1	9009-9601	●
32	HOLDER ASM; NOZZLE	8-94442-225-0	04	1	9602-		●
33	NOZZLE; INJ	5-15311-021-0	04	1	9009-9601	●
33	NOZZLE; INJ	8-97091-773-0	04	1	9602-		●
34	BOLT; EYE,NOZZLE HOLDER M8X19 FLANGE	1-09675-139-0	04	1	9009-9601	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-603-0	04	1	9009-9601	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9602-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ID=8.2 OD=14.0 T=1.0	9-09571-408-0	08	1	9009-9601	●
37	NUT; CAP,NOZZLE HOLDER	8-94123-518-0	04	1	9009-9601	●
38	GASKET; CAP NUT,NOZZLE HOLDER	9-15339-056-0	04	1	9009-9601	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15339-601-0	04	1	9009-9601	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-003-0	04	1	9009-9601	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-15352-005-0	04	1	9009-9601	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94312-723-0	04	1	9602-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-003-0	04	1	9009-9601	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9602-		●
45	ROD; PUSH,NOZZLE HOLDER	5-15341-002-0	04	1	9009-9601	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9602-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-94174-183-0	04	1	9602-		●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-15315-026-0	04	1	9009-9601	●
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.1 OD=13.6 T=1.27	9-15315-074-0	04	1	9009-9601	●
51	SHIELD; HEAT,INJ NOZZLE	9-15315-027-0	04	1	9009-9601	●
53	WASHER; HEAT SHIELD	9-15315-028-0	04	1	9009-9601	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER	9-15339-057-0	04	1	9009-9601	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	8-94174-142-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.525	8-94174-143-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	8-94174-144-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.575	8-94174-145-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	8-94174-146-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.625	8-94174-147-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	8-94174-148-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.675	8-94174-149-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	8-94174-150-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.725	8-94174-151-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	8-94174-152-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.775	8-94174-153-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	8-94174-154-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.825	8-94174-155-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	8-94174-156-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.875	8-94174-157-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	8-94174-158-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.925	8-94174-159-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	8-94174-160-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.975	8-94174-161-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.000	8-94174-162-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.025	8-94174-163-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.050	8-94174-164-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.075	8-94174-165-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.100	8-94174-166-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.125	8-94174-167-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.150	8-94174-168-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.175	8-94174-169-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.200	8-94174-170-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.225	8-94174-171-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.250	8-94174-172-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.275	8-94174-173-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.300	8-94174-174-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.325	8-94174-175-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.350	8-94174-176-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.375	8-94174-177-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.400	8-94174-178-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.425	8-94174-179-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.450	8-94174-180-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.475	8-94174-181-0	AR	1	9602-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.500	8-94174-182-0	AR	1	9602-		●
149	SCREW; SETTING,NOZZLE HOLDER	9-15359-601-0	04	1	9009-9601	●

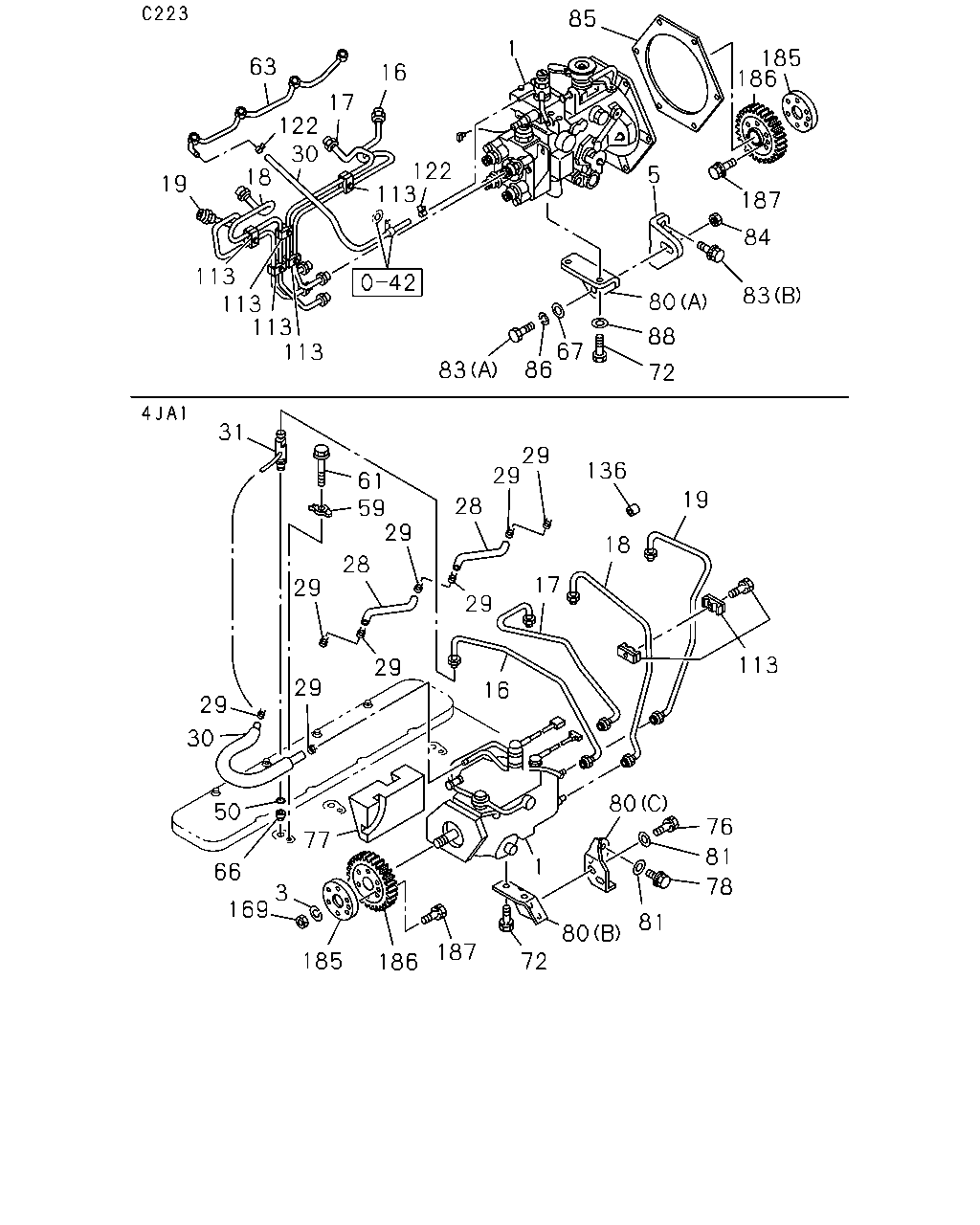

63 122 17 16 1 85 186 185 187 80 88 72 86 67 83 113 113 113 113 19 18 30 122 113 31 61 59 29 29 29 136 19 18 113 17 29 28 16 76 81 78 81 80 72 187 1 186 185 169 3 66 77 50 30 29 29 29 28 29 83 84 5 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94475-188-0	01	1	9009-9106	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97062-817-0	01	1	9107-9408	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. PICK UP(TB*S)	8-97109-866-0	01	1	9409-9601	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97138-315-3	01	1	9602-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. WAGON(TB*V)	8-97109-865-0	01	1	9409-9601	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97138-318-3	01	1	9602-		●
3	WASHER; LK,INJ PUMP	8-94226-554-0	01	1	9602-		●
5	BRACKET; INJ PUMP	8-94238-130-0	01	1	9009-9601	●
16	PIPE; INJ NO.1	8-94456-632-0	01	1	9009-9601	●
16	PIPE; INJ NO.1	8-97134-722-1	01	1	9602-		●
17	PIPE; INJ NO.2	8-94456-633-0	01	1	9009-9601	●
17	PIPE; INJ NO.2	8-97134-723-1	01	1	9602-		●
18	PIPE; INJ NO.3	8-94456-634-0	01	1	9009-9601	●
18	PIPE; INJ NO.3	8-97134-724-1	01	1	9602-		●
19	PIPE; INJ NO.4	8-94456-635-0	01	1	9009-9601	●
19	PIPE; INJ NO.4	8-97134-725-1	01	1	9602-		●
28	HOSE; FUEL,NOZZLE TO NOZZLE	8-94152-353-0	03	1	9602-0308		●
28	HOSE; FUEL,NOZZLE TO NOZZLE	8-97912-623-0	03	1	0309-		●
29	CLIP; HOSE ID=11	8-97173-219-0	02	1	0302-		●
29	CLIP; HOSE ID=12 IDN	8-94238-610-0	09	1	9602-0301		●
29	CLIP; HOSE ID=12 IDN	8-94238-610-0	07	1	0302-0311		●
29	CLIP; HOSE ID=13 IDN	8-94238-571-0	07	1	0312-		●
30	HOSE; RUBBER,FUEL LEAK L=450 SERVICED BY L=3000	0-01254-300-0	01	1	9009-9601	●
30	HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR	8-94427-501-2	01	1	9602-0301		●
30	HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0302-		●
31	NOZZLE ASM; INJ	5-15300-109-1	04	1	9009-9601	●
31	NOZZLE ASM; INJ	8-97091-051-0	04	1	9602-		●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94326-439-0	04	1	9602-0103		●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	0104-		●
59	CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	9602-		●
61	BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	9602-		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94250-310-0	01	1	9009-9601	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9602-9703		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-		●
67	WASHER; PL,BRKT TO BRKT ID=10.5 OD=22	9-09164-610-0	01	1	9009-9601	●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	9009-9601	●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	9602-0512		●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0601-		●
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9602-0512		●
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50540-825-0	02	1	0601-		●
77	RUBBER; SPACE,INJ PUMP	8-97226-808-0	01	1	9904-		●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9602-9612		●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-0512		●
78	BOLT; BRKT TO C/BL M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-		●
80	BRACKET; PUMP (A)	8-94237-980-0	01	1	9009-9601	●
80	BRACKET; PUMP (B)	8-94133-761-1	01	1	9602-0407		●
80	BRACKET; PUMP (B)	8-97368-670-0	01	1	0408-		●
80	BRACKET; PUMP (C)	8-94133-762-2	01	1	9602-0402		●
80	BRACKET; PUMP (C)	8-97368-671-0	01	1	0403-		●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	9602-0605		●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	0-91614-708-0	02	1	0606-		●
83	BOLT; BRKT TO BRKT (A) M10X25	0-20801-025-0	01	1	9009-9601	●
83	BOLT; BRKT TO BRKT (B) M8X75	8-94205-987-1	02	1	9009-9601	●
84	NUT; BRKT TO BRKT M10	9-09110-410-0	01	1	9009-9601	●
85	GASKET; BRKT,INJ PUMP	5-11319-057-0	01	1	9009-9601	●
86	WASHER; LK,BRKT TO BRKT,INJ PUMP MTG ID=10.2	9-09150-510-0	01	1	9009-9601	●
88	WASHER; PL,PUMP & RR BRKT FIX ID=10.5	9-09164-510-0	02	1	9009-9601	●
113	CLIP; INJ PIPE	5-15419-013-1	06	1	9009-9601	●
113	CLIP; INJ PIPE	5-15419-013-1	02	1	9602-		●
122	CLIP; LEAK OFF PIPE ID=11	5-09700-356-0	02	1	9009-9601	●
136	CAP; NOZZLE,FUEL END	8-94473-967-0	01	1	9602-		●
169	NUT; BRKT M14	8-94226-565-0	01	1	9602-		●
185	BLOCK; CENTER	8-94227-337-1	01	1	9410-9601	●
185	BLOCK; CENTER	8-94227-337-1	01	1	9602-0712		●
185	BLOCK; CENTER IDN	8-97562-526-0	01	1	0801-		●
186	GEAR; INJ PUMP	5-12524-066-0	01	1	9410-9601	●
186	GEAR; INJ PUMP IDN	8-97138-807-0	01	1	9602-		●
187	BOLT; GEAR M6X18 W/LK WASHER	0-50040-618-0	06	1	9410-9601	●
187	BOLT; GEAR M6X18 W/LK WASHER	0-50040-618-0	06	1	9602-0909		●
187	BOLT; GEAR M6X18 W/LK WASHER	0-50540-618-0	06	1	0910-		●
