50663 - TBR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

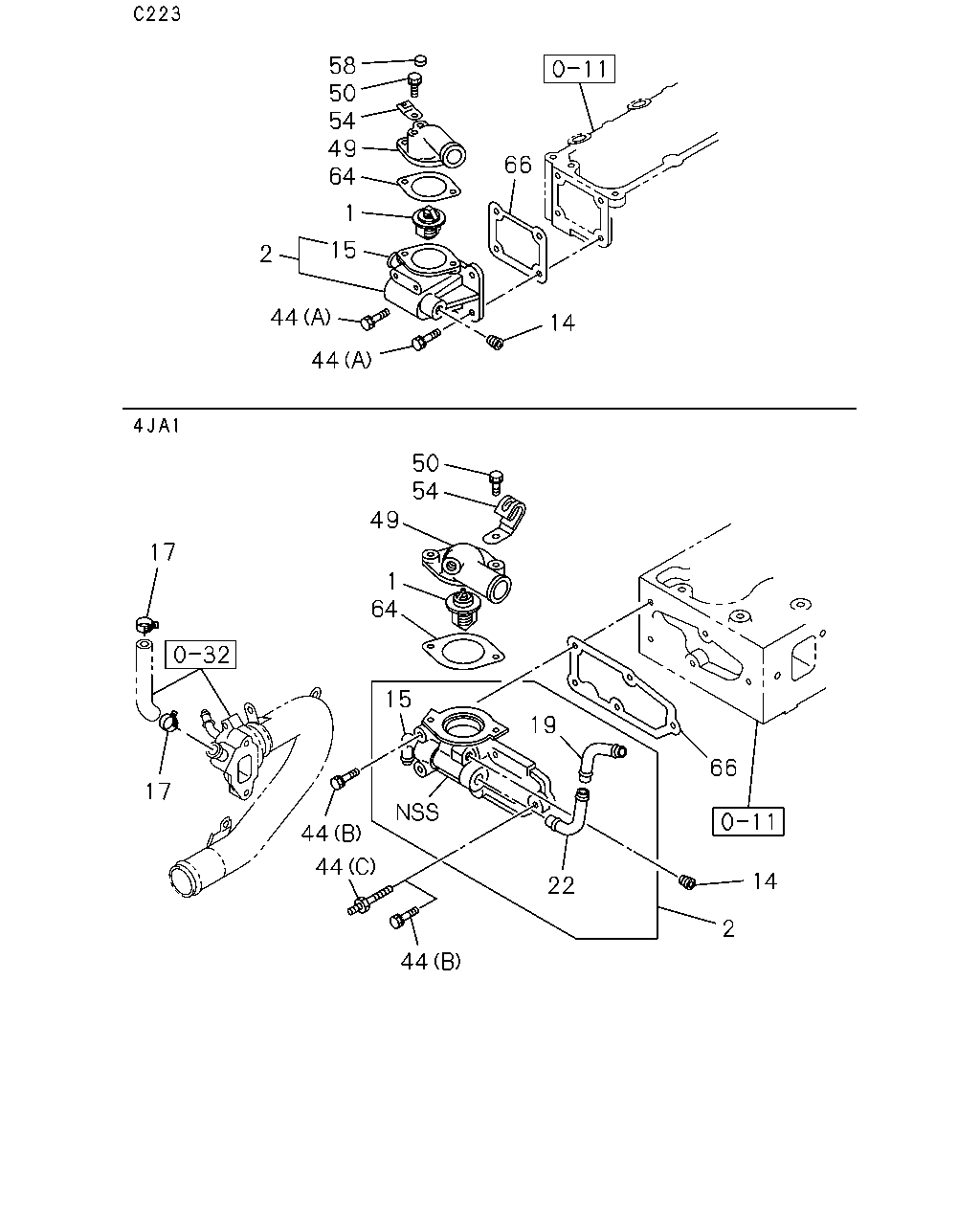

0-31 — THERMOSTAT AND HOUSING
(#95875) — 36 parça
Tümü
A - C223 ENG
B - 4JA1 ENG
14
44
44
2
15
1
64
49
54
50
58
66
50
54
49
1
64
15
19
66
14
2
22
44
44
44
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
82?C
8-94214-962-0
01
1
9009-9404
●
1
THERMOSTAT
82?C
8-97089-891-0
01
1
9405-9601
●
1
THERMOSTAT
82?C
8-97089-891-0
01
1
9602-0301
●
1
THERMOSTAT
82?C
8-97361-770-0
01
1
0302-
●
2
HOUSING; THERMOSTAT
8-94254-603-1
01
1
9009-9601
●
2
HOUSING; THERMOSTAT
8-97117-243-0
01
1
9602-0312
●
2
HOUSING; THERMOSTAT
8-97372-994-1
01
1
0401-
●
14
PLUG; SW
PT3/8
5-09605-005-0
01
1
9009-9601
●
14
PLUG; SW
PT3/8
5-09605-005-0
01
1
9602-
●
15
PIPE; BYPASS
5-13719-047-0
01
1
9009-9601
●
15
PIPE; BYPASS
8-94343-211-1
01
1
9602-
●
17
CLIP; WATER HOSE
ID=20.8
8-94125-862-1
02
1
9602-
●
19
PIPE; HSG TO HTR
8-94478-870-1
01
1
9602-
●
22
PIPE; HTR,RETURN
8-94478-869-2
01
1
9602-
●
44
BOLT; HSG TO HD
(A) M8X20 W/LK WASHER
0-50040-820-0
02
1
9009-9601
●
44
BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X30 W/LK WASHER
0-50040-830-0
04
1
9602-0512
●
44
BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X30 W/LK WASHER
0-50540-830-0
04
1
0601-
●
44
BOLT; HSG TO HD
(A) M8X22 W/LK WASHER
0-50040-822-0
02
1
9009-9601
●
44
BOLT; HSG TO HD
POWER STEERING<N40> (C) M8X28,M8X34 L=69
8-94479-011-1
01
1
9602-
●
44
BOLT; HSG TO HD
EXC. POWER STEERING<N40> (B) M8X30 W/LK WASHER
0-50040-830-0
05
1
9602-0512
●
44
BOLT; HSG TO HD
EXC. POWER STEERING<N40> (B) M8X30 W/LK WASHER
0-50540-830-0
05
1
0601-
●
49
PIPE; WATER OUTLET
8-94254-601-1
01
1
9009-9601
●
49
PIPE; WATER OUTLET
IDN
8-97123-047-0
01
1
9602-
●
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50140-830-0
02
1
9009-9601
●
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50140-830-0
02
1
9602-0512
●
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50640-830-0
02
1
0601-
●
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=8.5
5-09700-275-0
01
1
9009-9601
●
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=12
5-09700-331-0
01
1
9602-0801
●
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=12
8-97367-983-1
01
1
0802-
●
58
PLUG; WATER OUTLET PIPE
PT3/8
5-09605-005-0
01
1
9009-9601
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94362-202-0
01
1
9009-9009
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94365-674-0
01
1
9010-9601
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94365-674-2
01
1
9602-
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94365-681-0
01
1
9009-9601
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94365-675-1
01
1
9602-9902
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97216-156-0
01
1
9903-
●
