0-27 — EXHAUST MANIFOLD (#95872) — 25 parça

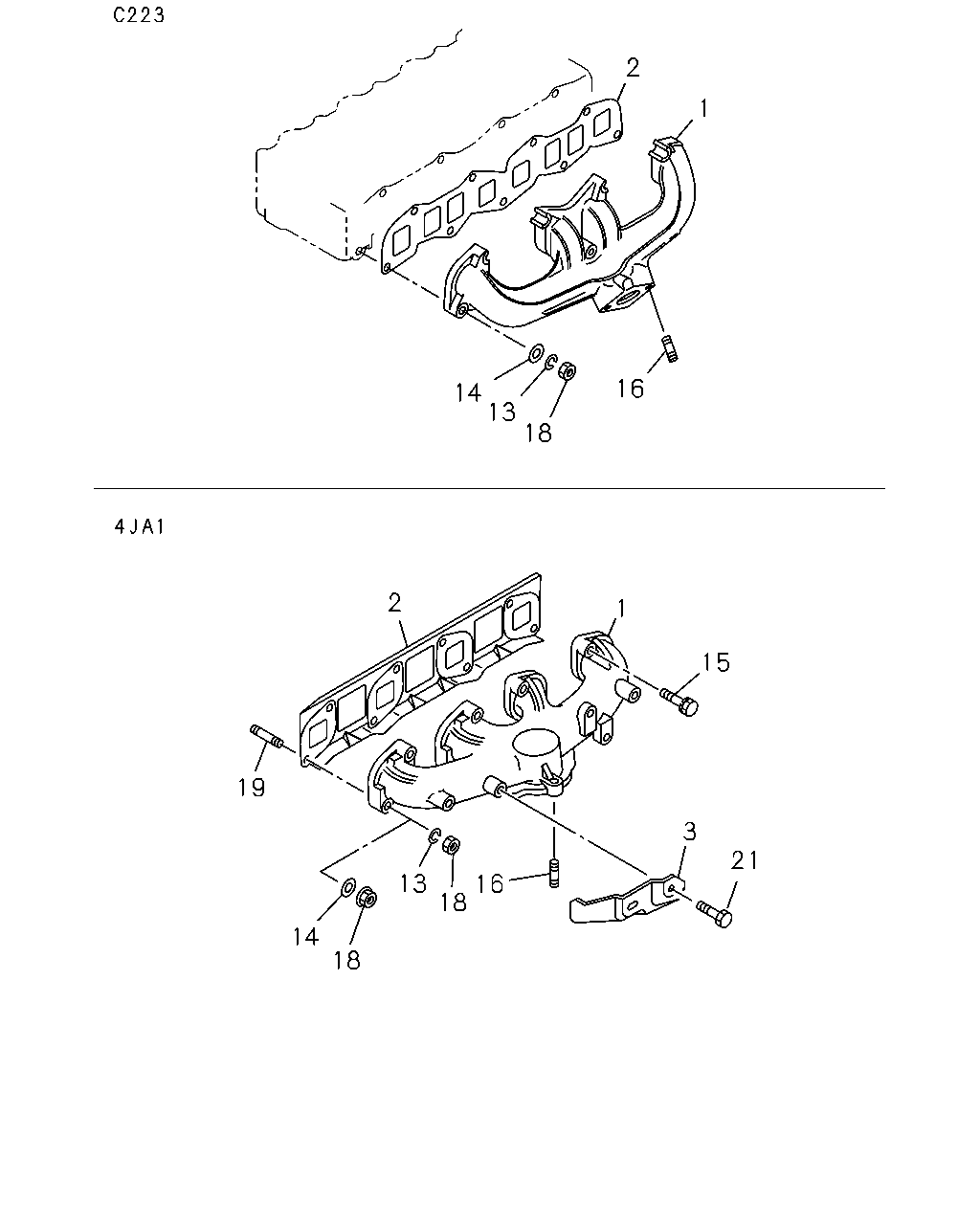

çizim 289297
15 1 2 18 13 14 16 1 2 21 3 16 18 13 18 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; EXHAUST
DELETION 		5-14141-092-0 01 1 9009-9601 ●
1 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9602-0211 ●
1 MANIFOLD; EXHAUST
IDN 		8-97977-309-0 01 1 0212- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		5-14146-018-0 01 1 9009-9601 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-2 01 1 9602-0210 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0211-0309 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-609-2 01 1 0310- ●
3 PROTECTOR; HEAT,EXH MANIF 8-97131-704-0 01 1 9602- ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 07 1 9009-9601 ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9602-9606 ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09164-608-0 07 1 9009-9601 ●
14 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9607-0006 ●
14 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9602-9606 ●
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
16 STUD; EXH PIPE TO MANIF
M10X33 L=48 		5-09302-002-0 02 1 9009-9601 ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 PLATING 		5-09302-008-1 02 1 9602- ●
18 NUT; EXH MANIF
M8 		9-09110-408-0 07 1 9009-9601 ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9602-9606 ●
18 NUT; EXH MANIF
M8 FLANGE IDN 		0-91150-208-0 02 1 9607-0602 ●
18 NUT; EXH MANIF
M8 FLANGE IDN 		0-91180-208-0 02 1 0603- ●
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9602-0408 ●
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0409- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9602-0512 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
