50663 - TBR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#95871) — 30 parça
Tümü
A - 4JA1 ENG
B - C223 ENG
◀
[025A] 4JA1 ENG (26 parça)
[025A] C223 ENG (4 parça)
▶

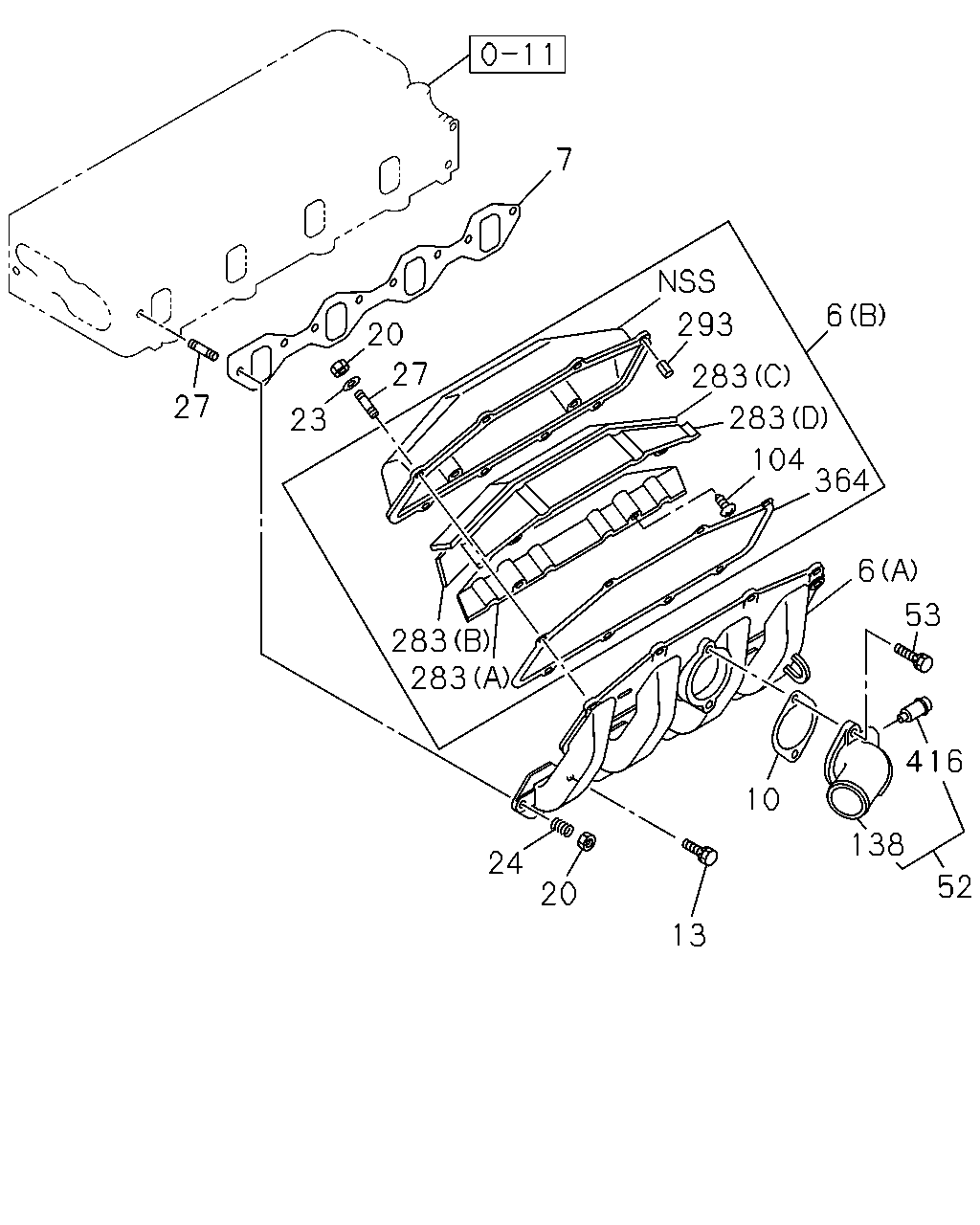

52
138
416
10
13
20
24
283
283
53
6
364
104
283
283
293
6
7
27
20
23
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
MANIFOLD; INL,UPR
(A) IDN
8-97132-539-1
01
1
9602-
●
6
MANIFOLD; INL,UPR
(B) IDN
8-97143-583-0
01
1
9602-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94442-213-0
01
1
9602-
●
10
GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97035-883-1
01
1
9602-
●
13
BOLT; INL MANIF
M6X35 W/LK&PL WASHER
0-50140-635-0
06
1
9602-0512
●
13
BOLT; INL MANIF
M6X35 W/LK&PL WASHER
0-50640-635-0
06
1
0601-
●
20
NUT; INL MANIF
M6 FLANGE IDN
5-09440-004-0
02
1
9602-
●
20
NUT; INL MANIF
M8 FLANGE
5-14129-011-0
08
1
9602-
●
23
WASHER; PL,INL MANIF
ID=12.5
9-09164-512-0
08
1
9602-
●
24
SPRING; INL MANIF
5-09580-105-1
08
1
9602-
●
27
STUD; INL MANIF
M8X62
5-14129-005-2
08
1
9602-
●
27
STUD; INL MANIF
M6X30 L=38
9-04110-630-0
02
1
9602-0604
●
27
STUD; INL MANIF
M6X30 L=38
0-41010-630-0
02
1
0605-
●
52
PIPE; INL
8-97115-866-0
01
1
9602-
●
53
BOLT; INL PIPE
M10X28 W/LK WASHER
0-50041-028-0
02
1
9602-0909
●
53
BOLT; INL PIPE
M10X28 W/LK WASHER
0-50541-028-0
02
1
0910-
●
104
SCREW
M4X8 TAPPING W/PL WASHER
0-74100-408-0
06
1
9602-9701
●
104
SCREW
8-97173-324-0
06
1
9702-
●
138
PIPE; INL
8-97115-992-0
01
1
9602-
●
283
RUBBER
(D) IDN
8-97142-716-0
01
1
9602-
●
283
RUBBER
(C) IDN
8-97142-717-0
01
1
9602-
●
283
RUBBER
(B) IDN
8-97142-718-0
01
1
9602-
●
283
RUBBER
(A) IDN
8-97142-719-0
01
1
9602-
●
293
SPACER; INL MANIF
8-97078-151-0
08
1
9602-
●
364
GASKET
8-97078-152-0
01
1
9602-
●
416
NIPPLE; BREATHER HOSE
OD=15 L=41
8-94442-052-0
01
1
9602-
●

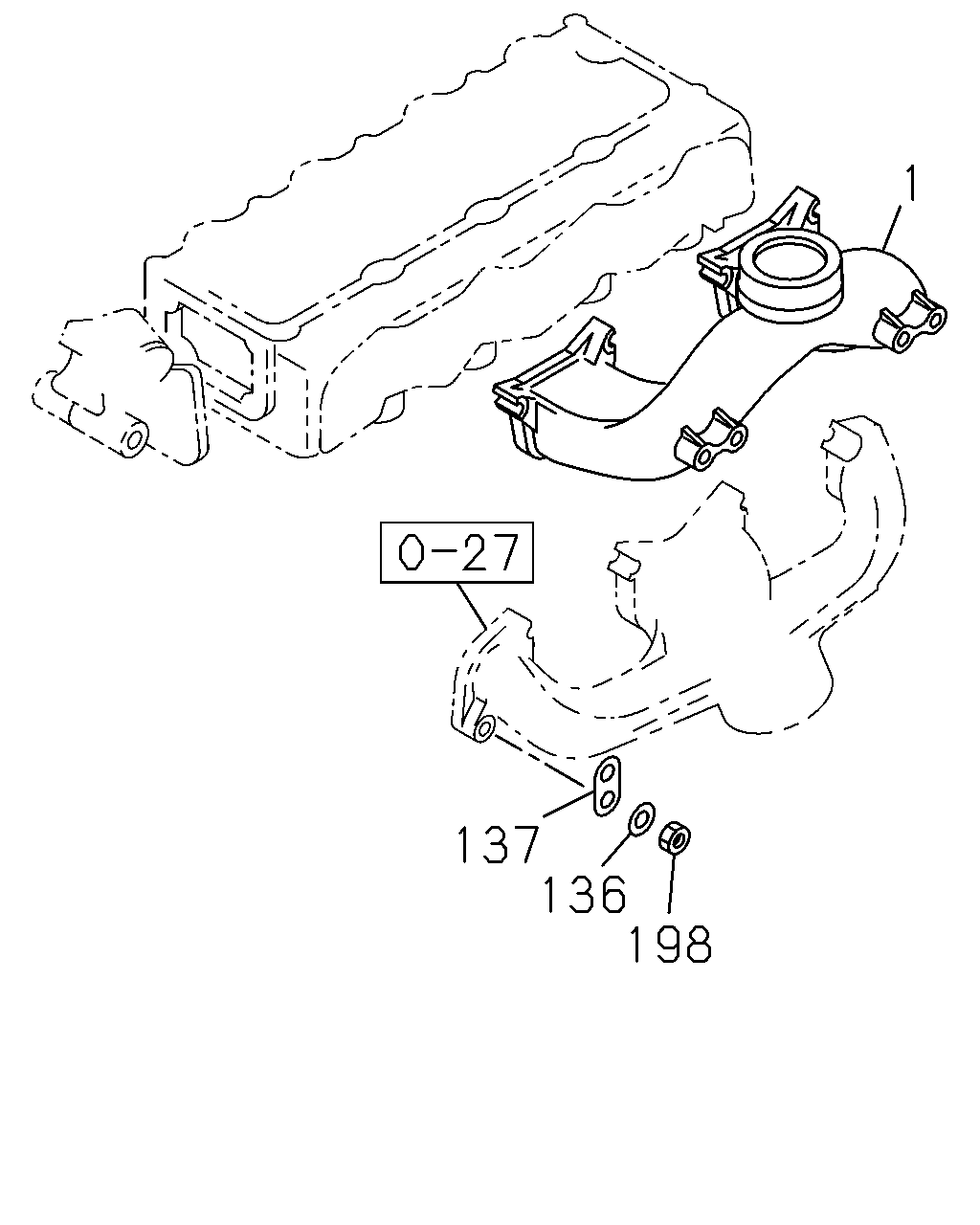

198
136
137
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
DELETION
5-14111-213-0
01
1
9009-9601
●
136
WASHER; LK,CLIP PLATE
EXC. POWER STEERING<N40> ID=10.2
9-09150-510-0
01
1
9009-9601
●
137
PLATE; CLIP,HOSE & PIPE
EXC. POWER STEERING<N40>
5-11149-001-0
01
1
9009-9601
●
198
NUT; CLIP PLATE
EXC. POWER STEERING<N40> M10
9-09110-510-0
01
1
9009-9601
●
