0-22 — ENGINE MOUNTING (#95870) — 99 parça

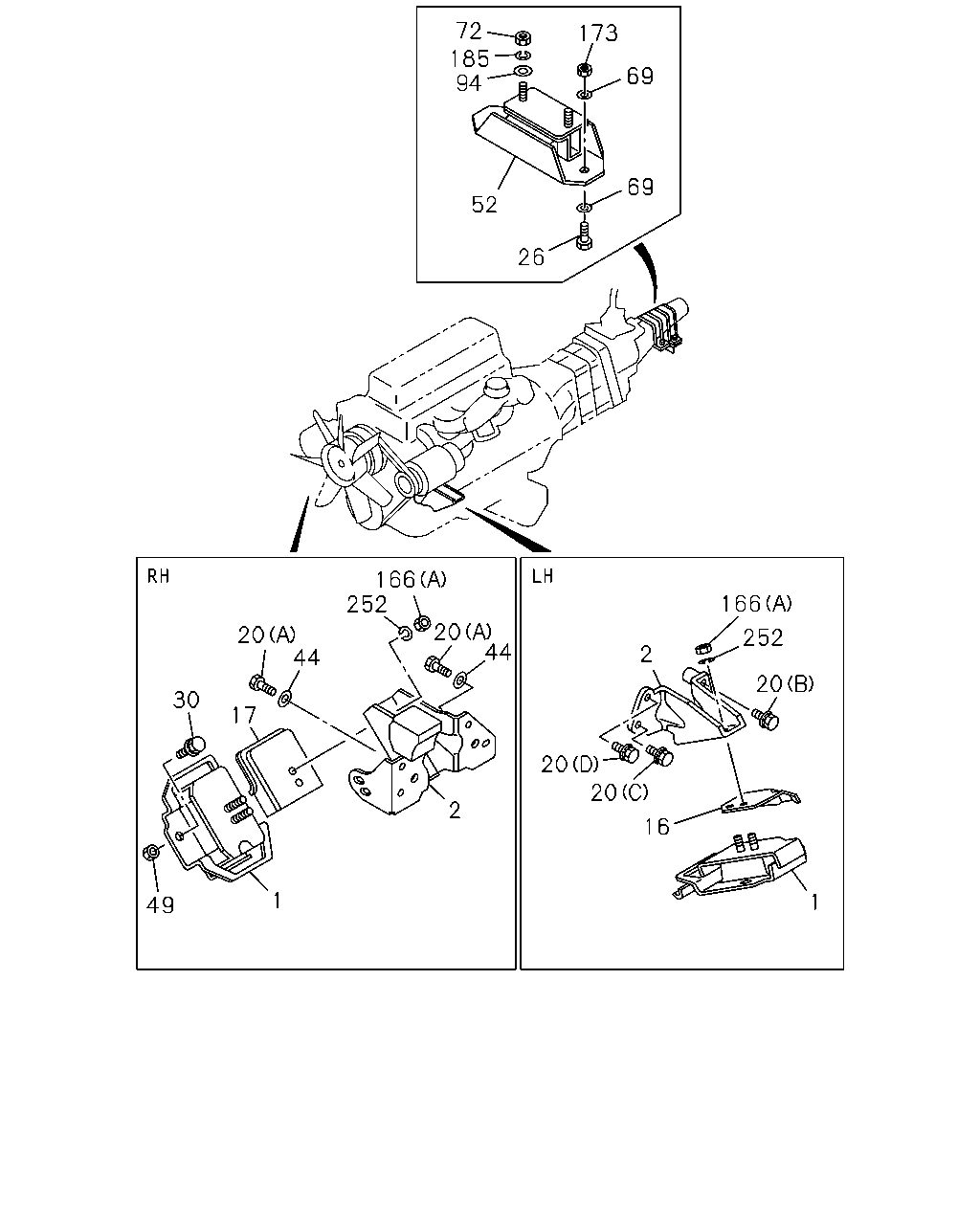

çizim 289192
1 16 20 20 2 20 252 166 44 2 20 166 252 44 20 17 30 1 49 26 52 69 69 173 94 185 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97029-579-0 01 1 9009-9601 ●
1 RUBBER; ENG FOOT,FRT 8-97039-190-2 01 1 9602-9604 ●
1 RUBBER; ENG FOOT,FRT 8-97086-076-1 01 1 9605- ●
1 RUBBER; ENG FOOT,FRT 8-97029-580-0 01 1 9009-9601 ●
1 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9602- ●
2 FOOT; ENG 8-94453-547-1 01 1 9009-9601 ●
2 FOOT; ENG 8-97038-196-1 01 1 9602-0309 ●
2 FOOT; ENG
TRM THA 		8-97910-109-0 01 1 0310- ●
2 FOOT; ENG 8-94104-693-0 01 1 9009-9601 ●
2 FOOT; ENG 8-97038-195-1 01 1 9602-0309 ●
2 FOOT; ENG
TRM THA 		8-97910-108-0 01 1 0310- ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-94412-507-1 01 1 9009-9601 ●
17 COVER; CUSHION RUBBER,FRT 8-94104-797-0 01 1 9009-9601 ●
20 BOLT; ENG FOOT
(D) M10X20 W/LK WASHER IDN 		0-50041-020-0 02 1 9009-9601 ●
20 BOLT; ENG FOOT
(E) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9602-0909 ●
20 BOLT; ENG FOOT
(E) M10X22 W/LK WASHER 		0-50541-022-0 06 1 0910- ●
20 BOLT; ENG FOOT
(B) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9009-9601 ●
20 BOLT; ENG FOOT
(B) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9602-0512 ●
20 BOLT; ENG FOOT
(B) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601- ●
20 BOLT; ENG FOOT
(C) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9009-9601 ●
20 BOLT; ENG FOOT
(C) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9602-0512 ●
20 BOLT; ENG FOOT
(C) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0601- ●
20 BOLT; ENG FOOT
(A) M10X25 		9-02061-025-0 02 1 9009-9601 ●
20 BOLT; ENG FOOT
(A) M10X30 		9-02061-030-0 02 1 9009-9601 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9009-9601 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9602-0005 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0006-0512 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
30 BOLT; BRKT TO FRAME
M10X25 		8-94147-115-0 04 1 9009-9601 ●
30 BOLT; BRKT TO FRAME
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9602- ●
44 WASHER; LK,ENG FOOT
ID=10.5 OD=22 T=4 		1-09503-045-0 04 1 9009-9601 ●
49 NUT; CUSHION RUBBER TO FRAME
M10 		9-09110-410-0 02 1 9009-9601 ●
49 NUT; CUSHION RUBBER TO FRAME
M10 FLANGE 		8-94126-973-0 02 1 9602- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94135-985-1 01 1 9009-9601 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94434-208-1 01 1 9602- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=26 		9-09164-710-0 04 1 9009-9601 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 02 1 9009-9601 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 02 1 9602-0512 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		0-91110-510-0 02 1 0601- ●
94 WASHER; PL,BRKT
ID=10.5 		9-09164-510-0 02 1 9009-9601 ●
94 WASHER; PL,BRKT
ID=10.5 		9-09164-510-0 02 1 9602- ●
166 NUT; SUPPORT RUBBER
(A) M10 		9-09110-410-0 04 1 9009-9601 ●
166 NUT; SUPPORT RUBBER
(A) M10 		9-09110-410-0 04 1 9602-9710 ●
166 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91150-110-0 04 1 9711-9712 ●
166 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91150-210-0 04 1 9801-0602 ●
166 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 02 1 9009-9601 ●
185 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9009-9601 ●
185 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9602-0603 ●
185 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ●
252 WASHER; LK,SUPPORT RUBBER
ID=10.2 		9-09150-610-0 04 1 9009-9601 ●
252 WASHER; LK,SUPPORT RUBBER
ID=10.2 		9-09150-810-0 04 1 9602-9710 ●

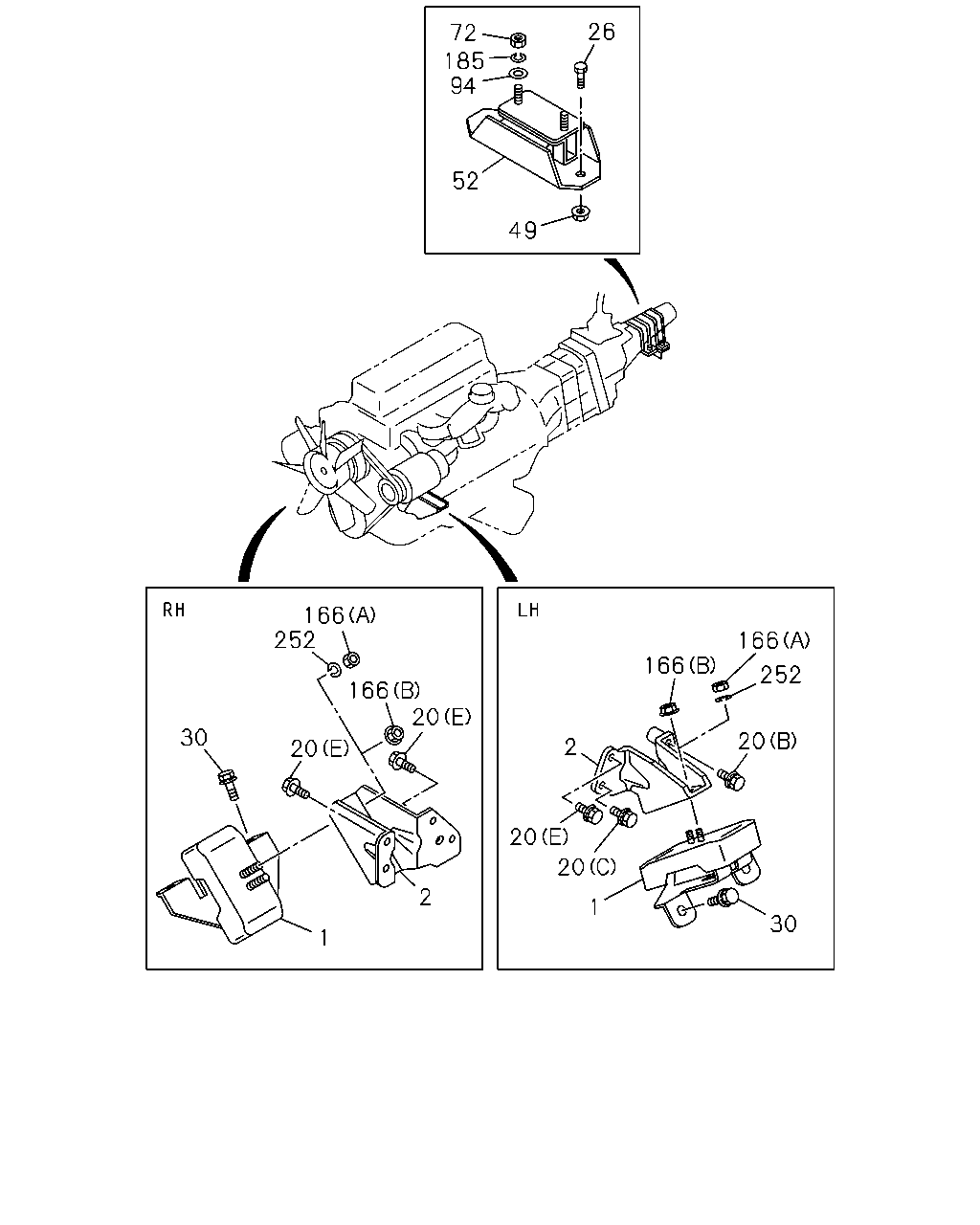

çizim 289222
26 72 185 94 52 49 166 166 252 20 30 1 20 20 2 20 166 166 252 30 20 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97029-579-0 01 1 9009-9601 ●
1 RUBBER; ENG FOOT,FRT 8-97039-190-2 01 1 9602-9604 ●
1 RUBBER; ENG FOOT,FRT 8-97086-076-1 01 1 9605- ●
1 RUBBER; ENG FOOT,FRT 8-97029-580-0 01 1 9009-9601 ●
1 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9602- ●
2 FOOT; ENG 8-94453-547-1 01 1 9009-9601 ●
2 FOOT; ENG 8-97038-196-1 01 1 9602-0309 ●
2 FOOT; ENG
TRM THA 		8-97910-109-0 01 1 0310- ●
2 FOOT; ENG 8-94104-693-0 01 1 9009-9601 ●
2 FOOT; ENG 8-97038-195-1 01 1 9602-0309 ●
2 FOOT; ENG
TRM THA 		8-97910-108-0 01 1 0310- ●
20 BOLT; ENG FOOT
(D) M10X20 W/LK WASHER IDN 		0-50041-020-0 02 1 9009-9601 ●
20 BOLT; ENG FOOT
(E) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9602-0909 ●
20 BOLT; ENG FOOT
(E) M10X22 W/LK WASHER 		0-50541-022-0 06 1 0910- ●
20 BOLT; ENG FOOT
(B) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9009-9601 ●
20 BOLT; ENG FOOT
(B) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9602-0512 ●
20 BOLT; ENG FOOT
(B) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601- ●
20 BOLT; ENG FOOT
(C) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9009-9601 ●
20 BOLT; ENG FOOT
(C) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9602-0512 ●
20 BOLT; ENG FOOT
(C) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0601- ●
20 BOLT; ENG FOOT
(A) M10X25 		9-02061-025-0 02 1 9009-9601 ●
20 BOLT; ENG FOOT
(A) M10X30 		9-02061-030-0 02 1 9009-9601 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9009-9601 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9602-0005 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0006-0512 ●
26 BOLT; CUSHION RUBBER TO MTG BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
30 BOLT; BRKT TO FRAME
M10X25 		8-94147-115-0 04 1 9009-9601 ●
30 BOLT; BRKT TO FRAME
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9602- ●
49 NUT; CUSHION RUBBER TO FRAME
M10 		9-09110-410-0 02 1 9009-9601 ●
49 NUT; CUSHION RUBBER TO FRAME
M10 FLANGE 		8-94126-973-0 02 1 9602- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94135-985-1 01 1 9009-9601 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94434-208-1 01 1 9602- ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 02 1 9009-9601 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 02 1 9602-0512 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		0-91110-510-0 02 1 0601- ●
94 WASHER; PL,BRKT
ID=10.5 		9-09164-510-0 02 1 9009-9601 ●
94 WASHER; PL,BRKT
ID=10.5 		9-09164-510-0 02 1 9602- ●
166 NUT; SUPPORT RUBBER
(A) M10 		9-09110-410-0 04 1 9009-9601 ●
166 NUT; SUPPORT RUBBER
(A) M10 		9-09110-410-0 04 1 9602-9710 ●
166 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91150-110-0 04 1 9711-9712 ●
166 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91150-210-0 04 1 9801-0602 ●
166 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
185 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9009-9601 ●
185 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9602-0603 ●
185 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ●
252 WASHER; LK,SUPPORT RUBBER
ID=10.2 		9-09150-610-0 04 1 9009-9601 ●
252 WASHER; LK,SUPPORT RUBBER
ID=10.2 		9-09150-810-0 04 1 9602-9710 ●
