0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#95869) — 112 parça

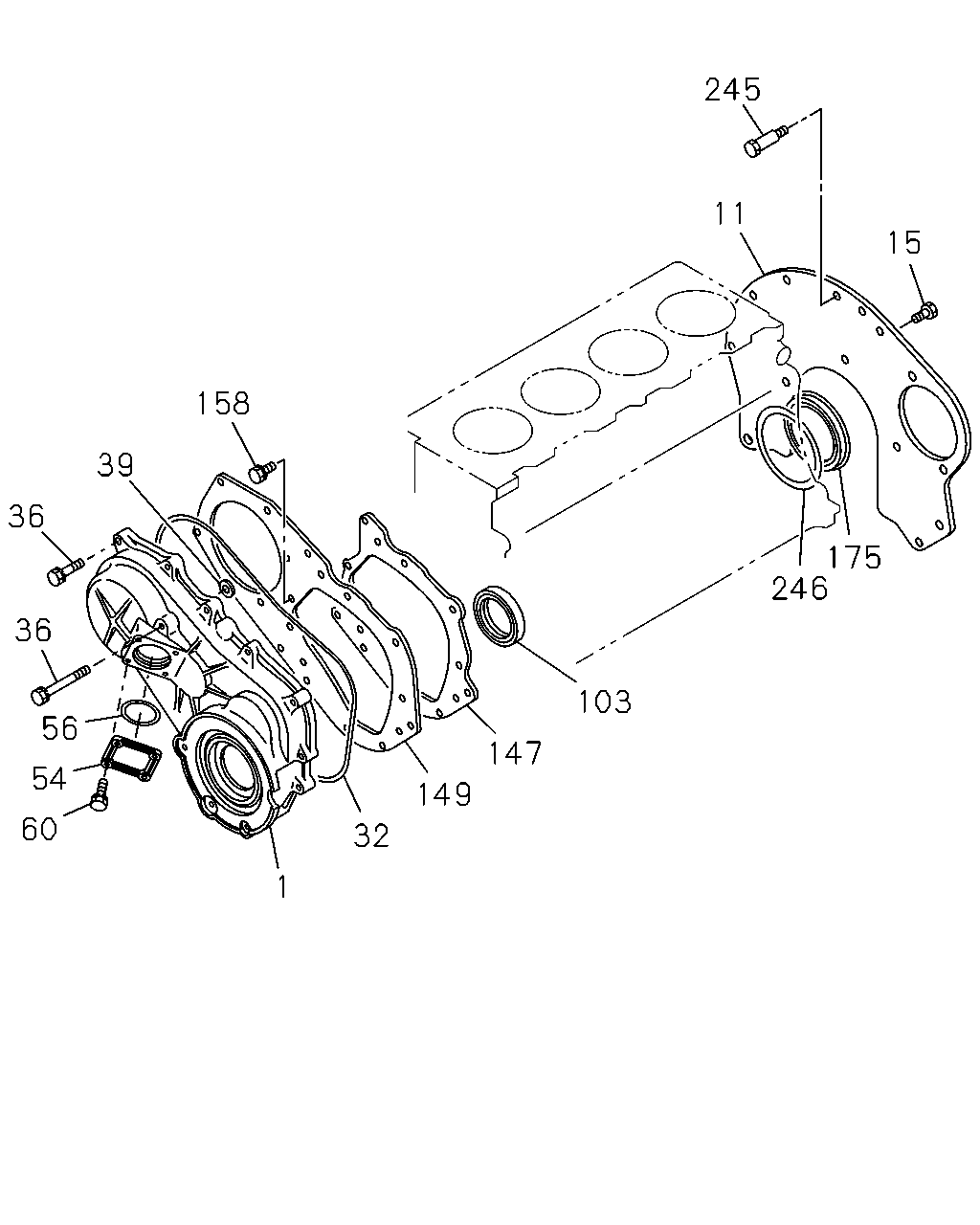

175 246 103 147 149 32 1 60 54 56 36 36 39 158 11 245 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	5-11311-067-2	01	1	9009-9601	●
1	CASE; TIMING GEAR IDN	8-94155-361-4	01	1	9602-0302		●
1	CASE; TIMING GEAR IDN	8-97562-251-0	01	1	0303-		●
11	PLATE; RR,C/BL	8-94329-551-0	01	1	9009-9601	●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9602-0103		●
11	PLATE; RR,C/BL THA	8-97912-556-0	01	1	0104-		●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9009-9601	●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9602-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11312-034-0	01	1	9009-9601	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	9602-		●
36	BOLT; GEAR CASE M8X32 W/LK WASHER	0-50040-832-0	07	1	9009-9601	●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	06	1	9602-0909		●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-		●
36	BOLT; GEAR CASE M8X65 W/LK WASHER	8-94205-986-1	02	1	9009-9601	●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	9602-0909		●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-		●
39	GASKET; TIMING GEAR CASE	9-11312-046-0	02	1	9009-9601	●
54	COVER; GEAR CASE	9-11321-148-0	01	1	9009-9601	●
54	COVER; GEAR CASE	8-97131-705-0	01	1	9602-9807		●
54	COVER; GEAR CASE IDN	8-97940-716-0	01	1	9808-		●
56	GASKET; GEAR CASE TO COVER	9-09920-601-0	01	1	9009-9601	●
56	GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9602-9910		●
56	GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0106		●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0107-		●
60	BOLT; COVER TO CASE CASE-COVER M6X14 W/LK WASHER	9-01900-614-0	04	1	9009-9204	●
60	BOLT; COVER TO CASE CASE-COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9205-9601	●
60	BOLT; COVER TO CASE CASE-COVER M8X32 W/LK WASHER	0-50040-832-0	08	1	9602-9906		●
60	BOLT; COVER TO CASE CASE-COVER M8X30 FLANGE	0-28080-830-0	08	1	9907-0512		●
60	BOLT; COVER TO CASE CASE-COVER M8X30 FLANGE	0-28050-830-0	08	1	0601-		●
60	BOLT; COVER TO CASE CASE-C/B M8X60 W/LK WASHER	0-50040-860-0	01	1	9602-9906		●
60	BOLT; COVER TO CASE CASE-C/B M8X58 FLANGE	8-94130-055-1	01	1	9907-		●
60	BOLT; COVER TO CASE CASE-I/P M8X65 W/LK WASHER	8-94205-986-1	06	1	9602-9903		●
60	BOLT; COVER TO CASE CASE-I/P M8X60 FLANGE	0-28080-860-0	06	1	9904-0201		●
60	BOLT; COVER TO CASE CASE-I/P M8X70 W/LK WASHER	0-50040-870-0	06	1	0202-0512		●
60	BOLT; COVER TO CASE CASE-I/P M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-		●
60	BOLT; COVER TO CASE CASE-C/B M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9602-0108		●
60	BOLT; COVER TO CASE CASE-C/B M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0109-0512		●
60	BOLT; COVER TO CASE CASE-C/B M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-079-0	01	1	9009-9112	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9201-9601	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9602-0206		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-		●
147	GASKET; FRT PLATE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97023-364-0	01	1	9010-9104	●
147	GASKET; FRT PLATE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	5-11312-011-0	01	1	9105-9601	●
149	PLATE; FRT,C/BL	9-11311-153-0	01	1	9009-9601	●
158	BOLT; FRT PLATE M8X20 W/LK WASHER	9-01900-820-0	03	1	9009-9204	●
158	BOLT; FRT PLATE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9601	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9009-9601	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9602-		●
245	BOLT; C/BL TO TRANS CASE M10X52	9-09806-020-0	01	1	9009-9601	●
246	SPACER; OIL SEAL,CR/SHF	9-12363-112-1	01	1	9009-9601	●

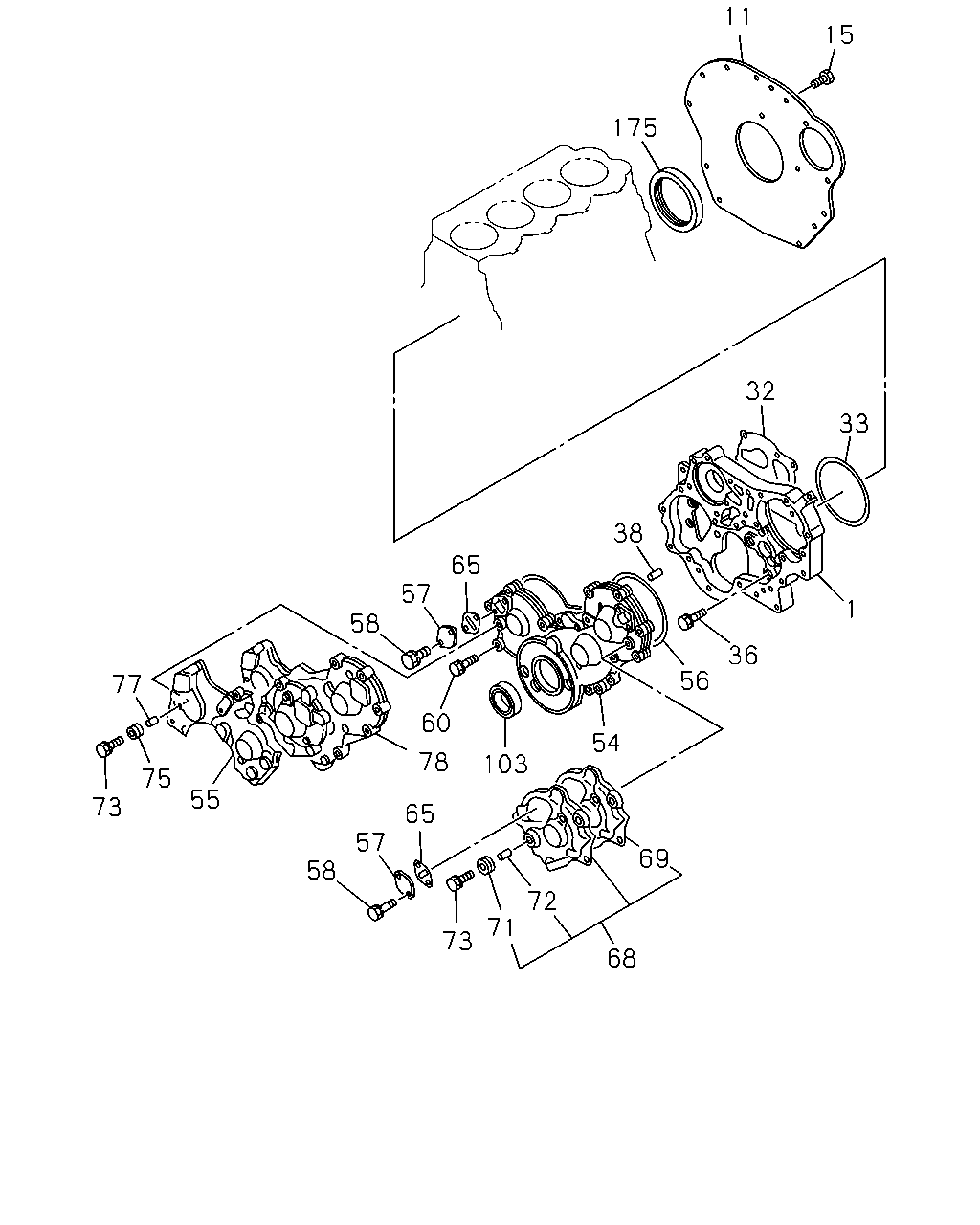

1 33 32 38 36 56 54 103 69 68 72 71 73 65 57 58 78 60 65 57 58 77 55 75 73 15 11 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	5-11311-067-2	01	1	9009-9601	●
1	CASE; TIMING GEAR IDN	8-94155-361-4	01	1	9602-0302		●
1	CASE; TIMING GEAR IDN	8-97562-251-0	01	1	0303-		●
11	PLATE; RR,C/BL	8-94329-551-0	01	1	9009-9601	●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9602-0103		●
11	PLATE; RR,C/BL THA	8-97912-556-0	01	1	0104-		●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9009-9601	●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9602-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11312-034-0	01	1	9009-9601	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	9602-		●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9602-0309		●
33	GASKET; BRKT TO CASE THA	8-97912-581-0	01	1	0310-		●
36	BOLT; GEAR CASE M8X32 W/LK WASHER	0-50040-832-0	07	1	9009-9601	●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	06	1	9602-0909		●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-		●
36	BOLT; GEAR CASE M8X65 W/LK WASHER	8-94205-986-1	02	1	9009-9601	●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	9602-0909		●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-		●
38	PIN; GEAR CASE COVER OD=10 L=20	9-08151-020-0	02	1	9602-0201		●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	0202-		●
54	COVER; GEAR CASE	9-11321-148-0	01	1	9009-9601	●
54	COVER; GEAR CASE	8-97131-705-0	01	1	9602-9807		●
54	COVER; GEAR CASE IDN	8-97940-716-0	01	1	9808-		●
55	COVER; NOISE SHIELD	8-94420-293-3	01	1	9602-		●
56	GASKET; GEAR CASE TO COVER	9-09920-601-0	01	1	9009-9601	●
56	GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9602-9910		●
56	GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0106		●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0107-		●
57	COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9602-		●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9602-0909		●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50540-614-0	04	1	0910-		●
60	BOLT; COVER TO CASE CASE-COVER M6X14 W/LK WASHER	9-01900-614-0	04	1	9009-9204	●
60	BOLT; COVER TO CASE CASE-COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9205-9601	●
60	BOLT; COVER TO CASE CASE-COVER M8X32 W/LK WASHER	0-50040-832-0	08	1	9602-9906		●
60	BOLT; COVER TO CASE CASE-COVER M8X30 FLANGE	0-28080-830-0	08	1	9907-0512		●
60	BOLT; COVER TO CASE CASE-COVER M8X30 FLANGE	0-28050-830-0	08	1	0601-		●
60	BOLT; COVER TO CASE CASE-C/B M8X60 W/LK WASHER	0-50040-860-0	01	1	9602-9906		●
60	BOLT; COVER TO CASE CASE-C/B M8X58 FLANGE	8-94130-055-1	01	1	9907-		●
60	BOLT; COVER TO CASE CASE-I/P M8X65 W/LK WASHER	8-94205-986-1	06	1	9602-9903		●
60	BOLT; COVER TO CASE CASE-I/P M8X60 FLANGE	0-28080-860-0	06	1	9904-0201		●
60	BOLT; COVER TO CASE CASE-I/P M8X70 W/LK WASHER	0-50040-870-0	06	1	0202-0512		●
60	BOLT; COVER TO CASE CASE-I/P M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-		●
60	BOLT; COVER TO CASE CASE-C/B M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9602-0108		●
60	BOLT; COVER TO CASE CASE-C/B M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0109-0512		●
60	BOLT; COVER TO CASE CASE-C/B M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-		●
65	GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9602-0309		●
65	GASKET; COVER,TIMING CHECK HOLE IDN	8-97922-242-0	02	1	0310-		●
68	COVER ASM; GEAR CASE COVER	8-94423-518-3	01	1	9602-		●
69	SEAL; RUBBER,COVER TO COVER	8-94423-517-2	01	1	9602-		●
71	RUBBER; MTG,COVER	5-19389-002-0	02	1	9602-		●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	02	1	9602-		●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9602-		●
75	RUBBER; NOISE COVER MTG,TIMING GEAR CA	5-19389-002-0	02	1	9602-		●
77	BUSHING; MTG RUBBER,NOISE COVER	5-19389-009-0	02	1	9602-		●
78	SPACER; MTG RUBBER,NOISE COVER	8-97131-706-1	01	1	9602-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-079-0	01	1	9009-9112	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9201-9601	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9602-0206		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9009-9601	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9602-		●
