0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#95868) — 133 parça

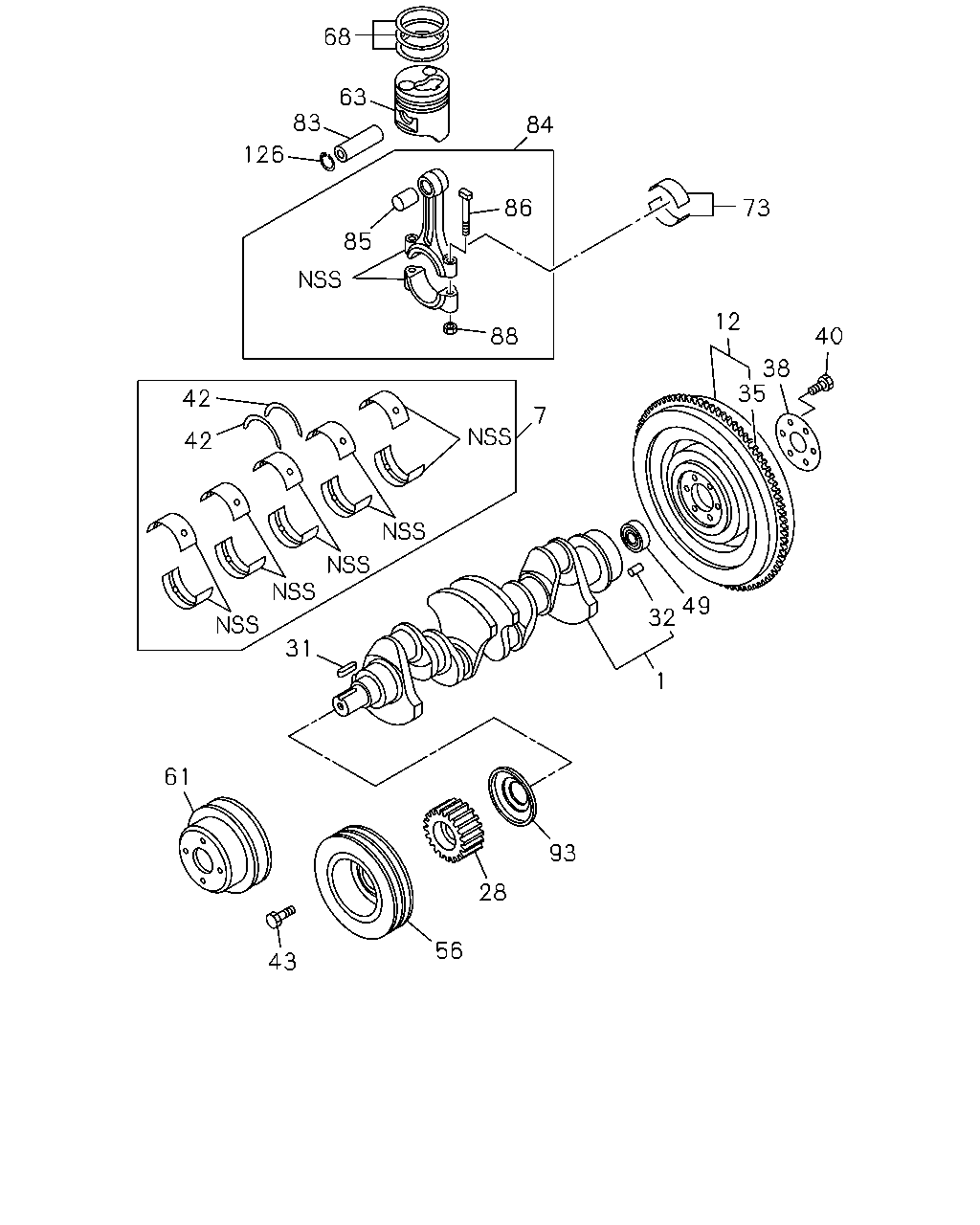

93 28 56 43 61 31 1 32 49 35 38 12 40 73 84 86 88 7 42 42 85 126 83 63 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94118-828-0	01	1	9009-9601	●
1	CRANKSHAFT	8-94455-240-1	01	1	9602-0103		●
1	CRANKSHAFT THA	8-97912-703-0	01	1	0104-0306		●
1	CRANKSHAFT IDN	8-97943-034-0	01	1	0307-		●
7	METAL KIT; CRANKSHAFT,STANDARD	8-94118-830-0	01	1	9009-9601	●
12	FLYWHEEL	8-94454-842-0	01	1	9009-9601	●
12	FLYWHEEL	8-94172-529-1	01	1	9602-		●
28	GEAR; CR/SHF Z=21	9-12521-042-0	01	1	9009-9601	●
28	GEAR; CR/SHF Z=30 IDN	8-97138-715-0	01	1	9602-		●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9009-9601	●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9602-		●
32	PIN; FLYWHEEL OD=12 L=20	9-08161-220-0	01	1	9009-9601	●
35	GEAR; RING Z=108	8-94419-602-0	01	1	9009-9601	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	9602-0402		●
38	WASHER; FLYWHEEL	5-12336-010-1	01	1	9009-9601	●
38	WASHER; FLYWHEEL	8-94133-970-1	01	1	9602-1005		●
38	WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-		●
40	BOLT; FLYWHEEL M13X36.5	8-94433-991-0	06	1	9009-9312	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	06	1	9401-9601	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9602-		●
42	WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9009-9601	●
42	WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9602-0208		●
42	WASHER; THRUST,CR/SHF IDN	8-97957-095-0	02	1	0209-		●
43	BOLT; CR/SHF PULLEY	8-94340-597-0	01	1	9009-9601	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9602-		●
49	BEARING; PILOT DELETION	9-00090-679-0	01	1	9009-9601	●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE	8-94454-868-1	01	1	9009-9601	●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE	8-97138-489-0	01	1	9602-0109		●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE IDN	8-97957-631-0	01	1	0110-		●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94475-181-1	01	1	9009-9601	●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-97138-490-0	01	1	9602-0109		●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE IDN	8-97957-632-0	01	1	0110-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-94111-751-0	01	1	9009-9601	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	9602-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-592-0	04	1	9009-9601	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-593-0	04	1	9009-9601	●
63	PISTON ALSO INCLUDED IN LINER SET.	8-97089-892-0	04	1	9602-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94253-736-0	04	1	9009-9601	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	9602-		●
73	METAL SET; CONN ROD,STANDARD	8-94462-943-0	04	1	9009-9601	●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9602-0210		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-017-0	04	1	9009-9601	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9602-		●
84	ROD ASM; CONN	8-94454-844-2	04	1	9009-9601	●
84	ROD ASM; CONN IDN	8-94333-119-0	04	1	9602-0103		●
84	ROD ASM; CONN THA	8-97915-828-1	04	1	0104-0306		●
84	ROD ASM; CONN IDN	8-97943-031-3	04	1	0307-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	5-12251-005-0	04	1	9009-9601	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. IDN	8-94419-455-0	04	1	9602-0112		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. THA	8-97288-551-0	04	1	0201-0706		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0707-		●
86	BOLT; CONNROD M11X59 IDN	5-12235-009-0	08	1	9009-9105	●
86	BOLT; CONNROD M11X59	8-94419-729-1	08	1	9106-9409	●
86	BOLT; CONNROD M11X59 IDN	5-12235-009-0	08	1	9409-9601	●
86	BOLT; CONNROD M11X59 IDN	5-12235-009-0	08	1	9602-		●
88	NUT; CONNROD M11 IDN	5-09409-016-0	08	1	9009-9601	●
88	NUT; CONNROD M11 IDN	5-09409-016-0	08	1	9602-		●
93	THROWER; OIL,CR/SHF	9-12362-039-0	01	1	9009-9601	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	5-09587-001-0	08	1	9009-9601	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9602-		●

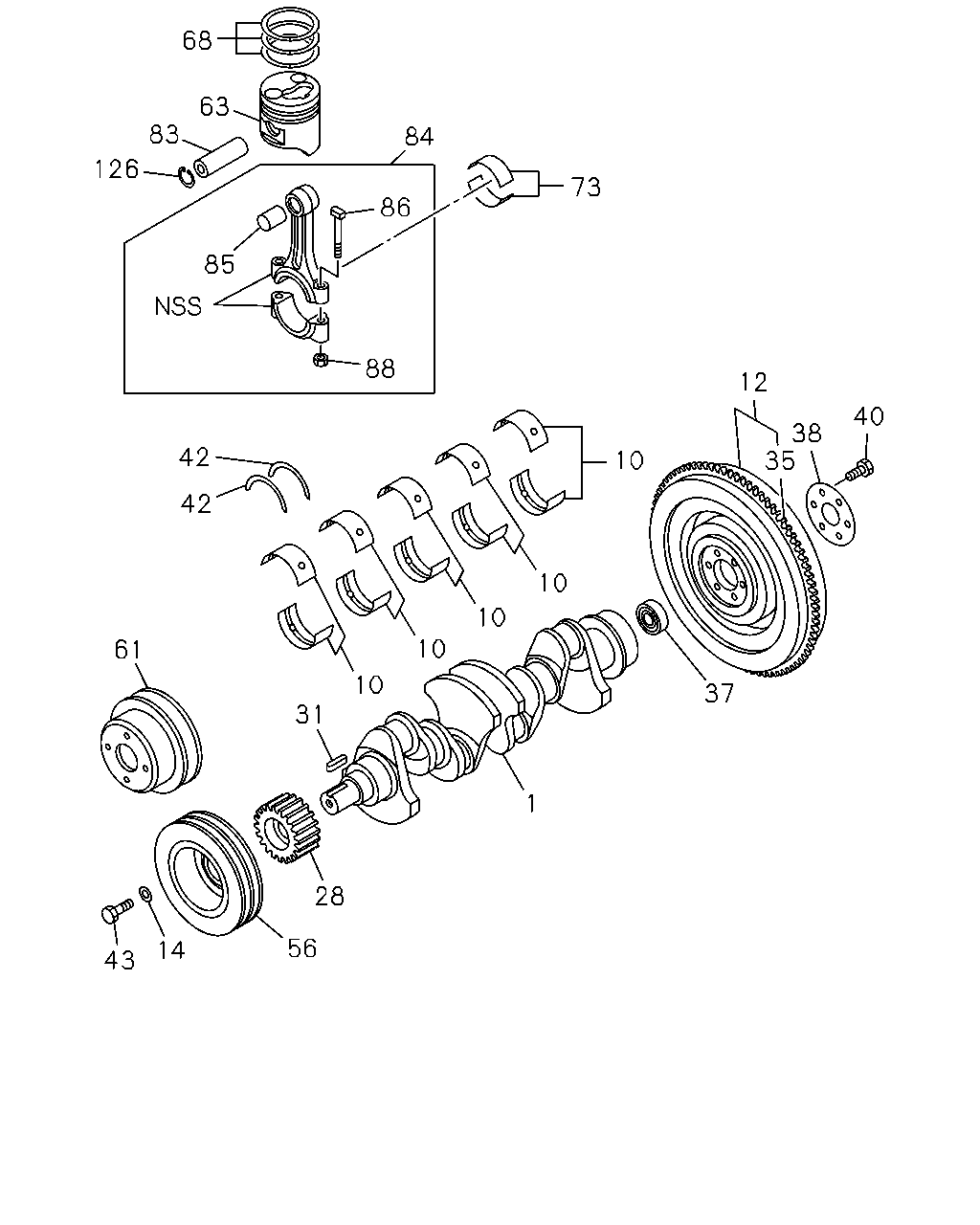

40 38 12 35 37 10 10 10 10 10 31 1 28 56 14 43 61 42 42 73 84 86 88 85 126 83 63 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94118-828-0	01	1	9009-9601	●
1	CRANKSHAFT	8-94455-240-1	01	1	9602-0103		●
1	CRANKSHAFT THA	8-97912-703-0	01	1	0104-0306		●
1	CRANKSHAFT IDN	8-97943-034-0	01	1	0307-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-1	05	1	9711-0411		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	5-87311-187-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-1	05	1	9711-0411		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	5-87311-188-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9602-9710		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-1	05	1	9711-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	5-87311-184-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9602-9710		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-1	05	1	9711-0411		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	5-87311-185-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9602-9710		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-1	05	1	9711-0411		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	5-87311-186-0	05	1	0412-		●
12	FLYWHEEL	8-94454-842-0	01	1	9009-9601	●
12	FLYWHEEL	8-94172-529-1	01	1	9602-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	9602-		●
28	GEAR; CR/SHF Z=21	9-12521-042-0	01	1	9009-9601	●
28	GEAR; CR/SHF Z=30 IDN	8-97138-715-0	01	1	9602-		●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9009-9601	●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9602-		●
35	GEAR; RING Z=108	8-94419-602-0	01	1	9009-9601	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	9602-0402		●
37	BEARING; PILOT,TOP GEAR SHAFT	9-00090-679-0	01	1	9602-		●
38	WASHER; FLYWHEEL	5-12336-010-1	01	1	9009-9601	●
38	WASHER; FLYWHEEL	8-94133-970-1	01	1	9602-1005		●
38	WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-		●
40	BOLT; FLYWHEEL M13X36.5	8-94433-991-0	06	1	9009-9312	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	06	1	9401-9601	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9602-		●
42	WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9009-9601	●
42	WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9602-0208		●
42	WASHER; THRUST,CR/SHF IDN	8-97957-095-0	02	1	0209-		●
43	BOLT; CR/SHF PULLEY	8-94340-597-0	01	1	9009-9601	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9602-		●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE	8-94454-868-1	01	1	9009-9601	●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE	8-97138-489-0	01	1	9602-0109		●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE IDN	8-97957-631-0	01	1	0110-		●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94475-181-1	01	1	9009-9601	●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-97138-490-0	01	1	9602-0109		●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE IDN	8-97957-632-0	01	1	0110-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-94111-751-0	01	1	9009-9601	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	9602-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-592-0	04	1	9009-9601	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-593-0	04	1	9009-9601	●
63	PISTON ALSO INCLUDED IN LINER SET.	8-97089-892-0	04	1	9602-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94253-736-0	04	1	9009-9601	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	9602-		●
73	METAL SET; CONN ROD,STANDARD	8-94462-943-0	04	1	9009-9601	●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9602-0210		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-017-0	04	1	9009-9601	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9602-		●
84	ROD ASM; CONN	8-94454-844-2	04	1	9009-9601	●
84	ROD ASM; CONN IDN	8-94333-119-0	04	1	9602-0103		●
84	ROD ASM; CONN THA	8-97915-828-1	04	1	0104-0306		●
84	ROD ASM; CONN IDN	8-97943-031-3	04	1	0307-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	5-12251-005-0	04	1	9009-9601	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. IDN	8-94419-455-0	04	1	9602-0112		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. THA	8-97288-551-0	04	1	0201-0706		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0707-		●
86	BOLT; CONNROD M11X59 IDN	5-12235-009-0	08	1	9009-9105	●
86	BOLT; CONNROD M11X59	8-94419-729-1	08	1	9106-9409	●
86	BOLT; CONNROD M11X59 IDN	5-12235-009-0	08	1	9409-9601	●
86	BOLT; CONNROD M11X59 IDN	5-12235-009-0	08	1	9602-		●
88	NUT; CONNROD M11 IDN	5-09409-016-0	08	1	9009-9601	●
88	NUT; CONNROD M11 IDN	5-09409-016-0	08	1	9602-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	5-09587-001-0	08	1	9009-9601	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9602-		●
