◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#95867) — 164 parça

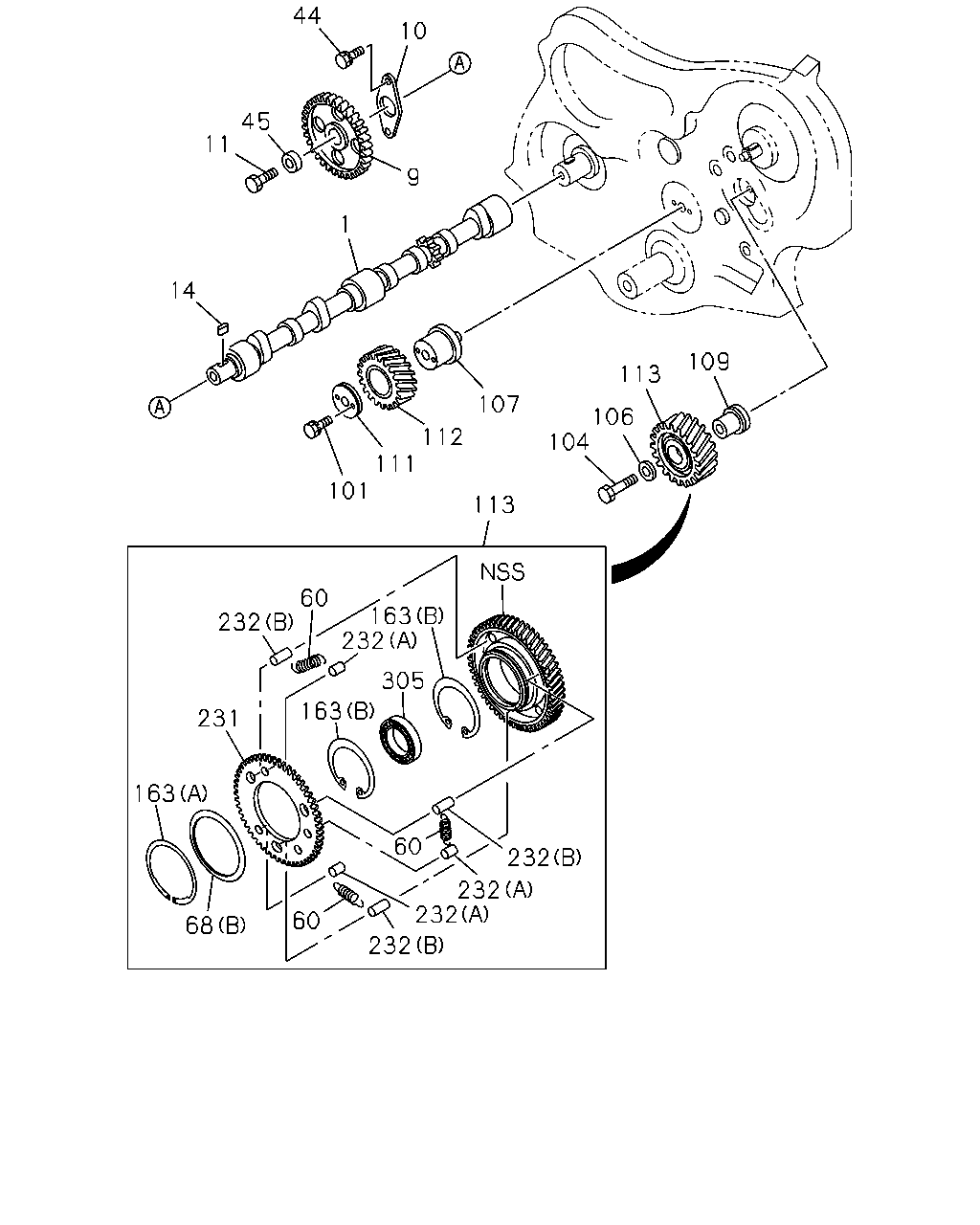

çizim 289019
232 232 232 232 60 60 68 163 231 163 305 232 163 232 60 113 101 111 112 107 104 106 113 109 14 1 9 11 45 10 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 5-12511-078-4 01 1 9009-9601 ●
1 CAMSHAFT 8-94127-797-4 01 1 9602-0012 ●
1 CAMSHAFT
IDN 		8-97287-657-1 01 1 0101- ●
9 GEAR; CM/SHF
Z=42 		9-12522-144-0 01 1 9009-9601 ●
9 GEAR; CM/SHF
Z=60 IDN 		8-97138-729-0 01 1 9602- ●
10 PLATE; THRUST 9-11681-010-1 01 1 9009-9601 ●
10 PLATE; THRUST 8-94110-480-1 01 1 9602- ●
11 BOLT; THRUST PLATE TO C/BL
M12X47 		8-94433-407-0 01 1 9602- ●
14 KEY; CM/SHF 9-08000-718-0 01 1 9009-9601 ●
14 KEY; CM/SHF 9-08000-718-0 01 1 9602- ●
44 BOLT
M12X47 		8-94433-407-0 01 1 9009-9601 ●
44 BOLT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9602-0102 ●
44 BOLT
M8X16 FLANGE 		0-28080-816-0 02 1 0103-0512 ●
44 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
45 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 9009-9601 ●
45 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 9602-0409 ●
45 WASHER; GEAR CAM
ID=13 OD=36 		8-97918-881-0 01 1 0410-0410 ●
45 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 0410- ●
60 SPRING; BRKT 8-97131-666-1 03 1 9602- ●
68 SPRING; VLV
(B) 		8-97131-668-1 01 1 9602- ●
68 SPRING; VLV
(A) ID=26.25 		8-94433-247-0 08 1 9602- ●
101 BOLT; THRUST COLLAR
M8X55 W/LK WASHER 		5-09000-084-1 02 1 9602-9904 ●
101 BOLT; THRUST COLLAR
M8X53 FLANGE IDN 		8-97223-999-0 02 1 9905- ●
104 BOLT; SHAFT IDLE
M12X57 		1-09040-044-0 01 1 9602- ●
106 WASHER; IDLE GEAR SHAFT
ID=12.5 OD=32 		9-09164-712-0 02 1 9602-9608 ●
106 WASHER; IDLE GEAR SHAFT
ID=12.5 T=5.8 		8-94217-363-0 01 1 9609- ●
107 SHAFT; IDLE GEAR 9-12531-024-1 01 1 9009-9601 ●
107 SHAFT; IDLE GEAR 8-94139-758-1 01 1 9602-0712 ●
107 SHAFT; IDLE GEAR
IDN 		8-97562-525-0 01 1 0801- ●
109 SHAFT; IDLE GEAR 8-97131-632-0 01 1 9602-0712 ●
109 SHAFT; IDLE GEAR
IDN 		8-97562-524-0 01 1 0801- ●
111 COLLAR; THRUST,IDLE GEAR 5-12535-005-1 01 1 9009-9601 ●
111 COLLAR; THRUST,IDLE GEAR 8-94141-937-1 01 1 9602- ●
112 GEAR; IDLE 9-12523-080-0 01 1 9009-9601 ●
112 GEAR; IDLE
IDN 		8-97138-728-0 01 1 9602-0203 ●
112 GEAR; IDLE
IDN 		8-97957-110-0 01 1 0204- ●
113 GEAR; IDLE
IDN 		8-97138-717-1 01 1 9602- ●
163 RING; SNAP,IDLE
(A) 		8-97132-030-1 01 1 9602- ●
163 RING; SNAP,IDLE
(B) OD=48.5 		9-09180-145-0 02 1 9602- ●
231 PLATE; CAP
IDN 		8-97138-719-0 01 1 9602- ●
232 PIN; GEAR SET
(A) OD=8 L=14 		9-08160-814-0 03 1 9602- ●
232 PIN; GEAR SET
(B) OD=8 L=20 		9-08160-820-0 03 1 9602- ●
305 BEARING; IDLE GEAR 8-97131-667-0 02 1 9602-9912 ●
305 BEARING; IDLE GEAR 8-97241-493-0 01 1 0001- ●

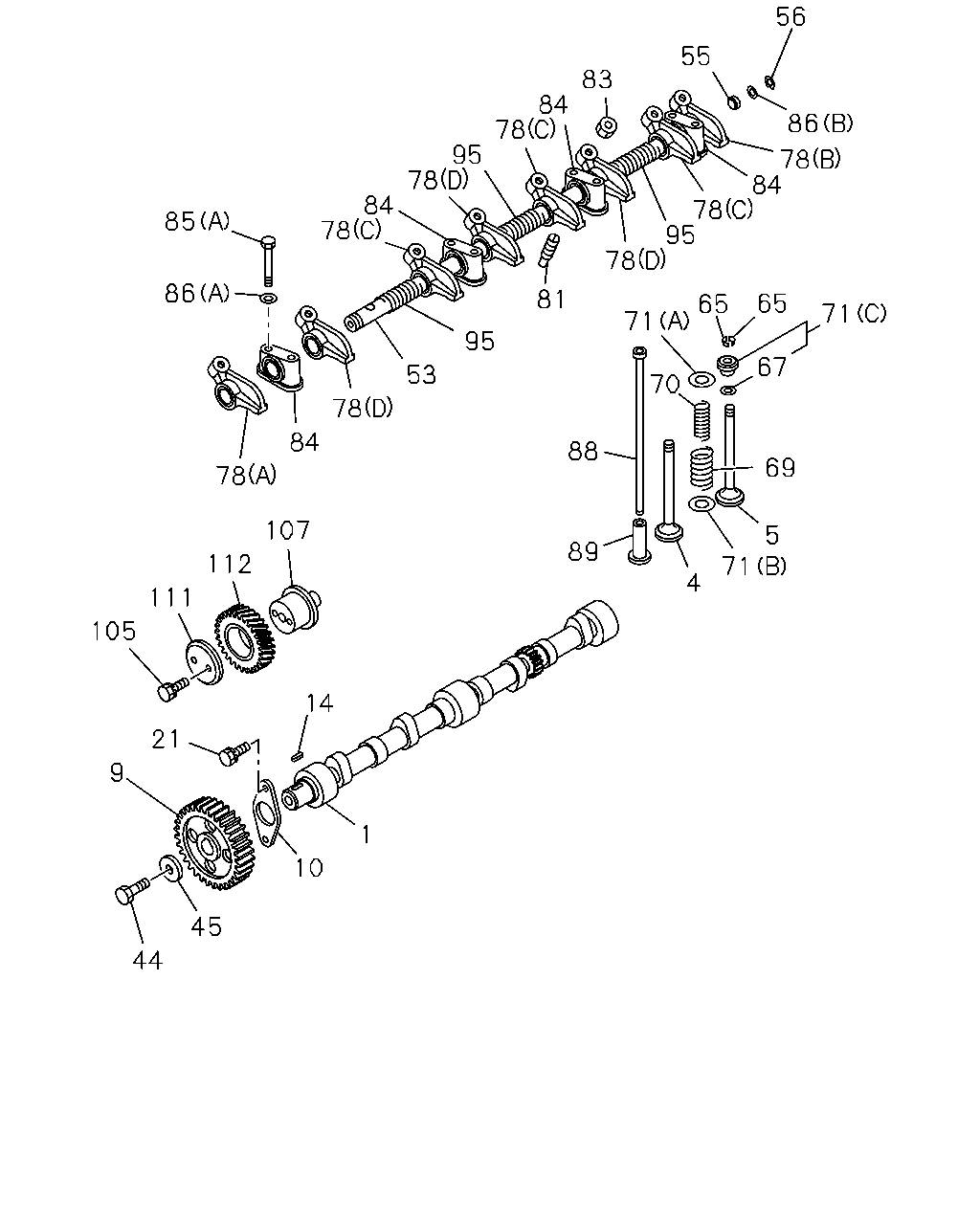

çizim 289770
1 10 45 44 14 21 9 105 111 112 107 78 84 86 85 78 78 84 78 95 78 84 83 55 56 86 78 84 78 95 78 81 95 53 89 88 71 65 65 71 67 69 5 71 4 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 5-12511-078-4 01 1 9009-9601 ●
1 CAMSHAFT 8-94127-797-4 01 1 9602-0012 ●
1 CAMSHAFT
IDN 		8-97287-657-1 01 1 0101- ●
4 VALVE; INL 5-12551-030-0 04 1 9009-9601 ●
4 VALVE; INL 8-94133-275-2 04 1 9602- ●
5 VALVE; EXH 5-12552-038-1 04 1 9009-9601 ●
5 VALVE; EXH 8-94247-875-2 04 1 9602- ●
9 GEAR; CM/SHF
Z=42 		9-12522-144-0 01 1 9009-9601 ●
9 GEAR; CM/SHF
Z=60 IDN 		8-97138-729-0 01 1 9602- ●
10 PLATE; THRUST 9-11681-010-1 01 1 9009-9601 ●
10 PLATE; THRUST 8-94110-480-1 01 1 9602- ●
14 KEY; CM/SHF 9-08000-718-0 01 1 9009-9601 ●
14 KEY; CM/SHF 9-08000-718-0 01 1 9602- ●
21 BOLT; CM/SHF METAL,NO 7
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9009-9601 ●
44 BOLT
M12X47 		8-94433-407-0 01 1 9009-9601 ●
44 BOLT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9602-0102 ●
44 BOLT
M8X16 FLANGE 		0-28080-816-0 02 1 0103-0512 ●
44 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
45 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 9009-9601 ●
45 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 9602-0409 ●
45 WASHER; GEAR CAM
ID=13 OD=36 		8-97918-881-0 01 1 0410-0410 ●
45 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 0410- ●
53 SHAFT; ROCKER ARM 8-94100-291-0 01 1 9009-9601 ●
53 SHAFT; ROCKER ARM 8-97036-197-0 01 1 9602- ●
55 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 9009-9601 ●
55 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 9602- ●
56 RING; SNAP,ROCKER ARM
ID=17.5 		9-09180-019-0 02 1 9009-9601 ●
56 RING; SNAP,ROCKER ARM
ID=17.5 		9-09180-019-0 02 1 9602- ●
65 COLLAR; SPLIT 5-12565-004-0 16 1 9009-9601 ●
65 COLLAR; SPLIT 5-12565-004-0 16 1 9602- ●
67 RING; SEALING VLV 9-12559-008-0 08 1 9009-9601 ●
69 SPRING; VLV,OUTER 5-12561-011-0 08 1 9009-9601 ●
70 SPRING; VLV,INNER 5-12562-007-0 08 1 9009-9601 ●
71 SEAT; SPR
(A) 		5-12563-016-0 08 1 9009-9601 ●
71 SEAT; SPR
(E) OD=34 		5-12563-001-0 08 1 9602- ●
71 SEAT; SPR
(C) OD=22.5 		5-12563-017-0 08 1 9009-9601 ●
71 SEAT; SPR
(D) OD=32.8 		8-94133-731-2 08 1 9602- ●
71 SEAT; SPR
(B) 		9-09851-842-0 08 1 9009-9601 ●
78 ARM; ROCKER
(A) 		5-12611-020-1 01 1 9009-9601 ●
78 ARM; ROCKER
(E) 		8-94152-344-0 08 1 9602- ●
78 ARM; ROCKER
(B) 		5-12611-022-1 01 1 9009-9601 ●
78 ARM; ROCKER
(C) 		9-12611-347-0 03 1 9009-9601 ●
78 ARM; ROCKER
(D) 		9-12611-349-0 03 1 9009-9601 ●
81 SCREW; ADJ,ROCKER ARM
M8X30 		8-94152-283-0 08 1 9009-9601 ●
81 SCREW; ADJ,ROCKER ARM
M8X30 		8-94152-283-1 08 1 9602- ●
83 NUT; ADJ SCREW,LK
M8 		9-09111-508-0 08 1 9009-9601 ●
83 NUT; ADJ SCREW,LK
M8 		9-09111-508-0 08 1 9602-0512 ●
83 NUT; ADJ SCREW,LK
M8 		0-91111-508-0 08 1 0601- ●
84 BRACKET; ROCKER SHAFT,INTER 9-12628-093-0 04 1 9009-9601 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 9602- ●
85 BOLT; BRKT
(A) M8X50 		0-10810-850-0 08 1 9009-9601 ●
85 BOLT; BRKT
(C) M8X15,M10X60 L=82 		8-94433-304-0 02 1 9602- ●
85 BOLT; BRKT
(B) M8X37 & M10X60 L=104 		8-94437-493-1 01 1 9602- ●
86 WASHER; ROCKER ARM FIX
(A) 		9-09164-008-0 08 1 9009-9601 ●
86 WASHER; ROCKER ARM FIX
(C) ID=10.5 		9-09164-010-0 04 1 9602- ●
86 WASHER; ROCKER ARM FIX
(B) ID=19 		9-09851-931-0 02 1 9009-9601 ●
88 ROD; PUSH 5-12575-015-0 08 1 9009-9601 ●
88 ROD; PUSH 8-94143-203-0 08 1 9602-0405 ●
88 ROD; PUSH 8-97378-496-0 08 1 0406- ●
89 TAPPET; VLV 9-12571-801-1 08 1 9009-9601 ●
89 TAPPET; VLV 8-94438-305-1 08 1 9602- ●
95 SPRING; ROCKER SHAFT 9-09940-607-0 03 1 9009-9601 ●
95 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 9602- ●
105 BOLT; IDLE GEAR SHAFT
M8X55 W/LK WASHER 		5-09000-084-1 02 1 9009-9601 ●
107 SHAFT; IDLE GEAR 9-12531-024-1 01 1 9009-9601 ●
107 SHAFT; IDLE GEAR 8-94139-758-1 01 1 9602-0712 ●
107 SHAFT; IDLE GEAR
IDN 		8-97562-525-0 01 1 0801- ●
111 COLLAR; THRUST,IDLE GEAR 5-12535-005-1 01 1 9009-9601 ●
111 COLLAR; THRUST,IDLE GEAR 8-94141-937-1 01 1 9602- ●
112 GEAR; IDLE 9-12523-080-0 01 1 9009-9601 ●
112 GEAR; IDLE
IDN 		8-97138-728-0 01 1 9602-0203 ●
112 GEAR; IDLE
IDN 		8-97957-110-0 01 1 0204- ●

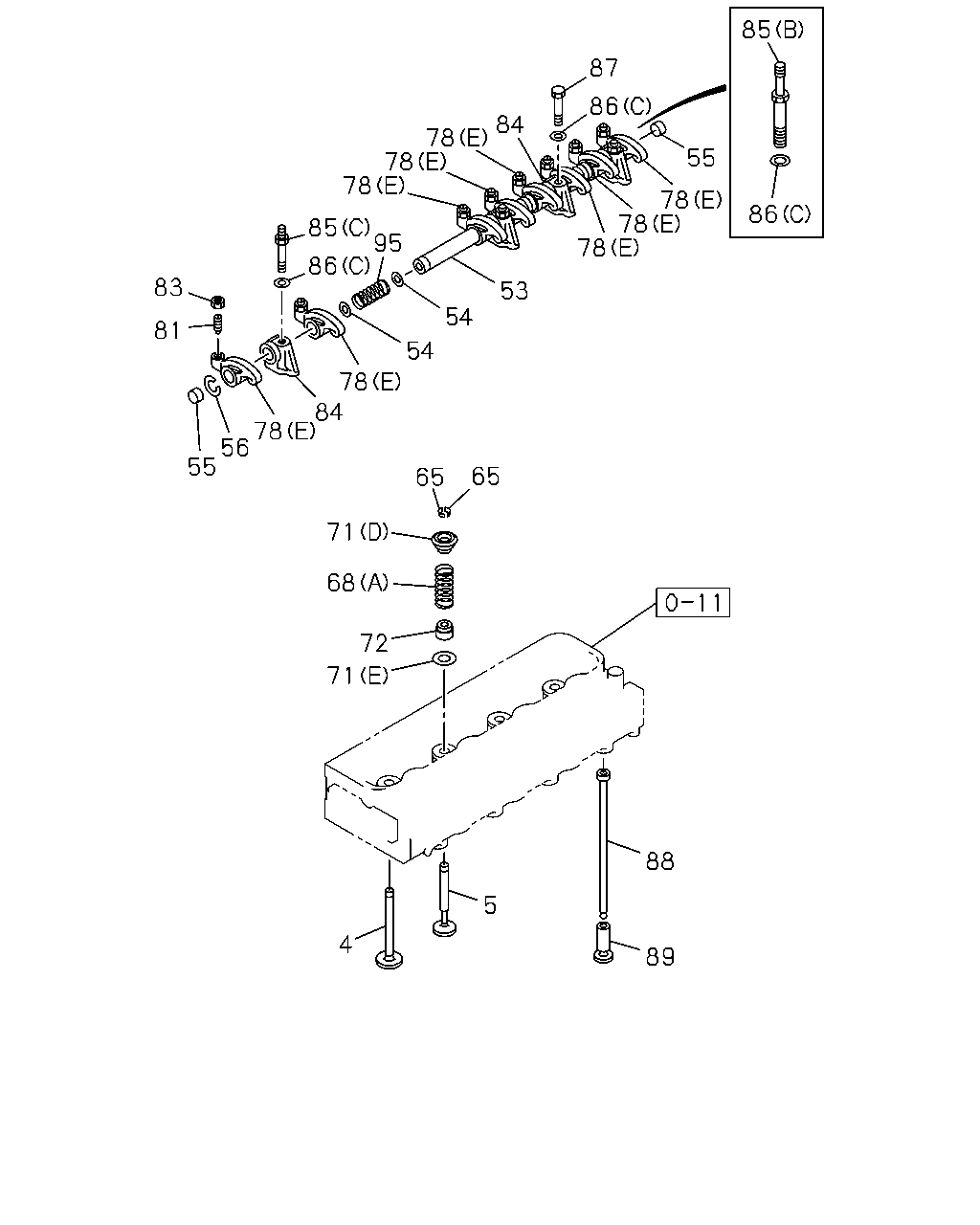

çizim 289777
88 89 5 4 71 72 68 71 65 65 55 56 78 84 78 54 54 53 78 78 78 55 86 87 84 78 78 78 85 95 86 83 81 85 86
BalonParca AdiParca NoAdetTipApplied Date A B
4 VALVE; INL 5-12551-030-0 04 1 9009-9601 ●
4 VALVE; INL 8-94133-275-2 04 1 9602- ●
5 VALVE; EXH 5-12552-038-1 04 1 9009-9601 ●
5 VALVE; EXH 8-94247-875-2 04 1 9602- ●
53 SHAFT; ROCKER ARM 8-94100-291-0 01 1 9009-9601 ●
53 SHAFT; ROCKER ARM 8-97036-197-0 01 1 9602- ●
54 WASHER; ROCKER SPR
ID=19.1 OD=23 		8-94341-906-0 06 1 9602- ●
55 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 9009-9601 ●
55 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 9602- ●
56 RING; SNAP,ROCKER ARM
ID=17.5 		9-09180-019-0 02 1 9009-9601 ●
56 RING; SNAP,ROCKER ARM
ID=17.5 		9-09180-019-0 02 1 9602- ●
65 COLLAR; SPLIT 5-12565-004-0 16 1 9009-9601 ●
65 COLLAR; SPLIT 5-12565-004-0 16 1 9602- ●
68 SPRING; VLV
(B) 		8-97131-668-1 01 1 9602- ●
68 SPRING; VLV
(A) ID=26.25 		8-94433-247-0 08 1 9602- ●
71 SEAT; SPR
(A) 		5-12563-016-0 08 1 9009-9601 ●
71 SEAT; SPR
(E) OD=34 		5-12563-001-0 08 1 9602- ●
71 SEAT; SPR
(C) OD=22.5 		5-12563-017-0 08 1 9009-9601 ●
71 SEAT; SPR
(D) OD=32.8 		8-94133-731-2 08 1 9602- ●
71 SEAT; SPR
(B) 		9-09851-842-0 08 1 9009-9601 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		5-12569-006-0 08 1 9602-9604 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 08 1 9605- ●
78 ARM; ROCKER
(A) 		5-12611-020-1 01 1 9009-9601 ●
78 ARM; ROCKER
(E) 		8-94152-344-0 08 1 9602- ●
78 ARM; ROCKER
(B) 		5-12611-022-1 01 1 9009-9601 ●
78 ARM; ROCKER
(C) 		9-12611-347-0 03 1 9009-9601 ●
78 ARM; ROCKER
(D) 		9-12611-349-0 03 1 9009-9601 ●
81 SCREW; ADJ,ROCKER ARM
M8X30 		8-94152-283-0 08 1 9009-9601 ●
81 SCREW; ADJ,ROCKER ARM
M8X30 		8-94152-283-1 08 1 9602- ●
83 NUT; ADJ SCREW,LK
M8 		9-09111-508-0 08 1 9009-9601 ●
83 NUT; ADJ SCREW,LK
M8 		9-09111-508-0 08 1 9602-0512 ●
83 NUT; ADJ SCREW,LK
M8 		0-91111-508-0 08 1 0601- ●
84 BRACKET; ROCKER SHAFT,INTER 9-12628-093-0 04 1 9009-9601 ●
84 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 9602- ●
85 BOLT; BRKT
(A) M8X50 		0-10810-850-0 08 1 9009-9601 ●
85 BOLT; BRKT
(C) M8X15,M10X60 L=82 		8-94433-304-0 02 1 9602- ●
85 BOLT; BRKT
(B) M8X37 & M10X60 L=104 		8-94437-493-1 01 1 9602- ●
86 WASHER; ROCKER ARM FIX
(A) 		9-09164-008-0 08 1 9009-9601 ●
86 WASHER; ROCKER ARM FIX
(C) ID=10.5 		9-09164-010-0 04 1 9602- ●
86 WASHER; ROCKER ARM FIX
(B) ID=19 		9-09851-931-0 02 1 9009-9601 ●
87 BOLT; ROCKER SHAFT
M10X60 		8-94433-302-0 01 1 9602- ●
88 ROD; PUSH 5-12575-015-0 08 1 9009-9601 ●
88 ROD; PUSH 8-94143-203-0 08 1 9602-0405 ●
88 ROD; PUSH 8-97378-496-0 08 1 0406- ●
89 TAPPET; VLV 9-12571-801-1 08 1 9009-9601 ●
89 TAPPET; VLV 8-94438-305-1 08 1 9602- ●
95 SPRING; ROCKER SHAFT 9-09940-607-0 03 1 9009-9601 ●
95 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 9602- ●
