0-13 — OIL PAN AND LEVEL GAUGE (#95866) — 95 parça

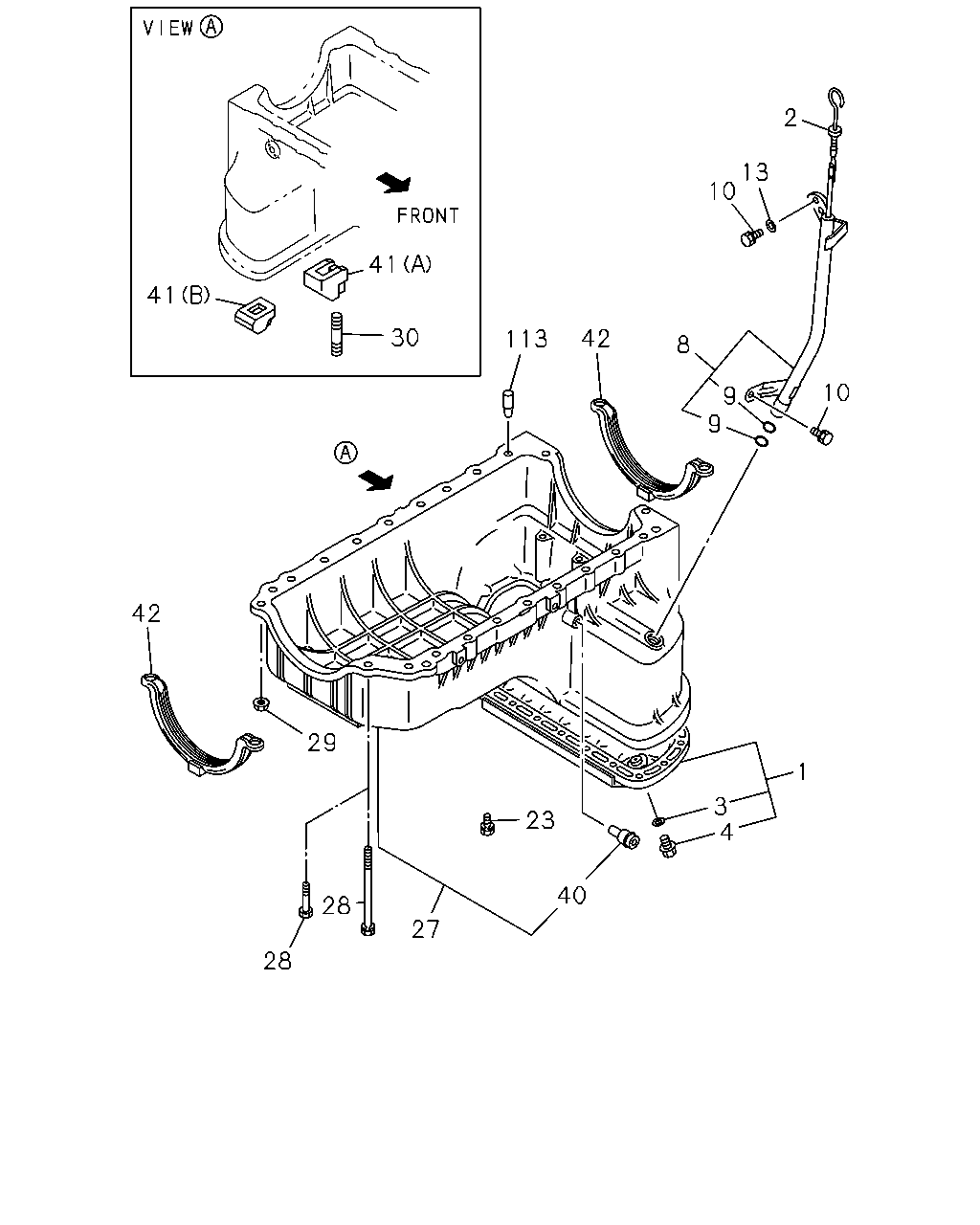

41 41 30 42 29 28 28 27 23 40 4 3 1 113 42 8 9 9 10 10 13 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-94454-846-0	01	1	9009-9601	●
1	PAN ASM; OIL	8-97131-905-0	01	1	9602-		●
2	GAUGE; OIL LEVEL	8-94469-783-0	01	1	9009-9601	●
2	GAUGE; OIL LEVEL	8-94362-305-0	01	1	9602-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	9009-9601	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9602-		●
4	PLUG; DRAIN,OIL M14X14 IDN	9-09862-156-0	01	1	9009-9601	●
4	PLUG; DRAIN,OIL M14X14 IDN	8-94152-613-0	01	1	9602-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-94477-843-1	01	1	9009-9601	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97110-315-0	01	1	9602-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9602-		●
10	BOLT; GUIDE TUBE M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9009-9601	●
10	BOLT; GUIDE TUBE M6X12 W/LK WASHER	0-50040-612-0	01	1	9602-0512		●
10	BOLT; GUIDE TUBE M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-		●
10	BOLT; GUIDE TUBE M8X20 W/LK WASHER	0-50040-820-0	01	1	9602-0909		●
10	BOLT; GUIDE TUBE M8X20 W/LK WASHER	0-50540-820-0	01	1	0910-		●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=6.4 OD=14	9-09160-606-0	01	1	9602-0605		●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=6.4	0-91610-606-0	01	1	0606-		●
23	BOLT; OIL PAN M6X16 W/LK WASHER	0-50040-616-0	30	1	9009-9110	●
23	BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	30	1	9111-9601	●
23	BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	17	1	9602-0512		●
23	BOLT; OIL PAN M6X12 FLANGE	0-28050-612-0	17	1	0601-		●
27	CRANKCASE	5-11215-064-5	01	1	9009-9601	●
27	CRANKCASE	8-97122-059-1	01	1	9602-0210		●
27	CRANKCASE	8-97359-514-0	01	1	0211-		●
28	BOLT; CRANKCASE TO C/BL M8X100 W/LK&PL WASHER	0-50140-800-0	04	1	9009-9601	●
28	BOLT; CRANKCASE TO C/BL M8X22	9-01900-822-0	07	1	9009-9204	●
28	BOLT; CRANKCASE TO C/BL M8X22 W/LK WASHER	0-50040-822-0	07	1	9205-9601	●
28	BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9602-9612		●
28	BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9701-0512		●
28	BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28055-812-0	01	1	0601-		●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	9-01900-832-0	07	1	9009-9204	●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	0-50040-832-0	07	1	9205-9601	●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	0-50040-832-0	19	1	9602-0909		●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	0-50540-832-0	19	1	0910-		●
28	BOLT; CRANKCASE TO C/BL M8X119	9-09801-202-1	02	1	9009-9204	●
28	BOLT; CRANKCASE TO C/BL M8X119	8-97015-515-1	02	1	9205-9601	●
29	NUT; CRANKCASE M8 FLANGE	0-91150-108-0	02	1	9602-0602		●
29	NUT; CRANKCASE M8 FLANGE	0-91180-108-0	02	1	0603-		●
30	STUD; CRANKCASE M8X35 L=47	9-04110-835-0	02	1	9602-0604		●
30	STUD; CRANKCASE M8X35 L=47	0-41010-835-0	02	1	0605-		●
40	NIPPLE; OIL RETURN HOSE VAC PUMP	5-11369-038-0	01	1	9009-9601	●
40	NIPPLE; OIL RETURN HOSE VAC PUMP	5-11369-038-0	01	1	9602-		●
41	RUBBER; SPACE (A)	8-97123-362-0	01	1	9602-		●
41	RUBBER; SPACE (B)	8-97123-363-0	01	1	9602-		●
42	GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11258-108-0	02	1	9009-9601	●
42	GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9602-		●
42	GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9602-		●
113	PIN; STRAIGHT	9-09878-597-0	02	1	9602-		●

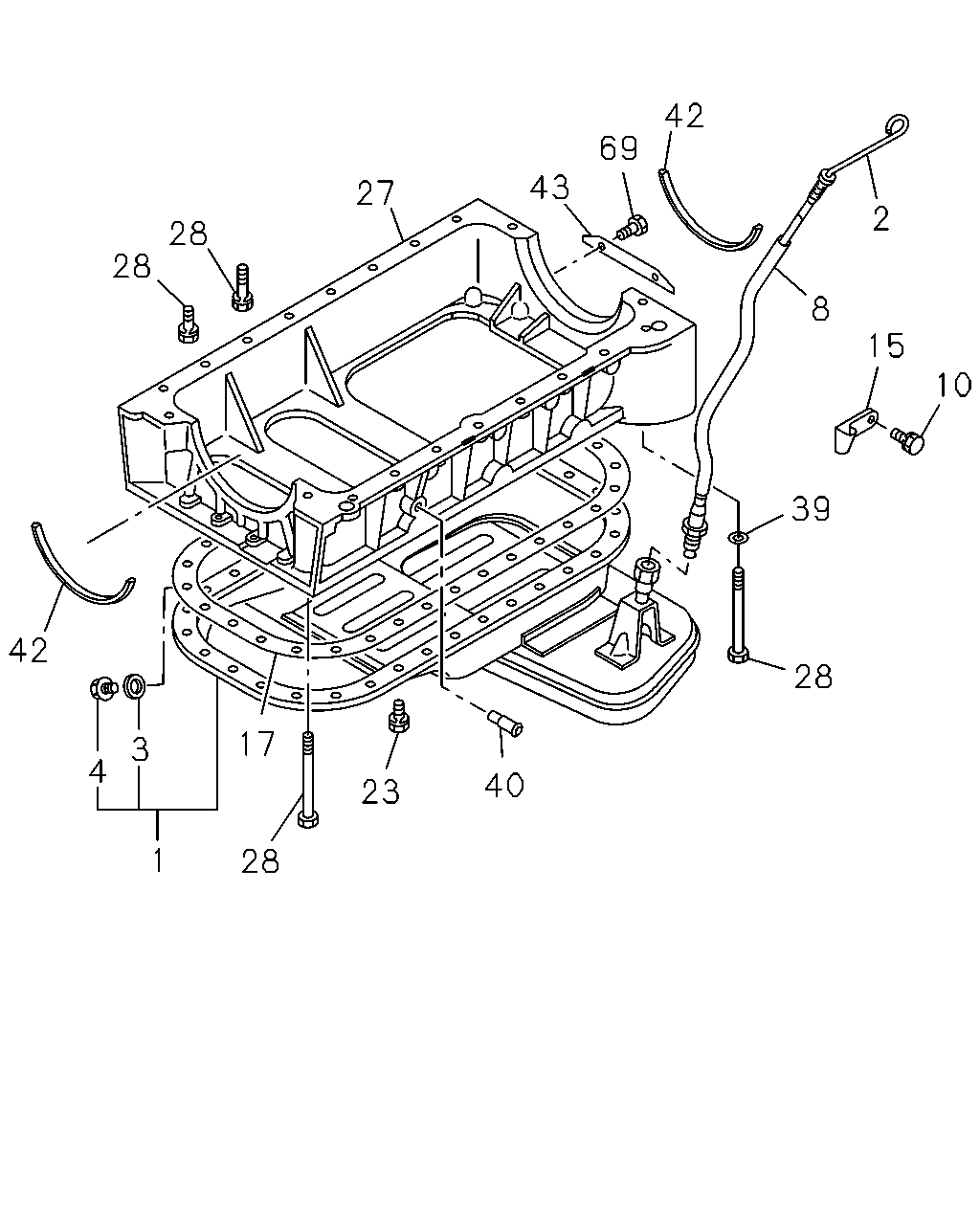

1 3 4 42 28 28 27 43 69 42 2 8 15 10 39 28 40 23 17 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-94454-846-0	01	1	9009-9601	●
1	PAN ASM; OIL	8-97131-905-0	01	1	9602-		●
2	GAUGE; OIL LEVEL	8-94469-783-0	01	1	9009-9601	●
2	GAUGE; OIL LEVEL	8-94362-305-0	01	1	9602-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	9009-9601	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9602-		●
4	PLUG; DRAIN,OIL M14X14 IDN	9-09862-156-0	01	1	9009-9601	●
4	PLUG; DRAIN,OIL M14X14 IDN	8-94152-613-0	01	1	9602-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-94477-843-1	01	1	9009-9601	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97110-315-0	01	1	9602-		●
10	BOLT; GUIDE TUBE M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9009-9601	●
10	BOLT; GUIDE TUBE M6X12 W/LK WASHER	0-50040-612-0	01	1	9602-0512		●
10	BOLT; GUIDE TUBE M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-		●
10	BOLT; GUIDE TUBE M8X20 W/LK WASHER	0-50040-820-0	01	1	9602-0909		●
10	BOLT; GUIDE TUBE M8X20 W/LK WASHER	0-50540-820-0	01	1	0910-		●
15	CLIP; GUIDE TUBE	8-94245-060-0	01	1	9009-9601	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	5-11367-004-0	01	1	9009-9109	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-322-0	01	1	9110-9601	●
23	BOLT; OIL PAN M6X16 W/LK WASHER	0-50040-616-0	30	1	9009-9110	●
23	BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	30	1	9111-9601	●
23	BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	17	1	9602-0512		●
23	BOLT; OIL PAN M6X12 FLANGE	0-28050-612-0	17	1	0601-		●
27	CRANKCASE	5-11215-064-5	01	1	9009-9601	●
27	CRANKCASE	8-97122-059-1	01	1	9602-0210		●
27	CRANKCASE	8-97359-514-0	01	1	0211-		●
28	BOLT; CRANKCASE TO C/BL M8X100 W/LK&PL WASHER	0-50140-800-0	04	1	9009-9601	●
28	BOLT; CRANKCASE TO C/BL M8X22	9-01900-822-0	07	1	9009-9204	●
28	BOLT; CRANKCASE TO C/BL M8X22 W/LK WASHER	0-50040-822-0	07	1	9205-9601	●
28	BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9602-9612		●
28	BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9701-0512		●
28	BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28055-812-0	01	1	0601-		●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	9-01900-832-0	07	1	9009-9204	●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	0-50040-832-0	07	1	9205-9601	●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	0-50040-832-0	19	1	9602-0909		●
28	BOLT; CRANKCASE TO C/BL M8X32 W/LK WASHER	0-50540-832-0	19	1	0910-		●
28	BOLT; CRANKCASE TO C/BL M8X119	9-09801-202-1	02	1	9009-9204	●
28	BOLT; CRANKCASE TO C/BL M8X119	8-97015-515-1	02	1	9205-9601	●
39	WASHER; LK,CRANKCASE TO C/BL ID=8.2	9-09150-508-0	02	1	9009-9204	●
40	NIPPLE; OIL RETURN HOSE VAC PUMP	5-11369-038-0	01	1	9009-9601	●
40	NIPPLE; OIL RETURN HOSE VAC PUMP	5-11369-038-0	01	1	9602-		●
42	GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11258-108-0	02	1	9009-9601	●
42	GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9602-		●
42	GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9602-		●
43	PLATE; CRANKCASE	9-11219-198-0	01	1	9009-9601	●
69	BOLT; PLATE M6X12 W/LK WASHER	9-01900-612-0	02	1	9009-9204	●
69	BOLT; PLATE M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-9601	●
