0-12 — CYLINDER BLOCK (#95865) — 156 parça

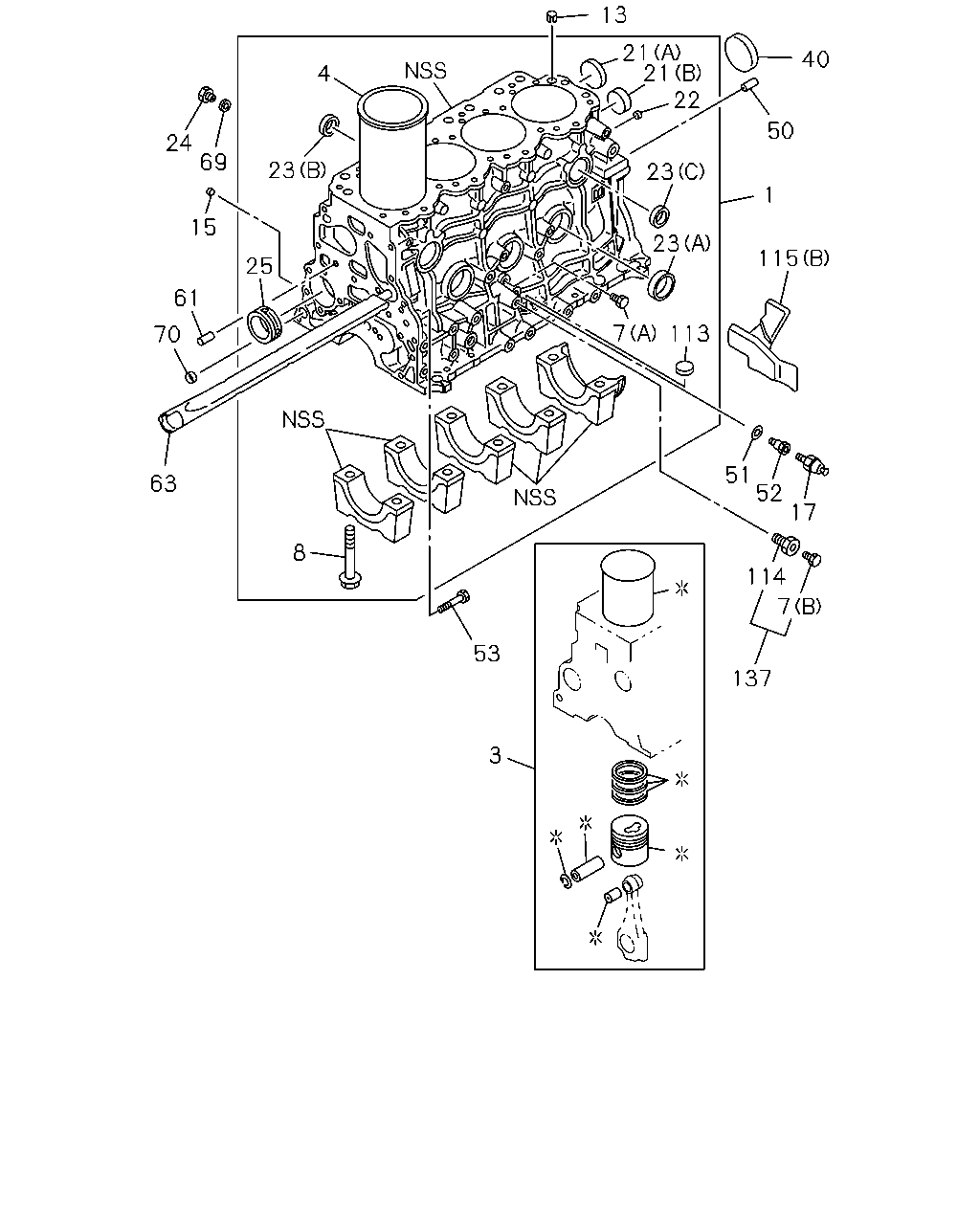

3 53 8 63 70 61 25 15 69 24 23 4 13 21 40 21 22 50 23 1 23 115 7 113 51 52 17 114 7 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-94454-835-2	01	1	9009-9601	●
1	BLOCK ASM; CYL THA	8-94438-404-5	01	1	9602-		●
3	LINER KIT; ENG CYL	5-87811-613-0	01	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-675-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-676-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-677-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-678-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-679-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-680-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-681-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-682-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	9602-		●
7	PLUG; WATER DRAIN (A) PT1/4 IDN	9-09664-001-0	01	1	9009-9601	●
7	PLUG; WATER DRAIN (A) PT1/4 IDN	9-09664-001-0	01	1	9602-		●
7	PLUG; WATER DRAIN (B) M10X30	9-09809-097-0	01	1	9602-0210		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9009-9601	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9602-		●
13	DOWEL; C/BL TO HD	8-94453-344-0	02	1	9009-9601	●
13	DOWEL; C/BL TO HD	8-94453-344-0	02	1	9602-		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9602-		●
17	SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9009-9601	●
17	SWITCH; OIL PRESSURE	9-82720-209-3	01	1	9602-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9602-		●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9602-		●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	9602-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	1-09600-005-1	03	1	9602-0210		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0211-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	9602-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9602-		●
24	NIPPLE; OIL FEED,VAC PUMP	8-94419-728-0	01	1	9602-		●
25	METAL; CM/SHF REAR	8-94454-838-0	01	1	9009-9108	●
25	METAL; CM/SHF REAR	5-11613-001-0	01	1	9109-9601	●
25	METAL; CM/SHF FRONT & CENTER	8-94454-839-0	02	1	9009-9108	●
25	METAL; CM/SHF CENTER	5-11611-009-0	01	1	9109-9601	●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9602-0411		●
25	METAL; CM/SHF FRONT	8-97378-148-0	01	1	0412-		●
25	METAL; CM/SHF FRONT	5-11611-008-0	01	1	9109-9601	●
25	METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9602-0411		●
25	METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0412-		●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	9602-		●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9009-9601	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9602-		●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9602-0309		●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97912-498-0	01	1	0310-		●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	9602-		●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	9602-		●
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9602-0201		●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0202-		●
63	DUCT; WATER,C/BL	8-94454-832-0	01	1	9009-9601	●
63	DUCT; WATER,C/BL	8-94419-436-2	01	1	9602-		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	9602-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9602-		●
113	CUP; SEALING OD=15.6	5-11129-003-0	01	1	9602-		●
114	NIPPLE; WATER DRAIN	8-94133-968-1	01	1	9602-0210		●
115	RUBBER; SPACE (A)	8-97106-521-1	01	1	9602-9901		●
115	RUBBER; SPACE (A)	8-97141-687-0	01	1	9902-0203		●
115	RUBBER; SPACE (A)	8-97264-913-0	01	1	0204-		●
115	RUBBER; SPACE (B)	8-97131-902-2	01	1	9602-		●
137	COCK; DRAIN,WATER	8-94422-600-0	01	1	9602-0210		●

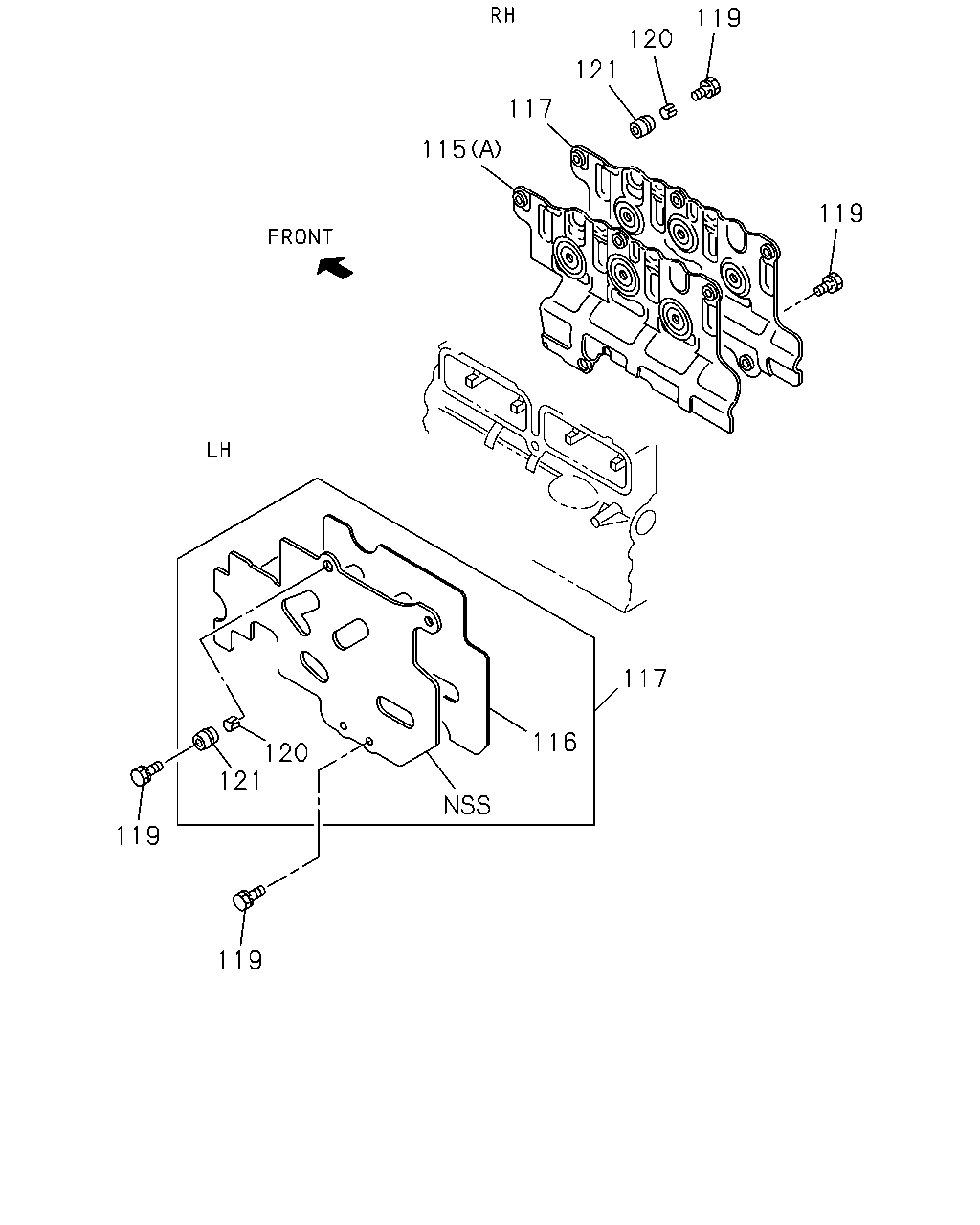

119 119 121 120 116 117 119 115 117 121 120 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
115	RUBBER; SPACE (A)	8-97106-521-1	01	1	9602-9901	●
115	RUBBER; SPACE (A)	8-97141-687-0	01	1	9902-0203	●
115	RUBBER; SPACE (A)	8-97264-913-0	01	1	0204-	●
115	RUBBER; SPACE (B)	8-97131-902-2	01	1	9602-	●
116	SEAL; COVER,C/BL	8-94460-822-1	01	1	9602-	●
117	COVER ASM; C/BL	8-94460-820-5	01	1	9602-	●
117	COVER ASM; C/BL	8-97106-516-1	01	1	9602-	●
119	BOLT; COVER FIX M10X28	8-94329-952-1	04	1	9602-	●
119	BOLT; COVER FIX M8X25 W/LK&PL WASHER IDN	0-50140-825-0	02	1	9602-0512	●
119	BOLT; COVER FIX M8X25 W/LK&PL WASHER IDN	0-50640-825-0	02	1	0601-	●
119	BOLT; COVER FIX M8X22 W/LK&PL WASHER IDN	8-94329-953-1	03	1	9602-	●
120	BUSHING; MTG RUBBER OD=13 T=9.5 IDN	8-94140-427-1	09	1	9602-	●
121	RUBBER; MTG,COVER OD=22 IDN	8-94140-428-1	09	1	9602-	●

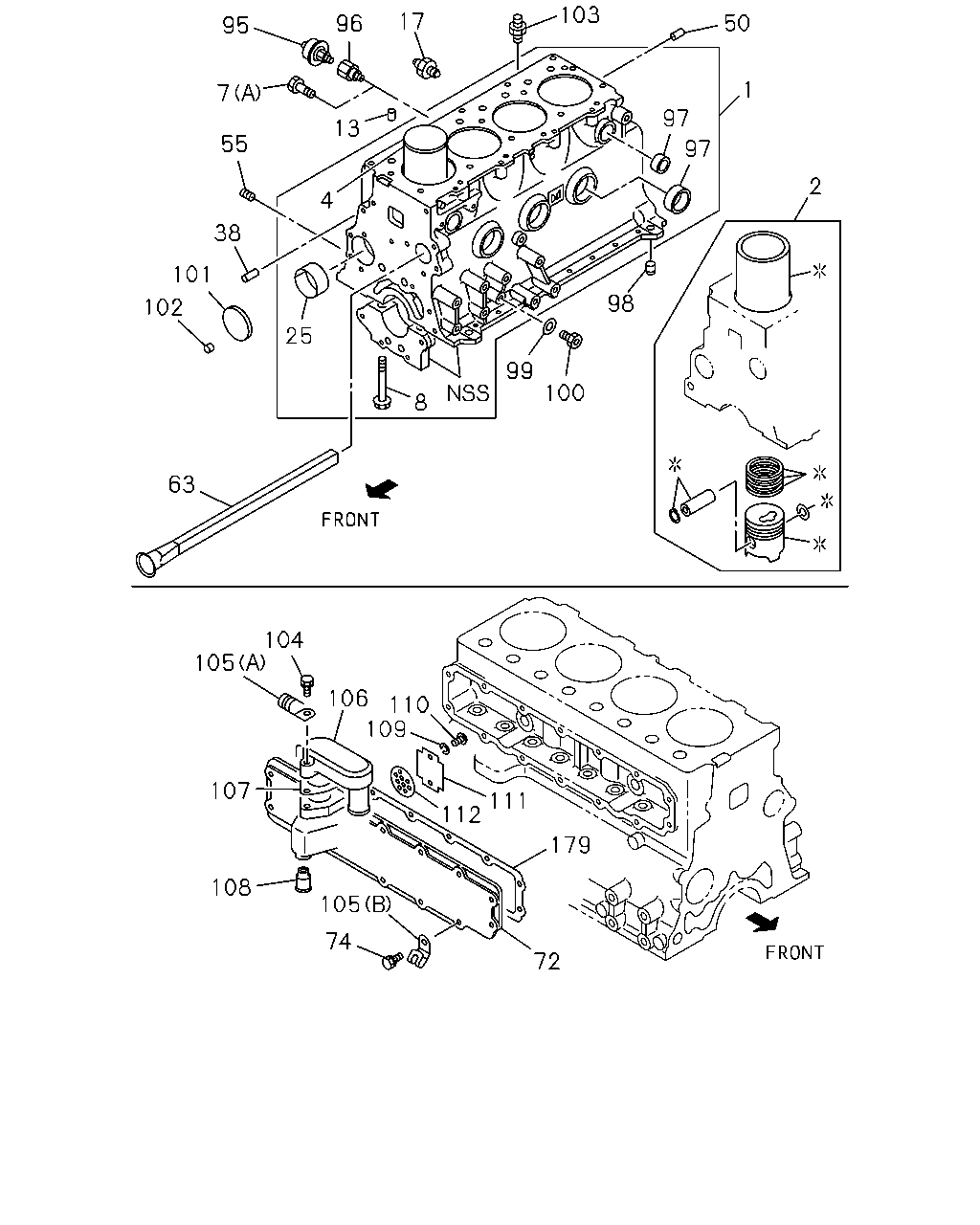

72 179 111 112 105 74 108 107 109 110 106 105 104 63 8 25 102 101 38 4 55 7 95 96 13 17 103 50 1 97 97 2 98 100 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-94454-835-2	01	1	9009-9601	●
1	BLOCK ASM; CYL THA	8-94438-404-5	01	1	9602-		●
2	LINER SET; ENG CYL GRADE=1	5-87813-244-0	04	1	9009-9601	●
2	LINER SET; ENG CYL GRADE=2	5-87813-245-0	04	1	9009-9601	●
2	LINER SET; ENG CYL GRADE=3	5-87813-246-0	04	1	9009-9601	●
2	LINER SET; ENG CYL GRADE=4	5-87813-247-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-675-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-676-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-677-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-678-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-679-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-680-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-681-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-682-0	04	1	9009-9601	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	9602-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	9602-		●
7	PLUG; WATER DRAIN (A) PT1/4 IDN	9-09664-001-0	01	1	9009-9601	●
7	PLUG; WATER DRAIN (A) PT1/4 IDN	9-09664-001-0	01	1	9602-		●
7	PLUG; WATER DRAIN (B) M10X30	9-09809-097-0	01	1	9602-0210		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9009-9601	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9602-		●
13	DOWEL; C/BL TO HD	8-94453-344-0	02	1	9009-9601	●
13	DOWEL; C/BL TO HD	8-94453-344-0	02	1	9602-		●
17	SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9009-9601	●
17	SWITCH; OIL PRESSURE	9-82720-209-3	01	1	9602-		●
25	METAL; CM/SHF REAR	8-94454-838-0	01	1	9009-9108	●
25	METAL; CM/SHF REAR	5-11613-001-0	01	1	9109-9601	●
25	METAL; CM/SHF FRONT & CENTER	8-94454-839-0	02	1	9009-9108	●
25	METAL; CM/SHF CENTER	5-11611-009-0	01	1	9109-9601	●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9602-0411		●
25	METAL; CM/SHF FRONT	8-97378-148-0	01	1	0412-		●
25	METAL; CM/SHF FRONT	5-11611-008-0	01	1	9109-9601	●
25	METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9602-0411		●
25	METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0412-		●
38	PIN; TIMING GEAR CASE	9-08151-024-0	02	1	9009-9601	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9009-9601	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9602-		●
55	PLUG; OIL GALLERY PT1/8	5-09605-019-2	03	1	9009-9205	●
55	PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9206-9601	●
63	DUCT; WATER,C/BL	8-94454-832-0	01	1	9009-9601	●
63	DUCT; WATER,C/BL	8-94419-436-2	01	1	9602-		●
72	COVER; TAPPET CHAMBER	8-94254-652-0	01	1	9009-9601	●
74	BOLT; COVER TO C/BL M8X18 W/LK WASHER	9-01900-818-0	14	1	9009-9204	●
74	BOLT; COVER TO C/BL M8X18 W/LK WASHER	0-50040-818-0	14	1	9205-9601	●
95	PRESSURE UNIT; OIL WAGON(TB*V)	8-94232-115-2	01	1	9409-9601	●
96	ADAPTER; PRESS UNIT & SW WAGON(TB*V)	8-94203-071-0	01	1	9409-9601	●
97	CUP; SEALING OD=45	1-09600-005-1	03	1	9009-9601	●
97	CUP; SEALING OD=12.3	5-09600-013-0	01	1	9009-9601	●
97	CUP; SEALING OD=18	5-11219-008-0	02	1	9009-9601	●
97	CUP; SEALING OD=32	5-11219-015-0	02	1	9009-9601	●
97	CUP; SEALING OD=38	5-11219-017-0	01	1	9009-9601	●
97	CUP; SEALING OD=36	5-11219-018-0	01	1	9009-9601	●
98	PIN; C/BL TO CRANKCASE	9-09878-597-0	02	1	9009-9601	●
99	GASKET; OIL PIPE ADAPTER ID=14.2 OD=20.0	9-09571-414-0	01	1	9009-9601	●
100	ADAPTER; OIL FEED PIPE	5-09650-020-0	01	1	9009-9601	●
101	CUP; SEALING CAM END OD=56	8-94250-514-0	01	1	9009-9601	●
102	CUP; SEALING OIL GALLERY OD=16	5-11129-006-0	02	1	9009-9601	●
103	NIPPLE; OIL FEED	9-09902-299-0	01	1	9009-9601	●
104	BOLT; BREATHER PIPE M6X25 W/LK WASHER	0-50040-625-0	02	1	9009-9601	●
105	CLIP; ENG HARNESS,TAPPET COVER (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9009-9601	●
105	CLIP; ENG HARNESS,TAPPET COVER (B) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	9009-9601	●
106	PIPE; BREATHER TAPPET CHAMBER	5-11740-115-0	01	1	9009-9601	●
107	GASKET; BREATHER PIPE,TAPPET CHAMBER	5-11292-017-0	01	1	9009-9109	●
107	GASKET; BREATHER PIPE,TAPPET CHAMBER	8-97045-360-0	01	1	9110-9601	●
108	NIPPLE; BREATHER HOSE,TAPPET COVER	5-09666-010-0	01	1	9009-9601	●
109	WASHER; LK,BAFFLE PLATE,TAPPET COVER ID=5.1	9-09150-505-0	02	1	9009-9601	●
110	SCREW; BAFFLE PLATE,TAPPET COVER M5X10 PAN-HD	9-93490-510-0	02	1	9009-9601	●
111	BAFFLE; BREATHER,TAPPET CHAMBER COVER	8-94254-596-0	01	1	9009-9601	●
112	BAFFLE; BREATHER,TAPPET CHAMBER COVER	5-11299-013-0	01	1	9009-9601	●
179	GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	5-11292-015-0	01	1	9009-9109	●
179	GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-328-0	01	1	9110-9601	●
