0-11 — CYLINDER HEAD (#95864) — 76 parça

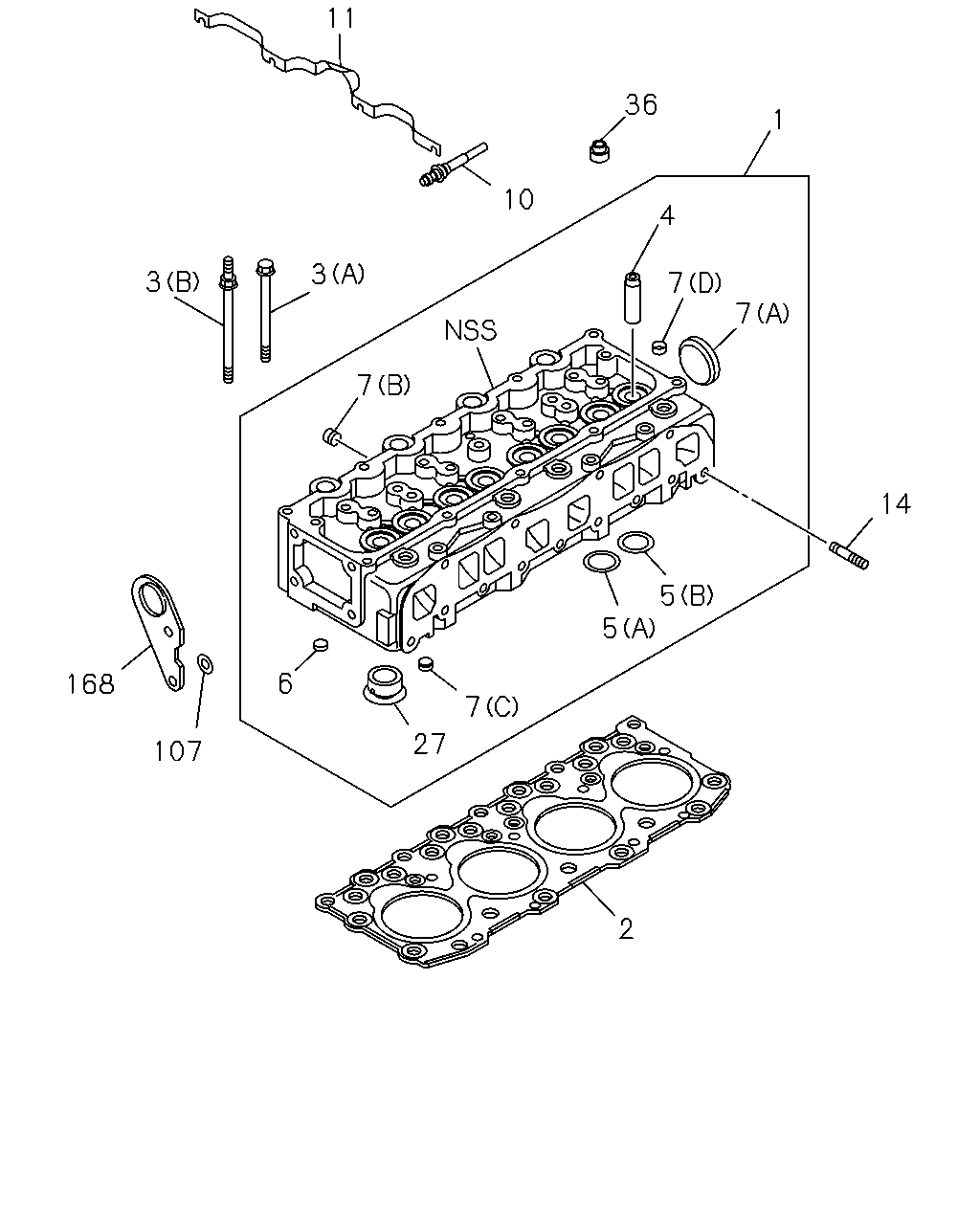

çizim 289261
1 4 7 7 14 5 5 2 7 27 6 107 168 3 3 7 10 36 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94104-997-1 01 1 9009-9601 ●
1 HEAD ASM; CYL
IDN 		8-97108-725-2 01 1 9602- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		5-11141-082-1 01 1 9009-9601 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9602-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
3 BOLT; CYL HD TO BLOCK
(A) M11X117 		5-09009-036-0 16 1 9009-9601 ●
3 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-94247-355-1 18 1 9602-9701 ●
3 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
(B) M11X117 		5-09009-037-0 03 1 9009-9601 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9009-9601 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9602- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-026-0 04 1 9009-9601 ●
5 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9602-0207 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0208- ●
5 SEAT; VLV INSERT
(A) INLET 		5-11715-023-0 04 1 9009-9601 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-94130-559-0 04 1 9602-0207 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-97231-229-0 04 1 0208- ●
6 PLUG; PLATE
OD=11.9 		9-09860-522-0 04 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9602-0207 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 IDN 		8-97351-451-0 01 1 0208-0503 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-2 01 1 0504- ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 04 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9602- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9602- ●
7 CUP; SEALING,CYL HEAD
(D) OD=18 		5-11219-008-0 05 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(D) OD=22 		1-09600-011-2 07 1 9602-9905 ●
7 CUP; SEALING,CYL HEAD
(D) OD=22 		8-97209-609-0 07 1 9906- ●
10 PLUG; GLOW 8-94319-700-2 04 1 9009-9601 ●
11 CONNECTOR; GLOW PLUG
T=0.8 		5-19732-014-1 01 1 9009-9601 ●
14 STUD; EXH MANIF
M8X35 L=47 		9-04110-835-0 03 1 9009-9601 ●
14 STUD; EXH MANIF
M8X40 L=52 		9-04110-840-0 04 1 9009-9601 ●
27 PLUG; HOT 8-94250-722-0 04 1 9009-9601 ●
36 SEAL; OIL,VLV GUIDE 5-12569-006-0 08 1 9009-9601 ●
107 PIECE; DIST HANGER
T=5 		9-14149-173-0 02 1 9009-9601 ●
168 HANGER; ENG,FRT 5-11777-054-0 01 1 9009-9601 ●
168 HANGER; ENG,FRT 8-94379-714-1 01 1 9602- ●

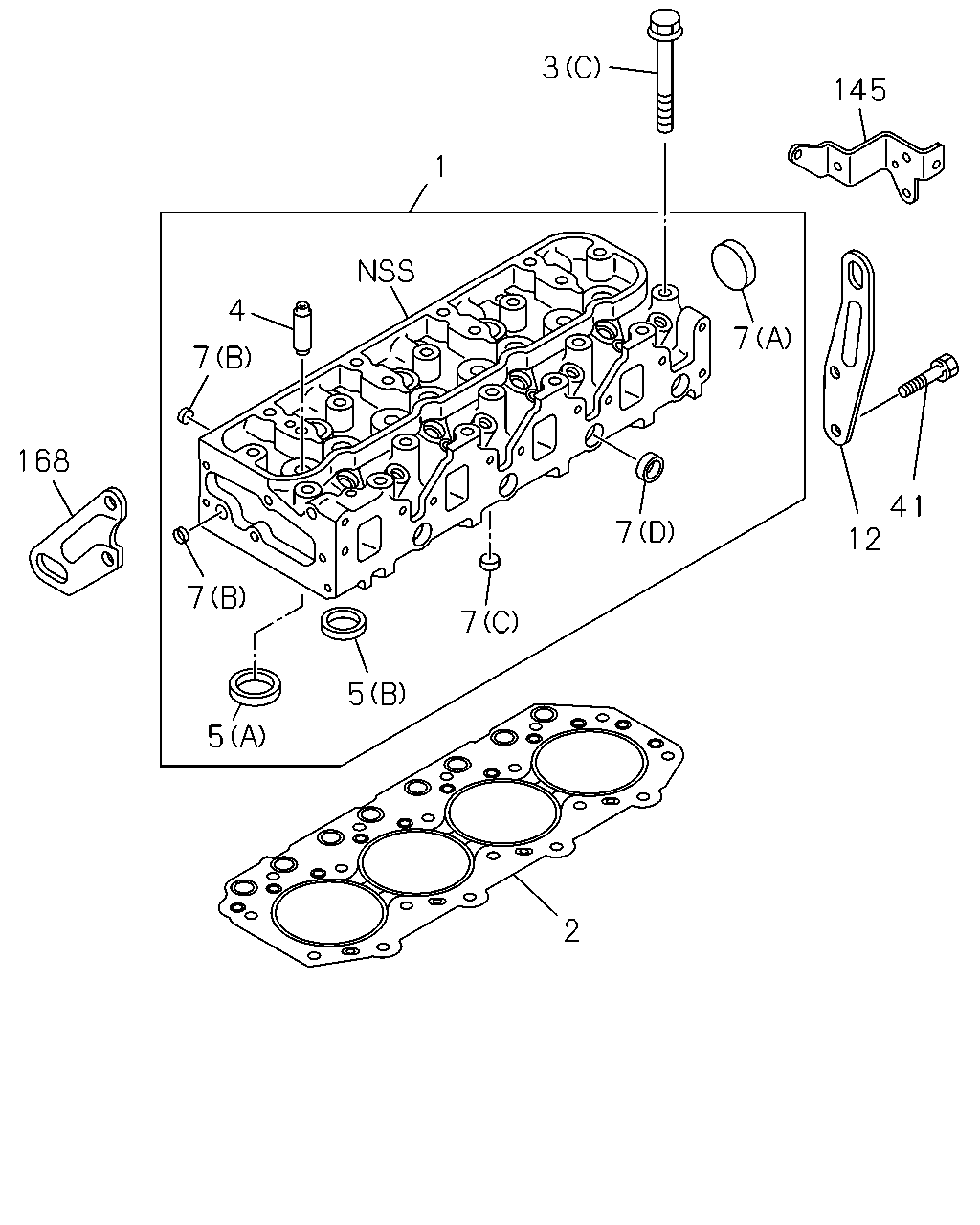

çizim 289296
1 4 7 168 7 5 5 2 7 7 12 41 7 145 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94104-997-1 01 1 9009-9601 ●
1 HEAD ASM; CYL
IDN 		8-97108-725-2 01 1 9602- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		5-11141-082-1 01 1 9009-9601 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9602-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
3 BOLT; CYL HD TO BLOCK
(A) M11X117 		5-09009-036-0 16 1 9009-9601 ●
3 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-94247-355-1 18 1 9602-9701 ●
3 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
(B) M11X117 		5-09009-037-0 03 1 9009-9601 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9009-9601 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9602- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-026-0 04 1 9009-9601 ●
5 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9602-0207 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0208- ●
5 SEAT; VLV INSERT
(A) INLET 		5-11715-023-0 04 1 9009-9601 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-94130-559-0 04 1 9602-0207 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-97231-229-0 04 1 0208- ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9602-0207 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 IDN 		8-97351-451-0 01 1 0208-0503 ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-2 01 1 0504- ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 04 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9602- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9602- ●
7 CUP; SEALING,CYL HEAD
(D) OD=18 		5-11219-008-0 05 1 9009-9601 ●
7 CUP; SEALING,CYL HEAD
(D) OD=22 		1-09600-011-2 07 1 9602-9905 ●
7 CUP; SEALING,CYL HEAD
(D) OD=22 		8-97209-609-0 07 1 9906- ●
12 HANGER; ENG,RR 8-97136-179-0 01 1 9602- ●
41 BOLT; ENG HANGER
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9602-0512 ●
41 BOLT; ENG HANGER
M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601- ●
41 BOLT; ENG HANGER
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9602-0512 ●
41 BOLT; ENG HANGER
M10X25 W/LK WASHER 		0-50541-025-0 01 1 0601- ●
41 BOLT; ENG HANGER
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9602-0909 ●
41 BOLT; ENG HANGER
M8X20 W/LK WASHER 		0-50540-820-0 02 1 0910- ●
145 BRACKET 8-97135-618-0 01 1 9602- ●
168 HANGER; ENG,FRT 5-11777-054-0 01 1 9009-9601 ●
168 HANGER; ENG,FRT 8-94379-714-1 01 1 9602- ●
