Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#95863) — 36 parça
Tümü
A - C223 ENG
B - 4JA1 ENG
◀
[010A] 4JA1 ENG (20 parça)
[010A] C223 ENG (16 parça)
▶

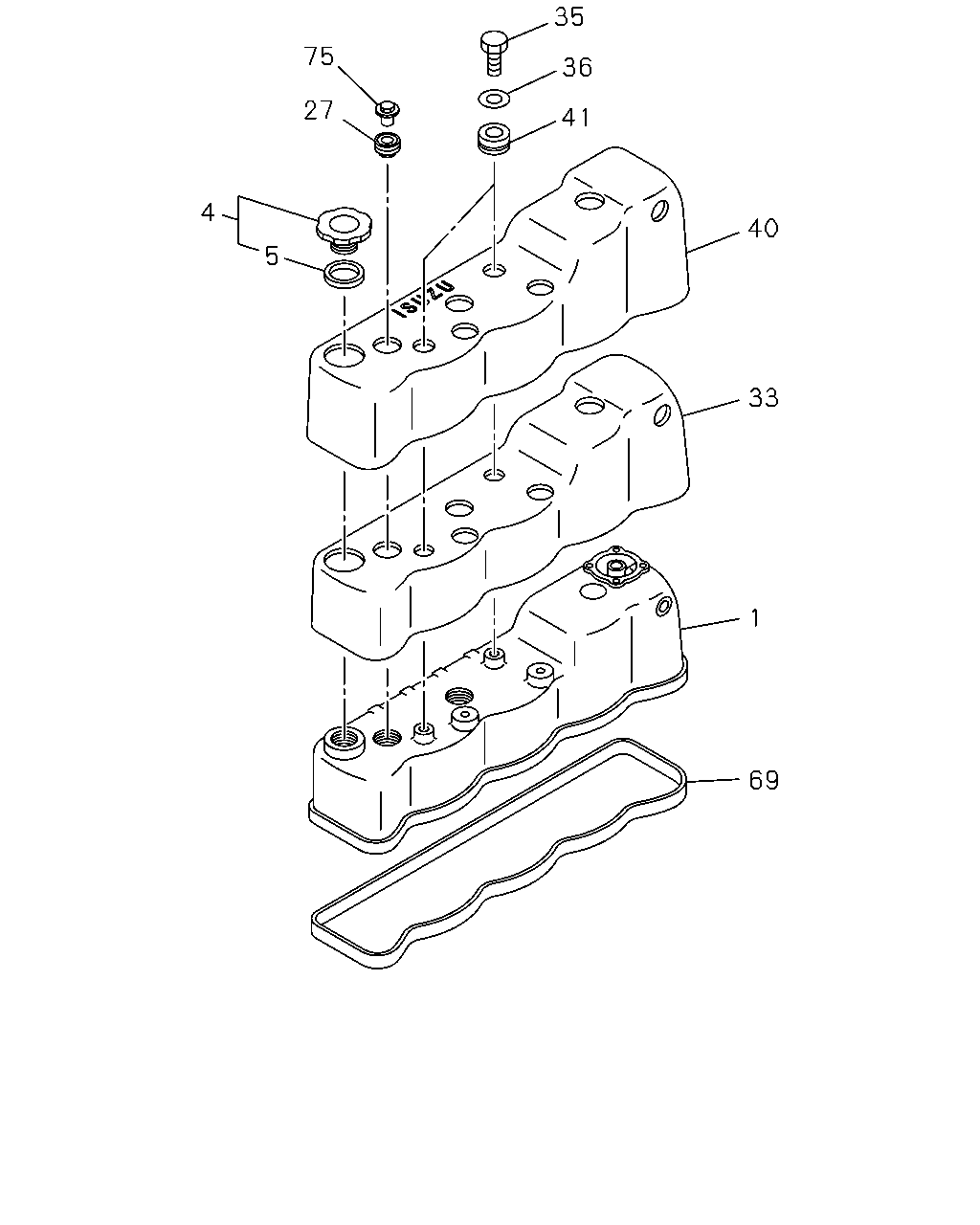

69
1
33
40
41
36
35
75
27
4
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
5-11170-211-1
01
1
9009-9601
●
1
COVER; CYL HD
8-94433-742-2
01
1
9602-
●
4
CAP; OIL FILLER
OD=45
9-11751-038-1
01
1
9009-9601
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
9602-
●
5
GASKET; OIL FILLER
ID=32 OD=40
8-94123-623-1
01
1
9602-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
9-11179-808-0
02
1
9009-9601
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
03
1
9602-0103
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-97263-801-1
03
1
0104-
●
33
RUBBER; SPACE,CYL HD COVER
8-97131-707-3
01
1
9602-0110
●
33
RUBBER; SPACE,CYL HD COVER
8-97252-871-0
01
1
0111-0301
●
33
RUBBER; SPACE,CYL HD COVER
8-97365-746-0
01
1
0302-
●
35
BOLT; NOISE SHIELD COVER
M8X14
0-20800-814-0
02
1
9602-
●
36
WASHER; PL,NOISE SHIELD COVER
ID=8.5 OD=30 T=2.6
9-09651-112-0
02
1
9602-
●
40
COVER
8-97043-018-0
01
1
9602-
●
41
GROMMET; HD COVER,OUTER
8-94256-959-0
02
1
9602-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94447-570-0
01
1
9009-9601
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97118-768-0
01
1
9602-9605
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97161-131-0
01
1
9606-0301
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97349-416-1
01
1
0302-
●
75
NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
03
1
9602-
●

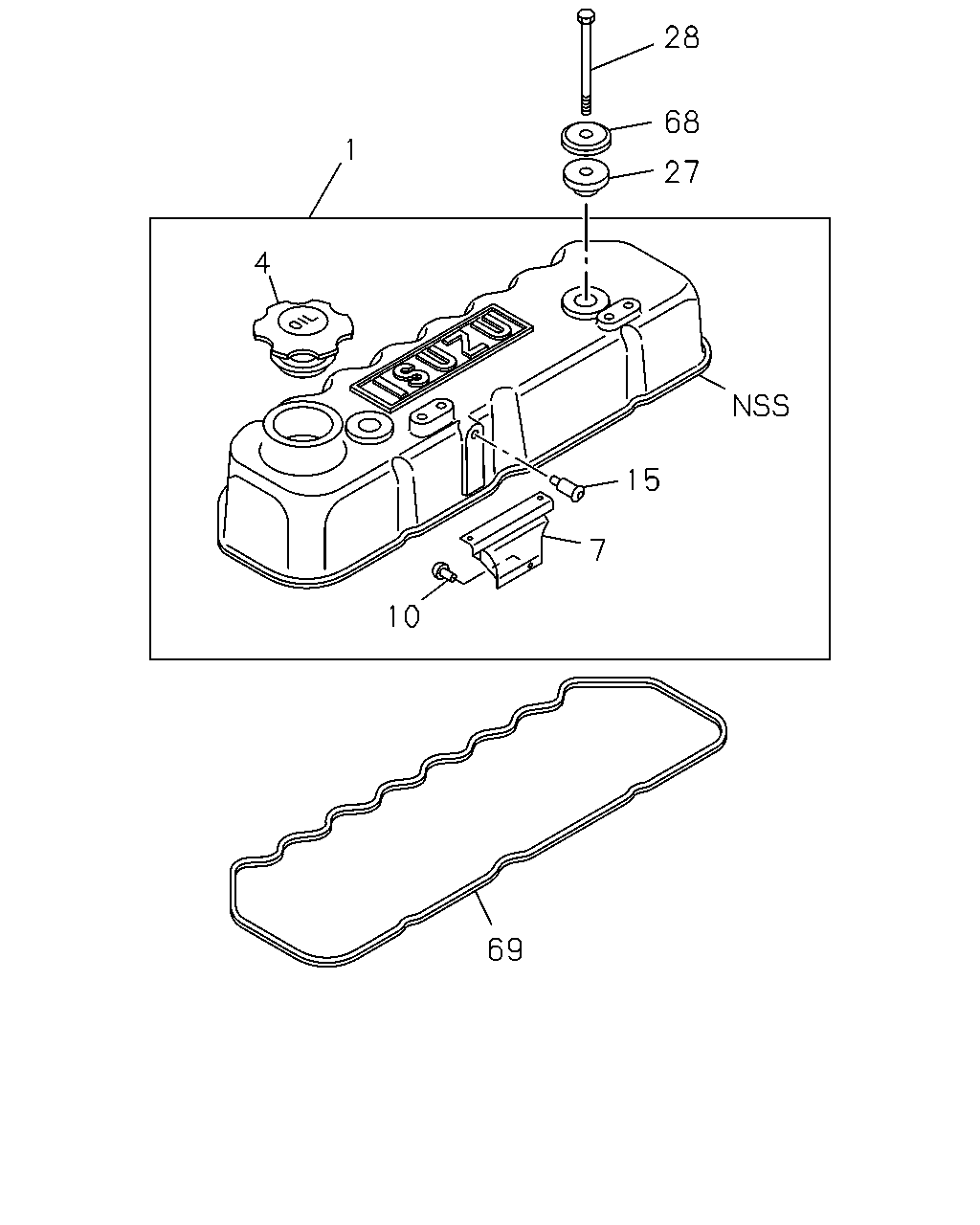

1
4
10
69
7
15
27
68
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
5-11170-211-1
01
1
9009-9601
●
1
COVER; CYL HD
8-94433-742-2
01
1
9602-
●
4
CAP; OIL FILLER
OD=45
9-11751-038-1
01
1
9009-9601
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
9602-
●
7
PLATE; BREATHER,HD COVER
5-11179-046-0
01
1
9106-9601
●
10
RIVET; PLATE,BREATHER
9-06520-412-0
01
1
9106-9601
●
15
NIPPLE; BREATHER
5-11179-048-0
01
1
9009-9601
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
9-11179-808-0
02
1
9009-9601
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
03
1
9602-0103
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-97263-801-1
03
1
0104-
●
28
BOLT; HD COVER
8-94253-760-1
02
1
9009-9601
●
68
WASHER; CAP NUT,HD COVER
9-11179-132-0
02
1
9009-9601
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94447-570-0
01
1
9009-9601
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97118-768-0
01
1
9602-9605
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97161-131-0
01
1
9606-0301
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97349-416-1
01
1
0302-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
