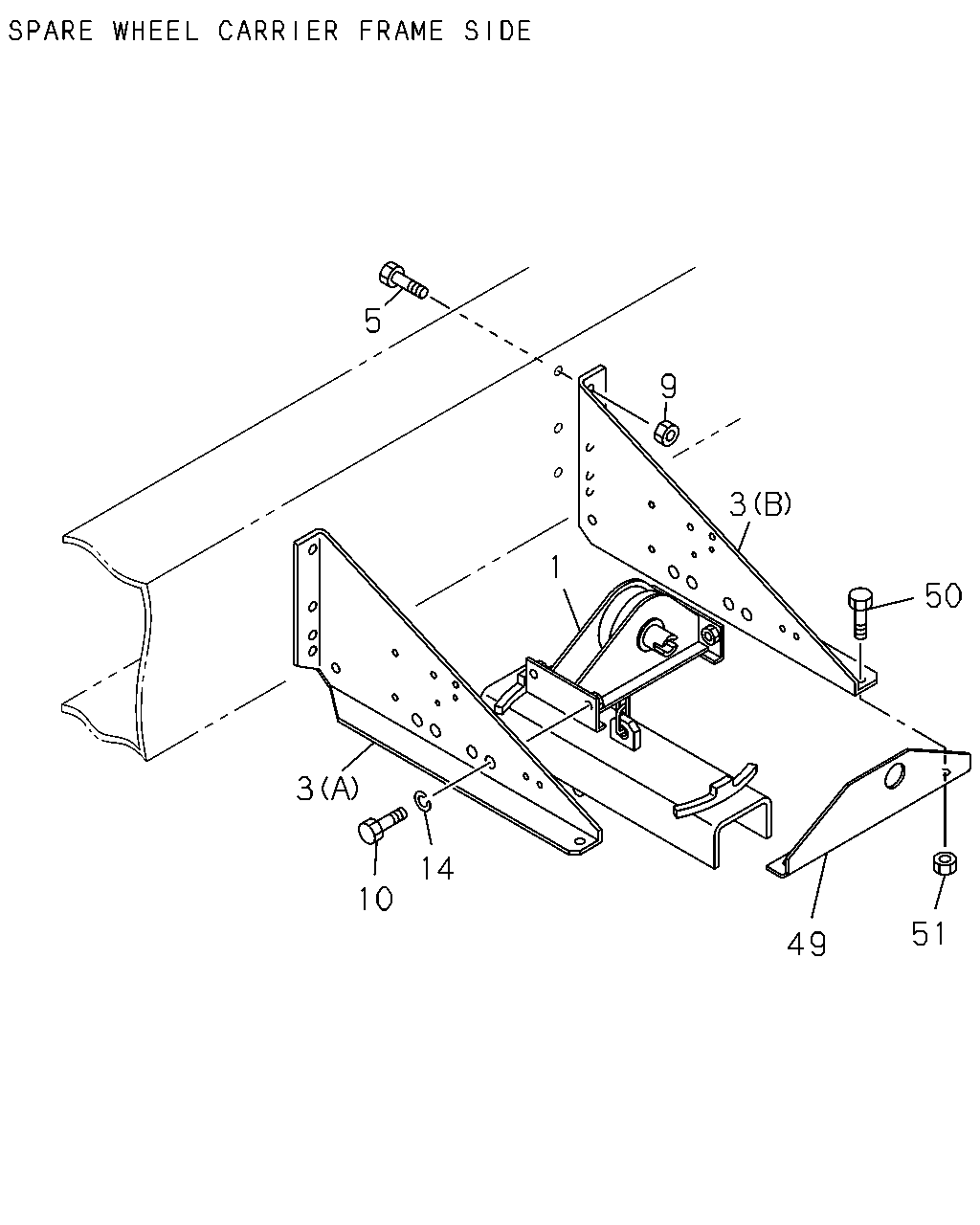

5-30 — SPARE TIRE CARRIER AND COVER (#9586) — 75 parça

5 9 3 1 50 3 14 10 51 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT	1-53630-210-4	01	1	0005-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-391-0	01	1	0005-0005	●
3	BRACKET; TIRE CARRIER,FRT (B)	1-53631-391-0	01	1	0005-0005		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-391-0	01	1	0005-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-392-0	01	1	0005-0005	●
3	BRACKET; TIRE CARRIER,FRT (A)	1-53631-392-0	01	1	0005-0005		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-392-0	01	1	0005-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	0005-0005	●
5	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0005		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	06	1	0005-0512	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28651-235-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28081-030-0	08	1	0005-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE	0-28081-030-0	08	1	0211-0311	●
5	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28081-030-0	08	1	0211-0311		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0312-0512	●
5	BOLT; BRKT TO FRAME M10X25 FLANGE	0-28081-025-0	08	1	0312-0512		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-	●
5	BOLT; BRKT TO FRAME M10X25 FLANGE	0-28051-025-0	08	1	0601-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0005	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0602	●
9	NUT; BRKT TO FRAME M10 FLANGE	0-91150-210-0	08	1	0005-0602		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-	●
9	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	08	1	0603-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-412-0	06	1	0005-0005	●
9	NUT; BRKT TO FRAME M12	9-99110-412-0	06	1	0005-0005		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	0601-	●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0005-0512	●	●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28651-230-0	04	1	0601-	●	●
14	WASHER; LK,TIRE HANGER ID=16.2	9-09150-516-0	04	1	0005-0006	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-376-0	01	1	0005-0005	●
49	STAY; TIRE CARRIER	1-53631-376-0	01	1	0005-0005		●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-376-0	01	1	0005-0410	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-466-1	01	1	0411-	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	02	1	0005-0005	●
50	BOLT; BRKT TO STAY M12X30 FLANGE	0-28681-230-0	02	1	0005-0005		●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	02	1	0005-0410	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0411-0512	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	02	1	0005-0005	●
51	NUT; BRKT TO STAY M12	9-99110-512-0	02	1	0005-0005		●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	02	1	0005-0410	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0411-0512	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	0-91110-508-0	04	1	0601-	●

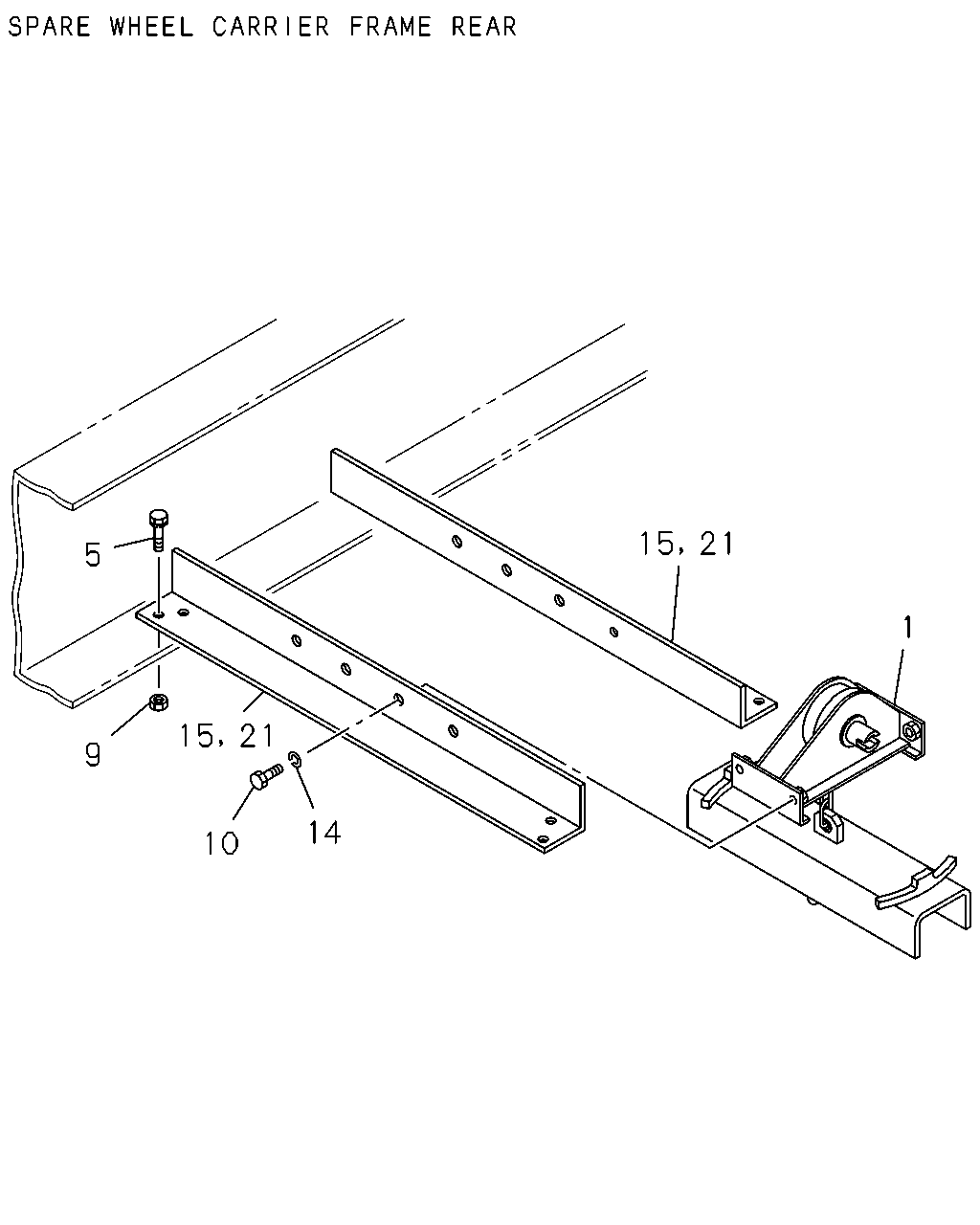

15 21 5 1 15 21 9 14 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT	1-53630-210-4	01	1	0005-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	0005-0005	●
5	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0005		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	06	1	0005-0512	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28651-235-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28081-030-0	08	1	0005-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE	0-28081-030-0	08	1	0211-0311	●
5	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28081-030-0	08	1	0211-0311		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0312-0512	●
5	BOLT; BRKT TO FRAME M10X25 FLANGE	0-28081-025-0	08	1	0312-0512		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-	●
5	BOLT; BRKT TO FRAME M10X25 FLANGE	0-28051-025-0	08	1	0601-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0005	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0602	●
9	NUT; BRKT TO FRAME M10 FLANGE	0-91150-210-0	08	1	0005-0602		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-	●
9	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	08	1	0603-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-412-0	06	1	0005-0005	●
9	NUT; BRKT TO FRAME M12	9-99110-412-0	06	1	0005-0005		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	0601-	●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0005-0512	●	●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28651-230-0	04	1	0601-	●	●
14	WASHER; LK,TIRE HANGER ID=16.2	9-09150-516-0	04	1	0005-0006	●	●
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-373-0	02	1	0211-	●
15	MEMBER; CROSS,SPARE TIRE	1-53631-373-0	02	1	0211-		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-373-0	02	1	0005-0005	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-373-0	02	1	0005-0210	●
21	BRACKET; SPARE TIRE HANGER	1-53631-373-0	02	1	0005-0210		●
