◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#95858) — 30 parça

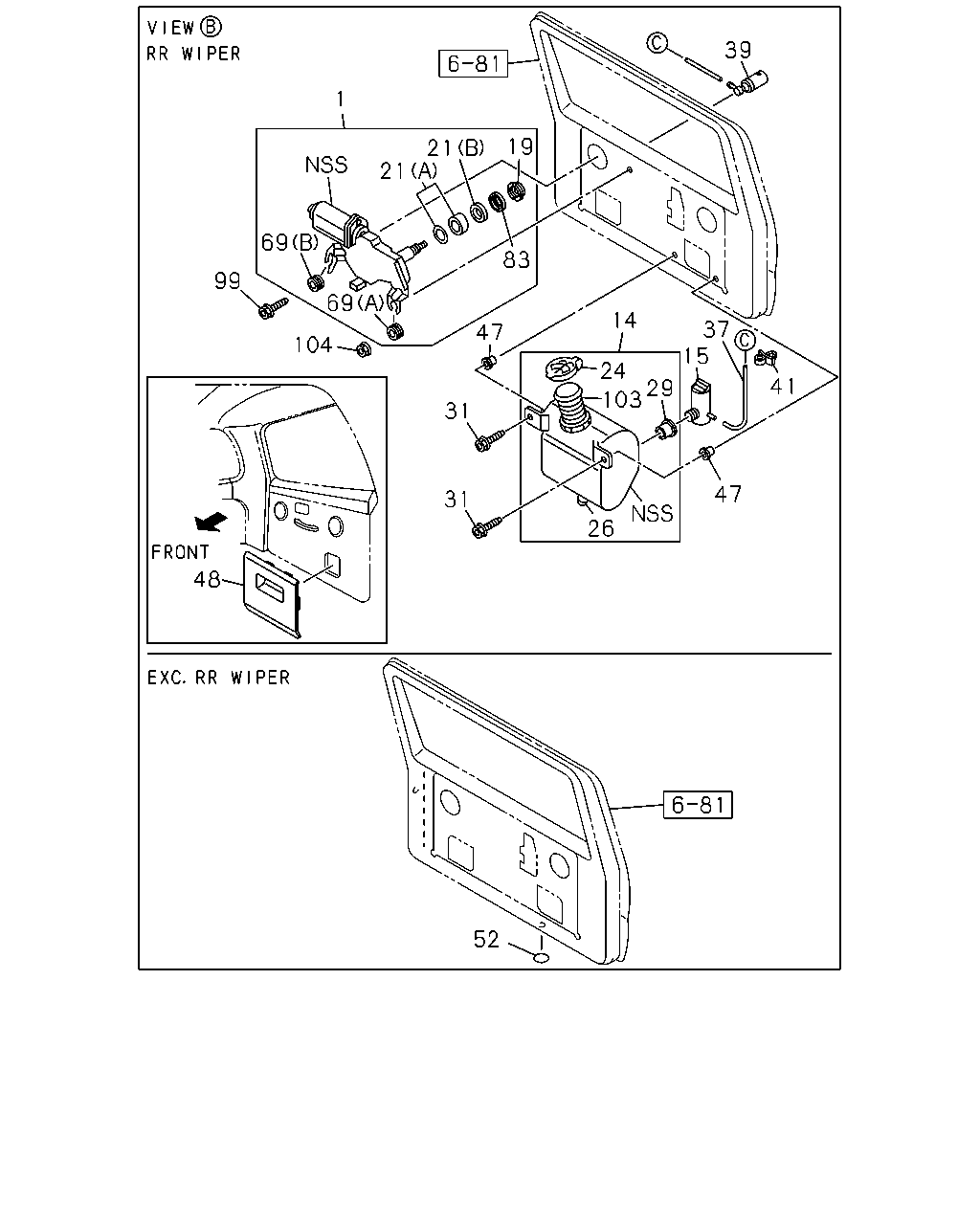

çizim 288887
39 1 19 21 21 69 99 83 69 104 47 14 41 37 15 47 24 29 103 26 31 31 48 52
BalonParca AdiParca NoAdetTipApplied Date
1 MOTOR ASM; RR WIPER
RR WIPER<C25> IDN 		8-97322-389-0 01 1 0612-
14 TANK ASM; WASHER,REAR WIPER
RR WIPER<C25> IDN 		8-97958-182-0 01 1 0612-
15 MOTOR ASM; RR,WASHER TANK
RR WIPER<C25> IDN 		8-97958-183-0 01 1 0612-
19 NUT; LOCK,PIVOT
RR WIPER<C25> IDN 		8-97260-188-0 01 1 0612-
21 SEAL; PIVOT,RR WIPER
RR WIPER<C25> (A) 		8-97260-182-0 01 1 0612-
21 SEAL; PIVOT,RR WIPER
RR WIPER<C25> (B) IDN 		8-97260-183-0 01 1 0612-
24 CAP; WASHER TANK,RR
RR WIPER<C25> IDN 		8-97958-184-0 01 1 0612-
26 RUBBER; CUSHION,RR WASHER TANK
RR WIPER<C25> IDN 		8-97958-548-0 01 1 0612-
29 GASKET; TANK TO MOTOR
RR WIPER<C25> IDN 		8-97958-547-0 01 1 0612-
31 SCREW; RR WASHER TANK TO BODY
RR WIPER<C25> M6X25 W/PL WASHER 		0-36210-625-0 02 1 0612-
37 HOSE; WASHER TANK,RR
RR WIPER<C25> SERVICED BY L=10000 IDN 		8-97958-549-0 01 1 0612-
39 NOZZLE; RR WINDSHIELD,WASHER
RR WIPER<C25> 		8-97175-419-1 01 1 0612-
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25> ID=6 		8-94417-625-0 03 1 0612-
47 NUT; HANGER,RR WIPER
RR WIPER<C25> M6 RUBBER NUT 		8-97023-281-0 02 1 0612-
48 LID; RR WASHER TANK
INTERIOR COLOR LT CAFE(184) RR WIPER<C25> BEIGE 		8-97412-249-1 01 1 0705-
48 LID; RR WASHER TANK
RR WIPER<C25> BLACK 		8-97404-855-1 01 1 0612-0701
48 LID; RR WASHER TANK
INTERIOR COLOR BLACK(101) RR WIPER<C25> BLACK 		8-97404-855-1 01 1 0702-
52 PLUG; RR WASHER
EXC. RR WIPER<C25> IDN 		8-97957-855-0 01 1 0612-
69 RUBBER; CUSHION,RR,WIPER
RR WIPER<C25> (A) IDN 		8-97264-709-0 01 1 0612-
69 RUBBER; CUSHION,RR,WIPER
RR WIPER<C25> (B) IDN 		8-97264-710-0 01 1 0612-
83 COVER; LOCK NUT
RR WIPER<C25> IDN 		8-97260-184-0 01 1 0612-
99 BOLT; WIPER MOTOR
RR WIPER<C25> M6X25 W/LK&PL WASHER 		8-94416-136-0 01 1 0612-
103 NECK; RR WASHER TANK
RR WIPER<C25> IDN 		8-97958-621-0 01 1 0612-
104 NUT; WIPER MOTOR
RR WIPER<C25> M6 FLANGE 		0-91180-106-0 01 1 0612-
çizim 289494
3 4 2 8 6
BalonParca AdiParca NoAdetTipApplied Date
2 ARM ASM; REAR WIPER
RR WIPER<C25> IDN 		8-97175-418-0 01 1 0612-
3 BLADE ASM; REAR WIPER
RR WIPER<C25> IDN 		8-97175-464-0 01 1 0612-
4 RUBBER; BLADE,RR WIPER
RR WIPER<C25> IDN 		8-97264-873-0 01 1 0612-
6 CLIP; COVER
RR WIPER<C25> 		8-94460-965-0 01 1 0612-
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> M8 FLANGE 		9-09844-190-0 01 1 0612-0803
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> M8 FLANGE 		8-98053-188-0 01 1 0804-
