8-74 — EVAPORATOR (#95855) — 64 parça

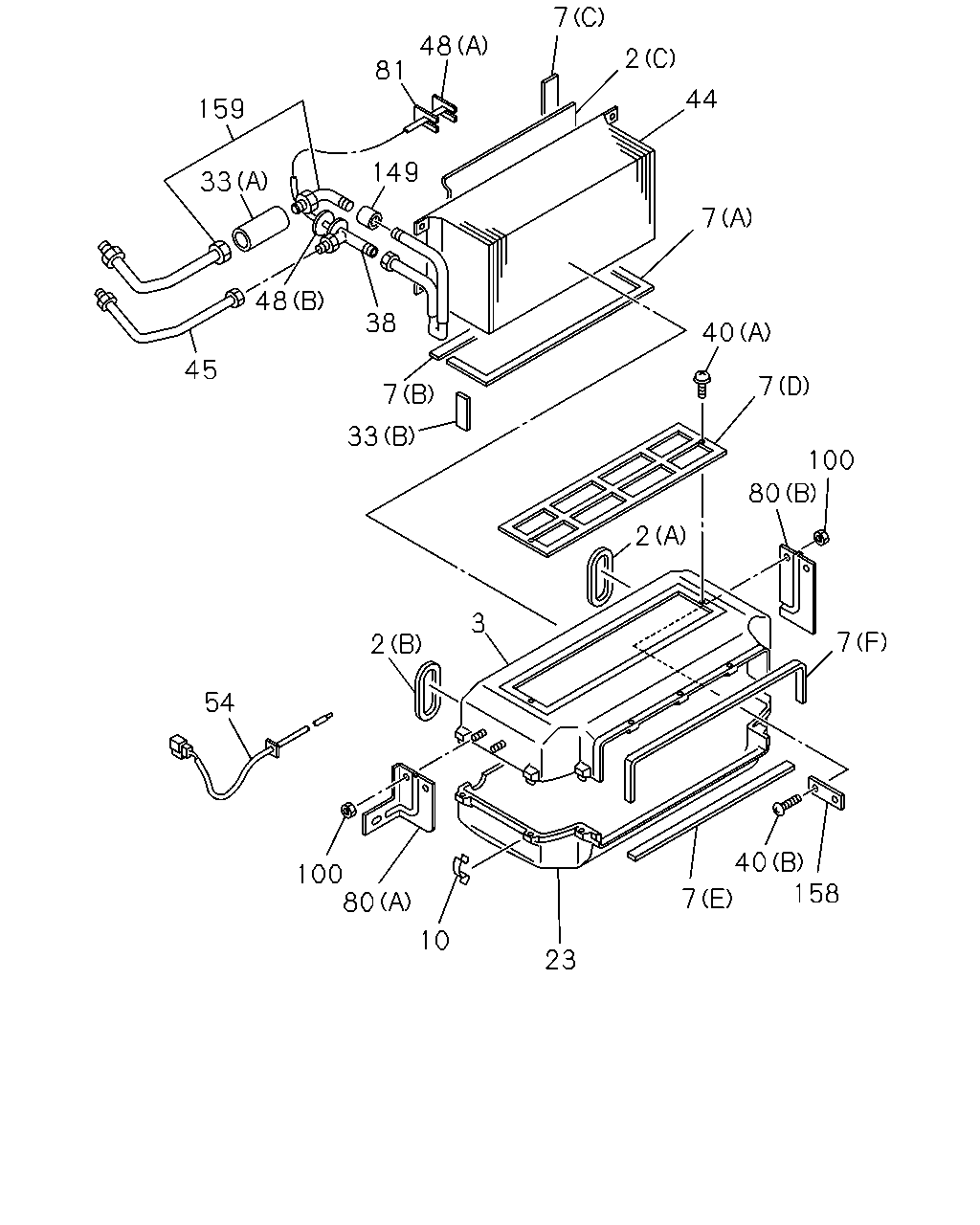

çizim 288876
158 40 7 23 10 80 100 54 7 80 100 7 40 7 2 3 2 33 7 38 48 45 149 33 159 81 48 7 44 2
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CASE,EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-272-0 01 1 0612-
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-272-0 01 1 0612-
2 GROMMET; CASE,EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-273-0 01 1 0612-
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-273-0 01 1 0612-
2 GROMMET; CASE,EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97262-277-0 01 1 0612-
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97262-277-0 01 1 0612-
3 CASE; EVAP,UPR
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-259-0 01 1 0612-
3 CASE; EVAP,UPR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-259-0 01 1 0612-
7 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-278-0 01 1 0612-
7 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-278-0 01 1 0612-
7 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-279-0 01 1 0612-
7 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-279-0 01 1 0612-
7 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97262-280-0 02 1 0612-
7 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97262-280-0 02 1 0612-
7 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN 		8-97262-281-0 01 1 0612-
7 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN 		8-97262-281-0 01 1 0612-
7 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (E) IDN 		8-97262-283-0 01 1 0612-
7 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (E) IDN 		8-97262-283-0 01 1 0612-
7 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (F) IDN 		8-97262-284-2 01 1 0612-
7 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (F) IDN 		8-97262-284-2 01 1 0612-
10 CLIP; EVAP CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		1-87540-422-0 06 1 0612-
10 CLIP; EVAP CASE
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		1-87540-422-0 06 1 0612-
23 CASE; EVAP,LWR
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-260-0 01 1 0612-
23 CASE; EVAP,LWR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-260-0 01 1 0612-
33 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		1-87540-611-0 01 1 0612-
33 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) 		1-87540-611-0 01 1 0612-
33 LINING; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97302-723-0 02 1 0612-
33 LINING; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97302-723-0 02 1 0612-
38 VALVE; EXPANSION
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-264-0 01 1 0612-
38 VALVE; EXPANSION
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-264-0 01 1 0612-
40 SCREW; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-288-0 02 1 0612-
40 SCREW; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-288-0 02 1 0612-
40 SCREW; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-291-0 02 1 0612-
40 SCREW; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-291-0 02 1 0612-
44 EVAPORATOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-258-1 01 1 0612-
44 EVAPORATOR ASM; A/C
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-258-1 01 1 0612-
45 PIPE; EXPANSION VLV
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-298-0 01 1 0612-
45 PIPE; EXPANSION VLV
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-298-0 01 1 0612-
48 INSULATOR; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-287-0 02 1 0612-
48 INSULATOR; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-287-0 02 1 0612-
48 INSULATOR; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97560-548-0 01 1 0612-
48 INSULATOR; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97560-548-0 01 1 0612-
54 THERMOSTAT; A/C
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-269-0 01 1 0612-
54 THERMOSTAT; A/C
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-269-0 01 1 0612-
80 BRACKET
AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-296-0 01 1 0612-
80 BRACKET
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		8-97262-296-0 01 1 0612-
80 BRACKET
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-297-0 01 1 0612-
80 BRACKET
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97262-297-0 01 1 0612-
81 CLIP; THERMOSTAT A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		1-87540-606-0 01 1 0612-
81 CLIP; THERMOSTAT A/C
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		1-87540-606-0 01 1 0612-
100 NUT; CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-94239-121-0 04 1 0612-
100 NUT; CASE
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-94239-121-0 04 1 0612-
149 HOLDER; PIPE,EVAP
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-286-0 01 1 0612-
149 HOLDER; PIPE,EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-286-0 01 1 0612-
158 PLATE; CASE
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-285-0 02 1 0612-
158 PLATE; CASE
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-285-0 02 1 0612-
159 PIPE; EVAPORATOR
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-299-1 01 1 0612-
159 PIPE; EVAPORATOR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97262-299-1 01 1 0612-

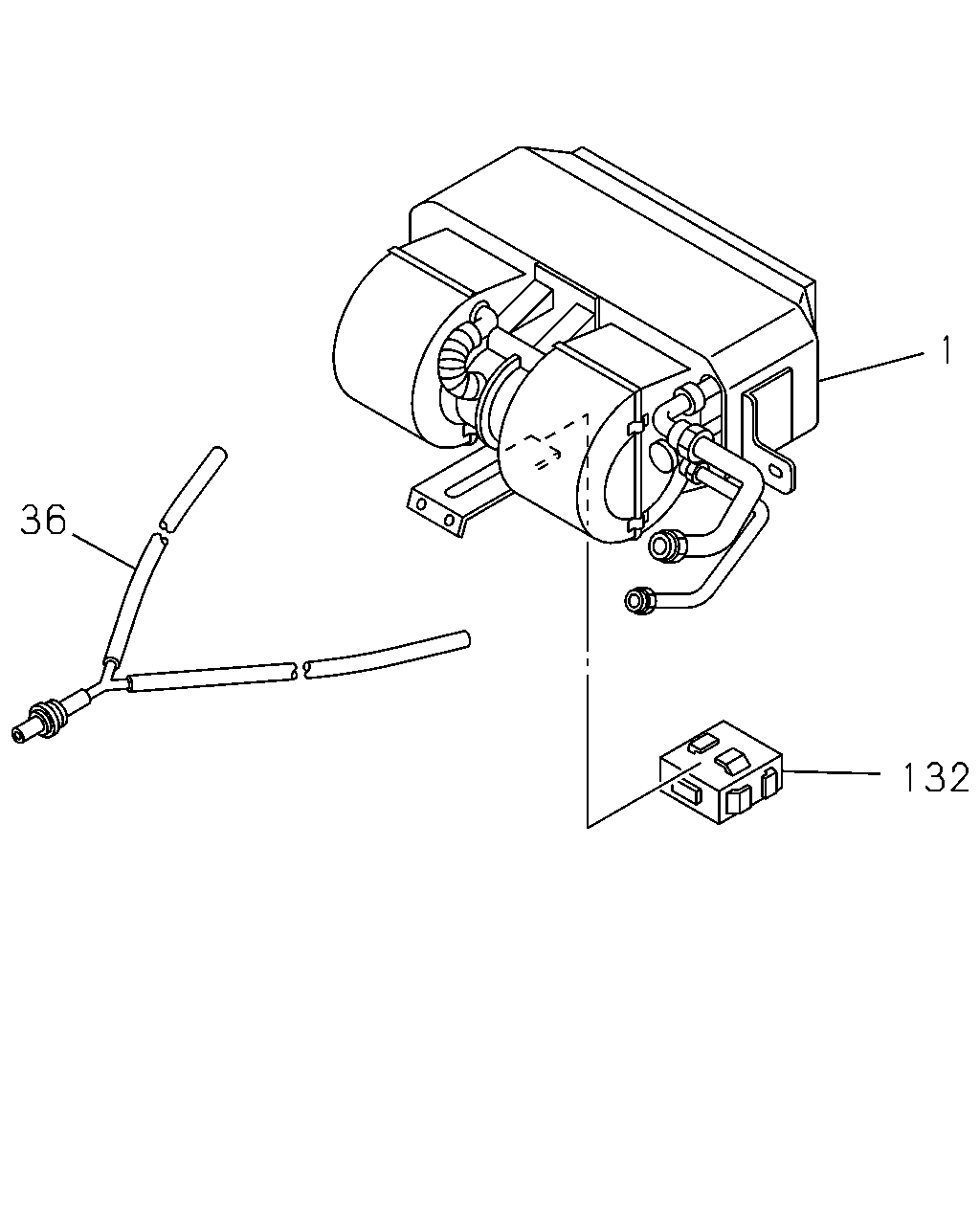

çizim 289504
132 1 36
BalonParca AdiParca NoAdetTipApplied Date
1 EVAPORATOR ASM
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-861-7 01 1 0612-
1 EVAPORATOR ASM
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-861-7 01 1 0612-
36 HOSE; DRAIN EVAP
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-315-0 01 1 0612-
36 HOSE; DRAIN EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-315-0 01 1 0612-
132 AMPLIFIER; EVAP
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-722-0 01 1 0612-
132 AMPLIFIER; EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-722-0 01 1 0612-
