8-72 — COOLER UNIT (#95853) — 71 parça

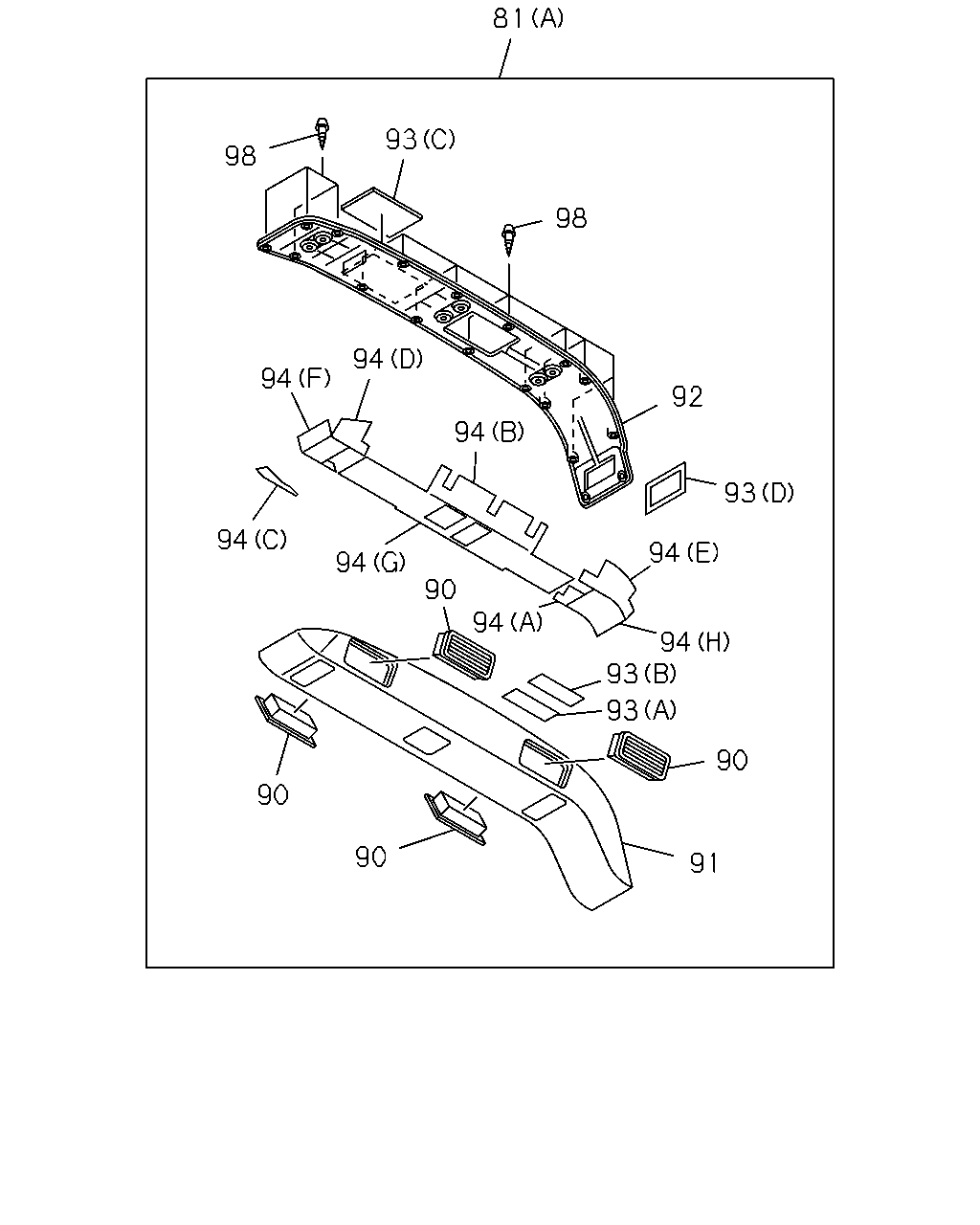

91 90 93 93 94 93 92 98 93 81 98 90 90 94 94 90 94 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	DUCT; RR COOLER INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> (A) BEIGE IDN	8-97562-833-0	01	1	0705-
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97561-612-0	01	1	0612-0701
81	DUCT; RR COOLER INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97561-612-0	01	1	0702-
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-854-2	01	1	0612-
90	GRILL; DUCT INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-98100-806-0	04	1	0705-
90	GRILL; DUCT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-480-0	04	1	0612-0701
90	GRILL; DUCT INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-480-0	04	1	0702-
91	DUCT; O/H,LWR INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-98100-839-0	01	1	0705-
91	DUCT; O/H,LWR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-479-0	01	1	0612-0701
91	DUCT; O/H,LWR INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-479-0	01	1	0702-
92	DUCT; O/H,UPR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-719-0	01	1	0612-0701
92	DUCT; O/H,UPR INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-719-0	01	1	0702-
92	DUCT; O/H,UPR INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-98100-805-0	01	1	0705-
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-161-0	01	1	0612-
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-162-0	01	1	0612-
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-163-0	02	1	0612-
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97562-164-0	01	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-157-0	01	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-158-0	02	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-159-0	01	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97562-160-0	01	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (E) IDN	8-97957-713-0	01	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (F) IDN	8-97957-714-0	01	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (G) IDN	8-97957-715-0	02	1	0612-
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (H) IDN	8-97957-716-0	01	1	0612-
98	SCREW; DUCT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-717-0	16	1	0612-

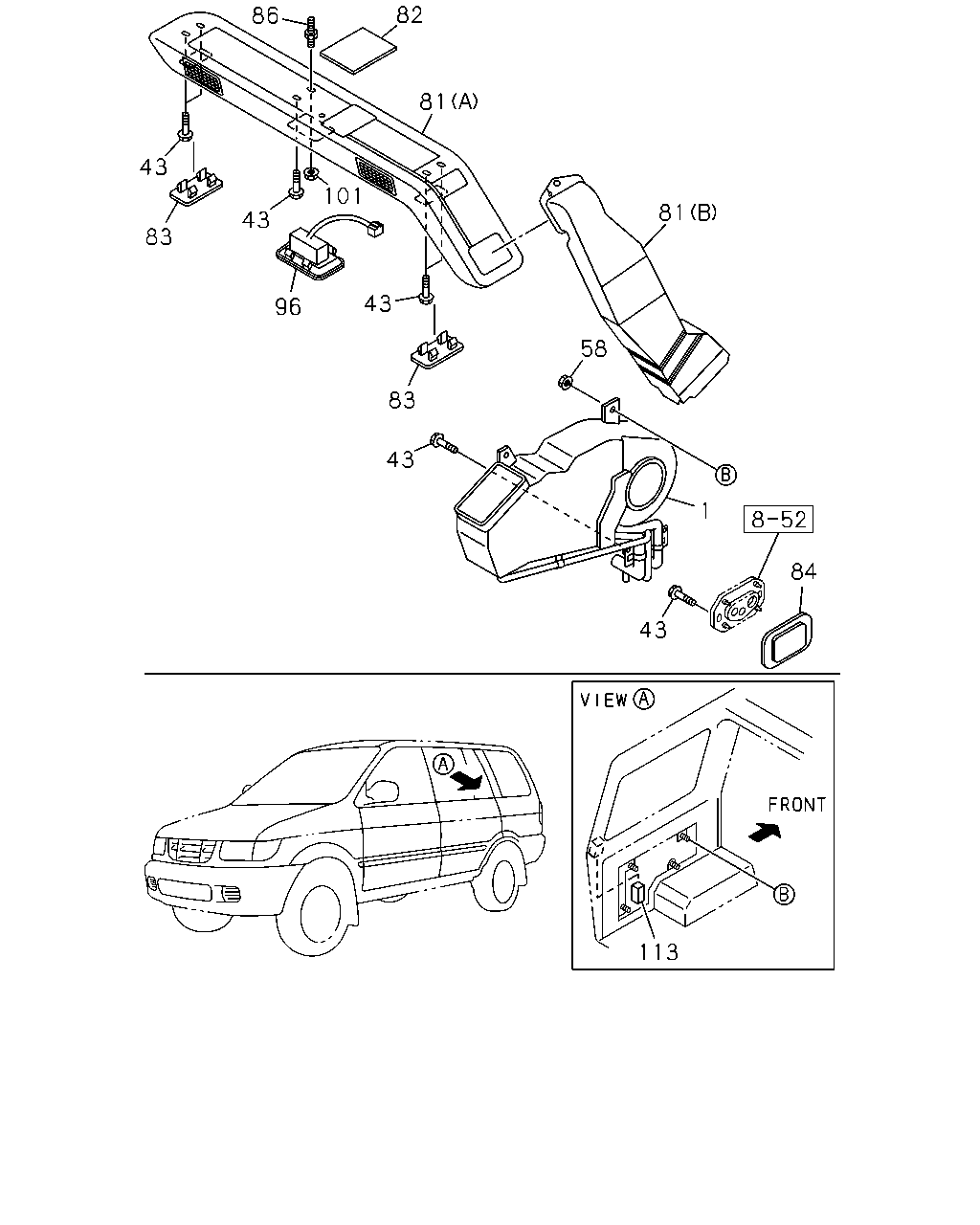

113 43 84 1 58 43 83 43 81 96 101 43 83 43 81 82 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COOLING UNIT; RR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-883-4	01	1	0612-
43	BOLT; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> M6X20 FLANGE	0-28450-620-0	09	1	0612-
58	NUT; CASE AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE	8-94279-514-0	04	1	0612-
81	DUCT; RR COOLER INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> (A) BEIGE IDN	8-97562-833-0	01	1	0705-
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97561-612-0	01	1	0612-0701
81	DUCT; RR COOLER INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97561-612-0	01	1	0702-
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-854-2	01	1	0612-
82	SEAL; DUCT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-721-0	01	1	0612-
83	CAP INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> BEIGE IDN	8-97562-839-0	02	1	0705-
83	CAP AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN	8-97561-387-0	02	1	0612-0704
83	CAP INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN	8-97561-387-0	02	1	0705-
84	RUBBER EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-887-0	01	1	0612-
86	STUD; DUCT AIR CONDITIONER ROOF MOUNTED<C69>	8-97256-495-0	01	1	0612-
96	SWITCH ASM; FAN INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> BEIGE IDN	8-97562-838-0	01	1	0705-
96	SWITCH ASM; FAN AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN	8-97561-385-0	01	1	0612-0704
96	SWITCH ASM; FAN INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN	8-97561-385-0	01	1	0705-
101	NUT; DUCT AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE	8-94279-514-0	01	1	0612-
113	SEAL; RR PILLER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97976-870-0	01	1	0612-

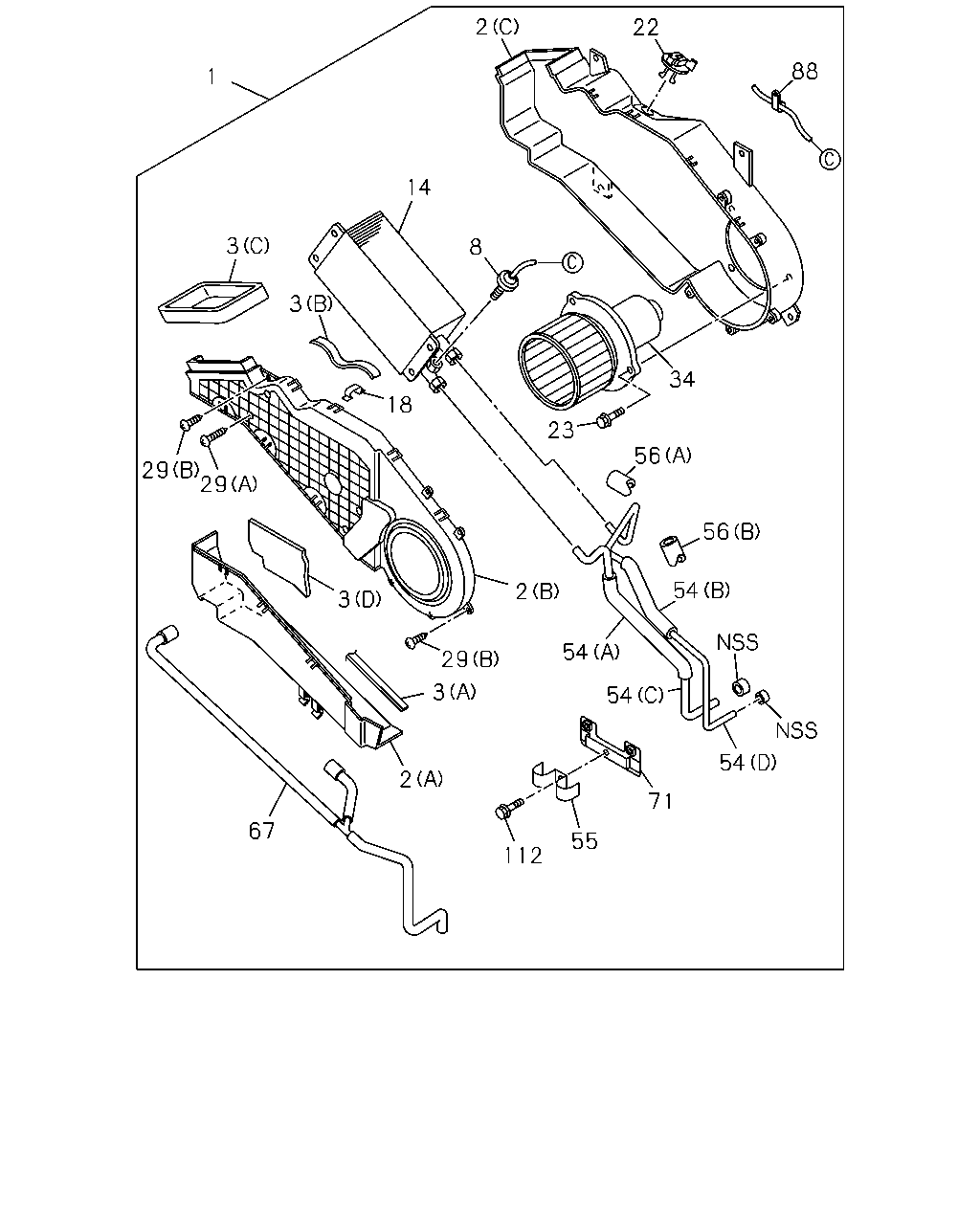

112 55 71 54 54 54 54 56 56 34 23 2 29 3 2 67 3 29 29 18 8 14 3 3 1 2 22 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COOLING UNIT; RR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-883-4	01	1	0612-
2	CASE; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-702-0	01	1	0612-
2	CASE; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-703-0	01	1	0612-
2	CASE; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-704-0	01	1	0612-
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-686-0	01	1	0612-
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-687-0	01	1	0612-
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-688-0	01	1	0612-
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97957-712-0	01	1	0612-
8	VALVE; EXPANSION AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-698-0	01	1	0612-
14	EVAPORATOR; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-700-1	01	1	0612-
18	CLIP; CASE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-711-0	05	1	0612-
22	RESISTOR; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-697-0	01	1	0612-
23	SCREW; CASE TO MOTOR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-709-0	03	1	0612-
29	SCREW; CASE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-707-0	03	1	0612-
29	SCREW; CASE AIR CONDITIONER ROOF MOUNTED<C69> (B) M4X16 TAPPING IDN	8-97957-708-0	11	1	0612-
34	MOTOR; FAN,COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-699-0	01	1	0612-
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-691-0	01	1	0612-
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-692-0	01	1	0612-
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-694-0	01	1	0612-
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97957-695-0	01	1	0612-
55	CLAMP; PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-706-0	01	1	0612-
56	LINING; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-689-0	01	1	0612-
56	LINING; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-690-0	02	1	0612-
67	HOSE; DRAIN AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-696-0	01	1	0612-
71	BRACKET; HOSE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-705-0	01	1	0612-
88	HOLDER; COOLING UNIT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97262-256-0	01	1	0612-
112	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-710-0	01	1	0612-
