8-65 — CONTROL LEVER; HEATER AND AIR CON (#95851) — 20 parça

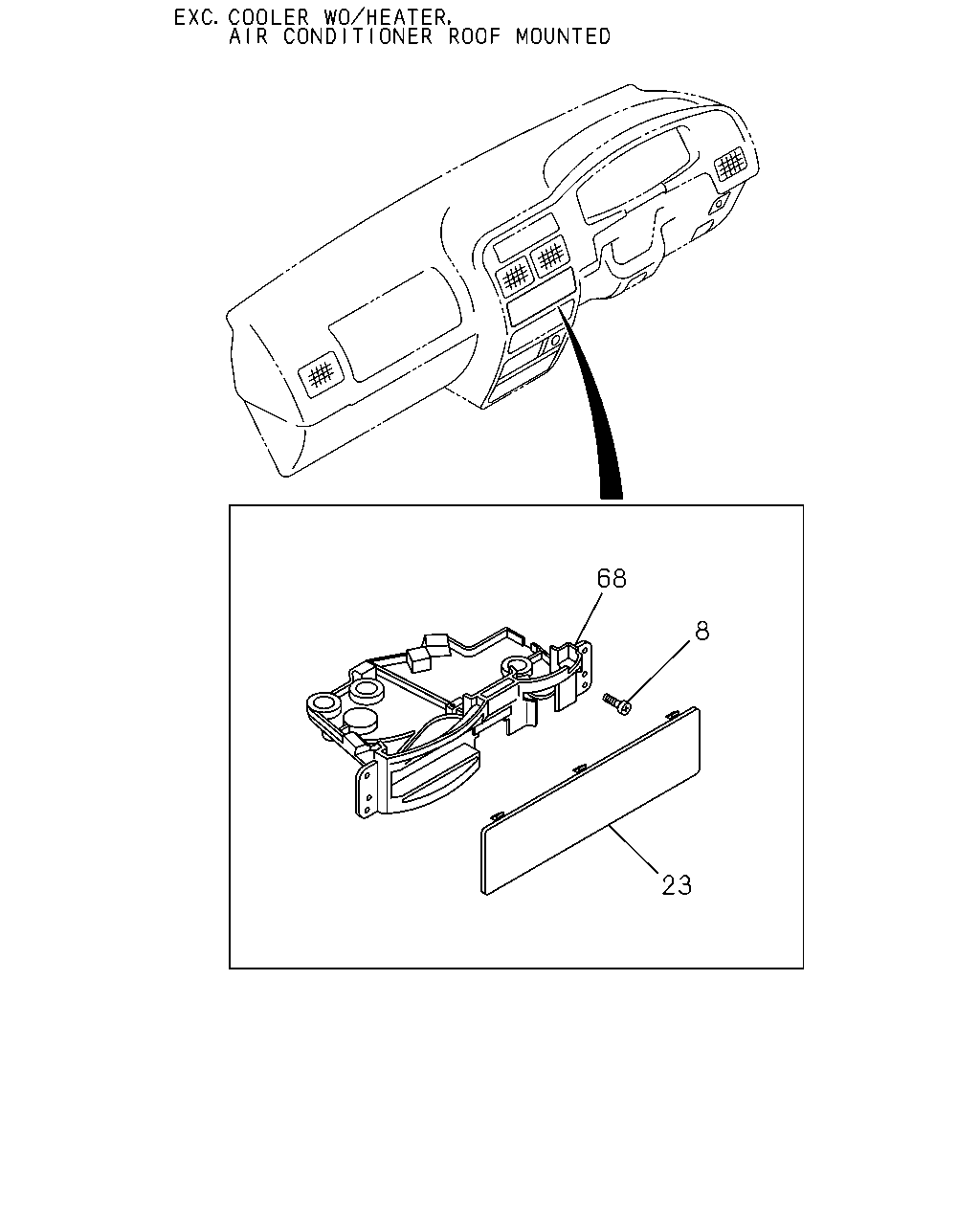

çizim 288865
23 8 68
BalonParca AdiParca NoAdetTipApplied Date
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 0612-
23 BEZEL; CONT LEVER
EXC. COOLER WO/HEATER(YL1) 		8-97112-443-0 01 1 0612-
68 BRACKET; BEZEL
EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) 		8-97165-592-0 01 1 0612-

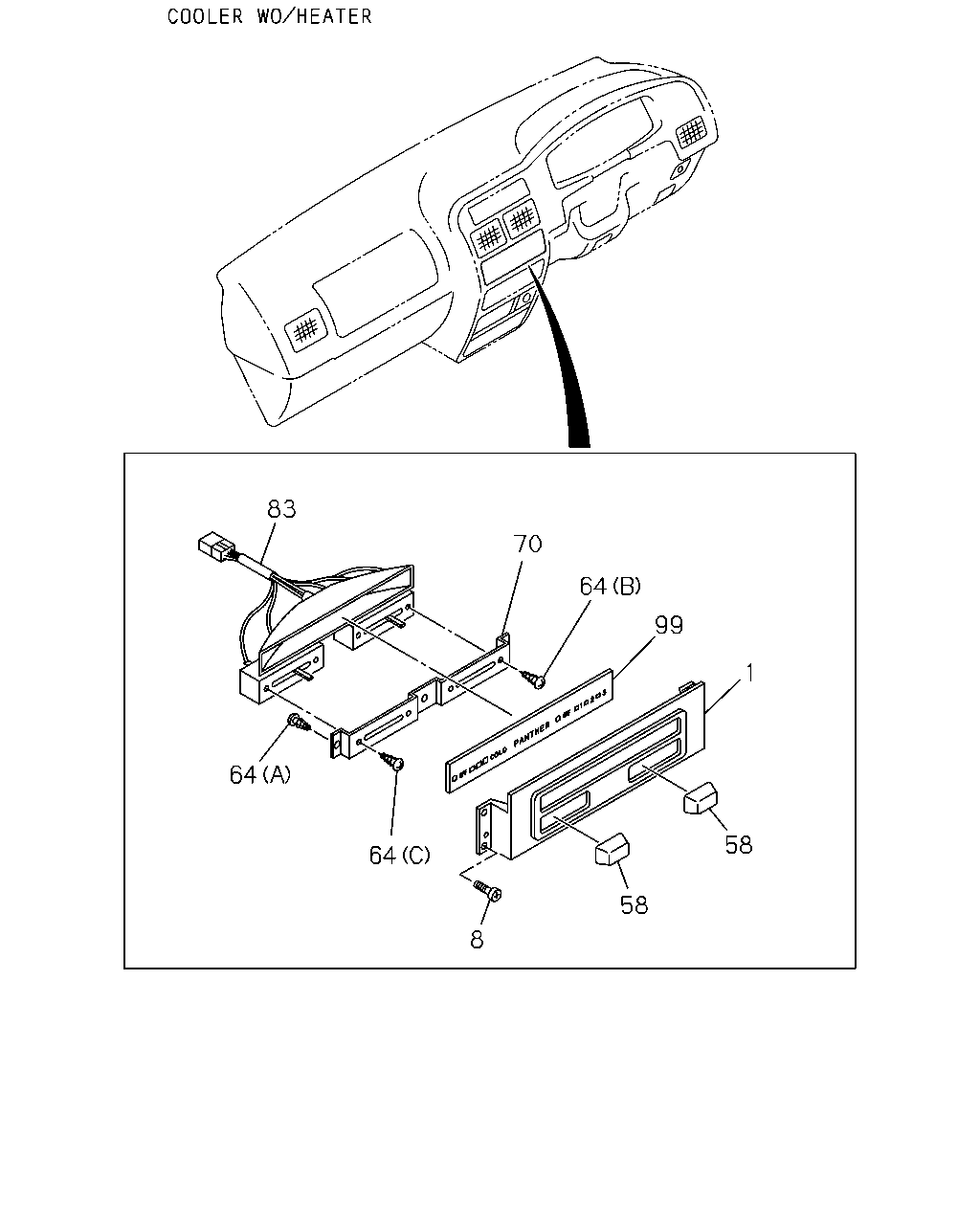

çizim 288870
58 58 8 64 64 1 99 64 70 83
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER SUB ASM; HTR CONT
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-772-0 01 1 0612-
1 LEVER SUB ASM; HTR CONT
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-772-0 01 1 0612-
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 0612-
58 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97562-130-0 02 1 0612-
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97562-130-0 02 1 0612-
64 SCREW; PANEL,HTR CONT LVR
AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		1-87540-812-0 03 1 0612-
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN 		1-87540-812-0 03 1 0612-
64 SCREW; PANEL,HTR CONT LVR
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97254-520-0 02 1 0612-
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97254-520-0 02 1 0612-
64 SCREW; PANEL,HTR CONT LVR
AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97254-521-0 02 1 0612-
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97254-521-0 02 1 0612-
70 BRACKET; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97254-513-0 01 1 0612-
70 BRACKET; CONT PANEL
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97254-513-0 01 1 0612-
83 HARNESS; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97254-519-0 01 1 0612-
83 HARNESS; CONT PANEL
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97254-519-0 01 1 0612-
99 ORNAMENT; PANEL
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97561-481-0 01 1 0612-
99 ORNAMENT; PANEL
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97561-481-0 01 1 0612-
