8-52 — PIPING; AIR CONDITIONING (#95850) — 118 parça

1 1 40 103 126 120 48 58 158 57 57 207 66 70 67 67 162 158 67 49 66 67 162 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

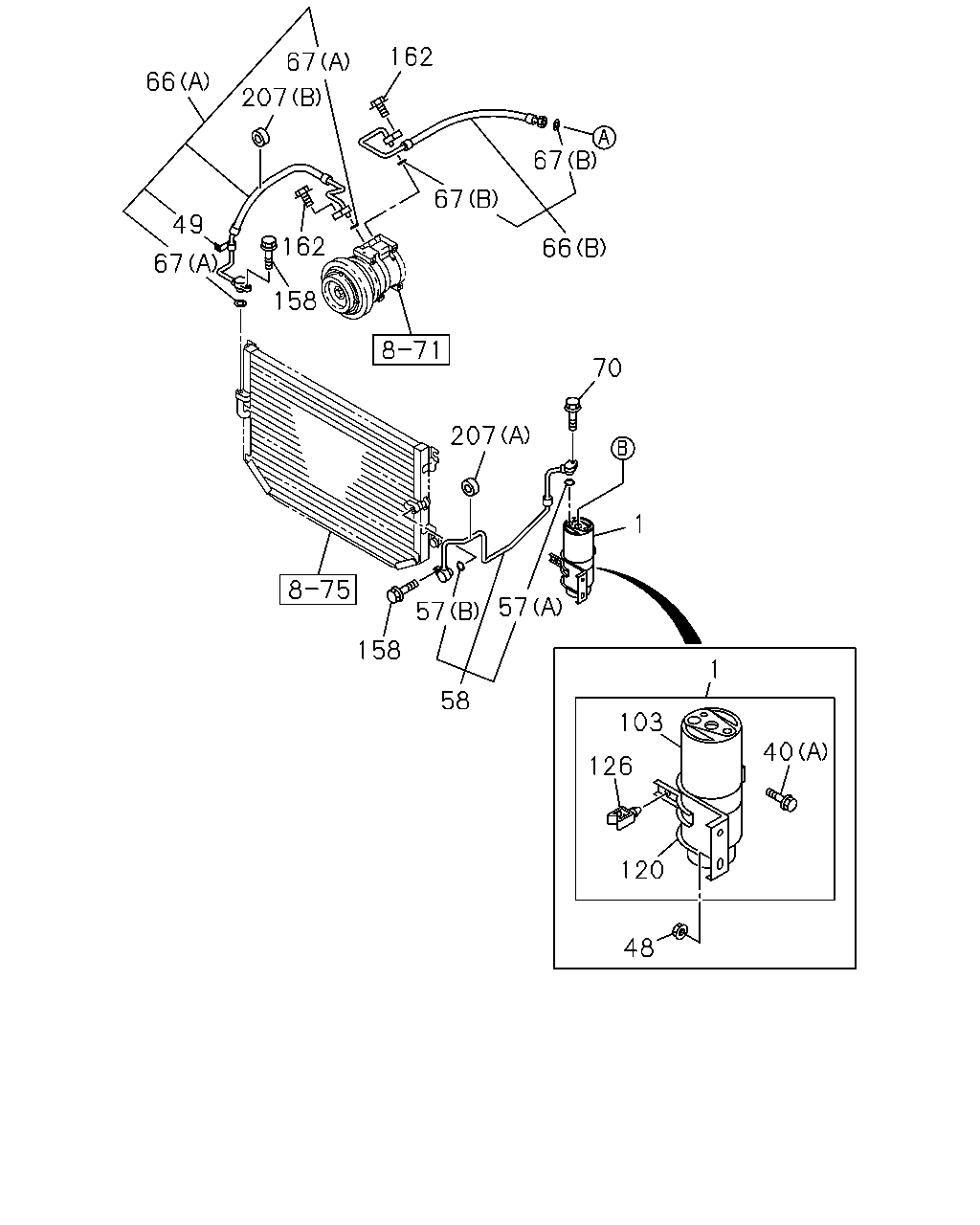

1	TANK; RECEIVER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-863-2	01	1	0612-
1	TANK; RECEIVER COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-863-2	01	1	0612-
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE	0-28450-620-0	05	1	0612-
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (A) M6X25 IDN	8-97254-310-0	01	1	0612-
40	BOLT; CLIP BRKT COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) M6X25 IDN	8-97254-310-0	01	1	0612-
48	NUT; BRKT AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE	8-97063-399-0	02	1	0612-
48	NUT; BRKT COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE	8-97063-399-0	02	1	0612-
49	CLAMP; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-427-0	01	1	0612-
49	CLAMP; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-427-0	01	1	0612-
57	GASKET; CONDENSER TO RECEIVER TANK AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0612-
57	GASKET; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0612-
57	GASKET; CONDENSER TO RECEIVER TANK AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=11.7 IDN	1-83539-317-0	01	1	0612-
57	GASKET; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=11.7 IDN	1-83539-317-0	01	1	0612-
58	PIPE; CONDENSER TO RECEIVER TANK AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-864-4	01	1	0612-
58	PIPE; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-864-4	01	1	0612-
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-632-0	01	1	0612-
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-632-0	01	1	0612-
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-647-0	01	1	0612-
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-647-0	01	1	0612-
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=11.7 IDN	8-97095-907-0	02	1	0612-
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=11.7 IDN	8-97095-907-0	02	1	0612-
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	8-97095-908-0	02	1	0612-
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	8-97095-908-0	02	1	0612-
70	BOLT; PIPE TO BODY AIR CONDITIONER ROOF MOUNTED<C69> M6X12 FLANGE IDN	0-28450-612-0	01	1	0612-
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X12 FLANGE IDN	0-28450-612-0	01	1	0612-
70	BOLT; PIPE TO BODY AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE IDN	0-28650-625-0	02	1	0612-
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE IDN	0-28650-625-0	02	1	0612-
103	TANK; RECEIVER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-760-0	01	1	0612-
103	TANK; RECEIVER COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-760-0	01	1	0612-
120	BRACKET; RECEIVER TANK AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-761-0	01	1	0612-
120	BRACKET; RECEIVER TANK COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-761-0	01	1	0612-
126	CLIP; RECEIVER TANK AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-762-0	01	1	0612-
126	CLIP; RECEIVER TANK COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-762-0	01	1	0612-
158	BOLT; PIPE FIX AIR CONDITIONER ROOF MOUNTED<C69> M6X40 FLANGE	0-28650-640-0	02	1	0612-
158	BOLT; PIPE FIX COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X40 FLANGE	0-28650-640-0	02	1	0612-
162	BOLT; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> M6X30 FLANGE	0-28650-630-0	02	1	0612-
162	BOLT; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X30 FLANGE	0-28650-630-0	02	1	0612-
207	SEAL; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97958-999-0	01	1	0612-
207	SEAL; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97958-999-0	01	1	0612-
207	SEAL; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97959-001-0	01	1	0612-
207	SEAL; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97959-001-0	01	1	0612-

123 123 93 156 171 202 211 93 70 211 185 116 171 156 56 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	CLIP; PIPE,A/C AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-430-0	01	1	0612-
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-430-0	01	1	0612-
70	BOLT; PIPE TO BODY AIR CONDITIONER ROOF MOUNTED<C69> M6X12 FLANGE IDN	0-28450-612-0	01	1	0612-
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X12 FLANGE IDN	0-28450-612-0	01	1	0612-
70	BOLT; PIPE TO BODY AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE IDN	0-28650-625-0	02	1	0612-
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE IDN	0-28650-625-0	02	1	0612-
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-650-0	01	1	0612-
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-625-0	01	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	1-83539-324-0	03	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) ID=7.4 IDN	8-97095-906-0	02	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	03	1	0612-
116	GASKET; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	01	1	0612-
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> ID=7.4 IDN	8-97095-906-0	03	1	0612-
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> ID=7.4 IDN	8-97095-906-0	02	1	0612-
156	VALVE; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97095-909-0	01	1	0612-
156	VALVE; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97095-909-0	01	1	0612-
156	VALVE; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97180-811-0	01	1	0612-
156	VALVE; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97180-811-0	01	1	0612-
171	CAP; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) CAP MARK L IDN	8-97095-910-0	01	1	0612-
171	CAP; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) CAP MARK L IDN	8-97095-910-0	01	1	0612-
171	CAP; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) CAP MARK H IDN	8-97095-911-0	01	1	0612-
171	CAP; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) CAP MARK H IDN	8-97095-911-0	01	1	0612-

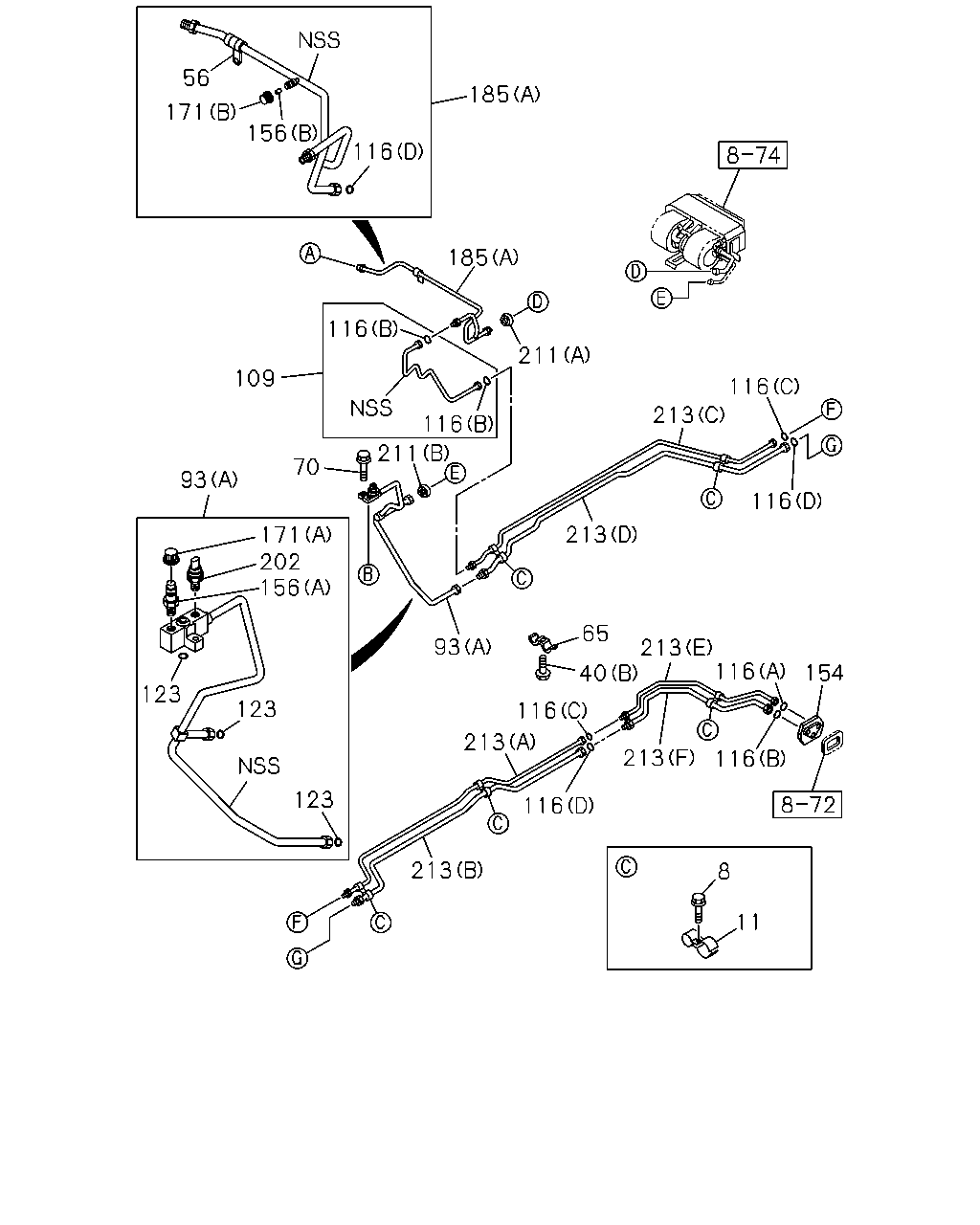

185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-649-0	01	1	0612-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-648-0	01	1	0612-
202	SWITCH; PRESSURE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97180-265-0	01	1	0612-
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97180-265-0	01	1	0612-
211	RUBBER; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-869-0	01	1	0612-
211	RUBBER; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-869-0	01	1	0612-
211	RUBBER; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-608-0	01	1	0612-
211	RUBBER; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-608-0	01	1	0612-

11 8 116 213 116 213 123 123 123 156 202 171 93 70 211 116 116 109 185 211 116 185 156 171 56 213 116 116 213 65 93 213 116 154 40 116 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69>	8-97228-645-0	05	1	0612-
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-842-0	05	1	0612-
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE	0-28450-620-0	05	1	0612-
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (A) M6X25 IDN	8-97254-310-0	01	1	0612-
40	BOLT; CLIP BRKT COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) M6X25 IDN	8-97254-310-0	01	1	0612-
56	CLIP; PIPE,A/C AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-430-0	01	1	0612-
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-430-0	01	1	0612-
65	CLIP; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69>	1-83574-194-0	05	1	0612-1205
65	CLIP; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69>	8-98166-022-0	05	1	1206-
70	BOLT; PIPE TO BODY AIR CONDITIONER ROOF MOUNTED<C69> M6X12 FLANGE IDN	0-28450-612-0	01	1	0612-
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X12 FLANGE IDN	0-28450-612-0	01	1	0612-
70	BOLT; PIPE TO BODY AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE IDN	0-28650-625-0	02	1	0612-
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE IDN	0-28650-625-0	02	1	0612-
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-650-0	01	1	0612-
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-625-0	01	1	0612-
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-875-1	01	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	1-83539-324-0	03	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) ID=7.4 IDN	8-97095-906-0	02	1	0612-
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	03	1	0612-
116	GASKET; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	01	1	0612-
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> ID=7.4 IDN	8-97095-906-0	03	1	0612-
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> ID=7.4 IDN	8-97095-906-0	02	1	0612-
154	SEAL; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-884-1	01	1	0612-
156	VALVE; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97095-909-0	01	1	0612-
156	VALVE; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97095-909-0	01	1	0612-
156	VALVE; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97180-811-0	01	1	0612-
156	VALVE; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97180-811-0	01	1	0612-
171	CAP; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) CAP MARK L IDN	8-97095-910-0	01	1	0612-
171	CAP; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) CAP MARK L IDN	8-97095-910-0	01	1	0612-
171	CAP; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) CAP MARK H IDN	8-97095-911-0	01	1	0612-
171	CAP; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) CAP MARK H IDN	8-97095-911-0	01	1	0612-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-649-0	01	1	0612-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-648-0	01	1	0612-
202	SWITCH; PRESSURE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97180-265-0	01	1	0612-
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97180-265-0	01	1	0612-
211	RUBBER; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-869-0	01	1	0612-
211	RUBBER; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-869-0	01	1	0612-
211	RUBBER; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-608-0	01	1	0612-
211	RUBBER; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-608-0	01	1	0612-
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-834-0	01	1	0612-
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97957-835-0	01	1	0612-
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-836-0	01	1	0612-
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-837-0	01	1	0612-
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (E) IDN	8-97957-840-0	01	1	0612-
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (F) IDN	8-97957-841-0	01	1	0612-
