8-50 — AIR CONDITIONING SYSTEM; FRONT
(#95849) — 14 parça
◀

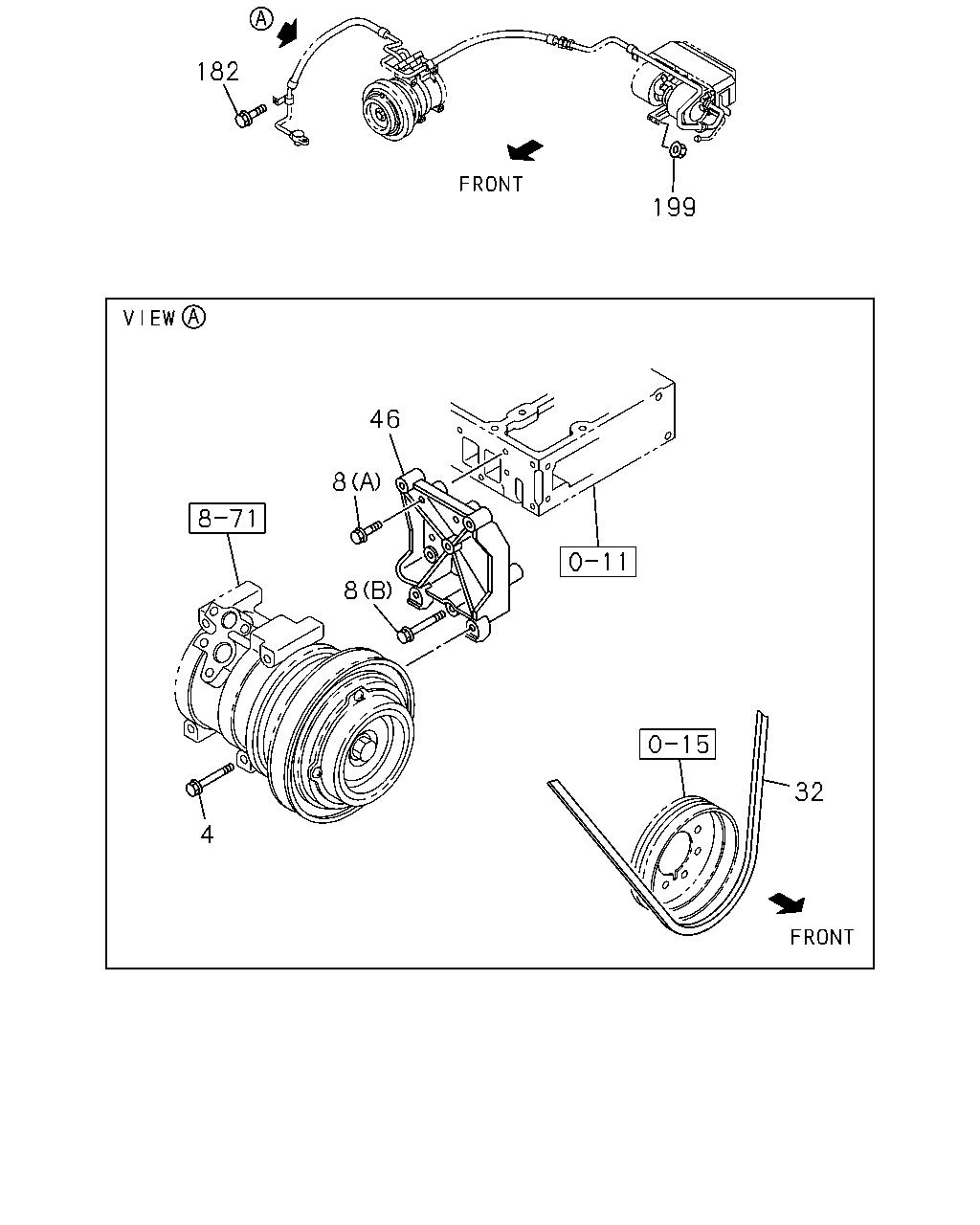

[850A] NO.1 (9 parça)
[850A] NO.2 (5 parça)
▶
199
182
46
8
8
32
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) M8X70 FLANGE
0-28050-870-0
04
1
0612-
8
BOLT; BRKT
COOLER WO/HEATER(YL1) (A) M8X70 FLANGE
0-28050-870-0
02
1
0612-
8
BOLT; BRKT
COOLER WO/HEATER(YL1) (B) M10X80 FLANGE
0-28051-080-0
02
1
0612-
32
BELT; A/C CMPR
COOLER WO/HEATER(YL1)
8-97562-629-0
01
1
0612-
46
BRACKET; CMPR
COOLER WO/HEATER(YL1) IDN
8-97562-620-0
01
1
0612-
182
BOLT; PIPE TO BRKT
AIR CONDITIONER ROOF MOUNTED<C69> M6X16
8-94206-784-0
01
1
0612-
182
BOLT; PIPE TO BRKT
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X16
8-94206-784-0
01
1
0612-
199
NUT
AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE
8-97063-399-0
04
1
0612-
199
NUT
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE
8-97063-399-0
04
1
0612-
90
514
515
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
90
PLUG; PIPE HOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN
8-97956-858-0
01
1
0612-
514
SEAL; AIR GUIDE
AIR CONDITIONER ROOF MOUNTED<C69> CAB UP<W60> IDN
8-97959-473-0
01
1
0612-
514
SEAL; AIR GUIDE
CAB UP<W60> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN
8-97959-473-0
01
1
0612-
515
CLIP; AIR GUIDE
AIR CONDITIONER ROOF MOUNTED<C69> CAB UP<W60> BLACK
8-94104-935-0
06
1
0612-
515
CLIP; AIR GUIDE
CAB UP<W60> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK
8-94104-935-0
06
1
0612-
