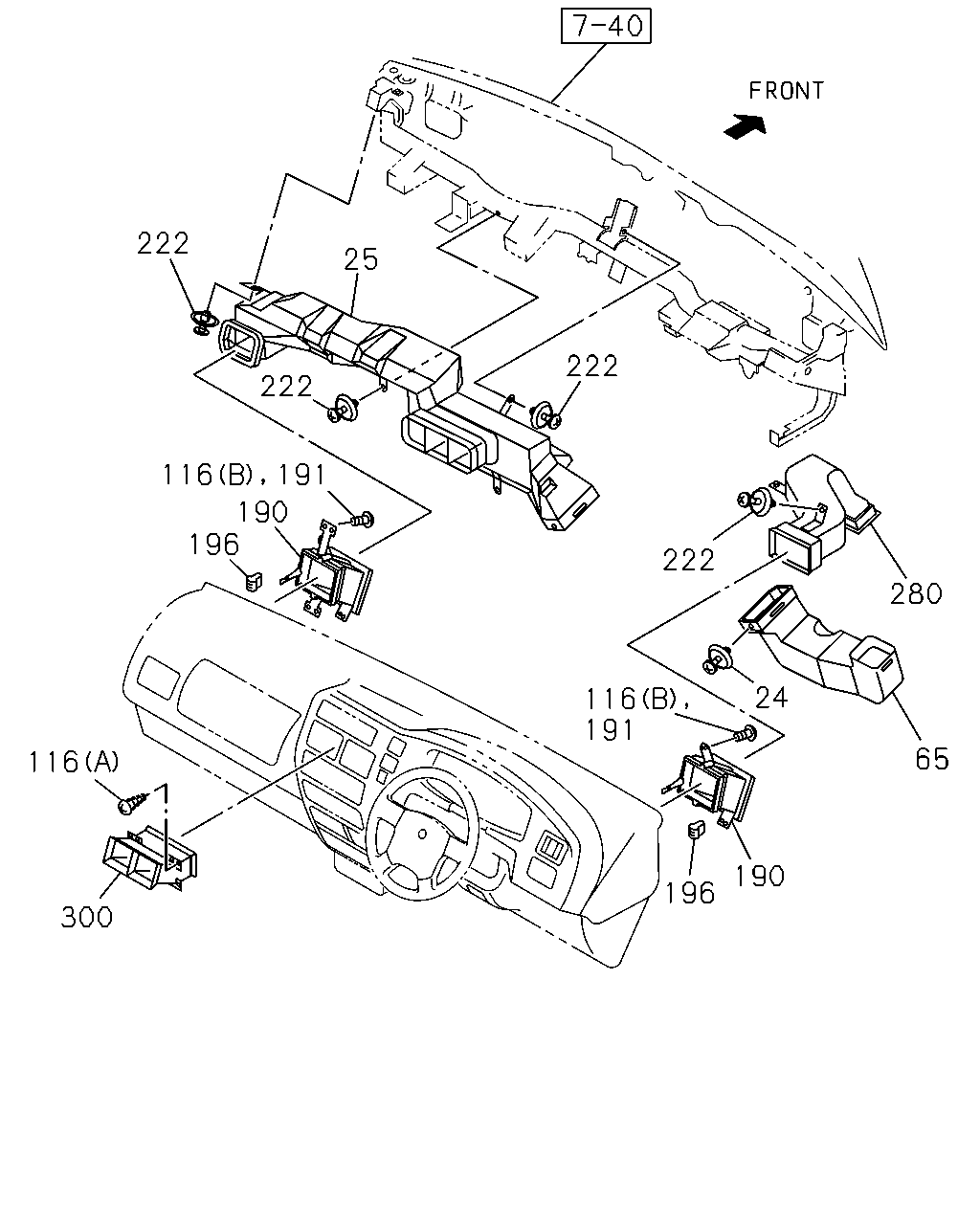

8-40 — HEATER SYSTEM (#95848) — 32 parça

222 25 222 116 191 190 196 116 300 196 190 191 116 24 65 280 222 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; NOZZLE TO INST PNL AIR CONDITIONER ROOF MOUNTED<C69>	8-97327-315-0	02	1	0612-
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97327-315-0	02	1	0612-
25	DUCT; CENTER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-382-0	01	1	0612-
25	DUCT; CENTER COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-382-0	01	1	0612-
65	DUCT; VENT,DRIVER SIDE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-851-2	01	1	0612-
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-851-2	01	1	0612-
116	SCREW; TAP AIR DUCT AIR CONDITIONER ROOF MOUNTED<C69> (A) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0612-
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0612-
116	SCREW; TAP AIR DUCT AIR CONDITIONER ROOF MOUNTED<C69> (B) M5X16 TAPPING	9-09829-323-1	04	1	0612-
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) M5X16 TAPPING	9-09829-323-1	04	1	0612-
190	BOX; VENT,RAM AIR AIR CONDITIONER ROOF MOUNTED<C69>	8-97145-176-2	01	1	0612-
190	BOX; VENT,RAM AIR COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97145-176-2	01	1	0612-
190	BOX; VENT,RAM AIR AIR CONDITIONER ROOF MOUNTED<C69>	8-97145-177-2	01	1	0612-
190	BOX; VENT,RAM AIR COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97145-177-2	01	1	0612-
191	SCREW; VENT BOX AIR CONDITIONER ROOF MOUNTED<C69> M5X16 TAPPING	9-09829-323-1	04	1	0612-
191	SCREW; VENT BOX COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M5X16 TAPPING	9-09829-323-1	04	1	0612-
196	KNOB; VENT BOX AIR CONDITIONER ROOF MOUNTED<C69> BLACK	8-97000-038-0	02	1	0612-0701
196	KNOB; VENT BOX COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK	8-97000-038-0	02	1	0612-0701
196	KNOB; VENT BOX INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> BLACK	8-97000-038-0	02	1	0702-0704
196	KNOB; VENT BOX INTERIOR COLOR BLACK(101) COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK	8-97000-038-0	02	1	0702-0704
196	KNOB; VENT BOX AIR CONDITIONER ROOF MOUNTED<C69> BLACK	8-97000-038-0	02	1	0705-
196	KNOB; VENT BOX COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK	8-97000-038-0	02	1	0705-
222	FASTENER; DUCT AIR CONDITIONER ROOF MOUNTED<C69>	8-97327-315-0	05	1	0612-
222	FASTENER; DUCT COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97327-315-0	05	1	0612-
280	DUCT; VENT,DRIVER SIDE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-383-0	01	1	0612-
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-383-0	01	1	0612-
300	DUCT; VENT,CENTER AIR CONDITIONER ROOF MOUNTED<C69>	8-97118-559-1	01	1	0612-
300	DUCT; VENT,CENTER COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97118-559-1	01	1	0612-

241 458

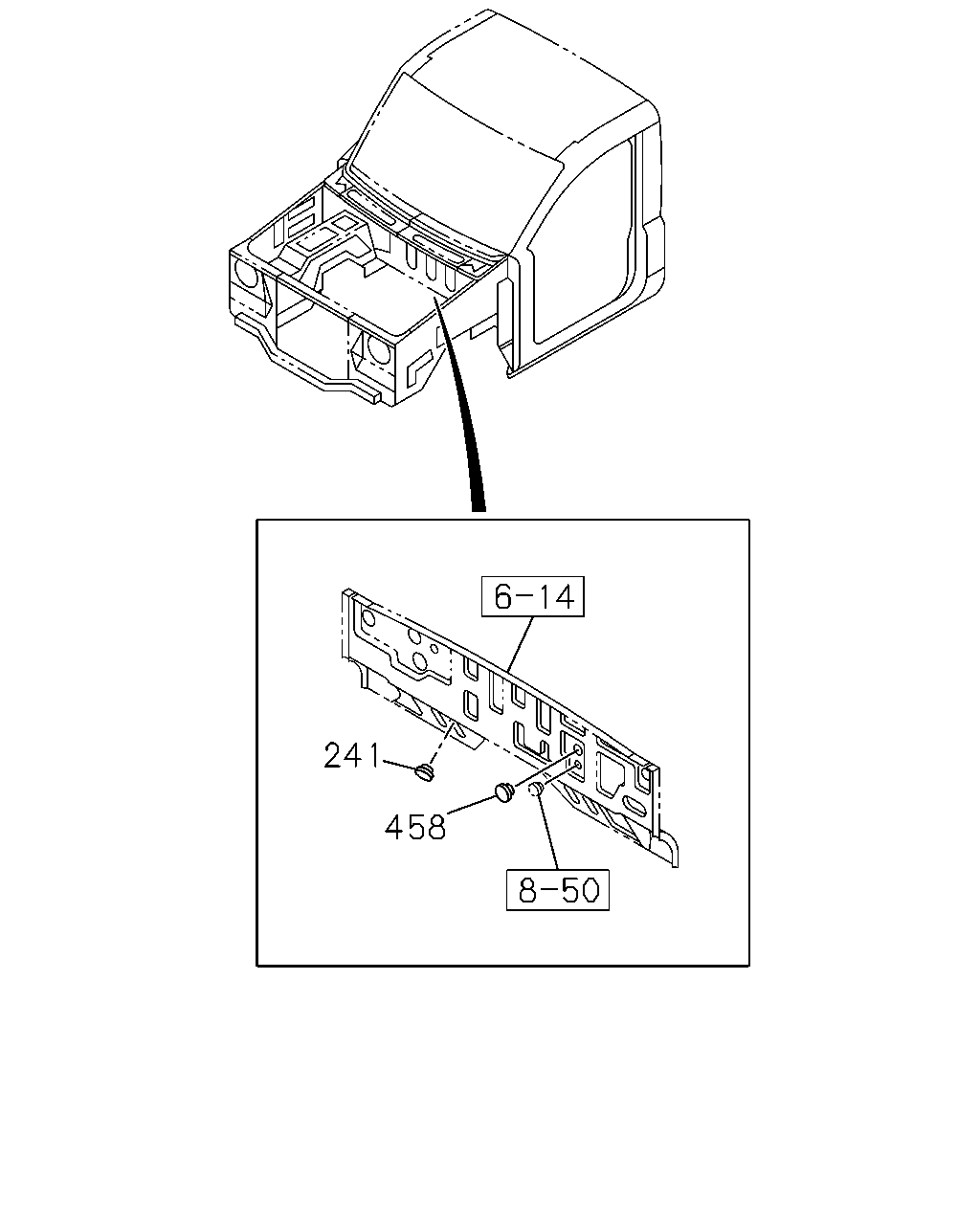

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN	8-97956-857-0	01	1	0612-
	458	RUBBER; CAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN	8-97956-856-0	01	1	0612-

368 32

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	32	RELAY; A/C COOLER WO/HEATER(YL1) 12V 20A IDN	8-97173-037-1	01	1	0612-
	368	RELAY; HEATER AND A/C COOLER WO/HEATER(YL1) 12V 20A	8-97060-926-1	01	1	0612-
