8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#95846) — 9 parça

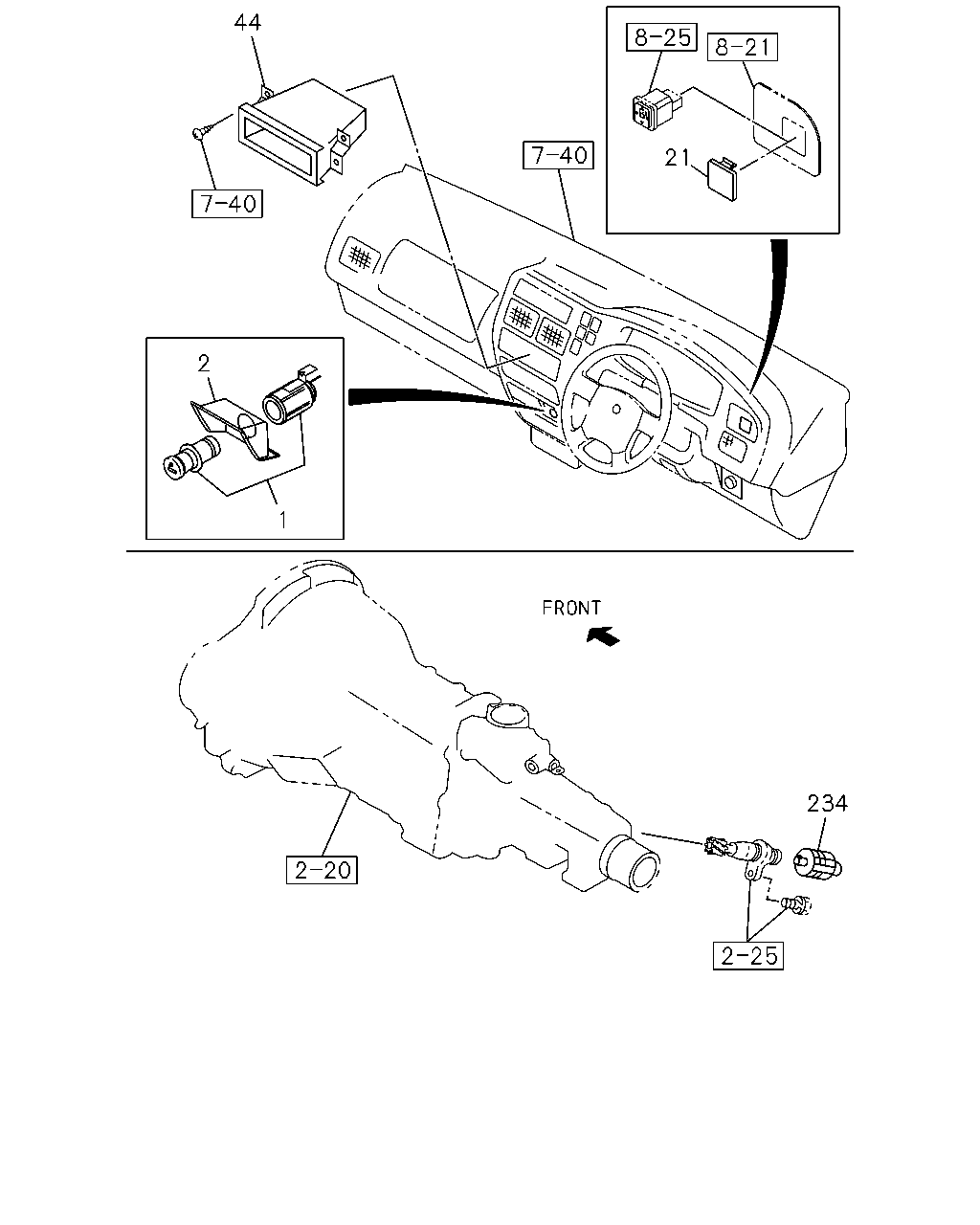

çizim 288818
21 44 2 1 234
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97314-003-0 01 1 0612-
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0612-0701
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR BLACK(101) BLACK 		8-97000-043-0 01 1 0702-0704
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0705-
21 COVER; HOLE
FOG LAMP<T96> EXC. DOOR MIRROR ELEC CONT<DG2> BLACK 		8-97154-764-0 01 1 0612-0701
21 COVER; HOLE
INTERIOR COLOR BLACK(101) FOG LAMP<T96> EXC. DOOR MIRROR ELEC CONT<DG2> BLACK 		8-97154-764-0 01 1 0702-0704
21 COVER; HOLE
FOG LAMP<T96> EXC. DOOR MIRROR ELEC CONT<DG2> BLACK 		8-97154-764-0 01 1 0705-
44 BOX; RADIO COVER
EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) 		8-97114-757-0 01 1 0612-
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0612-
