8-10 — WIRING HARNESS AND FUSE
(#95842) — 50 parça
◀

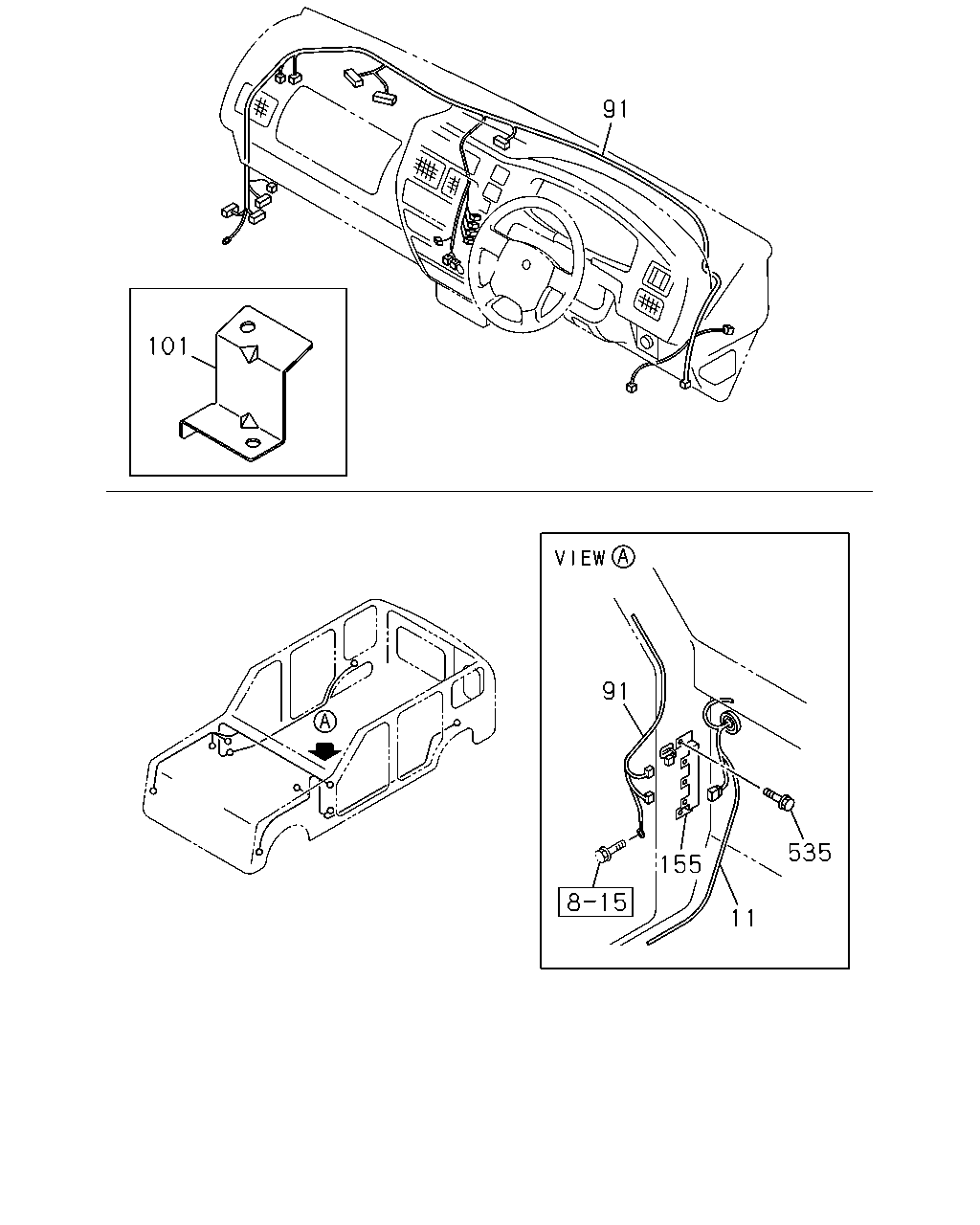

[810A] INST HARNESS (9 parça)

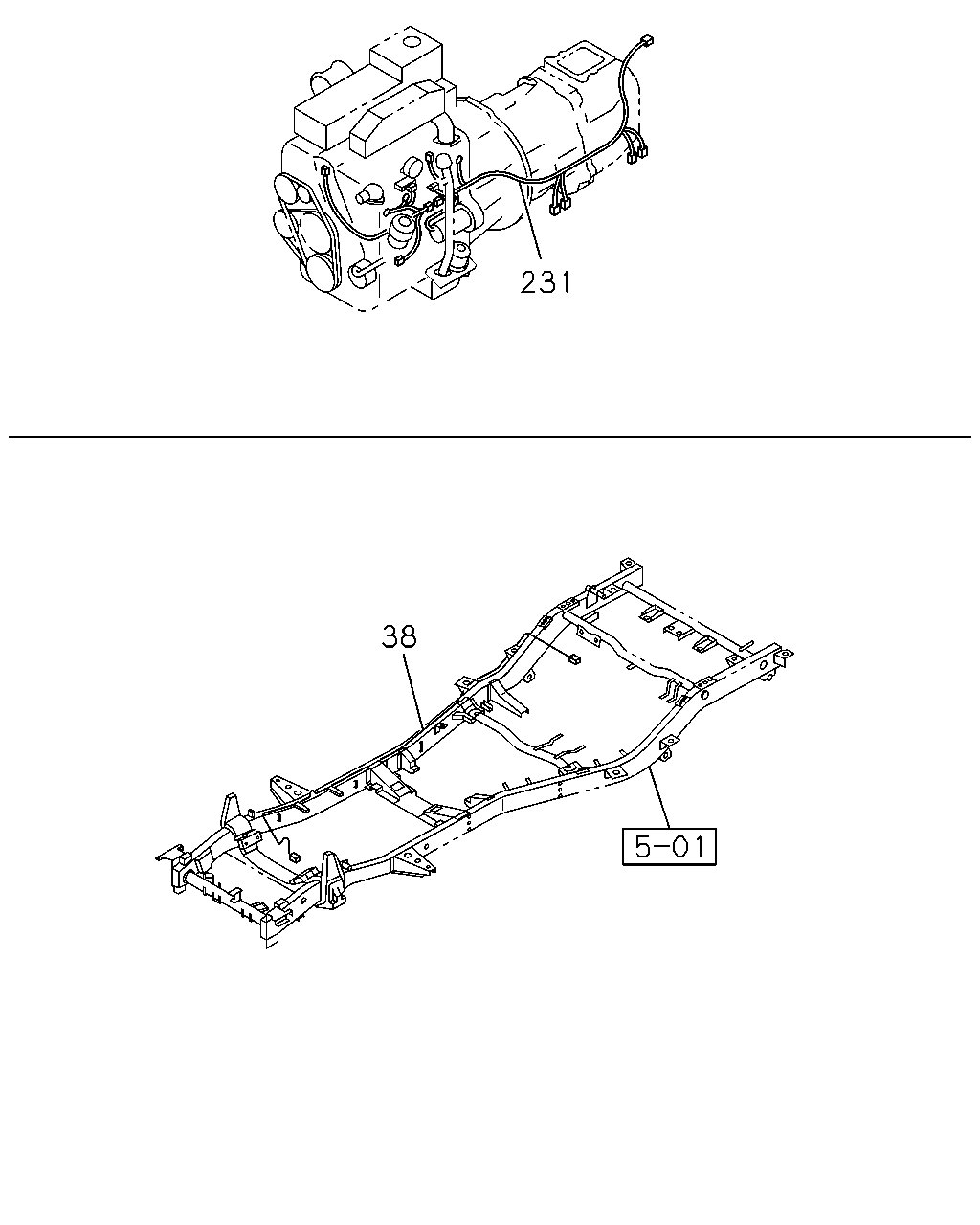

[810A] TRANS AND CHAS HARNESS (4 parça)

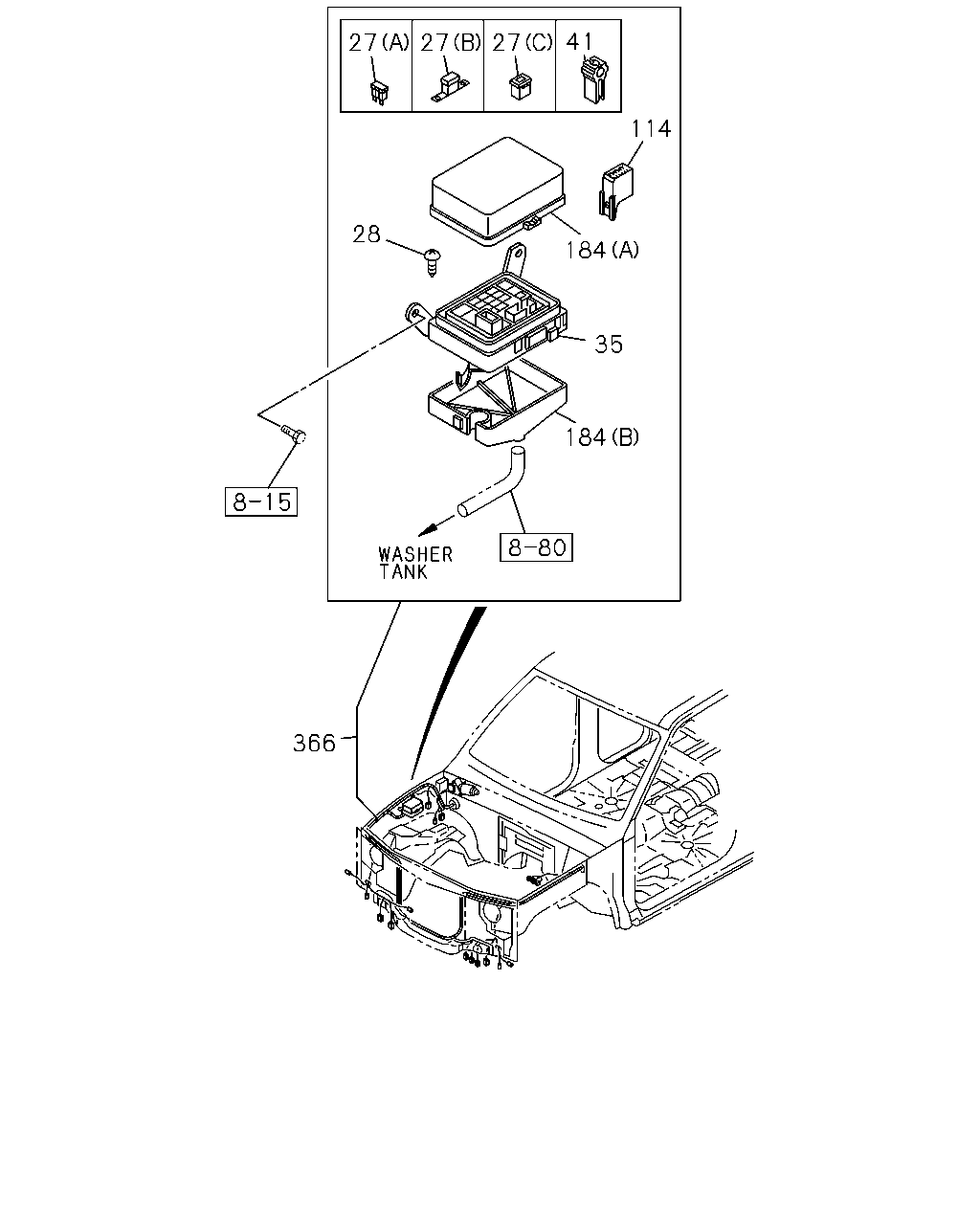

[810A] ENG ROOM HARNESS (15 parça)

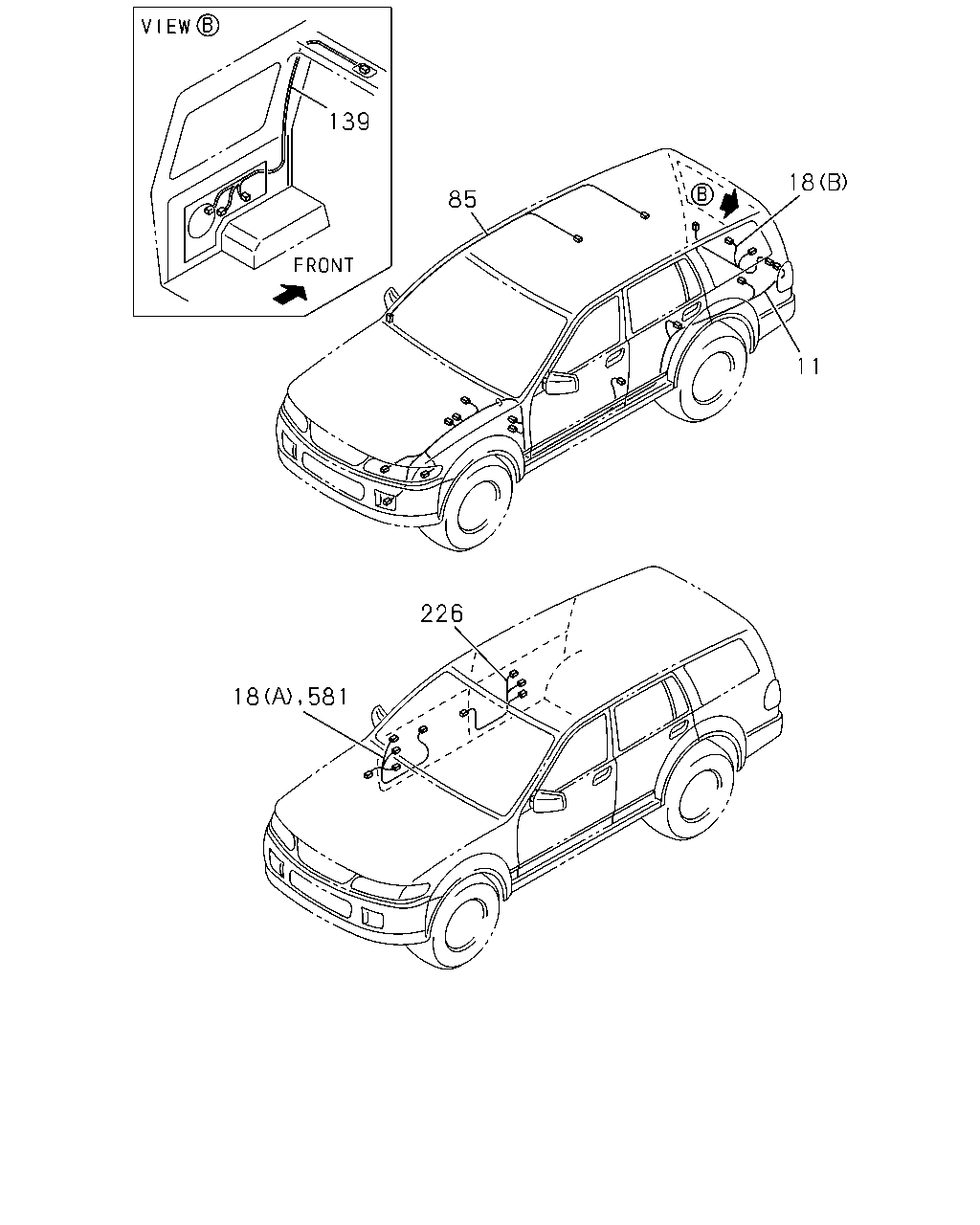

[810A] DOOR,ROOF AND BODY HARNESS (22 parça)
▶
91
101
11
535
155
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
HARNESS; BODY
GRADE LM(RBA),GRADE LV(RBB) IDN
8-98020-534-0
01
1
0612-
11
HARNESS; BODY
GRADE LS(RBD),GRADE TOURING(RBG) IDN
8-98020-535-0
01
1
0612-
91
HARNESS; INST
GRADE LM(RBA) IDN
8-97562-200-1
01
1
0612-
91
HARNESS; INST
GRADE LS(RBD),GRADE TOURING(RBG) IDN
8-97562-202-1
01
1
0612-
91
HARNESS; INST
GRADE LV(RBB) IDN
8-97562-201-1
01
1
0612-
101
BRACKET; HARNESS CONNECTOR
IDN
8-97561-369-0
01
1
0612-
155
BRACKET; CONNECTOR
IDN
8-97957-589-1
01
1
0612-
155
BRACKET; CONNECTOR
IDN
8-97957-588-1
01
1
0612-
535
BOLT; BRKT FIX
M6X16 FLANGE
0-28450-616-0
04
1
0612-
231
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
HARNESS; CHAS
CAB UP<W60> IDN
8-97959-162-1
01
1
0612-
38
HARNESS; CHAS
EXC. CAB UP<W60> IDN
8-97956-759-5
01
1
0612-
231
HARNESS; TRANS
CAB UP<W60> IDN
8-98020-641-0
01
1
0612-
231
HARNESS; TRANS
EXC. CAB UP<W60> IDN
8-98020-640-0
01
1
0612-
27
27
27
41
114
28
184
35
184
366
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
FUSE UNIT
(B) 40A GREEN IDN
8-94388-301-0
01
1
0612-
27
FUSE UNIT
(B) 60A YELLOW IDN
8-94388-303-0
01
1
0612-
27
FUSE UNIT
(A) 10A MINI RED IDN
8-97062-022-0
09
1
0612-
27
FUSE UNIT
(A) 15A MINI BLUE IDN
8-97062-023-0
08
1
0612-
27
FUSE UNIT
(A) 20A MINI YELLOW IDN
8-97062-024-0
04
1
0612-
27
FUSE UNIT
GRADE LS(RBD),GRADE TOURING(RBG) (C) 30A PINK IDN
8-97183-643-0
01
1
0612-
28
SCREW; FUSE BOX
IDN
8-97249-192-0
04
1
0612-
35
BOX; RELAY & FUSE
IDN
8-97940-316-1
01
1
0612-
41
PULLER; FUSE
8-97103-388-0
01
1
0612-
114
BOX ASM; FUSE
IDN
8-97189-222-0
02
1
0612-
184
COVER; RELAY & FUSE BOX
(B) IDN
8-97104-115-1
01
1
0612-
184
COVER; RELAY & FUSE BOX
(A) IDN
8-97203-784-0
01
1
0612-
366
HARNESS; CABLE,ENG ROOM
GRADE LM(RBA),GRADE LV(RBB) IDN
8-97562-258-0
01
1
0612-
366
HARNESS; CABLE,ENG ROOM
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> IDN
8-97562-429-0
01
1
0612-
366
HARNESS; CABLE,ENG ROOM
GRADE LS(RBD),GRADE TOURING(RBG) EXC. DUAL TONE HORN<U05> IDN
8-97562-259-0
01
1
0612-
11
18
85
139
226
18
581
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
HARNESS; BODY
GRADE LM(RBA),GRADE LV(RBB) IDN
8-98020-534-0
01
1
0612-
11
HARNESS; BODY
GRADE LS(RBD),GRADE TOURING(RBG) IDN
8-98020-535-0
01
1
0612-
18
HARNESS; DOOR
GRADE LM(RBA),GRADE LV(RBB) (B) IDN
8-97562-209-0
01
1
0612-
18
HARNESS; DOOR
GRADE LS(RBD) (B) IDN
8-97562-210-0
01
1
0612-
18
HARNESS; DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) IDN
8-97959-354-6
01
1
0612-
18
HARNESS; DOOR
GRADE TOURING(RBG) (A) IDN
8-97959-354-6
01
1
0612-
18
HARNESS; DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) IDN
8-97959-353-6
01
1
0612-
18
HARNESS; DOOR
GRADE TOURING(RBG) (A) IDN
8-97959-353-6
01
1
0612-
18
HARNESS; DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) IDN
8-97959-356-6
01
1
0612-
18
HARNESS; DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) IDN
8-97959-355-6
01
1
0612-
18
HARNESS; DOOR
GRADE TOURING(RBG) (B) IDN
8-97562-211-0
01
1
0612-
85
HARNESS; ROOM LAMP
GRADE LM(RBA) IDN
8-97956-796-5
01
1
0612-
85
HARNESS; ROOM LAMP
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN
8-97956-797-6
01
1
0612-
139
HARNESS; CAB COOLER
AIR CONDITIONER ROOF MOUNTED<C69> IDN
8-97956-798-6
01
1
0612-
226
HARNESS; RR DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN
8-97959-441-0
01
1
0612-
226
HARNESS; RR DOOR
GRADE TOURING(RBG) IDN
8-97959-441-0
01
1
0612-
226
HARNESS; RR DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN
8-97959-440-0
01
1
0612-
226
HARNESS; RR DOOR
GRADE TOURING(RBG) IDN
8-97959-440-0
01
1
0612-
226
HARNESS; RR DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN
8-97956-785-5
01
1
0612-
226
HARNESS; RR DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN
8-97956-784-4
01
1
0612-
581
HARNESS; DOOR SPEAKER
GRADE LM(RBA),GRADE LV(RBB) IDN
8-97957-518-5
01
1
0612-
581
HARNESS; DOOR SPEAKER
GRADE LM(RBA),GRADE LV(RBB) IDN
8-97956-781-8
01
1
0612-
