Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

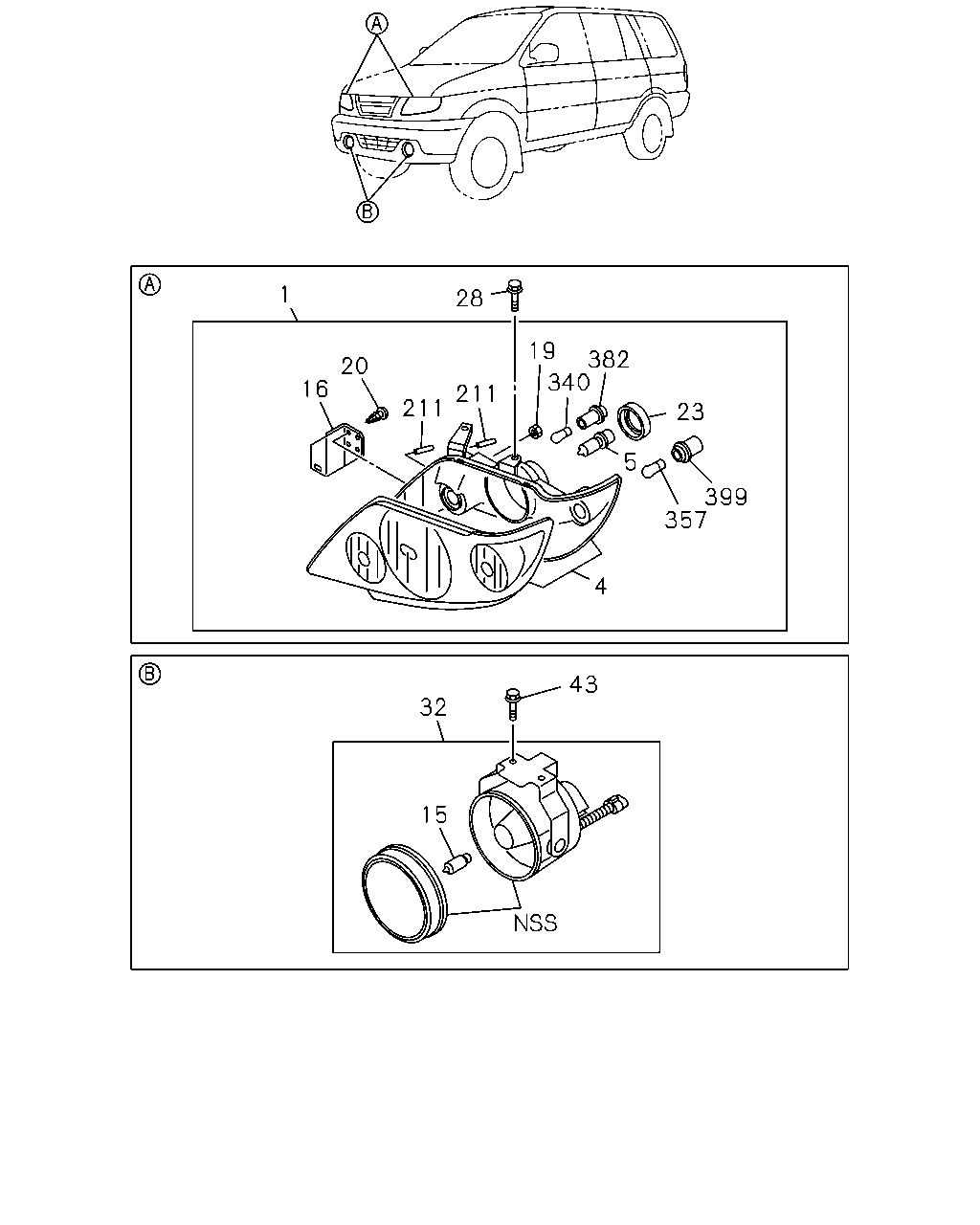

8-01 — LAMP; FRONT AND FRONT SIDE
(#95839) — 20 parça
1
28
16
20
211
211
19
340
382
23
5
399
357
4
32
43
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
IDN
8-97943-983-2
01
1
0612-
1
LAMP ASM; HEAD
IDN
8-97943-982-2
01
1
0612-
4
HEADLAMP UNIT
THA
8-97944-172-0
01
1
0612-
4
HEADLAMP UNIT
THA
8-97944-171-0
01
1
0612-
5
BULB; HEADLAMP
12V 60/55W THA
8-97914-323-0
02
1
0612-
15
BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA
8-97944-024-0
02
1
0612-
16
BRACKET; HEADLAMP
THA
8-97944-174-0
01
1
0612-
16
BRACKET; HEADLAMP
THA
8-97944-173-0
01
1
0612-
19
NUT; HEADLAMP
THA
8-97944-177-0
04
1
0612-
20
SCREW; HEADLAMP
THA
8-97944-176-0
04
1
0612-
23
COVER; BULB,HEADLAMP
THA
8-97332-448-0
02
1
0612-
28
BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER
8-94372-359-0
08
1
0612-
32
LAMP ASM; FOG
FOG LAMP<T96> THA
8-97944-042-0
02
1
0612-1109
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98175-971-0
02
1
1110-
43
BOLT; FOG LAMP
FOG LAMP<T96> M6X12 FLANGE IDN
0-28450-612-0
04
1
0612-
211
TUBE; HEADLAMP
THA
8-97333-983-0
04
1
0612-
340
BULB; POSITION
12V 5W IDN
8-94124-595-0
02
1
0612-
357
BULB; TURN SIGNAL
12V 21W IDN
8-97179-967-0
02
1
0612-
382
PLUG; SOCKET,HEADLAMP
THA
8-97332-447-0
02
1
0612-
399
SOCKET; TURN SIGNAL
THA
8-97944-175-0
02
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
