7-55 — REAR SEAT (#95837) — 356 parça

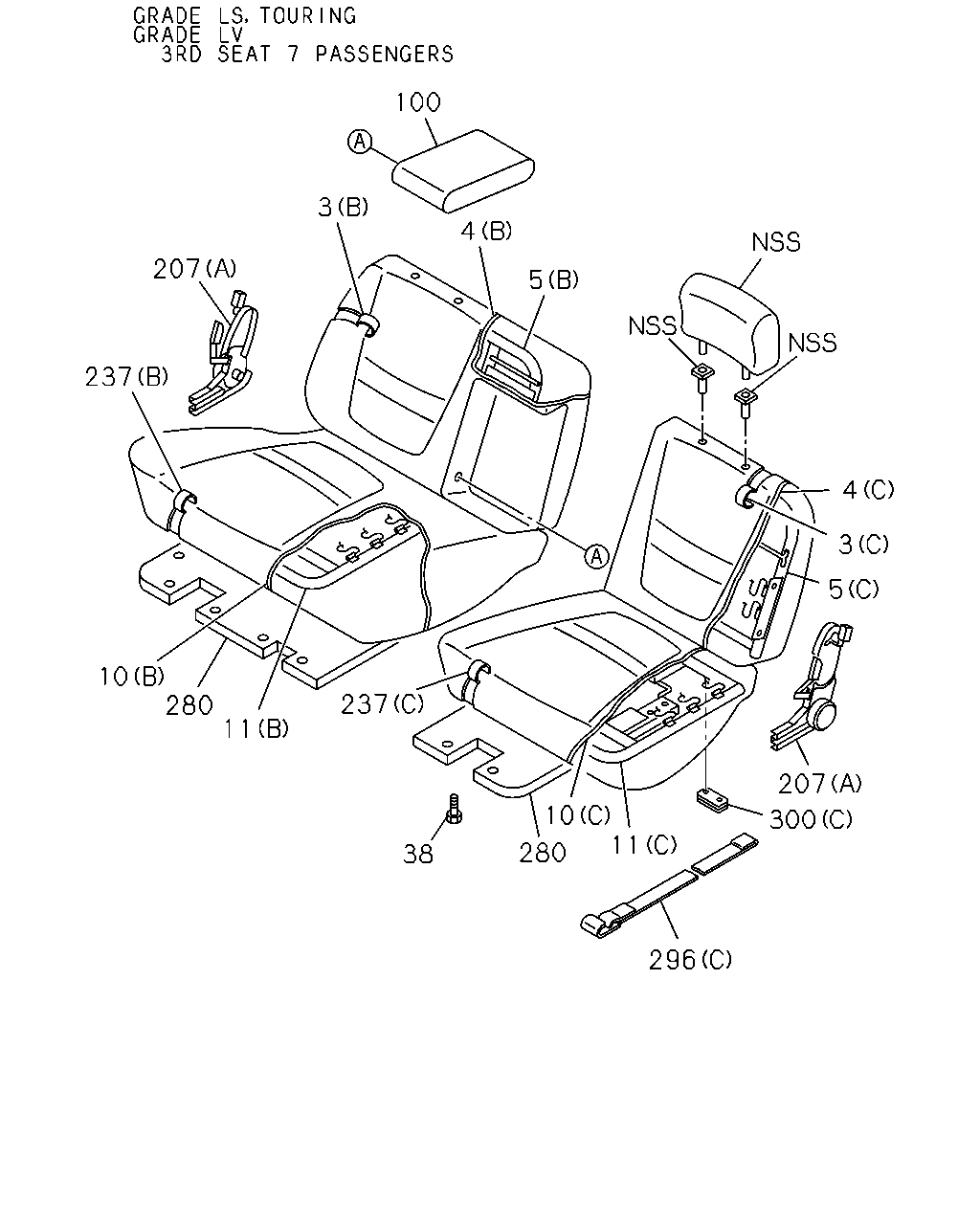

çizim 288724
100 3 207 237 10 280 11 237 38 10 280 11 296 300 5 207 3 4 5 4
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-852-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-585-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-818-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-954-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-842-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-857-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-584-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-941-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> (B) DARK GRAY IDN 		8-97562-520-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> (B) DARK GRAY IDN 		8-97561-856-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-853-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-583-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97562-062-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97560-477-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LM(RBA) (A) IDN 		8-97958-300-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-300-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-451-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-451-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-452-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-452-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-586-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-797-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) DARK GRAY IDN 		8-97561-797-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-435-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-435-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-436-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-436-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> (B) IDN 		8-97562-469-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> (B) IDN 		8-97560-845-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97562-547-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-302-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-302-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-587-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-961-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-460-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-460-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-459-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-459-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-489-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-488-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-959-1 01 1 0612-
38 BOLT; SEAT TO FLOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> M10X19 		8-94427-095-2 18 1 0612-
100 REST; ARM,RR SEAT
GRADE LM(RBA) DARK GRAY IDN 		8-97561-800-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-808-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-806-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-805-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN 		8-97561-867-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97562-035-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LM(RBA) (C) IDN 		8-97958-577-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-577-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LM(RBA) (C) IDN 		8-97958-576-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-576-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-579-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (A) IDN 		8-97958-579-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-578-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (A) IDN 		8-97958-578-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-592-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-591-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-823-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97561-833-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-847-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-830-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-846-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-828-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97561-832-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-845-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-827-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-824-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-069-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97562-063-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97562-060-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LM(RBA) IDN 		8-97958-303-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-303-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-513-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97958-513-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-461-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97958-461-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LM(RBA) (A) IDN 		8-97958-304-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-304-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-462-0 02 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-462-0 02 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97363-728-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LM(RBA) (A) IDN 		8-97958-305-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-305-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-463-0 04 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-463-0 04 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-590-0 02 1 0612-

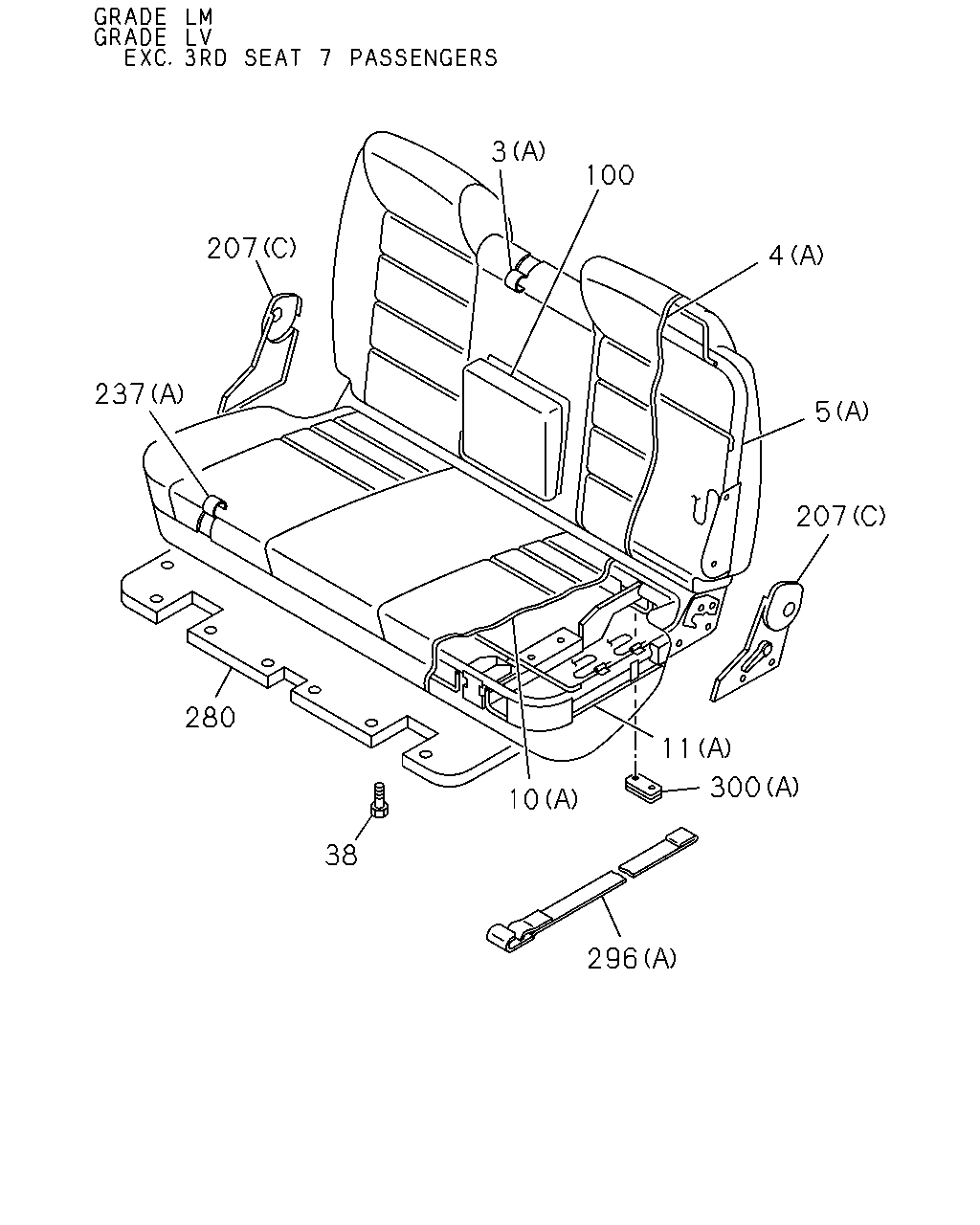

çizim 288725
207 237 280 38 10 296 300 11 207 5 4 100 3
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-852-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-585-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-818-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-954-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-842-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-857-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-584-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-941-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> (B) DARK GRAY IDN 		8-97562-520-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> (B) DARK GRAY IDN 		8-97561-856-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-853-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-583-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97562-062-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97560-477-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LM(RBA) (A) IDN 		8-97958-300-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-300-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-451-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-451-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-452-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-452-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-586-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-797-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) DARK GRAY IDN 		8-97561-797-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-435-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-435-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-436-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-436-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> (B) IDN 		8-97562-469-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> (B) IDN 		8-97560-845-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97562-547-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-302-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-302-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-587-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-961-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-460-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-460-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-459-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-459-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-489-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-488-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-959-1 01 1 0612-
38 BOLT; SEAT TO FLOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> M10X19 		8-94427-095-2 18 1 0612-
100 REST; ARM,RR SEAT
GRADE LM(RBA) DARK GRAY IDN 		8-97561-800-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-808-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-806-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-805-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN 		8-97561-867-0 01 1 0612-
100 REST; ARM,RR SEAT
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97562-035-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LM(RBA) (C) IDN 		8-97958-577-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-577-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LM(RBA) (C) IDN 		8-97958-576-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-576-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-579-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (A) IDN 		8-97958-579-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-578-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (A) IDN 		8-97958-578-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-592-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-591-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-823-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97561-833-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-847-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-830-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-846-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-828-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97561-832-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-845-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-827-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-824-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-069-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97562-063-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97562-060-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LM(RBA) IDN 		8-97958-303-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-303-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-513-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97958-513-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-461-0 01 1 0612-
280 BOARD; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97958-461-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LM(RBA) (A) IDN 		8-97958-304-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-304-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-462-0 02 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-462-0 02 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97363-728-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LM(RBA) (A) IDN 		8-97958-305-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-305-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-463-0 04 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-463-0 04 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-590-0 02 1 0612-

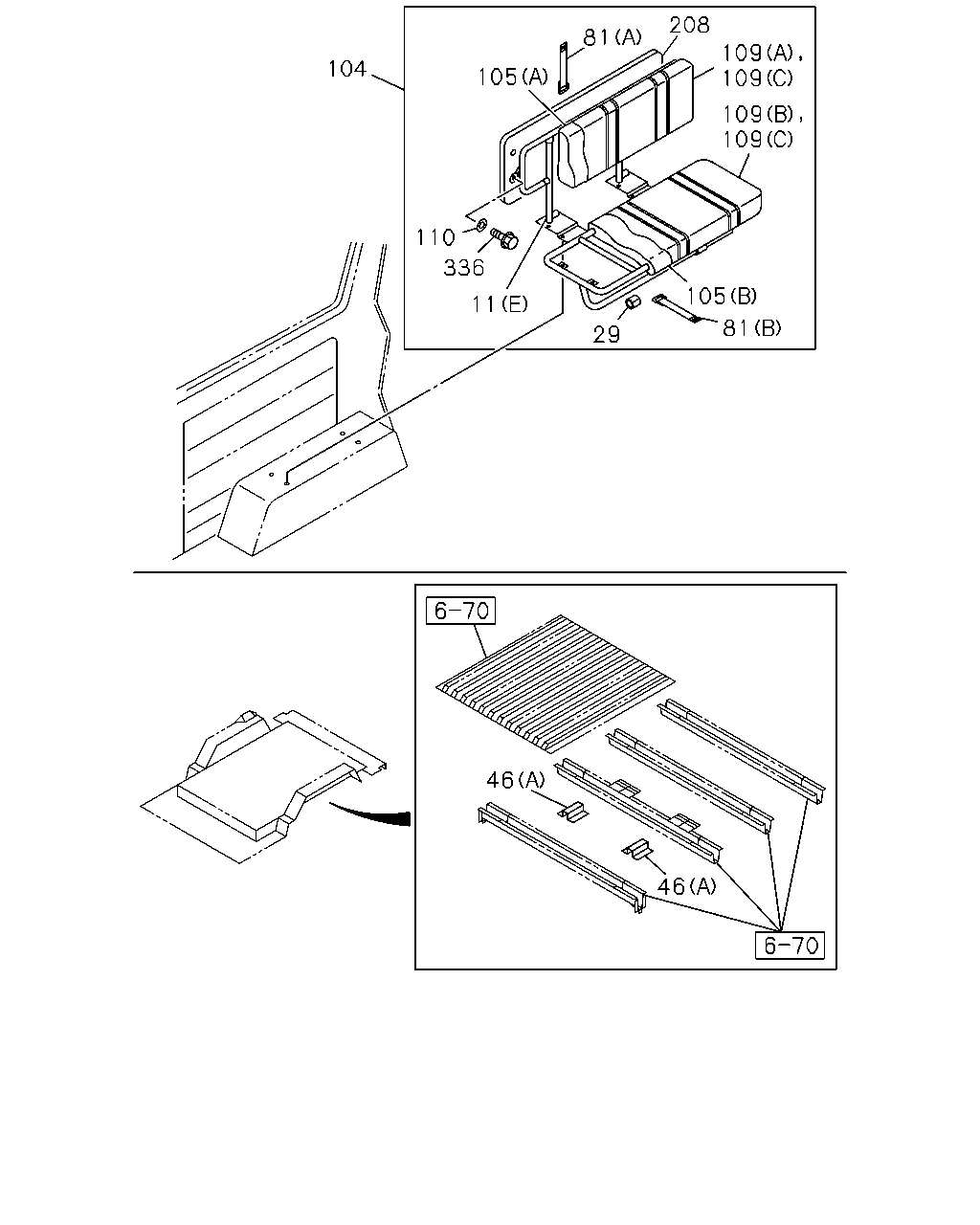

çizim 288728
104 105 81 208 109 109 109 109 105 29 81 11 336 110 46 46
BalonParca AdiParca NoAdetTipApplied Date
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-489-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-488-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-959-1 01 1 0612-
29 RUBBER; RR SEAT
GRADE LM(RBA) IDN 		8-97958-369-0 02 1 0612-
29 RUBBER; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-369-0 02 1 0612-
29 RUBBER; RR SEAT
GRADE LM(RBA) IDN 		8-97958-368-0 02 1 0612-
29 RUBBER; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-368-0 02 1 0612-
29 RUBBER; RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-493-0 02 1 0612-
29 RUBBER; RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-492-0 02 1 0612-
46 BRACKET; RR SEAT
(A) IDN 		8-97142-754-0 02 1 0612-
46 BRACKET; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-594-1 01 1 0612-
46 BRACKET; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-593-1 01 1 0612-
81 BAND; RR SEAT BACK
GRADE LM(RBA) (A) IDN 		8-97958-360-0 01 1 0612-
81 BAND; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-360-0 01 1 0612-
81 BAND; RR SEAT BACK
GRADE LM(RBA) (B) IDN 		8-97958-361-0 01 1 0612-
81 BAND; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-361-0 01 1 0612-
81 BAND; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-486-0 01 1 0612-
81 BAND; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-487-0 01 1 0612-
104 SEAT ASM; JUMP
GRADE LM(RBA) DARK GRAY IDN 		8-97561-879-0 01 1 0612-
104 SEAT ASM; JUMP
GRADE LM(RBA) DARK GRAY IDN 		8-97561-921-0 01 1 0612-
104 SEAT ASM; JUMP
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-913-0 01 1 0612-
104 SEAT ASM; JUMP
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-882-0 01 1 0612-
104 SEAT ASM; JUMP
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN 		8-97561-880-0 01 1 0612-
104 SEAT ASM; JUMP
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN 		8-97561-927-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LM(RBA) (A) IDN 		8-97958-357-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-357-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LM(RBA) (B) IDN 		8-97958-367-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-367-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LM(RBA) (A) IDN 		8-97958-356-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-356-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LM(RBA) (B) IDN 		8-97958-366-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-366-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-473-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-475-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-472-0 01 1 0612-
105 PAD ASM; JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-474-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-891-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LM(RBA) (B) DARK GRAY IDN 		8-97561-908-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-923-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LM(RBA) (B) DARK GRAY IDN 		8-97561-925-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) DARK GRAY IDN 		8-97561-945-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-947-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) DARK GRAY IDN 		8-97561-895-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-911-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (C) DARK GRAY IDN 		8-97561-892-0 02 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-929-0 01 1 0612-
109 COVER ASM; TRIM,JUMP SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (B) DARK GRAY IDN 		8-97561-931-0 01 1 0612-
110 WASHER; PL,JUMP SEAT
3RD SEAT 7 PASSENGERS<AS3> T=2.0 		8-94279-641-0 02 1 0612-
110 WASHER; PL,JUMP SEAT
EXC. 3RD SEAT 7 PASSENGERS<AS3> T=2.0 		8-94279-641-0 04 1 0612-
208 BOARD; RR SEAT BACK
GRADE LM(RBA) IDN 		8-97958-359-0 01 1 0612-
208 BOARD; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-359-0 01 1 0612-
208 BOARD; RR SEAT BACK
GRADE LM(RBA) IDN 		8-97958-358-0 01 1 0612-
208 BOARD; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-358-0 01 1 0612-
208 BOARD; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-477-0 01 1 0612-
208 BOARD; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-476-0 01 1 0612-
336 BOLT; RR SEAT BACK
3RD SEAT 7 PASSENGERS<AS3> M8X25 FLANGE IDN 		0-28650-825-0 02 1 0612-
336 BOLT; RR SEAT BACK
EXC. 3RD SEAT 7 PASSENGERS<AS3> M8X25 FLANGE IDN 		0-28650-825-0 04 1 0612-

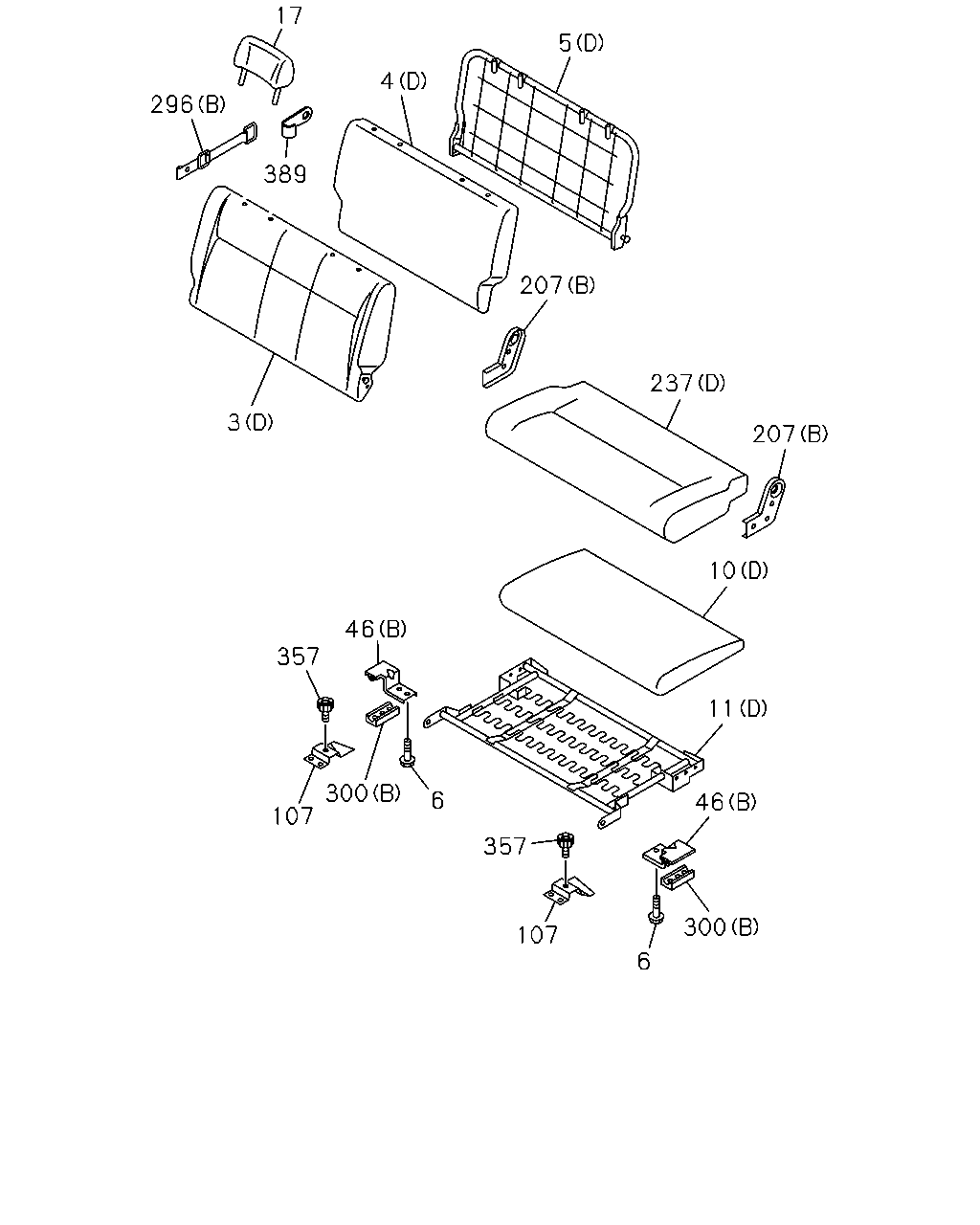

çizim 288729
17 296 389 4 5 207 3 237 207 10 11 46 300 6 107 357 300 6 107 357 46
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-852-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-585-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-818-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-954-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-842-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-857-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-584-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-941-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> (B) DARK GRAY IDN 		8-97562-520-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> (B) DARK GRAY IDN 		8-97561-856-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-853-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-583-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97562-062-0 01 1 0612-
3 COVER; TRIM,RR SEAT BACK
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97560-477-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LM(RBA) (A) IDN 		8-97958-300-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-300-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-451-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-451-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-452-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-452-0 01 1 0612-
4 PAD; RR,SEAT BACK
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-586-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-797-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) DARK GRAY IDN 		8-97561-797-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-435-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-435-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-436-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-436-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> (B) IDN 		8-97562-469-0 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> (B) IDN 		8-97560-845-1 01 1 0612-
5 FRAME ASM; RR SEAT BACK
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97562-547-0 01 1 0612-
6 BOLT; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97959-595-0 02 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-302-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-302-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-587-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-961-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-460-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-460-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-459-0 01 1 0612-
10 PAD; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-459-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-301-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-363-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LM(RBA) (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-362-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-489-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (E) IDN 		8-97958-488-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-458-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97958-457-0 01 1 0612-
11 FRAME ASM; CUSHION,RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) IDN 		8-97959-959-1 01 1 0612-
17 REST; HD,RR SEAT
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-862-0 02 1 0612-
17 REST; HD,RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97561-861-0 02 1 0612-
17 REST; HD,RR SEAT
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97562-067-0 02 1 0612-
46 BRACKET; RR SEAT
(A) IDN 		8-97142-754-0 02 1 0612-
46 BRACKET; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-594-1 01 1 0612-
46 BRACKET; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-593-1 01 1 0612-
107 BRACKET; HOOK,3RD SEAT
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-202-0 01 1 0612-
107 BRACKET; HOOK,3RD SEAT
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-201-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LM(RBA) (C) IDN 		8-97958-577-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-577-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LM(RBA) (C) IDN 		8-97958-576-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-576-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-579-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (A) IDN 		8-97958-579-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-578-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LS(RBD),GRADE TOURING(RBG) (A) IDN 		8-97958-578-1 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-592-0 01 1 0612-
207 LOCK ASM; RR SEAT
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-591-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LM(RBA) (A) DARK GRAY IDN 		8-97561-823-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97561-833-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-847-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-830-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-846-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-828-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97561-832-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97561-845-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97561-827-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> (A) DARK GRAY IDN 		8-97561-824-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (D) DARK GRAY IDN 		8-97562-069-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) DARK GRAY IDN 		8-97562-063-0 01 1 0612-
237 COVER; TRIM,RR CUSHION
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) DARK GRAY IDN 		8-97562-060-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LM(RBA) (A) IDN 		8-97958-304-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-304-0 01 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-462-0 02 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-462-0 02 1 0612-
296 BAND; RR SEAT CUSHION
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97363-728-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LM(RBA) (A) IDN 		8-97958-305-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) IDN 		8-97958-305-0 02 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97958-463-0 04 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LS(RBD),GRADE TOURING(RBG) (C) IDN 		8-97958-463-0 04 1 0612-
300 RUBBER; RR SEAT CUSHION
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (B) IDN 		8-97959-590-0 02 1 0612-
357 DIAL; SEAT RECLINING
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-203-0 02 1 0612-
389 HOOK; RR SEAT
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97562-563-0 02 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
