7-50 — FRONT SEAT (#95836) — 107 parça

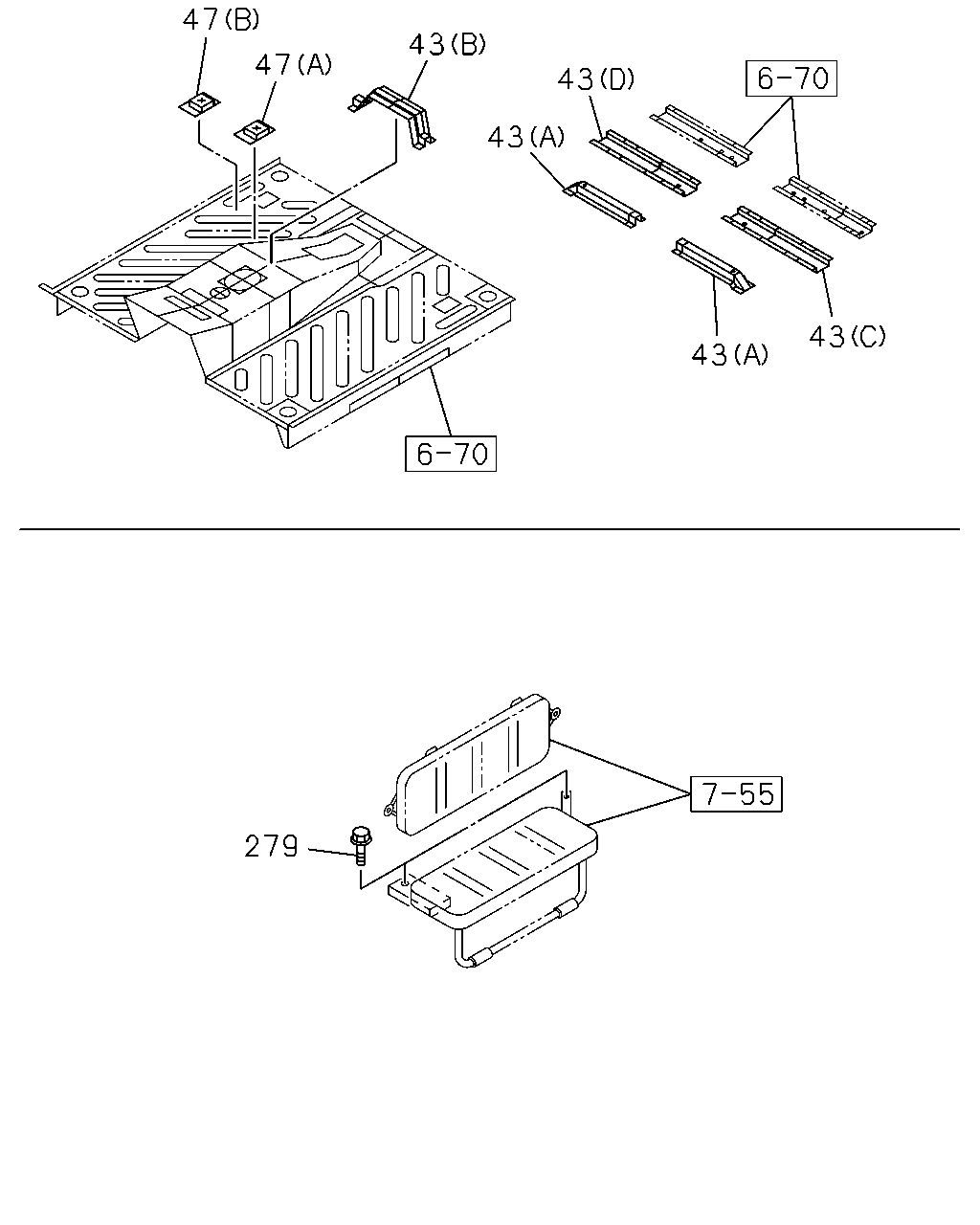

47 43 47 43 43 43 43 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	BAR ASM; FRT SEAT MTG (A) IDN	8-97955-239-0	02	1	0612-
43	BAR ASM; FRT SEAT MTG (B) IDN	8-97955-241-0	01	1	0612-
43	BAR ASM; FRT SEAT MTG (C) IDN	8-97956-730-1	01	1	0612-
43	BAR ASM; FRT SEAT MTG (D) IDN	8-97955-244-1	01	1	0612-
47	BRACKET; SEAT MTG,RR (A) IDN	8-97956-445-1	02	1	0612-
47	BRACKET; SEAT MTG,RR (B) IDN	8-97956-447-1	02	1	0612-
279	BOLT; FRT SEAT 3RD SEAT 7 PASSENGERS<AS3> M10X19	8-94427-095-2	16	1	0612-

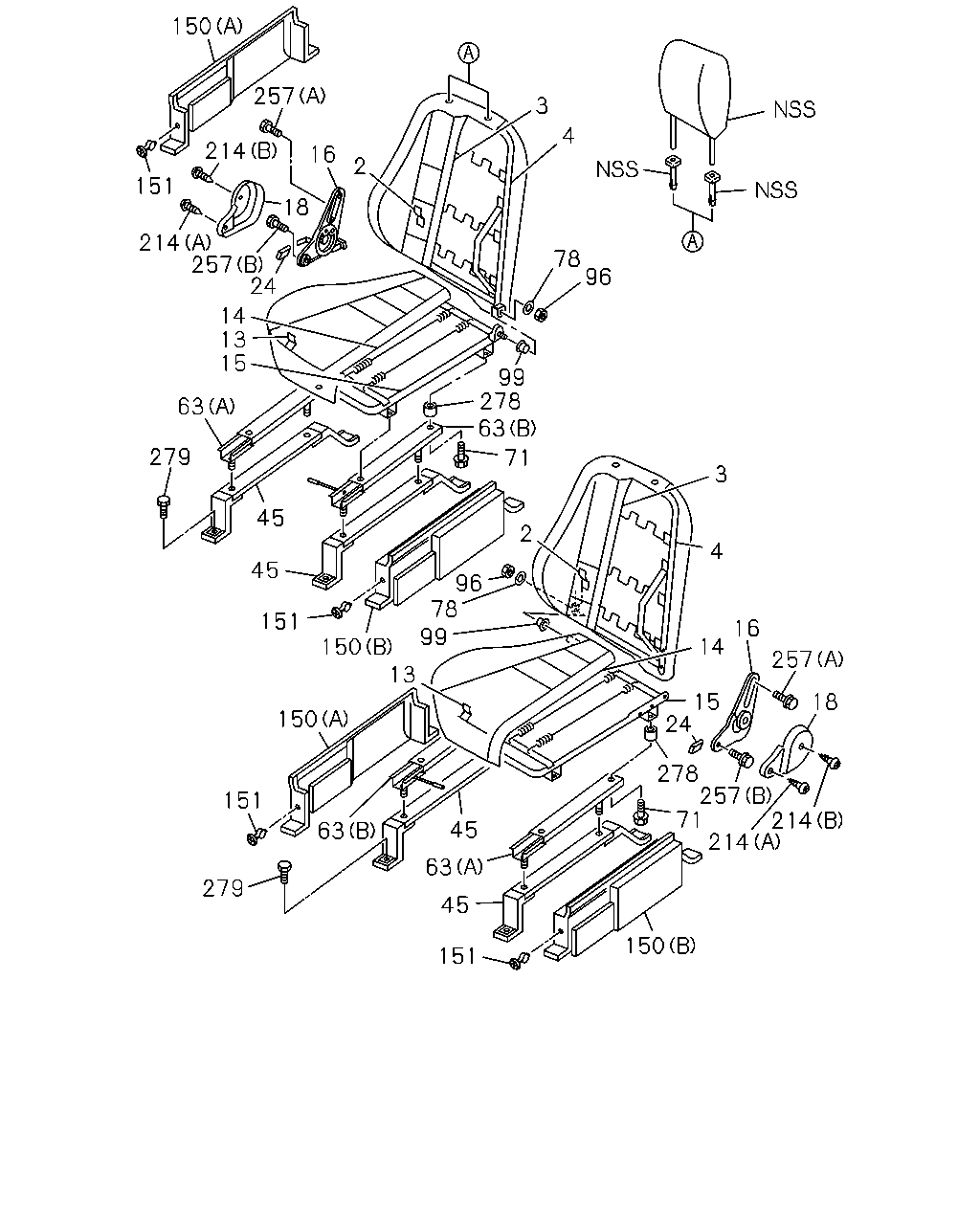

150 257 16 3 2 4 214 18 214 257 14 151 78 96 3 4 71 63 278 99 16 257 18 14 15 24 257 214 214 71 278 96 78 99 13 150 151 63 45 63 45 151 279 150 150 151 45 45 279 63 15 13 24 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; TRIM,FRT SEAT,BACK GRADE LM(RBA) DARK GRAY IDN	8-97409-892-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LM(RBA) DARK GRAY IDN	8-97394-169-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LS(RBD) DARK GRAY IDN	8-97561-759-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LS(RBD) DARK GRAY IDN	8-97561-730-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> DARK GRAY IDN	8-97562-516-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> CAB UP<W60> DARK GRAY IDN	8-97562-515-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> DARK GRAY IDN	8-97561-758-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. CAB UP<W60> DARK GRAY IDN	8-97561-729-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN	8-97561-757-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN	8-97561-728-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN	8-97562-029-0	01	1	0612-
2	COVER; TRIM,FRT SEAT,BACK GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN	8-97562-024-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LM(RBA) IDN	8-97958-253-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-253-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LM(RBA) IDN	8-97958-252-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-252-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-412-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-412-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-411-0	01	1	0612-
3	PAD; FRT SEAT BACK GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-411-0	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LM(RBA) IDN	8-97958-249-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-249-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LM(RBA) IDN	8-97958-248-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-248-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-410-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-410-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-409-1	01	1	0612-
4	FRAME ASM; FRT SEAT GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-409-1	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LM(RBA) DARK GRAY IDN	8-97394-175-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LM(RBA) DARK GRAY IDN	8-97394-171-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LS(RBD) DARK GRAY IDN	8-97561-767-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LS(RBD) DARK GRAY IDN	8-97561-740-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN	8-97394-182-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN	8-97561-739-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN	8-97561-766-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DARK GRAY IDN	8-97561-738-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN	8-97562-031-0	01	1	0612-
13	COVER; TRIM,FRT SEAT,CUSHION GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN	8-97562-026-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LM(RBA) IDN	8-97958-255-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-255-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LM(RBA) IDN	8-97958-254-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-254-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-508-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-508-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97959-949-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-507-0	01	1	0612-
14	PAD; FRT SEAT CUSHION GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-507-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LM(RBA) IDN	8-97958-251-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-251-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LM(RBA) IDN	8-97958-250-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-250-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-506-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-506-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97958-505-0	01	1	0612-
15	FRAME; CUSHION,FRT SEAT GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97958-505-0	01	1	0612-
16	ADJUSTER ASM; RECLINING IDN	8-94473-669-2	01	1	0612-
16	ADJUSTER ASM; RECLINING IDN	8-94473-497-2	01	1	0612-
18	COVER; RECLINING DARK GRAY IDN	8-97394-176-1	01	1	0612-
18	COVER; RECLINING DARK GRAY IDN	8-97394-167-1	01	1	0612-
24	KNOB; RECLINING,FRT,SEAT DARK GRAY IDN	8-97561-769-0	01	1	0612-
24	KNOB; RECLINING,FRT,SEAT DARK GRAY IDN	8-97561-742-0	01	1	0612-
45	BRACKET; SEAT MTG,FRT PASSENGER LH IDN	8-97560-632-0	01	1	0612-
45	BRACKET; SEAT MTG,FRT GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,CAB UP<W60> DRIVER RH/LH,PASSENGER RH IDN	8-97560-633-0	03	1	0612-
45	BRACKET; SEAT MTG,FRT GRADE LM(RBA),GRADE LS(RBD) DRIVER RH/LH,PASSENGER RH IDN	8-97560-633-0	03	1	0612-
45	BRACKET; SEAT MTG,FRT GRADE LV(RBB),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DRIVER RH IDN	8-97560-631-0	01	1	0612-
45	BRACKET; SEAT MTG,FRT GRADE LV(RBB),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> DRIVER LH,PASSENGER RH IDN	8-97560-633-0	02	1	0612-
63	ADJUSTER; SEAT SLIDE (B) W/LEVER IDN	8-97959-140-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LM(RBA) (A) WO/LEVER IDN	8-97959-129-0	02	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (A) WO/LEVER IDN	8-97959-129-0	02	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LM(RBA) (B) W/LEVER IDN	8-97959-128-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (B) W/LEVER IDN	8-97959-128-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) WO/LEVER IDN	8-97959-129-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LS(RBD),GRADE TOURING(RBG) (A) WO/LEVER IDN	8-97959-129-0	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (B) W/LEVER IDN	8-97011-752-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LS(RBD),GRADE TOURING(RBG) (B) W/LEVER IDN	8-97011-752-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> (A) WO/LEVER IDN	8-97011-753-1	01	1	0612-
63	ADJUSTER; SEAT SLIDE GRADE LS(RBD),GRADE TOURING(RBG) (A) WO/LEVER IDN	8-97011-753-1	01	1	0612-
71	BOLT; ADJ TO SEAT M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0612-
71	BOLT; ADJ TO SEAT M8X35 W/LK&PL WASHER IDN	0-50640-835-0	04	1	0612-
78	RING; SNAP ID=10 IDN	0-91805-510-0	02	1	0612-
96	NUT; LK,HINGE GRADE LM(RBA) M8 FLANGE IDN	0-91180-208-0	04	1	0612-
96	NUT; LK,HINGE GRADE LV(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> M8 FLANGE IDN	0-91180-208-0	04	1	0612-
96	NUT; LK,HINGE GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> M8 FLANGE IDN	0-91180-208-0	08	1	0612-
96	NUT; LK,HINGE GRADE LS(RBD),GRADE TOURING(RBG) M8 FLANGE IDN	0-91180-208-0	08	1	0612-
99	BUSHING; SEAT BACK IDN	8-94371-716-0	02	1	0612-
150	COVER; SEAT BRKT INTERIOR COLOR LT CAFE(184) (A) BEIGE IDN	8-97562-831-0	02	1	0702-
150	COVER; SEAT BRKT INTERIOR COLOR LT CAFE(184) (B) BEIGE IDN	8-97562-832-0	02	1	0702-
150	COVER; SEAT BRKT (A) BLACK IDN	8-97562-701-0	02	1	0612-0701
150	COVER; SEAT BRKT INTERIOR COLOR BLACK(101) (A) BLACK IDN	8-97562-701-0	02	1	0702-
150	COVER; SEAT BRKT (B) BLACK IDN	8-97562-702-0	02	1	0612-0701
150	COVER; SEAT BRKT INTERIOR COLOR BLACK(101) (B) BLACK IDN	8-97562-702-0	02	1	0702-
151	CLIP; SEAT BRKT COVER INTERIOR COLOR LT CAFE(184) BEIGE	8-97412-445-0	08	1	0702-
151	CLIP; SEAT BRKT COVER BLACK	8-97360-070-0	08	1	0612-0704
151	CLIP; SEAT BRKT COVER INTERIOR COLOR BLACK(101) BLACK	8-97360-070-0	08	1	0705-
214	SCREW; SIDE COVER (A) M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	02	1	0612-
214	SCREW; SIDE COVER (B) IDN	8-94478-733-0	02	1	0612-
257	BOLT; RECLINING DEVICE (A) M10X20 W/LK WASHER IDN	0-50541-020-0	04	1	0612-
257	BOLT; RECLINING DEVICE (B) M10X20 W/LK WASHER IDN	8-94317-654-0	04	1	0612-
278	COLLAR; FRT SEAT IDN	8-94371-715-1	04	1	0612-
279	BOLT; FRT SEAT 3RD SEAT 7 PASSENGERS<AS3> M10X19	8-94427-095-2	16	1	0612-
