7-45 — CONSOLE BOX (#95835) — 47 parça

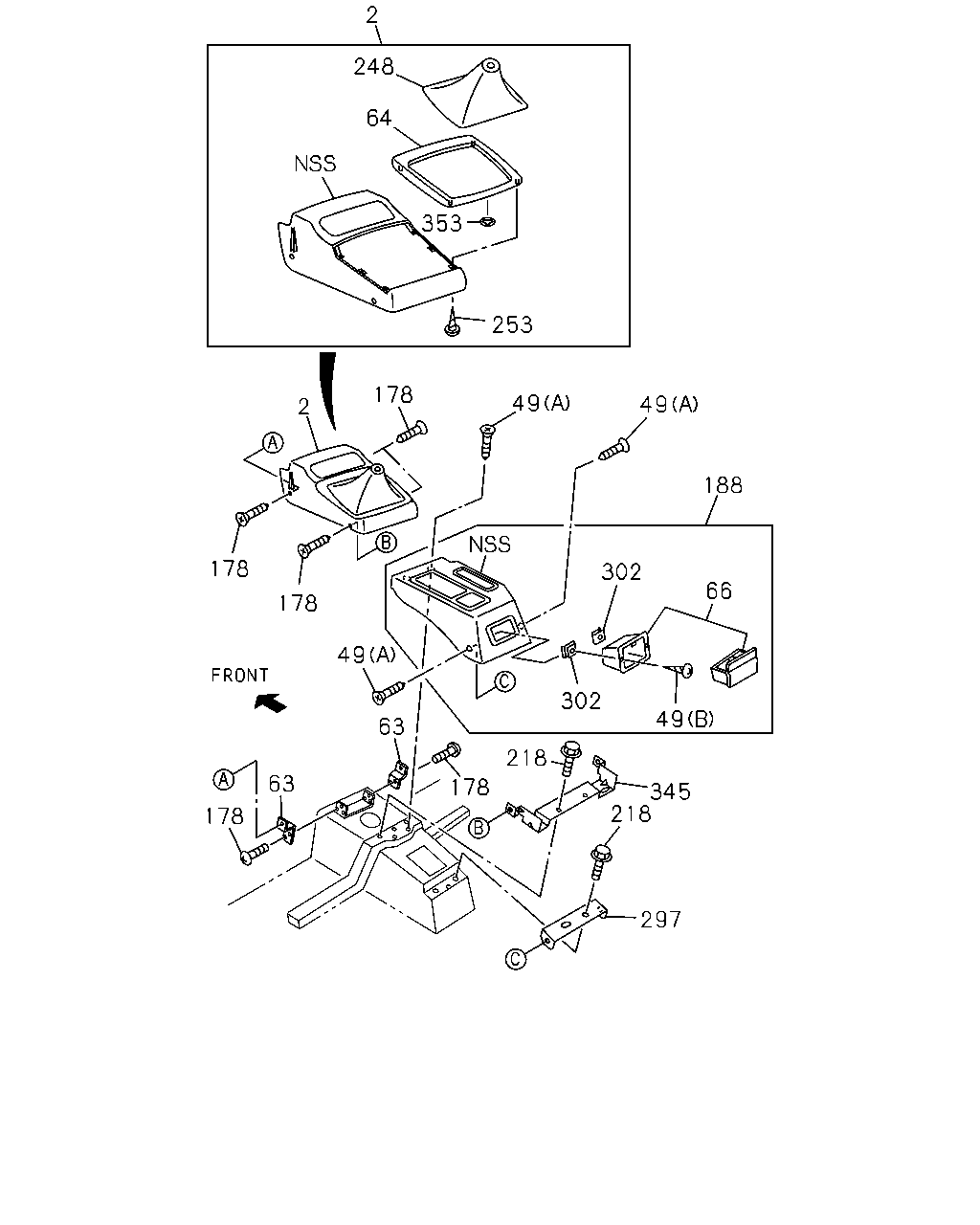

çizim 288712
2 248 64 353 253 49 49 188 302 66 302 49 218 63 49 178 178 2 178 178 345 218 297 63 178
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER
GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) CAB UP<W60> BEIGE IDN 		8-97562-800-1 01 1 0702-
2 CONSOLE; CENTER
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97562-800-1 01 1 0702-
2 CONSOLE; CENTER
GRADE LV(RBB) CAB UP<W60> BLACK IDN 		8-97562-672-1 01 1 0612-0701
2 CONSOLE; CENTER
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-672-1 01 1 0612-0701
2 CONSOLE; CENTER
GRADE LV(RBB) INTERIOR COLOR BLACK(101) CAB UP<W60> BLACK IDN 		8-97562-672-1 01 1 0702-
2 CONSOLE; CENTER
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-672-1 01 1 0702-
49 SCREW; CONSOLE
GRADE LV(RBB) CAB UP<W60> (A) M5X16 		8-94279-312-0 04 1 0612-
49 SCREW; CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) (A) M5X16 		8-94279-312-0 04 1 0612-
49 SCREW; CONSOLE
GRADE LV(RBB) CAB UP<W60> (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0612-
49 SCREW; CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0612-
63 BRACKET; FRT CONSOLE
GRADE LV(RBB) CAB UP<W60> IDN 		8-97956-301-1 02 1 0612-
63 BRACKET; FRT CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97956-301-1 02 1 0612-
64 BEZEL; CENTER CONSOLE
GRADE LV(RBB) CAB UP<W60> BLACK IDN 		8-97562-707-3 01 1 0612-
64 BEZEL; CENTER CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-707-3 01 1 0612-
66 TRAY ASM; ASH
GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) CAB UP<W60> BEIGE 		8-97412-234-1 01 1 0702-
66 TRAY ASM; ASH
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE 		8-97412-234-1 01 1 0702-
66 TRAY ASM; ASH
GRADE LV(RBB) CAB UP<W60> BLACK 		8-94154-193-1 01 1 0612-0701
66 TRAY ASM; ASH
GRADE LS(RBD),GRADE TOURING(RBG) BLACK 		8-94154-193-1 01 1 0612-0701
66 TRAY ASM; ASH
GRADE LV(RBB) INTERIOR COLOR BLACK(101) CAB UP<W60> BLACK 		8-94154-193-1 01 1 0702-
66 TRAY ASM; ASH
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK 		8-94154-193-1 01 1 0702-
178 SCREW; CTR,CONSOLE
GRADE LV(RBB) CAB UP<W60> M5X16 		8-94279-312-0 08 1 0612-
178 SCREW; CTR,CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) M5X16 		8-94279-312-0 08 1 0612-
188 CONSOLE; RR
GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) CAB UP<W60> BEIGE IDN 		8-97562-801-1 01 1 0702-
188 CONSOLE; RR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97562-801-1 01 1 0702-
188 CONSOLE; RR
GRADE LV(RBB) CAB UP<W60> BLACK IDN 		8-97562-674-1 01 1 0612-0701
188 CONSOLE; RR
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-674-1 01 1 0612-0701
188 CONSOLE; RR
GRADE LV(RBB) INTERIOR COLOR BLACK(101) CAB UP<W60> BLACK IDN 		8-97562-674-1 01 1 0702-
188 CONSOLE; RR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-674-1 01 1 0702-
218 BOLT; BRKT
GRADE LV(RBB) CAB UP<W60> M6X12 FLANGE 		0-28050-612-0 02 1 0612-
218 BOLT; BRKT
GRADE LS(RBD),GRADE TOURING(RBG) M6X12 FLANGE 		0-28050-612-0 02 1 0612-
218 BOLT; BRKT
GRADE LV(RBB) CAB UP<W60> M6X12 FLANGE 		0-28050-612-0 02 1 0612-
218 BOLT; BRKT
GRADE LS(RBD),GRADE TOURING(RBG) M6X12 FLANGE 		0-28050-612-0 02 1 0612-
248 BOOT; SHIFT CONT
GRADE LV(RBB) CAB UP<W60> BLACK IDN 		8-97561-635-0 01 1 0612-
248 BOOT; SHIFT CONT
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97561-635-0 01 1 0612-
253 SCREW; BEZEL
GRADE LV(RBB) CAB UP<W60> M5X12 TAPPING 		9-09829-321-1 04 1 0612-
253 SCREW; BEZEL
GRADE LS(RBD),GRADE TOURING(RBG) M5X12 TAPPING 		9-09829-321-1 04 1 0612-
297 BRACKET; RR CONSOLE
GRADE LV(RBB) CAB UP<W60> IDN 		8-97956-302-1 01 1 0612-
297 BRACKET; RR CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97956-302-1 01 1 0612-
302 RETAINER; ASH TRAY
GRADE LV(RBB) CAB UP<W60> IDN 		8-94123-300-5 02 1 0612-
302 RETAINER; ASH TRAY
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-94123-300-5 02 1 0612-
345 BRACKET; CTR CONSOLE
GRADE LV(RBB) CAB UP<W60> IDN 		8-97956-305-0 01 1 0612-
345 BRACKET; CTR CONSOLE
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97956-305-0 01 1 0612-
353 NUT; PUSH
GRADE LV(RBB) CAB UP<W60> 		8-94324-737-0 08 1 0612-
353 NUT; PUSH
GRADE LS(RBD),GRADE TOURING(RBG) 		8-94324-737-0 08 1 0612-

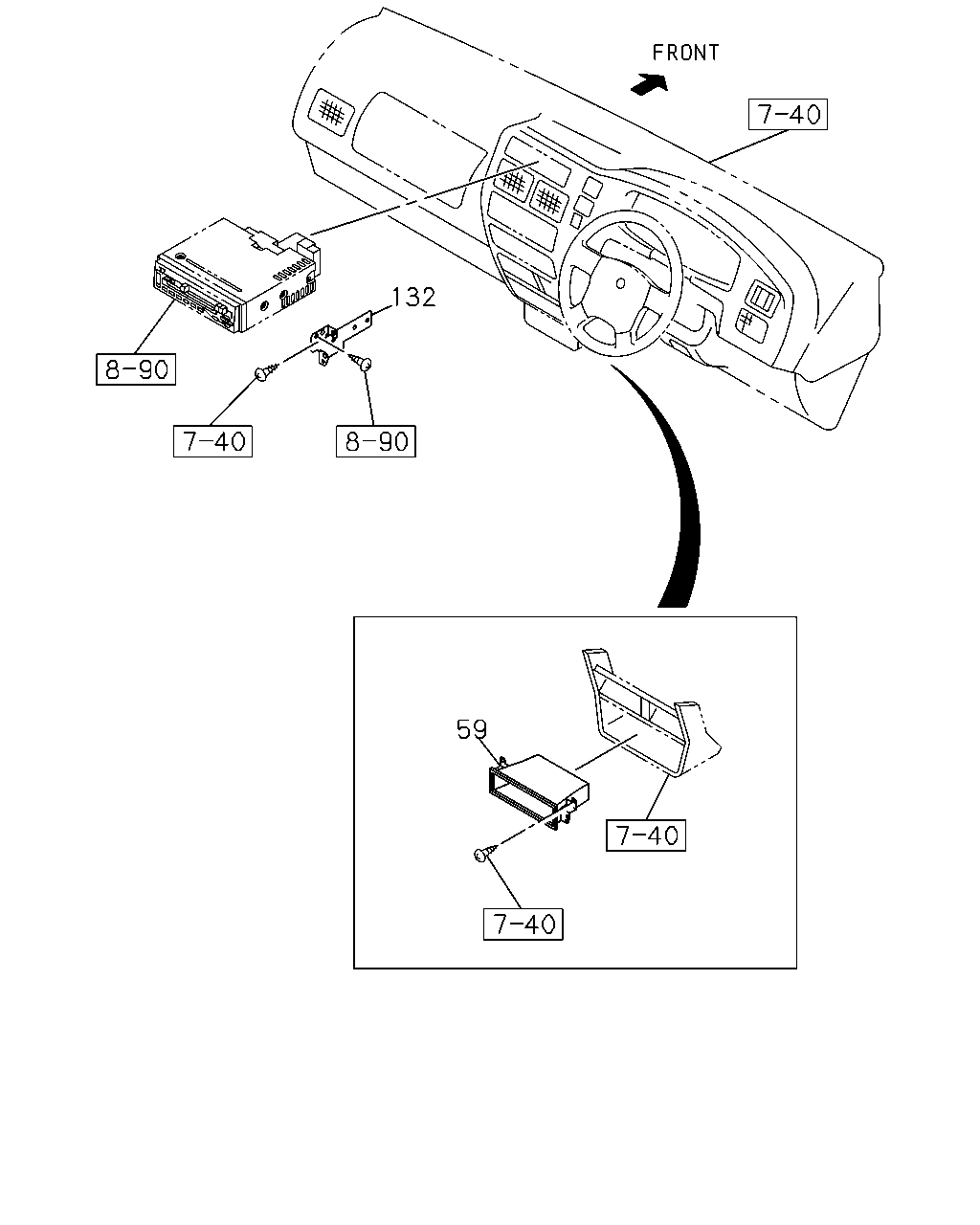

çizim 288713
59 132
BalonParca AdiParca NoAdetTipApplied Date
59 BOX; FRT CONSOLE 8-97114-757-0 01 1 0612-
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) IDN 		8-97107-583-2 01 1 0612-
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) IDN 		8-97107-582-2 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
