7-40 — INSTRUMENT PANEL AND BOX (#95832) — 93 parça

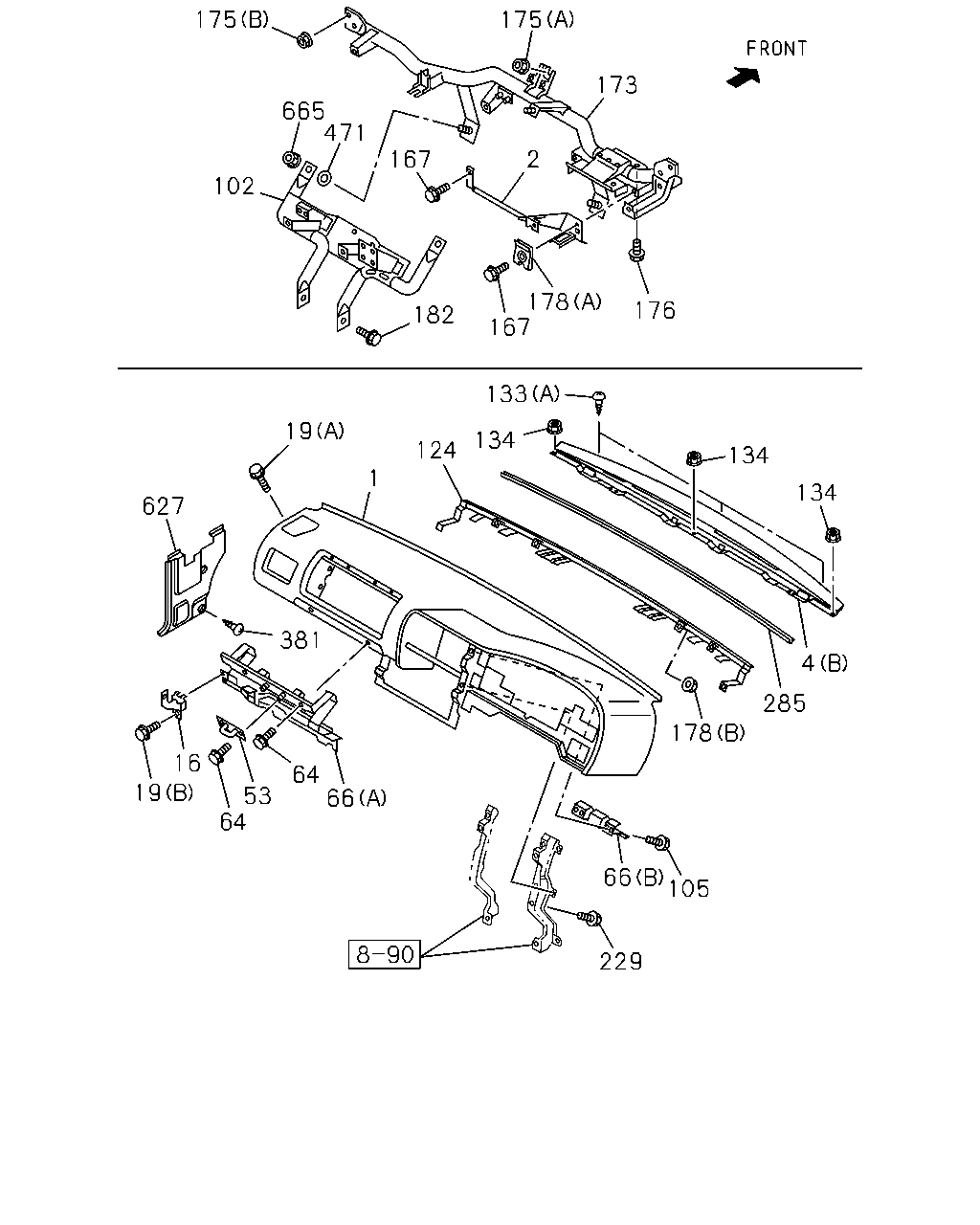

çizim 289496
229 66 105 178 285 4 134 134 133 134 124 19 1 381 627 16 64 66 53 19 64 167 176 178 182 2 173 175 167 471 665 102 175
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
BLACK IDN 		8-97945-687-0 01 1 0612-
2 REINFORCEMENT; INST PNL,LWR
IDN 		8-97101-851-6 01 1 0612-
4 COVER; INST PNL
INTERIOR COLOR LT CAFE(184) (A) 		8-97412-235-2 01 1 0702-
4 COVER; INST PNL
(A) BLACK 		8-97154-863-2 01 1 0612-0701
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97154-863-2 01 1 0702-
4 COVER; INST PNL
(B) BLACK IDN 		8-97562-675-0 01 1 0612-
16 BRACKET; INST PNL
THA 		8-97120-886-0 01 1 0612-
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0612-
19 SCREW; BRKT
(A) M4X12 TAPPING THA 		8-97919-592-0 02 1 0612-
53 STRIKER; GLOVE BOX
THA 		8-97910-986-0 01 1 0612-
64 SCREW; STRIKER
M5X14 THA 		8-97912-797-2 11 1 0612-
66 REINFORCEMENT; INST PANEL
(A) IDN 		8-97217-989-1 01 1 0612-
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97910-991-0 01 1 0612-
102 BRACKET; INST PANEL TO FLOOR
IDN 		8-97562-641-0 01 1 0612-
105 SCREW; REINF
M4X12 TAPPING THA 		8-97919-592-0 16 1 0612-
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97942-277-0 01 1 0612-
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0612-
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 13 1 0612-
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0612-
167 BOLT; REINF TO INST
M6X20 W/WASHER 		8-94112-987-1 02 1 0612-
173 BEAM ASM; CROSS,INST PANEL 8-97252-975-1 01 1 0612-
175 NUT; CROSS BEAM
(A) M6 FLANGE 		8-97063-399-0 01 1 0612-
175 NUT; CROSS BEAM
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0612-
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28050-816-0 01 1 0612-
178 NUT; INST PANEL
(A) 		1-09984-167-0 01 1 0612-
178 NUT; INST PANEL
(C) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 0612-
178 NUT; INST PANEL
(D) M5 SPIRE NUT 		8-94217-271-0 02 1 0612-
178 NUT; INST PANEL
(B) THA 		8-97916-241-0 12 1 0612-
182 BOLT; BRKT,INST PANEL
M6X16 FLANGE 		0-28450-616-0 02 1 0612-
229 SCREW; BOX,INST
M5X14 THA 		8-97912-797-2 04 1 0612-
285 FINISHER; INST PANEL
THA 		8-97910-987-3 01 1 0612-
381 CLIP; HARNESS
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) BLACK 		8-94145-515-0 04 1 0612-
471 WASHER; PL
GRADE LM(RBA) EXC. COOLER WO/HEATER(YL1) ID=6.4 OD=18 		9-09164-706-0 02 1 0612-
627 TRIM
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) IDN 		8-97562-802-4 01 1 0702-
627 TRIM
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) IDN 		8-97562-835-4 01 1 0702-
627 TRIM
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-677-4 01 1 0612-0701
627 TRIM
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-677-4 01 1 0702-
627 TRIM
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-676-4 01 1 0612-0701
627 TRIM
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-676-4 01 1 0702-
665 NUT; BRKT,FLOOR TO INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 0612-

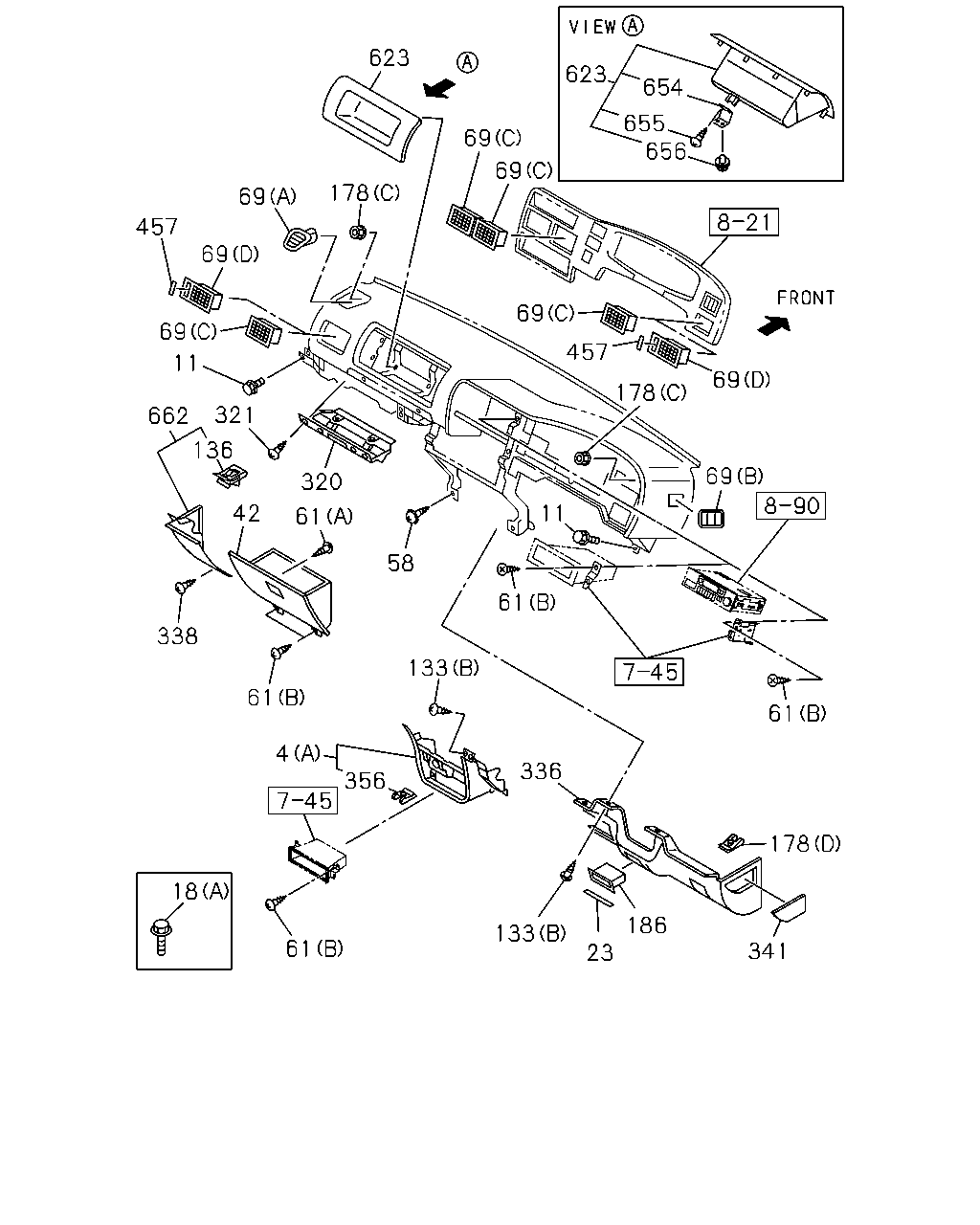

çizim 289498
341 186 23 133 61 18 178 336 356 4 61 338 133 61 61 58 11 69 178 69 457 69 320 61 42 136 321 11 69 69 457 69 178 623 69 69 656 655 654 623 662
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
INTERIOR COLOR LT CAFE(184) (A) 		8-97412-235-2 01 1 0702-
4 COVER; INST PNL
(A) BLACK 		8-97154-863-2 01 1 0612-0701
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97154-863-2 01 1 0702-
4 COVER; INST PNL
(B) BLACK IDN 		8-97562-675-0 01 1 0612-
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 07 1 0612-
18 BOLT; BRKT
(A) M6X16 FLANGE IDN 		0-28050-616-0 02 1 0612-
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 08 1 0612-
23 CUSHION; INST,PANEL 8-97185-832-0 02 1 0612-
42 BOX; GLOVE,INST PNL
INTERIOR COLOR LT CAFE(184) BEIGE 		8-97412-241-2 01 1 0702-
42 BOX; GLOVE,INST PNL
BLACK 		8-97154-875-2 01 1 0612-0701
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BLACK(101) BLACK 		8-97154-875-2 01 1 0702-
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0612-
61 SCREW; GLOVE BOX
(B) M5X16 		8-94279-312-0 04 1 0612-
61 SCREW; GLOVE BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) (B) M5X16 		8-94279-312-0 04 1 0612-
61 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 0612-
61 SCREW; GLOVE BOX
EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X16 		8-94279-312-0 02 1 0612-
69 GRILLE; SIDE,AIR OUTLET
(A) BLACK 		8-97154-868-3 01 1 0612-
69 GRILLE; SIDE,AIR OUTLET
(B) BLACK 		8-97154-870-0 01 1 0612-
69 GRILLE; SIDE,AIR OUTLET
COOLER WO/HEATER(YL1) (D) BLACK 		8-94388-773-3 02 1 0612-
69 GRILLE; SIDE,AIR OUTLET
COOLER WO/HEATER(YL1) (C) BLACK 		8-97152-701-1 02 1 0612-
69 GRILLE; SIDE,AIR OUTLET
EXC. COOLER WO/HEATER(YL1) (C) BLACK 		8-97152-701-1 04 1 0612-
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0612-
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 13 1 0612-
136 CLIP; INST COVER 8-97148-012-0 01 1 0612-
178 NUT; INST PANEL
(A) 		1-09984-167-0 01 1 0612-
178 NUT; INST PANEL
(C) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 0612-
178 NUT; INST PANEL
(D) M5 SPIRE NUT 		8-94217-271-0 02 1 0612-
178 NUT; INST PANEL
(B) THA 		8-97916-241-0 12 1 0612-
186 GRILLE; LAP VENTILATOR
INTERIOR COLOR LT CAFE(184) BEIGE 		8-97412-433-0 01 1 0702-
186 GRILLE; LAP VENTILATOR
BLACK 		8-97394-945-0 01 1 0612-0701
186 GRILLE; LAP VENTILATOR
INTERIOR COLOR BLACK(101) BLACK 		8-97394-945-0 01 1 0702-
320 COVER; GLOVE BOX
BLACK 		8-97154-872-4 01 1 0612-
321 SCREW; COVER,GLOVE BOX
M5X16 		8-94279-312-0 04 1 0612-
336 COVER; INST PANEL SIDE
BLACK 		8-97154-884-2 01 1 0612-0701
336 COVER; INST PANEL SIDE
INTERIOR COLOR BLACK(101) BLACK 		8-97154-884-2 01 1 0702-
336 COVER; INST PANEL SIDE
INTERIOR COLOR LT CAFE(184) BEIGE 		8-97412-431-2 01 1 0702-
338 SCREW; COVER
M5X16 		8-94279-312-0 03 1 0612-
341 LID; FUSE BOX
BLACK 		8-97154-885-2 01 1 0612-0701
341 LID; FUSE BOX
INTERIOR COLOR BLACK(101) BLACK 		8-97154-885-2 01 1 0702-
341 LID; FUSE BOX
INTERIOR COLOR LT CAFE(184) BEIGE 		8-97412-432-2 01 1 0702-
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 0612-
457 PLATE; INST PANEL
COOLER WO/HEATER(YL1) 		8-97331-860-0 02 1 0612-
623 BOX; UTILITY
BLACK IDN 		8-97404-876-1 01 1 0612-
654 BRACKET; UTILITY BOX
THA 		8-97218-109-0 01 1 0612-
655 SCREW; BRKT,UTILITY BOX
M5X14 THA 		8-97912-797-2 02 1 0612-
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 0612-
662 COVER; LWR,INST PANEL
INTERIOR COLOR LT CAFE(184) 		8-97412-426-1 01 1 0702-
662 COVER; LWR,INST PANEL
BLACK 		8-97154-866-1 01 1 0612-0701
662 COVER; LWR,INST PANEL
INTERIOR COLOR BLACK(101) BLACK 		8-97154-866-1 01 1 0702-

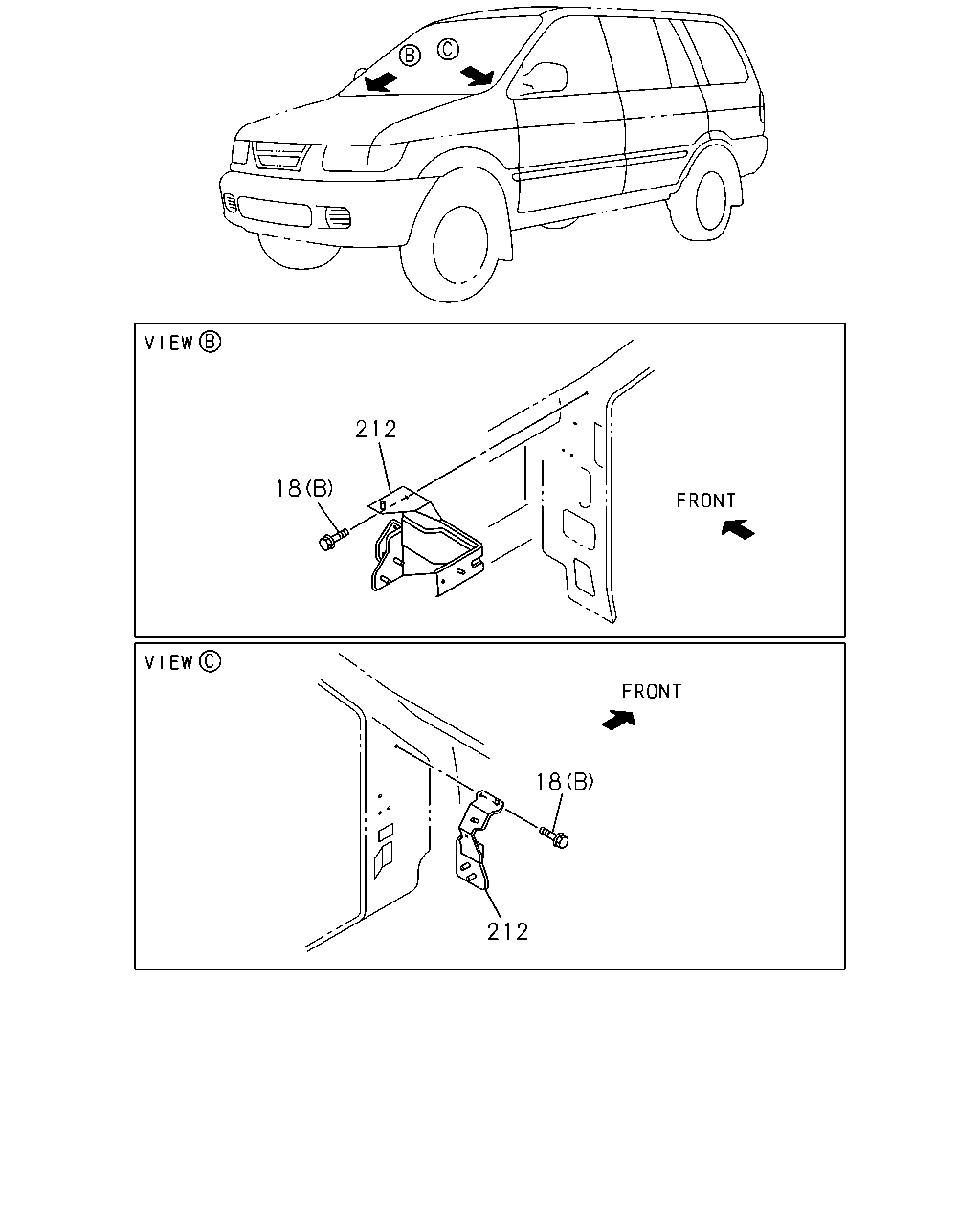

çizim 289501
212 18 18 212
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X16 FLANGE IDN 		0-28050-616-0 02 1 0612-
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 08 1 0612-
212 BRACKET; INST PNL SIDE
IDN 		8-97955-084-2 01 1 0612-
212 BRACKET; INST PNL SIDE
IDN 		8-97955-083-2 01 1 0612-
