51135 - TBR-WAGON(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#95830) — 26 parça
◀

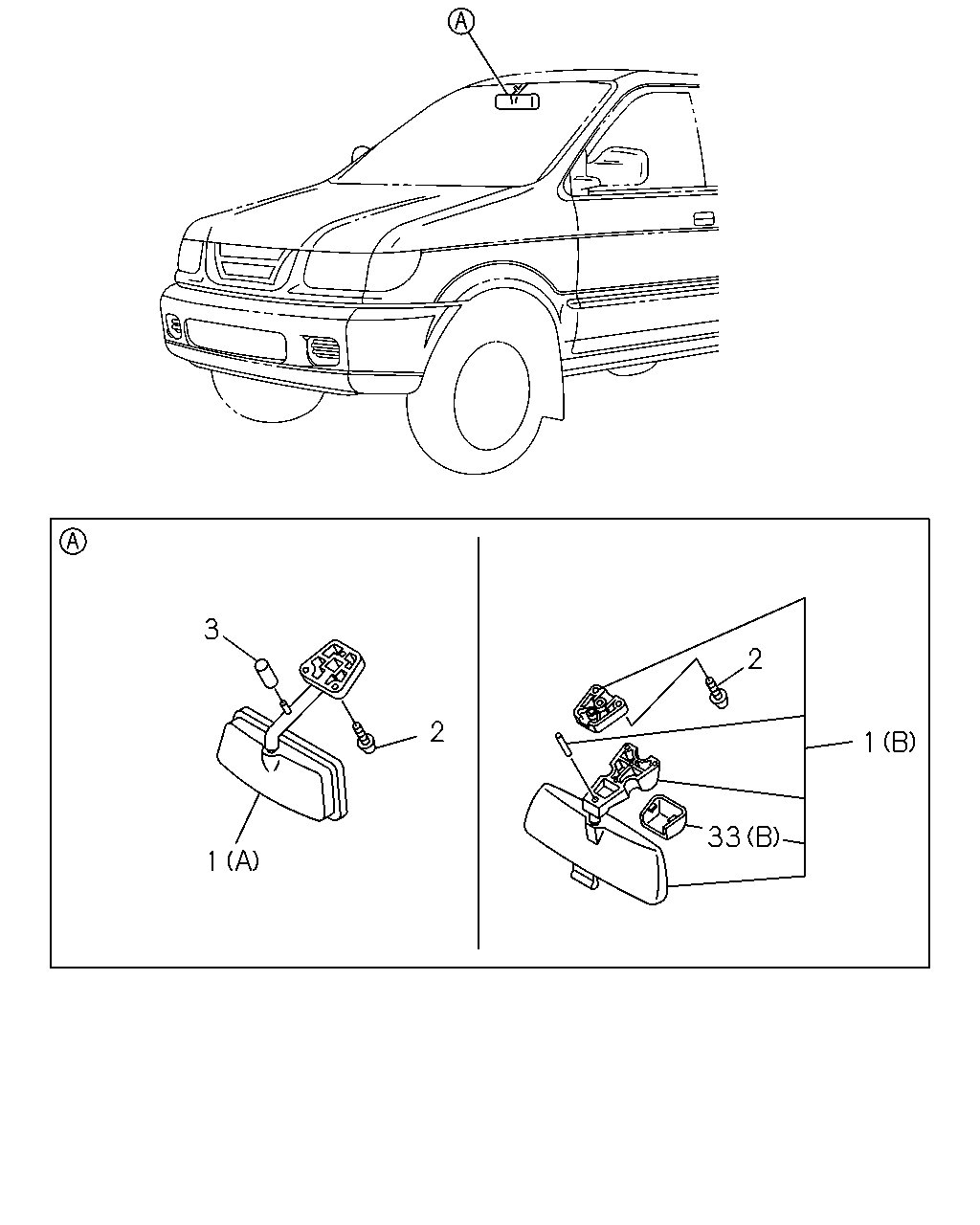

[720A] ROOM MIRROR (13 parça)

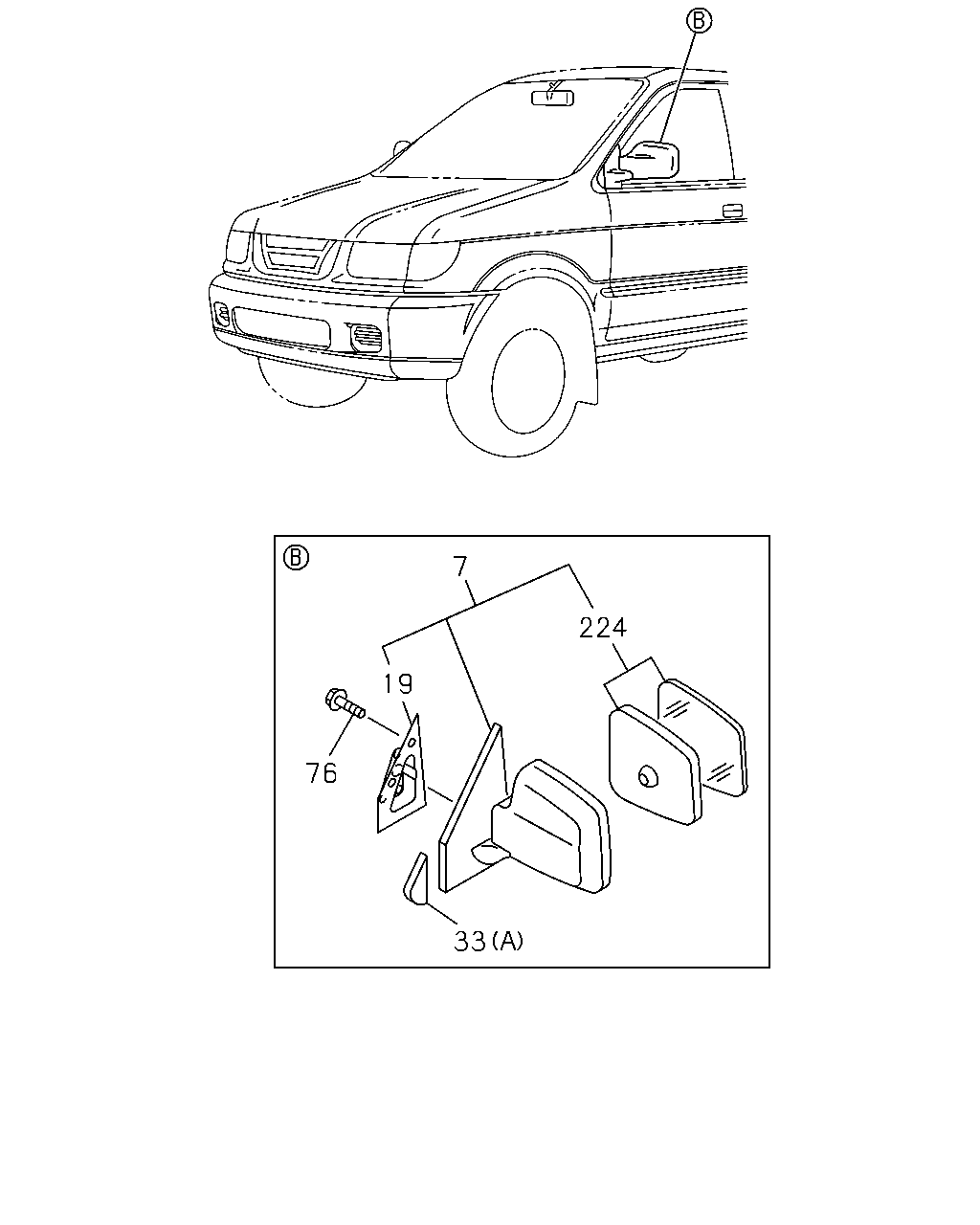

[720A] DOOR MIRROR (13 parça)
▶
3
2
1
2
1
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
GRADE LM(RBA),GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) (A)
8-97412-240-0
01
1
0702-
1
MIRROR; ROOM
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) (B) BEIGE
8-97412-239-1
01
1
0702-
1
MIRROR; ROOM
GRADE LM(RBA),GRADE LV(RBB) (A) LIGHT GRAY
8-97394-012-0
01
1
0612-0701
1
MIRROR; ROOM
GRADE LM(RBA),GRADE LV(RBB) INTERIOR COLOR BLACK(101) (A) LIGHT GRAY
8-97394-012-0
01
1
0702-
1
MIRROR; ROOM
GRADE LS(RBD),GRADE TOURING(RBG) (B) LIGHT GRAY
8-97394-011-1
01
1
0612-0701
1
MIRROR; ROOM
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) (B) LIGHT GRAY
8-97394-011-1
01
1
0702-
2
SCREW; MIRROR TO BODY
M4X16 TAPPING OVAL-HEAD
9-07037-416-0
03
1
0612-
3
STOPPER; RR VIEW MIRROR
GRADE LM(RBA),GRADE LV(RBB)
8-97262-012-0
01
1
0612-
33
COVER; MIRROR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) (B) BEIGE
8-97412-436-0
01
1
0702-
33
COVER; MIRROR
(A)
8-97201-963-1
01
1
0612-
33
COVER; MIRROR
(A)
8-97201-962-1
01
1
0612-
33
COVER; MIRROR
GRADE LS(RBD),GRADE TOURING(RBG) (B) LIGHT GRAY
8-97394-157-0
01
1
0612-0701
33
COVER; MIRROR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) (B) LIGHT GRAY
8-97394-157-0
01
1
0702-
7
224
19
76
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2> IDN
8-97955-966-1
01
1
0612-
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2> IDN
8-97955-965-1
01
1
0612-
7
MIRROR ASM; DOOR
EXC. DOOR MIRROR ELEC CONT<DG2> IDN
8-97957-165-0
01
1
0612-
7
MIRROR ASM; DOOR
EXC. DOOR MIRROR ELEC CONT<DG2> IDN
8-97957-164-0
01
1
0612-
19
GASKET; MIRROR
IDN
8-97958-559-0
01
1
0612-
19
GASKET; MIRROR
IDN
8-97958-558-0
01
1
0612-
33
COVER; MIRROR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) (B) BEIGE
8-97412-436-0
01
1
0702-
33
COVER; MIRROR
(A)
8-97201-963-1
01
1
0612-
33
COVER; MIRROR
(A)
8-97201-962-1
01
1
0612-
33
COVER; MIRROR
GRADE LS(RBD),GRADE TOURING(RBG) (B) LIGHT GRAY
8-97394-157-0
01
1
0612-0701
33
COVER; MIRROR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) (B) LIGHT GRAY
8-97394-157-0
01
1
0702-
76
BOLT; STAY BRKT
M6X14 FLANGE
8-94327-380-0
06
1
0612-
224
MIRROR; DOOR
DOOR MIRROR ELEC CONT<DG2> IDN
8-97958-557-0
01
1
0612-
