◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#95828) — 15 parça

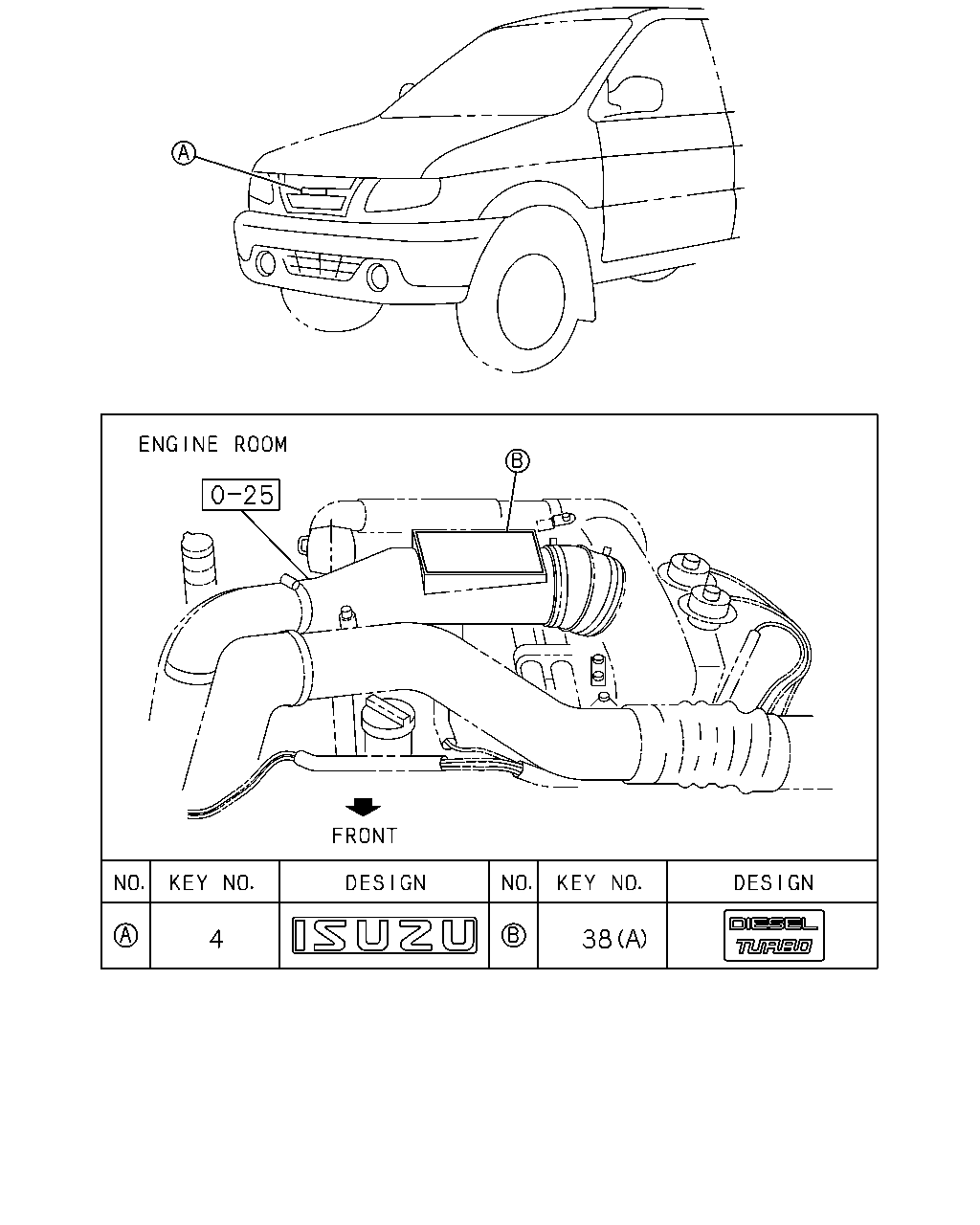

çizim 288676
4 38
BalonParca AdiParca NoAdetTipApplied Date
4 EMBLEM; RAD GRILLE
IDN 		8-97957-595-1 01 1 0612-
38 PLATE; NAME
(A) 		8-97115-470-0 01 1 0612-
38 PLATE; NAME
GRADE LM(RBA) (B) IDN 		8-97957-633-1 01 1 0612-
38 PLATE; NAME
GRADE LV(RBB) (C) IDN 		8-97957-635-0 01 1 0612-
38 PLATE; NAME
GRADE LS(RBD) (D) IDN 		8-97957-622-0 01 1 0612-
38 PLATE; NAME
GRADE LS(RBD) (E) IDN 		8-97957-636-0 01 1 0612-

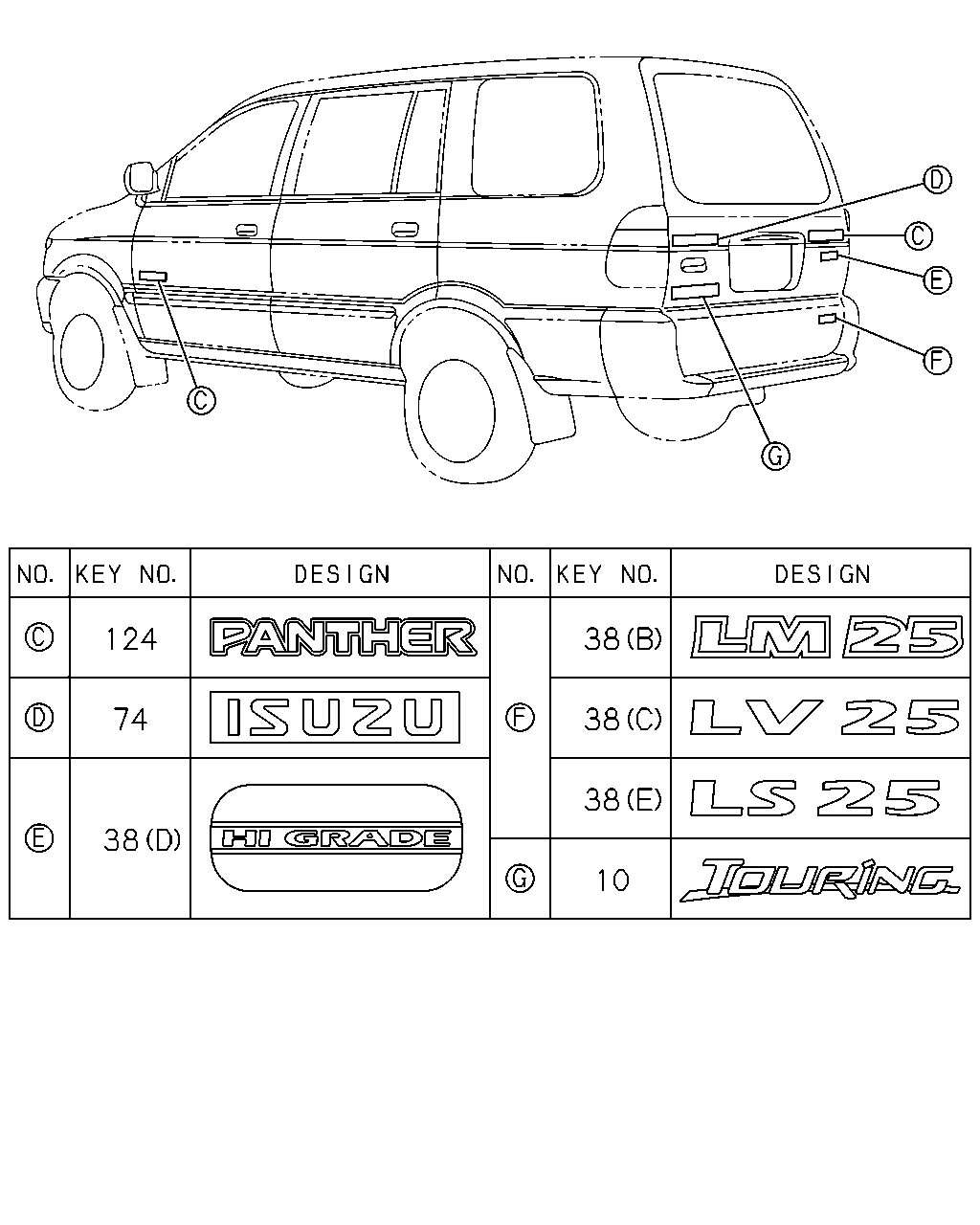

çizim 288682
124 74 38 38 38 10 38
BalonParca AdiParca NoAdetTipApplied Date
10 EMBLEM; DOOR
GRADE TOURING(RBG) IDN 		8-97959-670-0 01 1 0612-
38 PLATE; NAME
(A) 		8-97115-470-0 01 1 0612-
38 PLATE; NAME
GRADE LM(RBA) (B) IDN 		8-97957-633-1 01 1 0612-
38 PLATE; NAME
GRADE LV(RBB) (C) IDN 		8-97957-635-0 01 1 0612-
38 PLATE; NAME
GRADE LS(RBD) (D) IDN 		8-97957-622-0 01 1 0612-
38 PLATE; NAME
GRADE LS(RBD) (E) IDN 		8-97957-636-0 01 1 0612-
74 DECAL; "ISUZU"
IDN 		8-97957-665-0 01 1 0612-
124 PLATE; NAME
IDN 		8-97957-641-0 02 1 0612-
124 PLATE; NAME
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97957-641-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
