6-83 — BACK DOOR LOCK AND HANDLE (#95824) — 30 parça

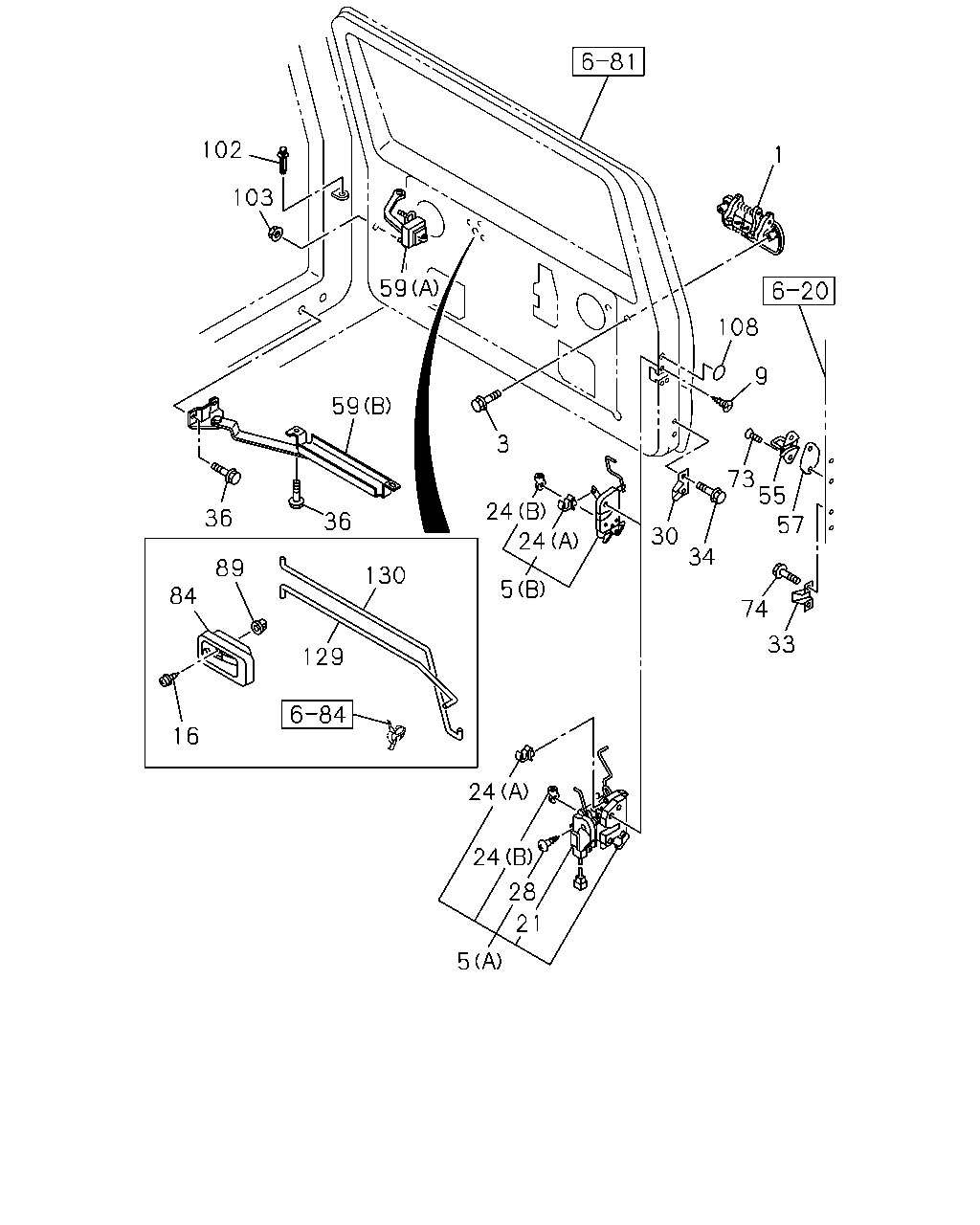

çizim 288673
102 59 103 3 59 108 9 73 34 30 74 57 55 33 5 24 24 130 36 89 84 16 129 24 24 28 21 5 1 36
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,BACK DOOR
IDN 		8-97072-484-1 01 1 0612-
3 BOLT; TAIL GATE HANDLE
M6X8 IDN 		8-94155-893-0 02 1 0612-
5 LOCK; BACK DOOR
AUTO DOOR LOCK<AU4> (A) 		8-97250-484-2 01 1 0612-
5 LOCK; BACK DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-97250-483-1 01 1 0612-
9 SCREW; LOCK TO BACK DOOR 8-97811-252-0 03 1 0612-
16 SCREW; INSIDE LEVER,BACK DOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> M5X14 IDN 		8-94152-495-0 01 1 0612-
21 ACTUATOR; BACK DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97251-150-1 01 1 0612-
24 CLIP; LINK ROD
(A) 		8-97264-613-0 01 1 0612-
24 CLIP; LINK ROD
(B) 		8-97264-639-0 01 1 0612-
28 SCREW; ACTUATOR
AUTO DOOR LOCK<AU4> 		8-97264-615-0 02 1 0612-
30 DOVETAIL; BACK DOOR 8-94198-167-0 01 1 0612-
33 STRIKER; DOVETAIL 8-94353-030-0 01 1 0612-
34 BOLT; DOVETAIL TO BACK DOOR
M8X23 FLANGE 		8-97105-376-0 02 1 0612-
36 BOLT; LINK
GRADE TOURING(RBG) M8X23 FLANGE 		8-97105-376-0 04 1 0612-
55 STRIKER; BACK DOOR 8-97147-406-0 01 1 0612-
57 SEAT; DOOR STRIKER,BACK DOOR
IDN 		8-94239-378-0 AR 1 0612-
59 ARM ASM; CHECK,BACK DOOR
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) (A) 		8-97174-265-2 01 1 0612-
59 ARM ASM; CHECK,BACK DOOR
GRADE TOURING(RBG) (B) DARK GREEN 		8-97188-600-2 01 1 0612-
73 SCREW; STRIKER TO BACK DOOR
M8X20 		0-30218-820-0 02 1 0612-
74 BOLT; DOVETAIL STRIKER
M8X23 FLANGE 		8-97105-376-0 02 1 0612-
84 HANDLE; INSIDE,BACK DOOR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> 		8-97412-246-0 01 1 0702-
84 HANDLE; INSIDE,BACK DOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97398-365-0 01 1 0612-0701
84 HANDLE; INSIDE,BACK DOOR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97398-365-0 01 1 0702-
89 SCREW; HANDLE
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-94152-494-0 01 1 0612-
102 PIN; DOOR CHECK ARM
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-94111-468-0 01 1 0612-
103 NUT
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) M8 FLANGE 		5-09440-005-0 02 1 0612-0805
103 NUT
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) M8 FLANGE 		8-97581-233-0 02 1 0806-
108 SEAL; TOOL HOLE
OD=36 T=0.05 BLACK IDN 		5-76777-035-0 01 1 0612-
129 LINK; DOOR LOCK
EXC. 3RD SEAT 7 PASSENGERS<AS3> 		8-97250-472-1 01 1 0612-
130 LINK; INSIDE LEVER
EXC. 3RD SEAT 7 PASSENGERS<AS3> 		8-97250-473-1 01 1 0612-
