◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#95817) — 31 parça

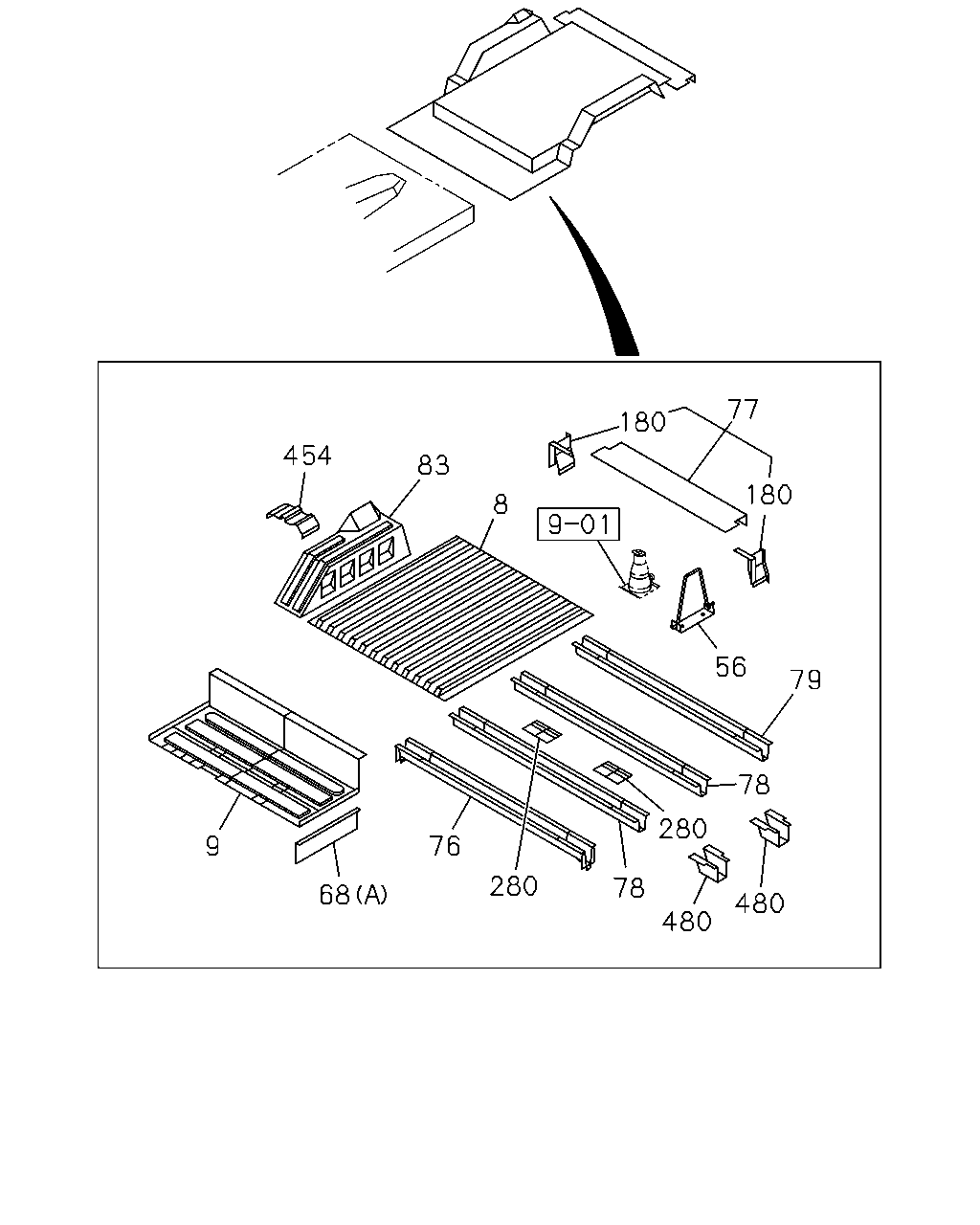

çizim 288651
480 480 78 280 78 79 56 180 180 77 8 83 454 280 76 68 9
BalonParca AdiParca NoAdetTipApplied Date
8 PANEL; RR FLOOR,RR
IDN 		8-97957-828-0 01 1 0612-
9 PANEL; RR FLOOR,FRT
IDN 		8-97958-991-1 01 1 0612-
56 BRACKET; JACK
IDN 		8-97956-676-0 01 1 0612-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97011-996-0 04 1 0612-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-287-0 01 1 0612-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-286-0 01 1 0612-
76 BOLSTER ASM; RR FLOOR NO 1
IDN 		8-97126-616-1 01 1 0612-
77 BOLSTER ASM; END
EXC. CAB UP<W60> IDN 		8-97958-997-0 01 1 0612-
77 BOLSTER ASM; END
GRADE LV(RBB) CAB UP<W60> IDN 		8-97958-997-0 01 1 0612-
77 BOLSTER ASM; END
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-883-1 01 1 0612-
78 BOLSTER ASM; RR FLOOR NO 2
IDN 		8-97955-296-0 02 1 0612-
79 BOLSTER ASM; RR FLOOR NO 3
IDN 		8-97958-996-0 01 1 0612-
83 ARCH ASM; WHEEL
IDN 		8-97959-271-0 01 1 0612-
83 ARCH ASM; WHEEL
IDN 		8-97959-270-0 01 1 0612-
180 GUSSET; RR END
IDN 		8-97955-307-0 01 1 0612-
180 GUSSET; RR END
IDN 		8-97955-306-0 01 1 0612-
280 PATCH; SEAT BELT
IDN 		8-97957-826-0 02 1 0612-
454 PATCH; 3RD SEAT
IDN 		8-97955-278-0 02 1 0612-
480 EXTENSION; MTG,BOLSTER
GRADE LV(RBB),GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97956-627-1 04 1 0612-

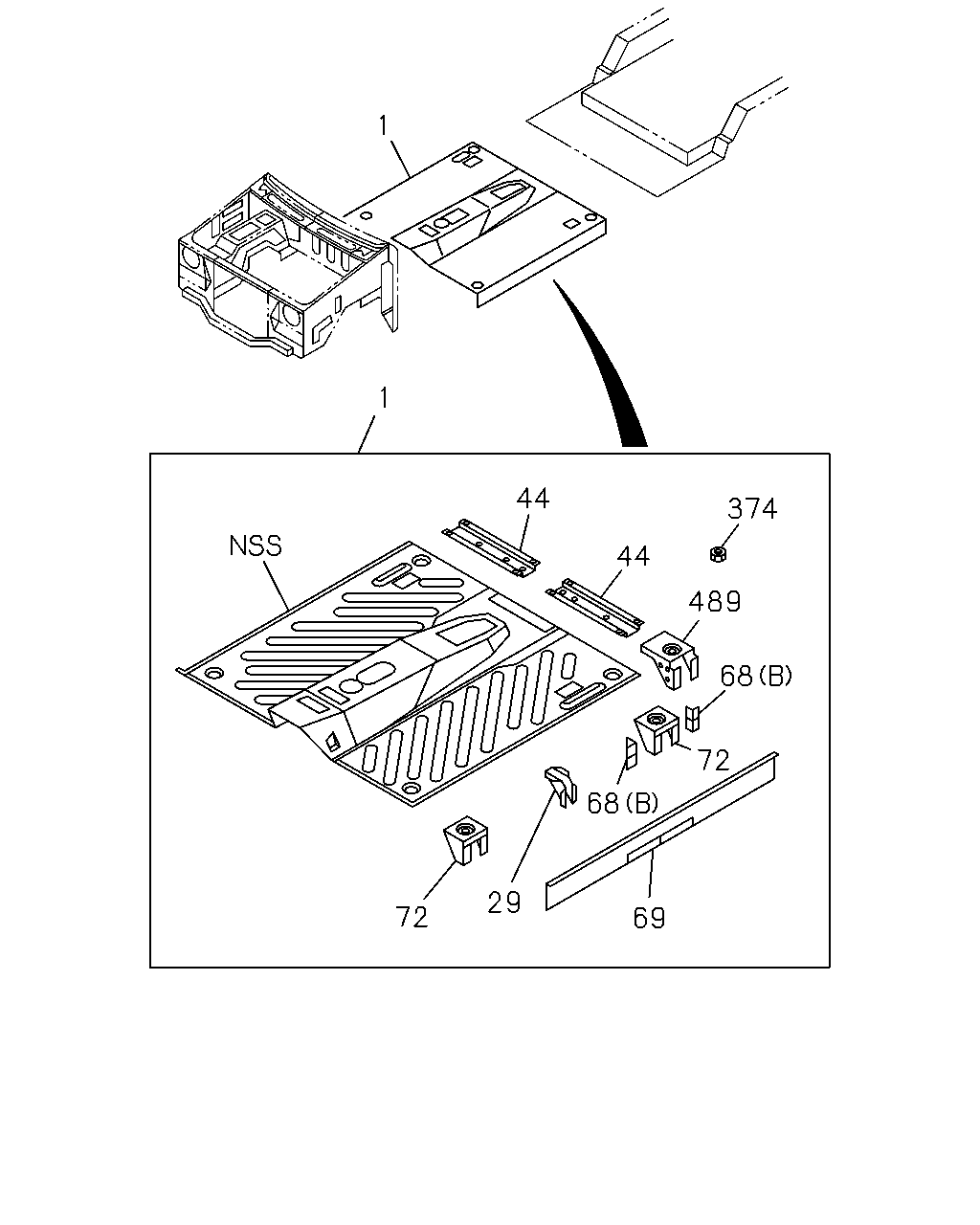

çizim 288657
69 29 72 68 72 68 489 44 44 374 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
IDN 		8-97958-981-1 01 1 0612-
29 GUSSET
IDN 		8-94366-724-0 02 1 0612-
44 BAR; FRT COMPT PAN,RR
IDN 		8-97958-986-1 01 1 0612-
44 BAR; FRT COMPT PAN,RR
IDN 		8-97958-985-1 01 1 0612-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97011-996-0 04 1 0612-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-287-0 01 1 0612-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-286-0 01 1 0612-
69 PANEL; ROCKER INNER
IDN 		8-97955-253-0 01 1 0612-
69 PANEL; ROCKER INNER
IDN 		8-97955-252-0 01 1 0612-
72 BRACKET; CAB MTG,RR
IDN 		8-97956-568-2 02 1 0612-
374 NUT; FLOOR
M6 		9-09114-086-0 02 1 0612-
489 BRACKET; CAB MTG,NO 3
IDN 		8-97958-990-2 02 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
