51135 - TBR-WAGON(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

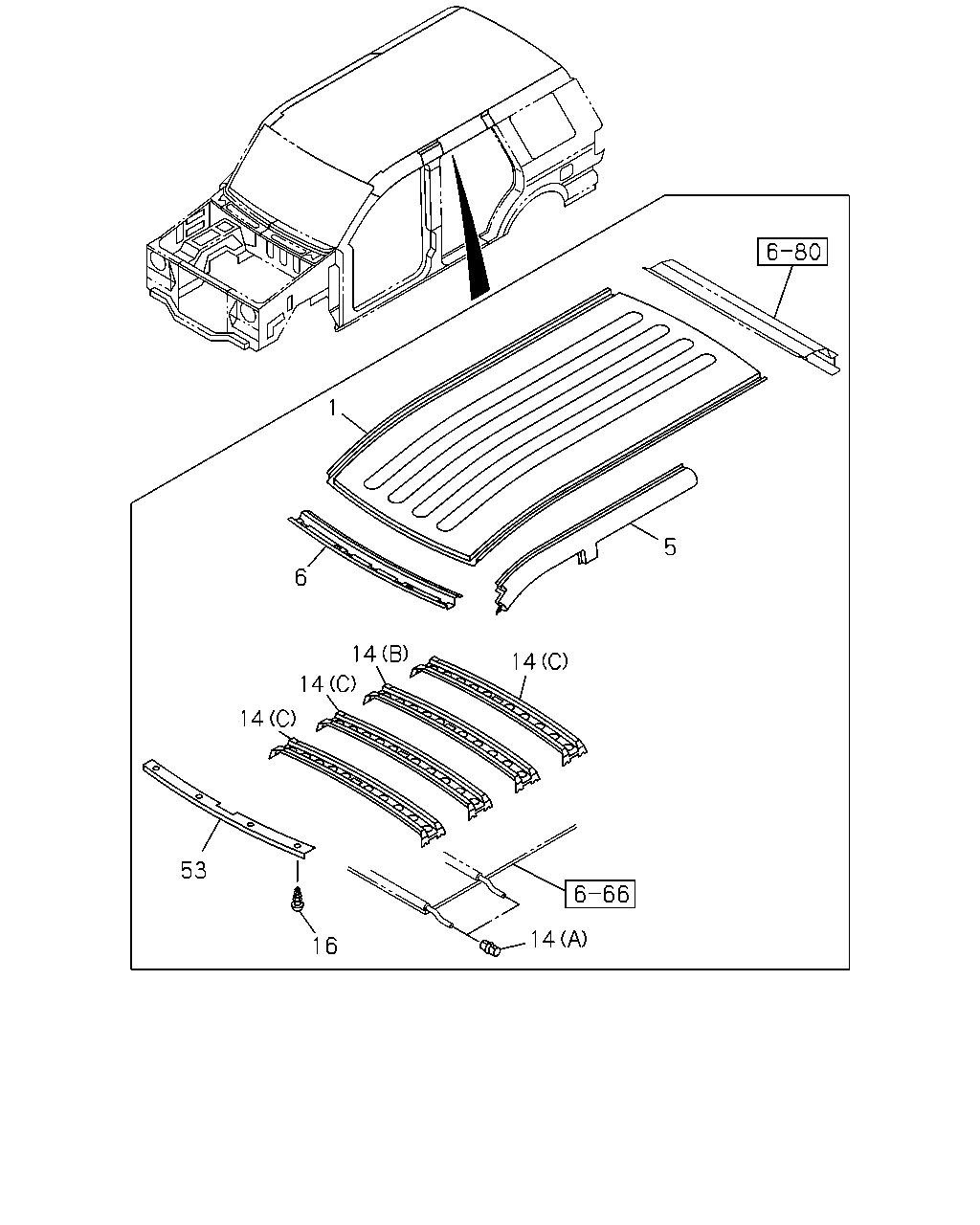

6-60 — ROOF PANEL
(#95815) — 11 parça
5
1
6
14
14
14
14
53
16
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
IDN
8-97955-363-1
01
1
0612-
5
RAIL; WINDOW SHIELD HEADER
IDN
8-97955-761-0
01
1
0612-
5
RAIL; WINDOW SHIELD HEADER
IDN
8-97955-760-0
01
1
0612-
6
FRAME; ROOF FRT
IDN
8-97955-890-1
01
1
0612-
14
SUPPORT; ROOF
(A)
8-94324-364-0
16
1
0612-
14
SUPPORT; ROOF
(B) IDN
8-97956-005-0
01
1
0612-
14
SUPPORT; ROOF
(C) IDN
8-97956-006-1
03
1
0612-
16
SCREW; ROOF SUPPORT
M5X12
8-94120-094-0
04
1
0612-
53
RETAINER; HEADLINING CENTER
INTERIOR COLOR LT CAFE(184) BEIGE IDN
8-97562-836-1
01
1
0702-
53
RETAINER; HEADLINING CENTER
LIGHT GRAY IDN
8-97561-533-1
01
1
0612-0701
53
RETAINER; HEADLINING CENTER
INTERIOR COLOR BLACK(101) LIGHT GRAY IDN
8-97561-533-1
01
1
0702-
