6-55 — REAR DOOR TRIM (#95814) — 75 parça

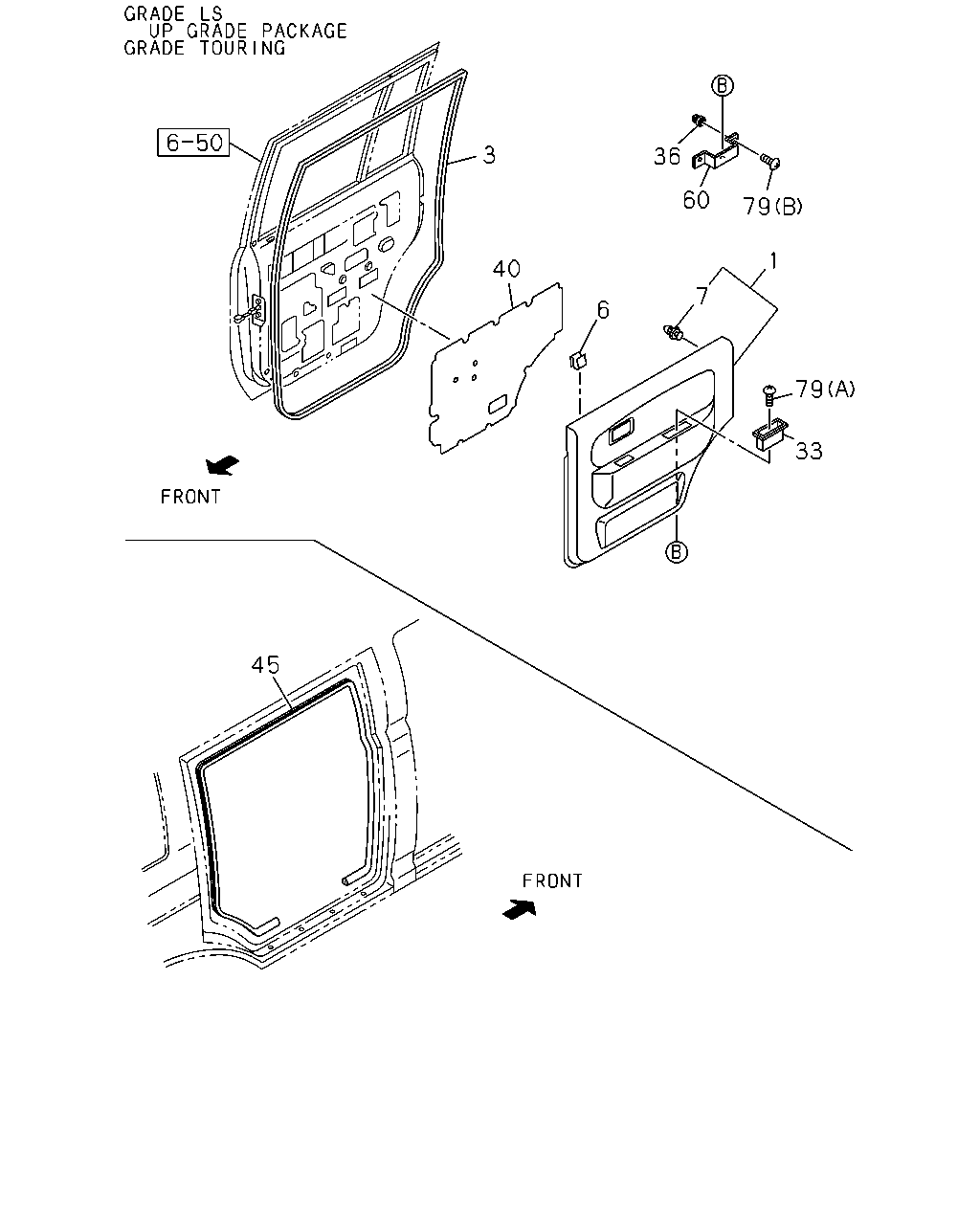

3 40 6 7 1 79 60 36 79 33 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,RR DOOR GRADE LM(RBA) BLACK IDN	8-97561-583-6	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LM(RBA) BLACK IDN	8-97561-582-6	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) UP GRADE PACKAGE<7MA> BLACK IDN	8-97562-496-0	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) UP GRADE PACKAGE<7MA> BLACK IDN	8-97562-495-0	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> BLACK IDN	8-97561-587-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> BLACK IDN	8-97561-586-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LV(RBB) BLACK IDN	8-97561-585-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LV(RBB) BLACK IDN	8-97561-584-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE TOURING(RBG) BLACK IDN	8-97561-985-2	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE TOURING(RBG) BLACK IDN	8-97561-984-2	01	1	0612-
3	WEATHERSTRIP; RR DOOR PT.CATURINDO AGUNGJAYA RUBBRE IDN	8-97562-617-0	01	1	0612-
3	WEATHERSTRIP; RR DOOR INOAC CORPORATION IDN	8-97955-532-3	01	1	0612-
3	WEATHERSTRIP; RR DOOR PT.CATURINDO AGUNGJAYA RUBBRE IDN	8-97562-616-0	01	1	0612-
3	WEATHERSTRIP; RR DOOR INOAC CORPORATION IDN	8-97955-531-3	01	1	0612-
6	CLIP; DOOR PAD GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) B=8.4 H=16 CR-PLATED IDN	8-94116-002-3	06	1	0612-
7	CLIP; DOOR PAD H=15.9 D8X11 IDN	8-97288-141-0	02	1	0612-
7	CLIP; DOOR PAD GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN	8-97260-948-0	22	1	0612-
7	CLIP; DOOR PAD GRADE LM(RBA),GRADE LV(RBB) H=20.6 D8X13.8 IDN	8-97260-948-0	22	1	0612-
7	CLIP; DOOR PAD GRADE TOURING(RBG) H=16.3 IDN	8-97126-393-0	12	1	0612-
7	CLIP; DOOR PAD GRADE LS(RBD) UP GRADE PACKAGE<7MA> H=16.3 IDN	8-97126-393-0	12	1	0612-
7	CLIP; DOOR PAD GRADE TOURING(RBG) H=20.6 D8X13.8 IDN	8-97260-948-0	04	1	0612-
7	CLIP; DOOR PAD GRADE LS(RBD) UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN	8-97260-948-0	04	1	0612-
33	BOX; RR DOOR GRADE LS(RBD) INTERIOR COLOR LT CAFE(184) UP GRADE PACKAGE<7MA> BEIGE IDN	8-97412-245-0	02	1	0709-
33	BOX; RR DOOR GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE IDN	8-97412-245-0	02	1	0709-
33	BOX; RR DOOR GRADE LS(RBD) UP GRADE PACKAGE<7MA> BLACK IDN	8-97404-852-0	02	1	0612-0708
33	BOX; RR DOOR GRADE TOURING(RBG) BLACK IDN	8-97404-852-0	02	1	0612-0708
33	BOX; RR DOOR GRADE LS(RBD) INTERIOR COLOR BLACK(101) UP GRADE PACKAGE<7MA> BLACK IDN	8-97404-852-0	02	1	0709-
33	BOX; RR DOOR GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN	8-97404-852-0	02	1	0709-
36	GROMMET; SCREW,DOOR TRIM GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN	8-94481-286-2	06	1	0612-
36	GROMMET; SCREW,DOOR TRIM GRADE TOURING(RBG) IDN	8-94481-286-2	06	1	0612-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> IDN	8-97955-524-2	01	1	0612-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> IDN	8-97955-523-2	01	1	0612-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> IDN	8-97955-526-2	01	1	0612-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> IDN	8-97955-525-2	01	1	0612-
45	FINISHER; RR DOOR IDN	8-97562-377-0	02	1	0612-
60	BRACKET; BOX GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN	8-97955-688-0	02	1	0612-
60	BRACKET; BOX GRADE TOURING(RBG) IDN	8-97955-688-0	02	1	0612-
79	SCREW; BRKT GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) M5X16 IDN	8-94380-268-0	02	1	0612-
79	SCREW; BRKT GRADE TOURING(RBG) (A) M5X16 IDN	8-94380-268-0	02	1	0612-
79	SCREW; BRKT GRADE LS(RBD) UP GRADE PACKAGE<7MA> (B) M6X25 TAPPING	9-07077-625-0	06	1	0612-
79	SCREW; BRKT GRADE TOURING(RBG) (B) M6X25 TAPPING	9-07077-625-0	06	1	0612-

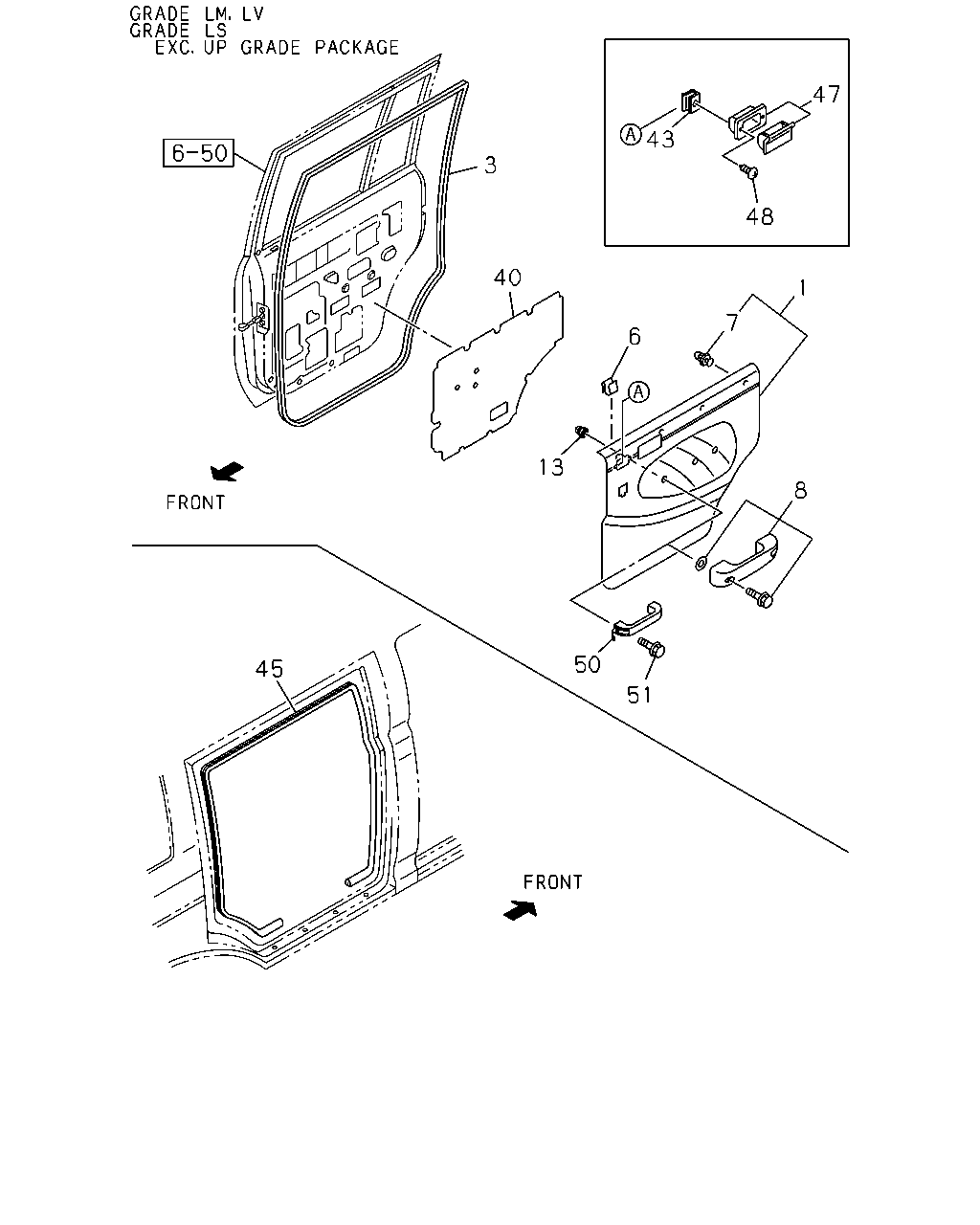

3 43 48 47 1 7 8 51 50 13 6 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,RR DOOR GRADE LM(RBA) BLACK IDN	8-97561-583-6	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LM(RBA) BLACK IDN	8-97561-582-6	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) UP GRADE PACKAGE<7MA> BLACK IDN	8-97562-496-0	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) UP GRADE PACKAGE<7MA> BLACK IDN	8-97562-495-0	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> BLACK IDN	8-97561-587-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> BLACK IDN	8-97561-586-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LV(RBB) BLACK IDN	8-97561-585-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE LV(RBB) BLACK IDN	8-97561-584-1	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE TOURING(RBG) BLACK IDN	8-97561-985-2	01	1	0612-
1	PAD; TRIM,RR DOOR GRADE TOURING(RBG) BLACK IDN	8-97561-984-2	01	1	0612-
3	WEATHERSTRIP; RR DOOR PT.CATURINDO AGUNGJAYA RUBBRE IDN	8-97562-617-0	01	1	0612-
3	WEATHERSTRIP; RR DOOR INOAC CORPORATION IDN	8-97955-532-3	01	1	0612-
3	WEATHERSTRIP; RR DOOR PT.CATURINDO AGUNGJAYA RUBBRE IDN	8-97562-616-0	01	1	0612-
3	WEATHERSTRIP; RR DOOR INOAC CORPORATION IDN	8-97955-531-3	01	1	0612-
6	CLIP; DOOR PAD GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) B=8.4 H=16 CR-PLATED IDN	8-94116-002-3	06	1	0612-
7	CLIP; DOOR PAD H=15.9 D8X11 IDN	8-97288-141-0	02	1	0612-
7	CLIP; DOOR PAD GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN	8-97260-948-0	22	1	0612-
7	CLIP; DOOR PAD GRADE LM(RBA),GRADE LV(RBB) H=20.6 D8X13.8 IDN	8-97260-948-0	22	1	0612-
7	CLIP; DOOR PAD GRADE TOURING(RBG) H=16.3 IDN	8-97126-393-0	12	1	0612-
7	CLIP; DOOR PAD GRADE LS(RBD) UP GRADE PACKAGE<7MA> H=16.3 IDN	8-97126-393-0	12	1	0612-
7	CLIP; DOOR PAD GRADE TOURING(RBG) H=20.6 D8X13.8 IDN	8-97260-948-0	04	1	0612-
7	CLIP; DOOR PAD GRADE LS(RBD) UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN	8-97260-948-0	04	1	0612-
8	REST; ARM,RR DOOR GRADE LV(RBB),GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> BLACK IDN	8-97562-697-2	02	1	0612-
13	GROMMET; SCREW,ARM REST GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN	8-94481-286-2	04	1	0612-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> IDN	8-97955-524-2	01	1	0612-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> IDN	8-97955-523-2	01	1	0612-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> IDN	8-97955-526-2	01	1	0612-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> IDN	8-97955-525-2	01	1	0612-
43	RETAINER; ASH TRAY,RR DOOR GRADE LM(RBA),GRADE LV(RBB) IDN	8-94123-300-5	04	1	0612-
45	FINISHER; RR DOOR IDN	8-97562-377-0	02	1	0612-
47	TRAY; ASH,RR GRADE LM(RBA),GRADE LV(RBB) BLACK	8-94154-193-1	02	1	0612-
48	SCREW; RET,ASH TRAY GRADE LM(RBA),GRADE LV(RBB) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0612-
50	GRIP; ASSIST,RR DOOR TRIM GRADE LM(RBA) BLACK IDN	8-94484-616-2	02	1	0612-
51	SCREW; ASSIST GRIP,RR DOOR TRIM GRADE LM(RBA) M6X25 TAPPING	9-07077-625-0	04	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
