5-10 — CAB MOUNTING; FRAME SIDE (#9581) — 221 parça

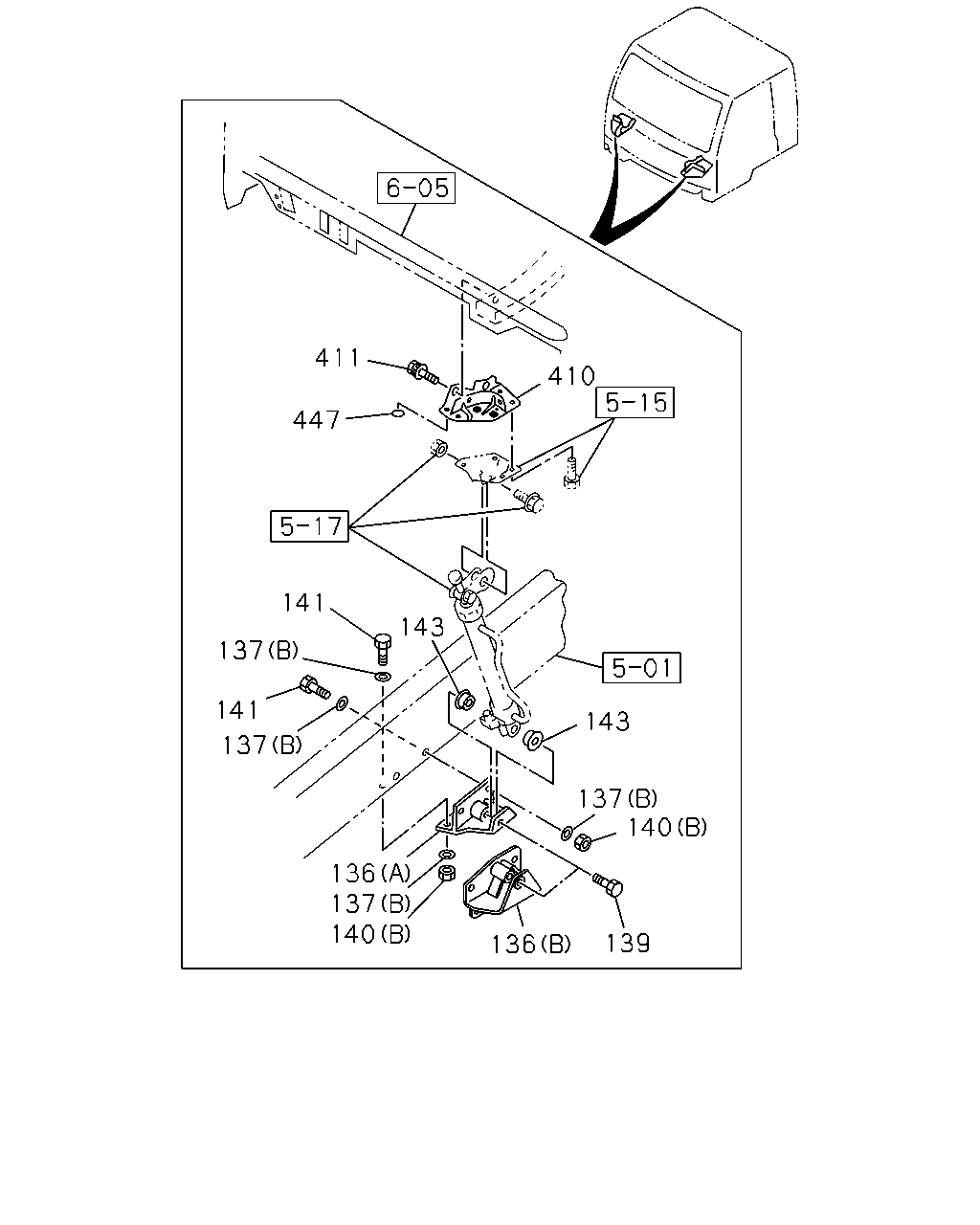

çizim 39960
411 410 447 141 143 137 141 143 137 137 140 136 137 140 139 136
BalonParca AdiParca NoAdetTipApplied Date A B
136 BRACKET; OIL CYL
(A) 		1-53459-649-1 01 1 0005-0210 ●
136 BRACKET; OIL CYL
(B) 		1-53458-678-0 01 1 0211- ●
136 BRACKET; OIL CYL
(A) 		1-53459-648-2 01 1 0005-0210 ●
136 BRACKET; OIL CYL
(B) 		1-53458-677-0 01 1 0211- ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		9-09160-612-0 04 1 0005-0605 ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
137 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 0005-1201 ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 16 1 1202- ●
139 PIN; OIL CYL,LWR 1-53459-490-3 02 1 0005- ●
140 NUT; BRKT
(A) M12 		9-99110-512-0 04 1 0005-0512 ●
140 NUT; BRKT
(A) M12 		0-91110-512-0 04 1 0601- ●
140 NUT; BRKT
(B) M14 		9-99110-514-0 08 1 0005-0512 ●
140 NUT; BRKT
(B) M14 		0-91110-514-0 08 1 0601- ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 02 1 0603- ●
141 BOLT; BRKT
M14X40 		9-92061-440-0 08 1 0005-0512 ●
141 BOLT; BRKT
M14X40 		0-20951-440-0 08 1 0601- ●
143 SPACER; OIL CYL,LWR 1-53459-491-2 04 1 0005- ●
410 REINFORCEMENT; CAB TILT 1-62580-238-2 01 1 0005- ●
410 REINFORCEMENT; CAB TILT 1-62580-241-2 01 1 0005- ●
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 0005-0904 ●
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0905- ●
447 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0005- ●

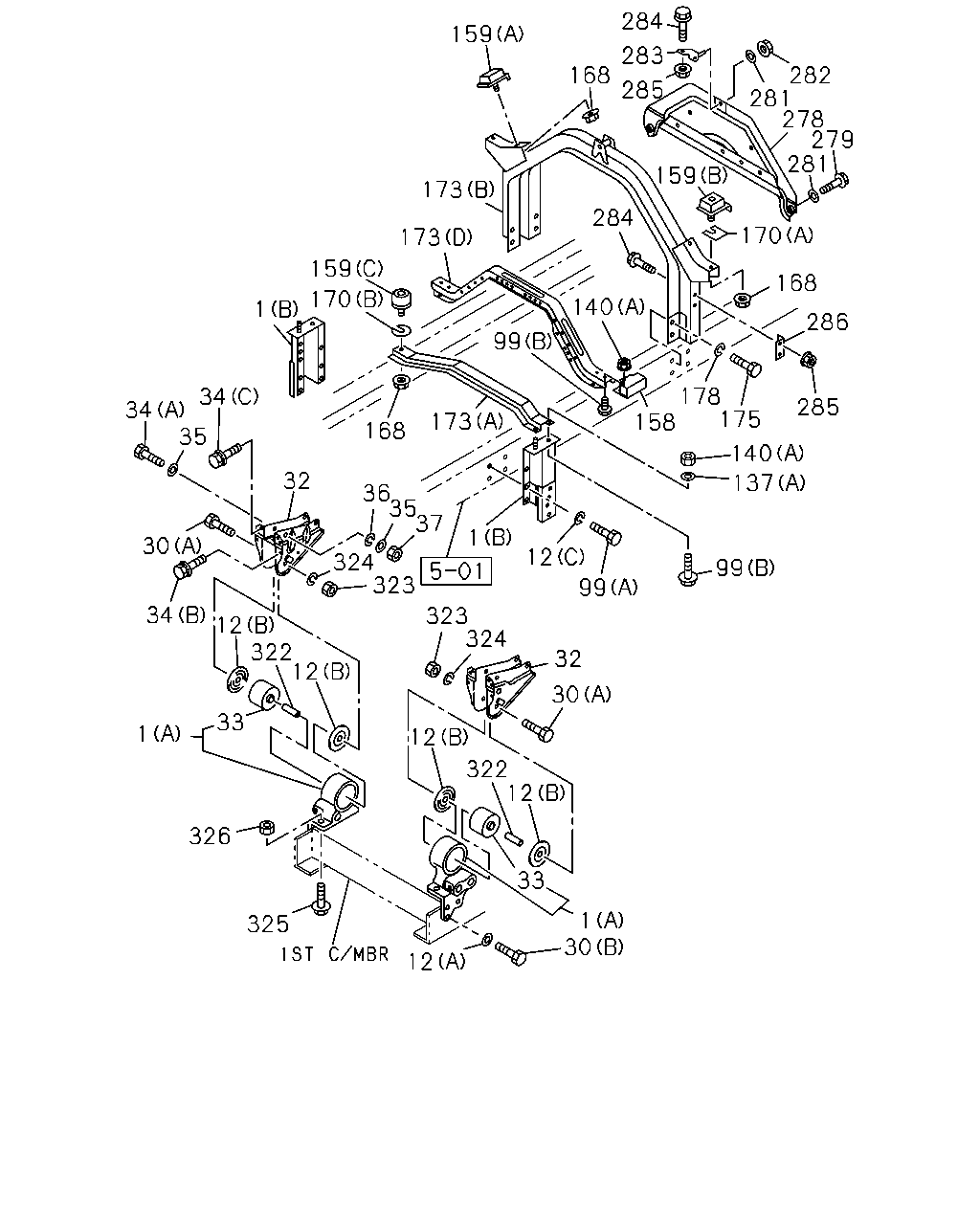

çizim 100094
284 159 283 168 282 281 278 279 281 285 159 173 284 170 173 159 168 140 170 1 286 99 178 158 175 34 285 34 35 168 173 140 32 137 36 35 37 1 30 324 323 12 99 99 34 323 324 12 322 12 32 30 33 1 12 322 12 326 33 1 30 325 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-227-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-226-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-666-1 02 1 0005-0210 ●
1 BRACKET; CAB MTG
(B) 		1-53454-910-0 02 1 0211- ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 0005-0210 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 0211- ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 0005-0210 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 0211- ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0005-0210 ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0211-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 0005-0210 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 0005-0603 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		0-91510-612-0 08 1 0604- ●
30 BOLT; CAB FRT FOOT
(A) M16X115 		5-51361-002-1 02 1 0005- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X40 		9-92061-440-0 10 1 0005-0512 ● ●
30 BOLT; CAB FRT FOOT
(B) M14X40 		0-20951-440-0 10 1 0601- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0005-0210 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0211- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 0005-0210 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 0211- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 0005-0210 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 0005-0210 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53459-836-3 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 0005-0210 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-681-0 02 1 0211- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0005-0512 ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 02 1 0005-0210 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 04 1 0211-0512 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 04 1 0601- ●
99 BOLT; BRKT
(A) M12X35 		9-92061-235-0 08 1 0005-0512 ●
99 BOLT; BRKT
(A) M12X35 		0-20951-235-0 08 1 0601- ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		9-09160-612-0 04 1 0005-0605 ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
137 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 0005-1201 ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 16 1 1202- ●
140 NUT; BRKT
(A) M12 		9-99110-512-0 04 1 0005-0512 ●
140 NUT; BRKT
(A) M12 		0-91110-512-0 04 1 0601- ●
140 NUT; BRKT
(B) M14 		9-99110-514-0 08 1 0005-0512 ●
140 NUT; BRKT
(B) M14 		0-91110-514-0 08 1 0601- ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 02 1 0603- ●
158 BRACKET; CUSHION RUBBER 1-53457-115-0 02 1 0211- ●
159 RUBBER; CUSHION,CAB MTG
(D) 		1-53458-285-0 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 0005- ●
168 NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE 		0-91150-212-0 06 1 0005-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE 		0-91180-212-0 06 1 0603- ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 0005- ●
170 SHIM; CUSHION RUBBER
(B) T=1.6 		9-54347-136-1 AR 1 0005- ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-849-1 01 1 0005-0210 ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-861-2 01 1 0211- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-568-1 01 1 0005-0210 ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-881-1 01 1 0211-0211 ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-920-0 01 1 0212- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-671-0 01 1 0005-0006 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-867-0 01 1 0007-0012 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-671-0 01 1 0101-0210 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-905-0 01 1 0211- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
278 COVER 1-53192-932-1 01 1 0005-0210 ●
279 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
281 WASHER; PL,BACK COVER
ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0210 ●
282 NUT; BACK COVER
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
283 BRACKET; UPR 1-53459-630-2 01 1 0005-0210 ●
284 BOLT; BRKT UPR
M8X20 FLANGE 		0-28680-820-0 06 1 0005-0210 ●
285 NUT; BRKT UPR
M8 FLANGE 		0-91150-108-0 06 1 0005-0210 ●
286 BRACKET; LOW 1-53459-631-3 01 1 0005-0210 ●
286 BRACKET; LOW 1-53459-632-3 01 1 0005-0210 ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0005-0210 ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0211- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 0005-0512 ● ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 0601- ● ●

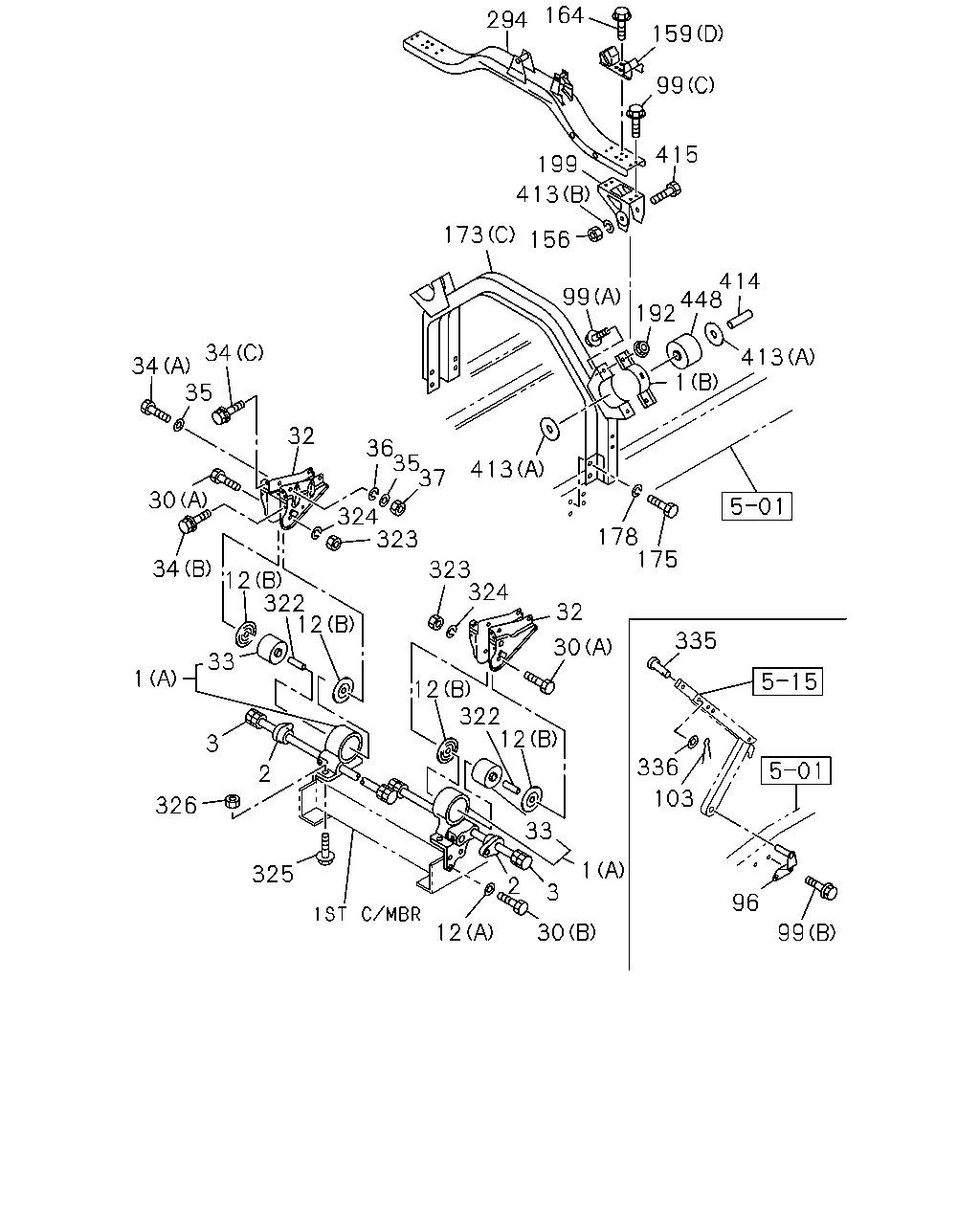

çizim 100147
164 294 159 99 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 12 32 33 335 30 1 12 322 12 3 336 2 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-227-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-226-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-666-1 02 1 0005-0210 ●
1 BRACKET; CAB MTG
(B) 		1-53454-910-0 02 1 0211- ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 0005-0210 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 0211- ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 0005-0210 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 0211- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0005- ●
3 TORSION BAR 1-09585-130-0 01 1 0005- ●
3 TORSION BAR 1-09585-129-0 01 1 0005- ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0005-0210 ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0211-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 0005-0210 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 0005-0603 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		0-91510-612-0 08 1 0604- ●
30 BOLT; CAB FRT FOOT
(A) M16X115 		5-51361-002-1 02 1 0005- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X40 		9-92061-440-0 10 1 0005-0512 ● ●
30 BOLT; CAB FRT FOOT
(B) M14X40 		0-20951-440-0 10 1 0601- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0005-0210 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0211- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 0005-0210 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 0211- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 0005-0210 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 0005-0210 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53459-836-3 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 0005-0210 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-681-0 02 1 0211- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0005- ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0005-0512 ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 02 1 0005-0210 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 04 1 0211-0512 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 04 1 0601- ●
99 BOLT; BRKT
(A) M12X35 		9-92061-235-0 08 1 0005-0512 ●
99 BOLT; BRKT
(A) M12X35 		0-20951-235-0 08 1 0601- ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0005- ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0005-0512 ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ●
159 RUBBER; CUSHION,CAB MTG
(D) 		1-53458-285-0 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 0005- ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-849-1 01 1 0005-0210 ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-861-2 01 1 0211- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-568-1 01 1 0005-0210 ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-881-1 01 1 0211-0211 ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-920-0 01 1 0212- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-671-0 01 1 0005-0006 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-867-0 01 1 0007-0012 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-671-0 01 1 0101-0210 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-905-0 01 1 0211- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 0005-0207 ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-1403 ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ●
294 MEMBER; FLOATING 1-53454-530-1 01 1 0005- ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0005-0210 ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0211- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
326 NUT; GUIDE NUT
M12 		9-99110-512-0 02 1 0005-0512 ● ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 0601- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0005- ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0005- ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 0005-0306 ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307- ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0005-0603 ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0005- ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0005- ●
448 BUSHING; CAB MTG 1-53459-836-3 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
