◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#95808) — 101 parça

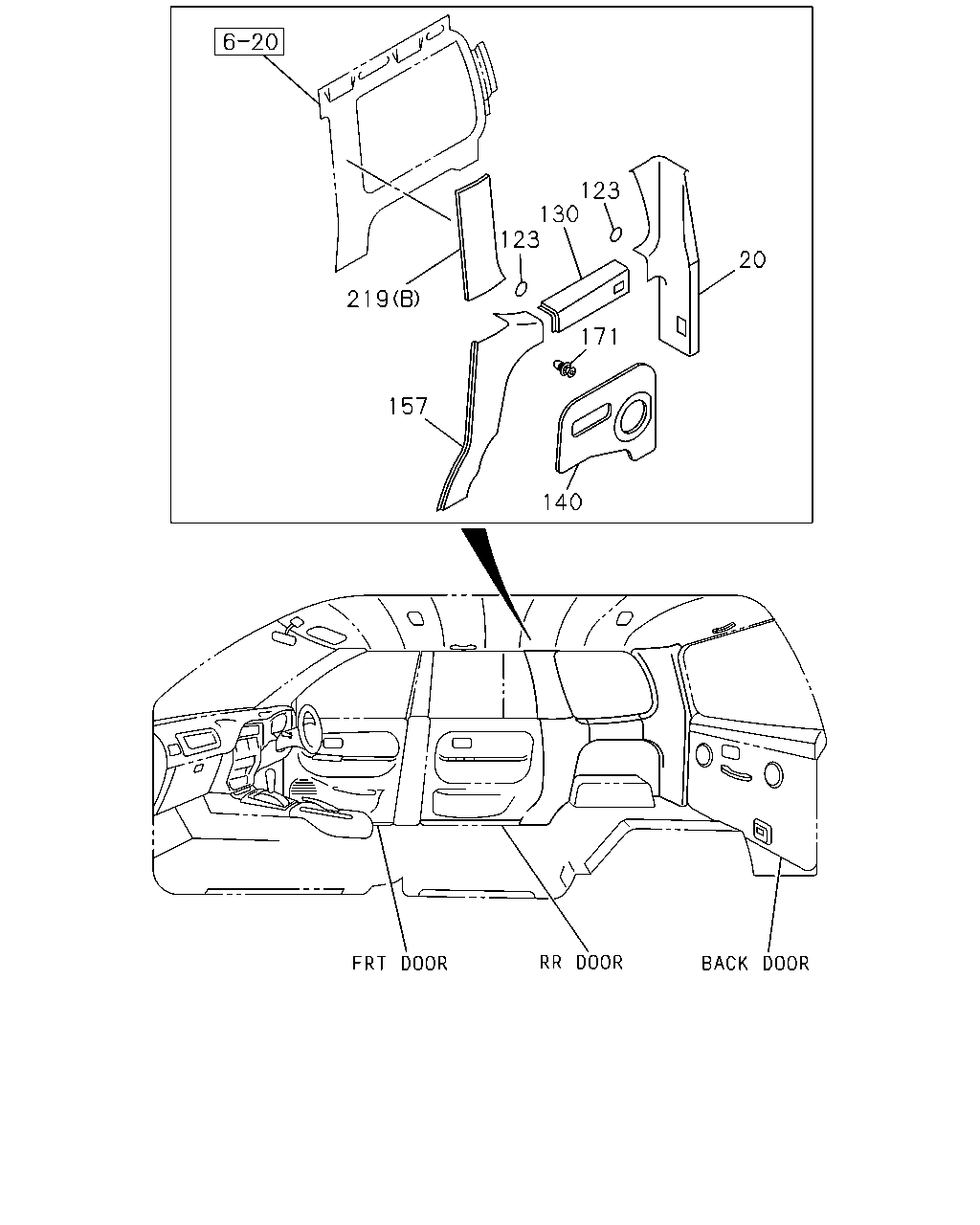

çizim 288619
219 157 140 171 123 130 123 20
BalonParca AdiParca NoAdetTipApplied Date
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-819-1 01 1 0702-
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-820-1 01 1 0702-
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-817-4 01 1 0702-
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-818-4 01 1 0702-
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-687-1 01 1 0612-0701
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-687-1 01 1 0702-
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-686-1 01 1 0612-0701
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-686-1 01 1 0702-
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-685-4 01 1 0612-0701
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-685-4 01 1 0702-
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-684-4 01 1 0612-0701
20 COVER; TRIM,RR PILLAR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-684-4 01 1 0702-
123 SEAL; RR QUARTER
OD=20 T=0.05 WHITE IDN 		8-97856-832-2 04 1 0612-
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-827-1 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-828-1 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-825-6 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-826-6 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-695-1 01 1 0612-0701
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-695-1 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-694-1 01 1 0612-0701
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-694-1 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-693-6 01 1 0612-0701
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-693-6 01 1 0702-
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-692-6 01 1 0612-0701
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-692-6 01 1 0702-
140 PAD; TRIM,QTR
GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-840-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-843-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-848-1 01 1 0706-
140 PAD; TRIM,QTR
GRADE LS(RBD) INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-841-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LS(RBD) INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> BEIGE IDN 		8-97562-842-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-847-1 01 1 0706-
140 PAD; TRIM,QTR
GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> BEIGE IDN 		8-97562-844-0 01 1 0706-
140 PAD; TRIM,QTR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-845-3 01 1 0706-
140 PAD; TRIM,QTR
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> BEIGE IDN 		8-97562-846-2 01 1 0706-
140 PAD; TRIM,QTR
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-644-0 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE LS(RBD) INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-644-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY IDN 		8-97562-588-0 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE LS(RBD) INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY IDN 		8-97562-588-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97562-586-0 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE LV(RBB) INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97562-586-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-642-0 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE LV(RBB) INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-642-0 01 1 0706-
140 PAD; TRIM,QTR
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-648-1 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-648-1 01 1 0706-
140 PAD; TRIM,QTR
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-070-1 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-070-1 01 1 0706-
140 PAD; TRIM,QTR
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY IDN 		8-97562-587-0 01 1 0612-0705
140 PAD; TRIM,QTR
GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY IDN 		8-97562-587-0 01 1 0706-
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-640-3 01 1 0612-0705
140 PAD; TRIM,QTR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-640-3 01 1 0706-
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> BLACK IDN 		8-97561-641-2 01 1 0612-0705
140 PAD; TRIM,QTR
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> BLACK IDN 		8-97561-641-2 01 1 0706-
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-821-1 01 1 0702-
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR LT CAFE(184) 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-822-1 01 1 0702-
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-823-6 01 1 0702-
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR LT CAFE(184) EXC. 3RD SEAT 7 PASSENGERS<AS3> BEIGE IDN 		8-97562-824-6 01 1 0702-
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-689-1 01 1 0612-0701
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-689-1 01 1 0702-
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-688-1 01 1 0612-0701
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR BLACK(101) 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-688-1 01 1 0702-
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-691-6 01 1 0612-0701
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-691-6 01 1 0702-
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-690-6 01 1 0612-0701
157 COVER; TRIM,RR QUARTER
INTERIOR COLOR BLACK(101) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-690-6 01 1 0702-
171 CLIP; TRIM PAD
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> H=19.1 		8-94385-553-0 04 1 0612-
171 CLIP; TRIM PAD
GRADE LV(RBB) 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 21 1 0612-
171 CLIP; TRIM PAD
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 12 1 0612-
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=19.1 		8-94385-553-0 02 1 0612-
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> H=19.1 		8-94385-553-0 02 1 0612-
171 CLIP; TRIM PAD
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> H=19.1 		8-94385-553-0 02 1 0612-
171 CLIP; TRIM PAD
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> H=19.1 		8-94385-553-0 02 1 0612-
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 11 1 0612-
171 CLIP; TRIM PAD
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 11 1 0612-
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> H=29.8 		8-97262-708-0 10 1 0612-
171 CLIP; TRIM PAD
GRADE LS(RBD),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> H=29.8 		8-97262-708-0 10 1 0612-
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0612-
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97958-116-1 01 1 0612-
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 01 1 0612-
219 PAD; PILLAR,SOFT
EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0612-

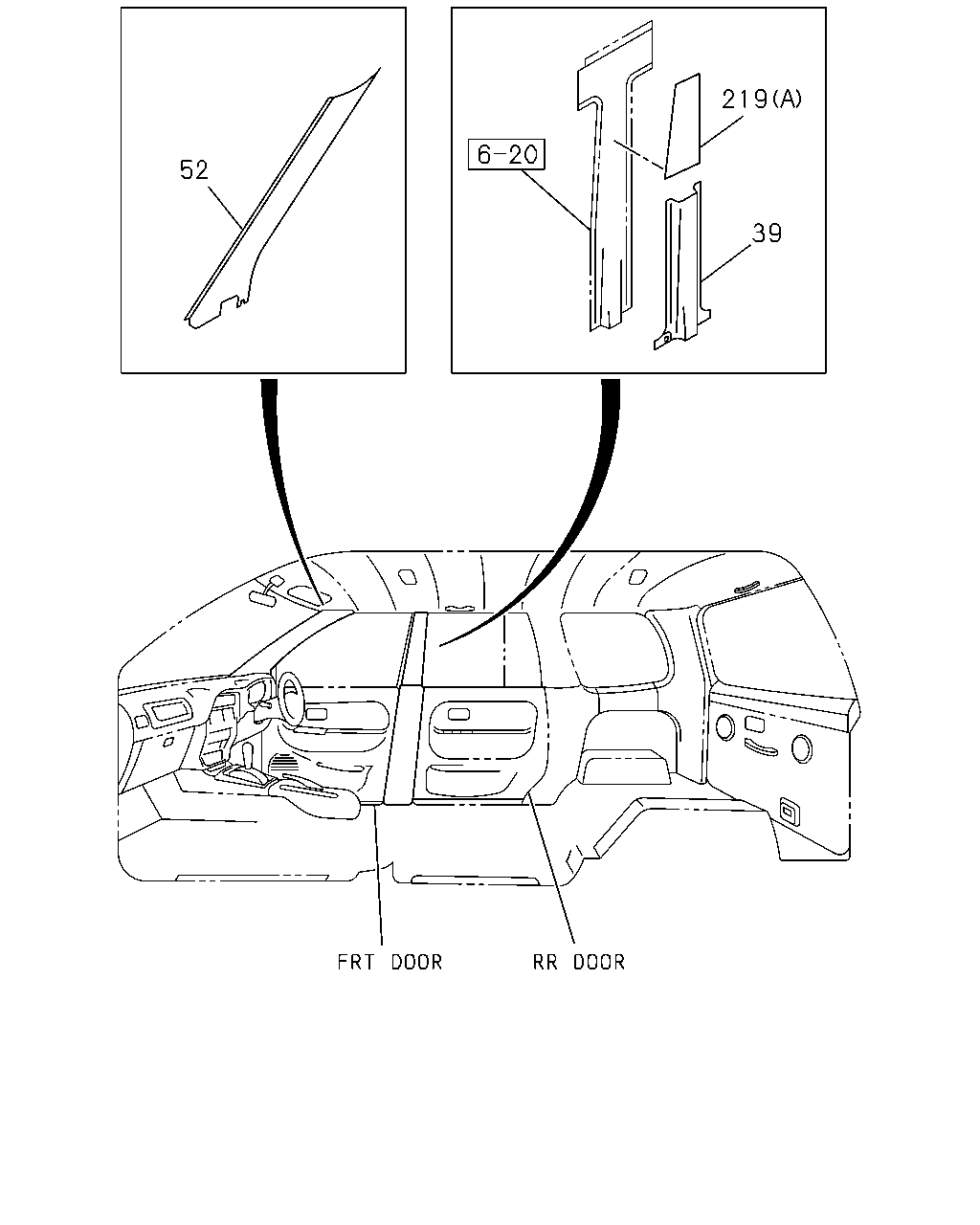

çizim 288631
39 219 52
BalonParca AdiParca NoAdetTipApplied Date
39 COVER; TRIM,CENTER PILLAR
GRADE LM(RBA),GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97562-815-3 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LM(RBA),GRADE LV(RBB) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97562-816-3 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97562-813-5 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97562-814-5 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LM(RBA),GRADE LV(RBB) BLACK IDN 		8-97562-683-3 01 1 0612-0701
39 COVER; TRIM,CENTER PILLAR
GRADE LM(RBA),GRADE LV(RBB) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-683-3 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LM(RBA),GRADE LV(RBB) BLACK IDN 		8-97562-682-3 01 1 0612-0701
39 COVER; TRIM,CENTER PILLAR
GRADE LM(RBA),GRADE LV(RBB) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-682-3 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-681-5 01 1 0612-0701
39 COVER; TRIM,CENTER PILLAR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-681-5 01 1 0702-
39 COVER; TRIM,CENTER PILLAR
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-680-5 01 1 0612-0701
39 COVER; TRIM,CENTER PILLAR
GRADE LS(RBD),GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97562-680-5 01 1 0702-
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR LT CAFE(184) BLACK IDN 		8-97562-811-2 01 1 0702-
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR LT CAFE(184) BLACK IDN 		8-97562-812-2 01 1 0702-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97561-544-2 01 1 0612-0701
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) LIGHT GRAY IDN 		8-97561-544-2 01 1 0702-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97561-543-2 01 1 0612-0701
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) LIGHT GRAY IDN 		8-97561-543-2 01 1 0702-
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0612-
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97958-116-1 01 1 0612-
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 01 1 0612-
219 PAD; PILLAR,SOFT
EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
