◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#95806) — 68 parça
çizim 288636
9 5 203 9 41 18 1 18 43
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
GRADE LM(RBA) (A) BLACK IDN 		8-97561-566-6 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LM(RBA) (A) BLACK IDN 		8-97561-565-6 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-498-0 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-494-0 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-570-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-569-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LV(RBB) (B) BLACK IDN 		8-97561-568-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LV(RBB) (B) BLACK IDN 		8-97561-567-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE TOURING(RBG) (C) BLACK IDN 		8-97561-983-2 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE TOURING(RBG) (C) BLACK IDN 		8-97561-982-2 01 1 0612-
5 POCKET; DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> BLACK 		8-97404-880-1 01 1 0612-
9 REST; ARM,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) BLACK IDN 		8-97562-697-2 01 1 0612-
9 REST; ARM,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97562-698-3 01 1 0612-
9 REST; ARM,FRT DOOR
GRADE LV(RBB) (A) BLACK IDN 		8-97562-697-2 02 1 0612-
18 CLIP; DOOR PAD
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0612-
18 CLIP; DOOR PAD
GRADE LM(RBA),GRADE LV(RBB) (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0612-
18 CLIP; DOOR PAD
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0612-
18 CLIP; DOOR PAD
GRADE TOURING(RBG) (A) H=16.3 IDN 		8-97126-393-0 12 1 0612-
18 CLIP; DOOR PAD
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) H=16.3 IDN 		8-97126-393-0 12 1 0612-
18 CLIP; DOOR PAD
GRADE TOURING(RBG) (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0612-
18 CLIP; DOOR PAD
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0612-
41 GROMMET; SCREW,DOOR PAD
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-94152-494-0 01 1 0612-
43 SCREW; DOOR POCKET
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> M4X14 IDN 		8-94318-550-0 04 1 0612-
203 GRILLE; SPEAKER
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> DARK GRAY IDN 		8-97561-659-0 02 1 0612-
203 GRILLE; SPEAKER
GRADE LM(RBA),GRADE LV(RBB) DARK GRAY IDN 		8-97561-659-0 02 1 0612-

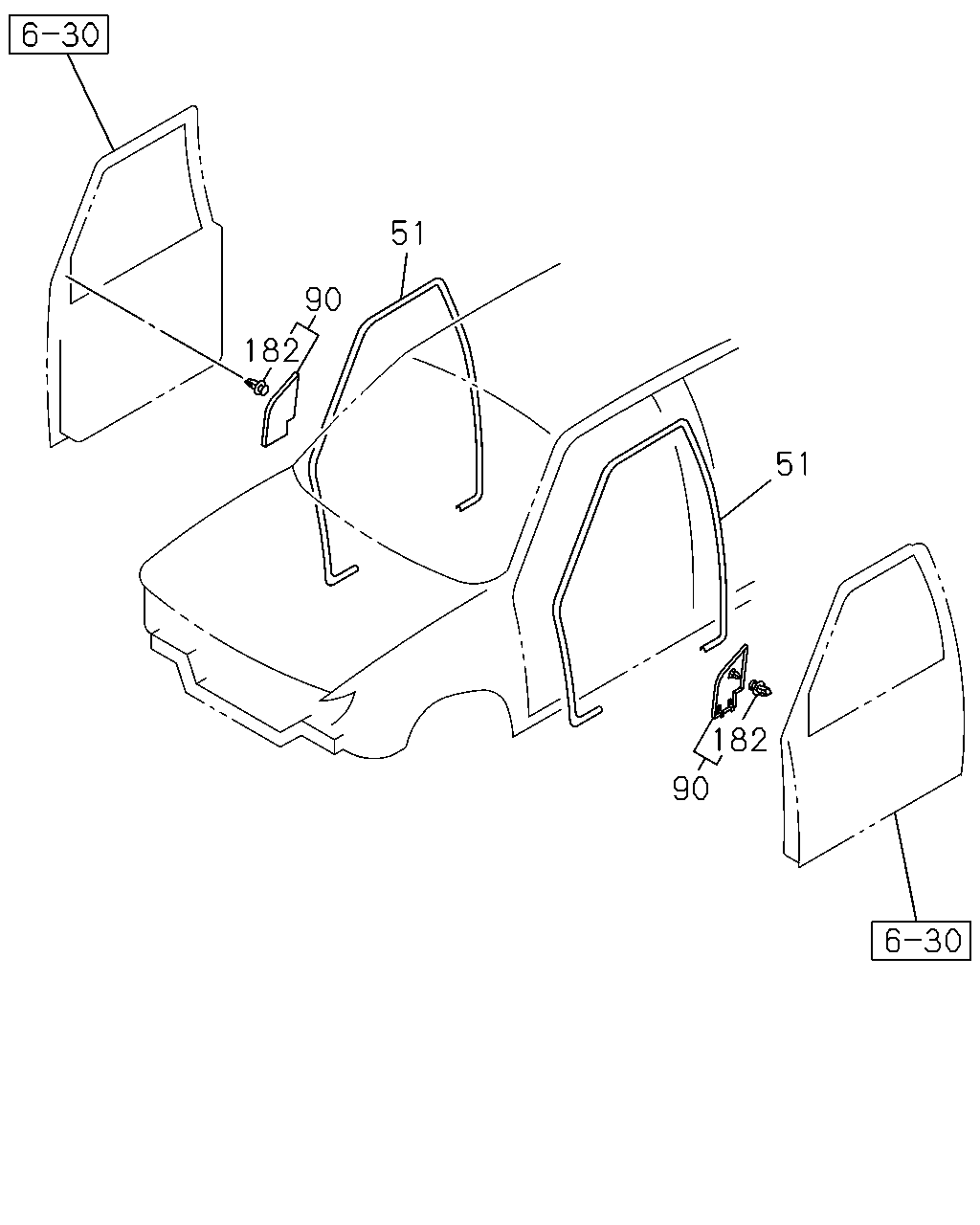

çizim 288637
51 182 90 51 90 182
BalonParca AdiParca NoAdetTipApplied Date
51 WEATHERSTRIP; FRONT DOOR
IDN 		8-97562-376-0 02 1 0612-
90 COVER; DOOR CORNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-97956-004-2 01 1 0612-
90 COVER; DOOR CORNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-97956-003-2 01 1 0612-
90 COVER; DOOR CORNER
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97959-122-0 01 1 0612-
90 COVER; DOOR CORNER
GRADE TOURING(RBG) IDN 		8-97959-122-0 01 1 0612-
90 COVER; DOOR CORNER
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97959-121-0 01 1 0612-
90 COVER; DOOR CORNER
GRADE TOURING(RBG) IDN 		8-97959-121-0 01 1 0612-
182 CLIP; COVER
GRADE LS(RBD) UP GRADE PACKAGE<7MA> H=16.3 IDN 		8-97126-393-0 02 1 0612-
182 CLIP; COVER
GRADE TOURING(RBG) H=16.3 IDN 		8-97126-393-0 02 1 0612-
182 CLIP; COVER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> H=16.3 IDN 		8-97126-393-0 02 1 0612-

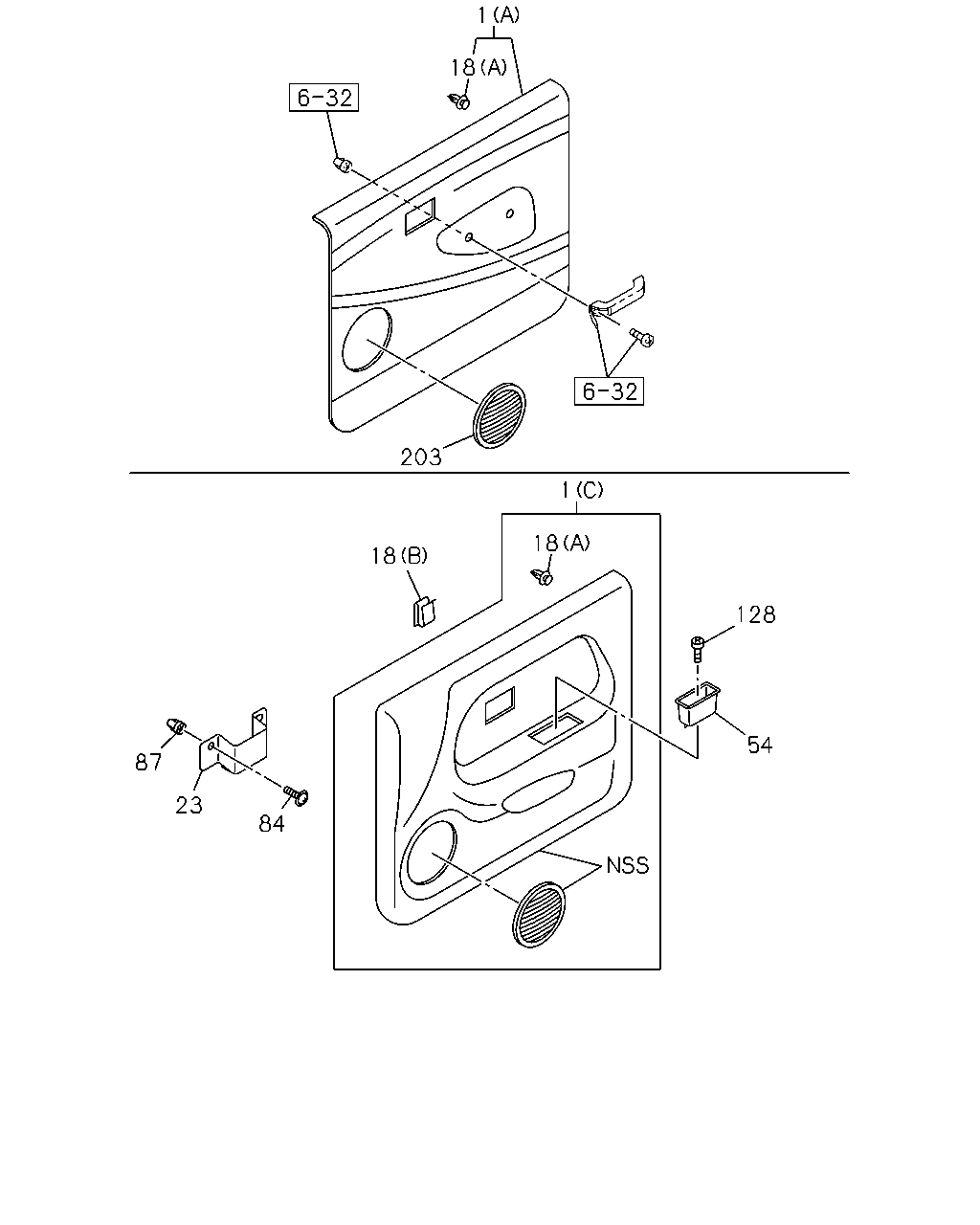

çizim 289473
128 54 18 18 203 1 84 23 87 18 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
GRADE LM(RBA) (A) BLACK IDN 		8-97561-566-6 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LM(RBA) (A) BLACK IDN 		8-97561-565-6 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-498-0 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-494-0 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-570-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-569-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LV(RBB) (B) BLACK IDN 		8-97561-568-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE LV(RBB) (B) BLACK IDN 		8-97561-567-1 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE TOURING(RBG) (C) BLACK IDN 		8-97561-983-2 01 1 0612-
1 PAD; TRIM,FRT DOOR
GRADE TOURING(RBG) (C) BLACK IDN 		8-97561-982-2 01 1 0612-
18 CLIP; DOOR PAD
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0612-
18 CLIP; DOOR PAD
GRADE LM(RBA),GRADE LV(RBB) (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0612-
18 CLIP; DOOR PAD
GRADE LV(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0612-
18 CLIP; DOOR PAD
GRADE TOURING(RBG) (A) H=16.3 IDN 		8-97126-393-0 12 1 0612-
18 CLIP; DOOR PAD
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) H=16.3 IDN 		8-97126-393-0 12 1 0612-
18 CLIP; DOOR PAD
GRADE TOURING(RBG) (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0612-
18 CLIP; DOOR PAD
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0612-
23 BRACKET; DOOR TRIM
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97955-688-0 02 1 0612-
23 BRACKET; DOOR TRIM
GRADE TOURING(RBG) IDN 		8-97955-688-0 02 1 0612-
54 BOX; FRT DOOR
GRADE LS(RBD) INTERIOR COLOR LT CAFE(184) UP GRADE PACKAGE<7MA> BEIGE IDN 		8-97412-245-0 02 1 0702-
54 BOX; FRT DOOR
GRADE TOURING(RBG) INTERIOR COLOR LT CAFE(184) BEIGE IDN 		8-97412-245-0 02 1 0702-
54 BOX; FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> BLACK IDN 		8-97404-852-0 02 1 0612-0701
54 BOX; FRT DOOR
GRADE TOURING(RBG) BLACK IDN 		8-97404-852-0 02 1 0612-0701
54 BOX; FRT DOOR
GRADE LS(RBD) INTERIOR COLOR BLACK(101) UP GRADE PACKAGE<7MA> BLACK IDN 		8-97404-852-0 02 1 0702-
54 BOX; FRT DOOR
GRADE TOURING(RBG) INTERIOR COLOR BLACK(101) BLACK IDN 		8-97404-852-0 02 1 0702-
84 SCREW; BOX BRKT
GRADE LS(RBD) UP GRADE PACKAGE<7MA> M6X25 TAPPING 		9-07077-625-0 06 1 0612-
84 SCREW; BOX BRKT
GRADE TOURING(RBG) M6X25 TAPPING 		9-07077-625-0 06 1 0612-
87 GROMMET; SCREW,BRKT
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-94481-286-2 06 1 0612-
87 GROMMET; SCREW,BRKT
GRADE TOURING(RBG) IDN 		8-94481-286-2 06 1 0612-
128 SCREW; TAP
GRADE LS(RBD) UP GRADE PACKAGE<7MA> M5X16 IDN 		8-94380-268-0 02 1 0612-
128 SCREW; TAP
GRADE TOURING(RBG) M5X16 IDN 		8-94380-268-0 02 1 0612-
203 GRILLE; SPEAKER
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> DARK GRAY IDN 		8-97561-659-0 02 1 0612-
203 GRILLE; SPEAKER
GRADE LM(RBA),GRADE LV(RBB) DARK GRAY IDN 		8-97561-659-0 02 1 0612-
