◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#95804) — 37 parça
çizim 288593
7 1 19 27 26 36 43 39 25 265 26 25 27 19
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
IDN 		8-97955-100-2 01 1 0612-
1 GLASS; FRT DOOR
IDN 		8-97955-099-2 01 1 0612-
7 GLASS RUN; FRT DOOR
IDN 		8-97562-219-0 01 1 0612-
7 GLASS RUN; FRT DOOR
IDN 		8-97562-218-0 01 1 0612-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> IDN 		8-97955-947-2 01 1 0612-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> IDN 		8-97955-946-2 01 1 0612-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-949-2 01 1 0612-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-948-2 01 1 0612-
25 BOLT; WINDOW REG
M6X8 IDN 		8-94155-893-0 08 1 0612-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0612-
27 BOLT; GLASS FIX
M6X8 IDN 		8-94155-893-0 04 1 0612-
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> IDN 		8-94220-668-1 02 1 0612-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-97404-851-0 02 1 0612-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-94220-591-0 02 1 0612-
265 CLIP; HARNESS
POWER WINDOW<A30> L=140 IDN 		5-09707-031-1 02 1 0612-

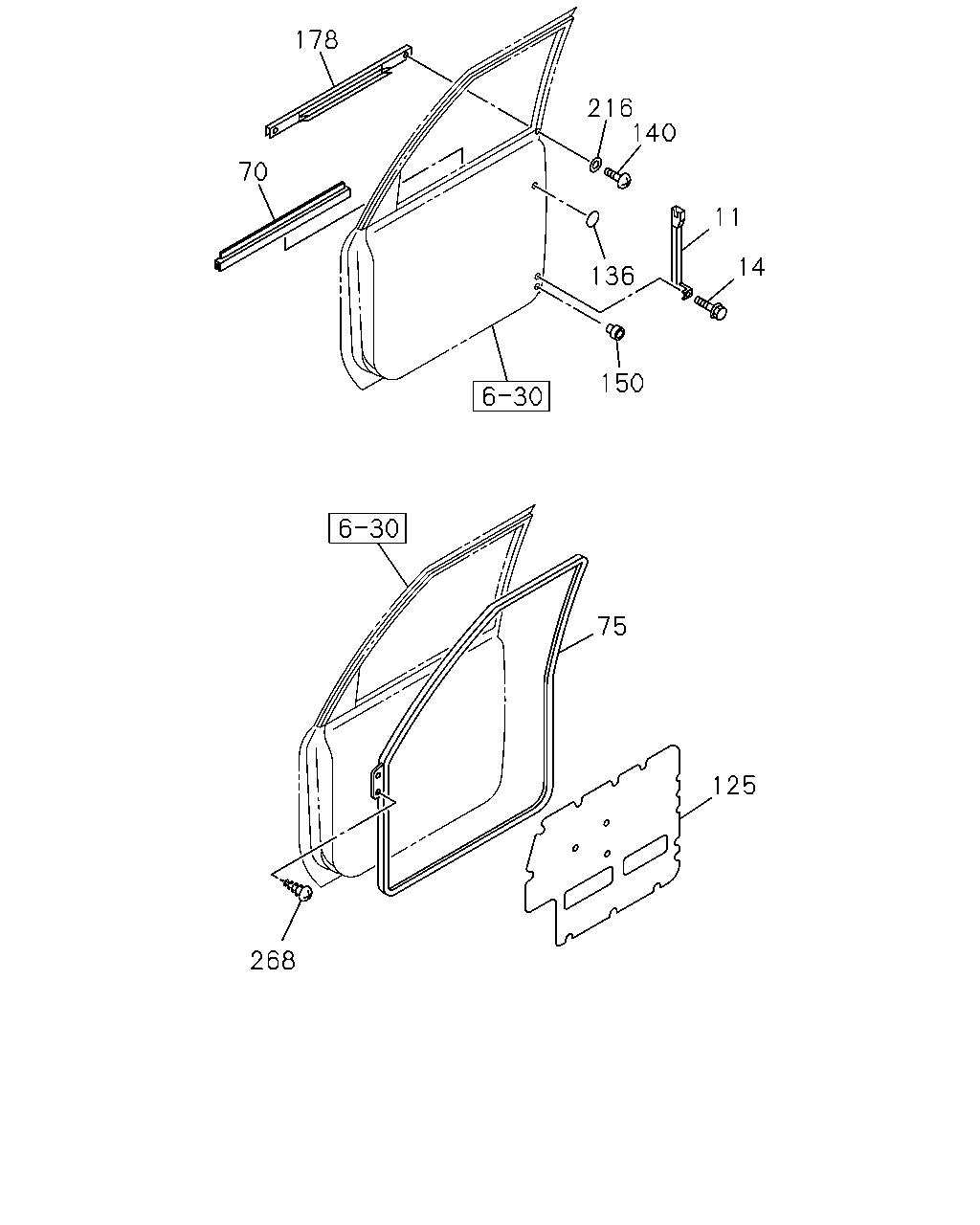

çizim 288627
268 125 75 150 14 11 136 140 216 178 70
BalonParca AdiParca NoAdetTipApplied Date
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-953-1 01 1 0612-
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-952-1 01 1 0612-
14 BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER 		8-94232-078-0 02 1 0612-
70 SEAL; WAIST,FRT DOOR INNER 8-97174-424-0 01 1 0612-
70 SEAL; WAIST,FRT DOOR INNER 8-97174-423-0 01 1 0612-
75 WEATHERSTRIP; FRT DOOR
PT.CATURINDO AGUNGJAYA RUBBRE IDN 		8-97562-615-0 01 1 0612-
75 WEATHERSTRIP; FRT DOOR
INOAC CORPORATION IDN 		8-97955-961-3 01 1 0612-
75 WEATHERSTRIP; FRT DOOR
PT.CATURINDO AGUNGJAYA RUBBRE IDN 		8-97562-614-0 01 1 0612-
75 WEATHERSTRIP; FRT DOOR
INOAC CORPORATION IDN 		8-97955-960-3 01 1 0612-
125 SHEET; WATER PROOF,FRT DOOR
GRADE LM(RBA),GRADE LV(RBB) IDN 		8-97955-959-3 01 1 0612-
125 SHEET; WATER PROOF,FRT DOOR
GRADE LM(RBA),GRADE LV(RBB) IDN 		8-97955-958-3 01 1 0612-
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97560-100-0 01 1 0612-
125 SHEET; WATER PROOF,FRT DOOR
GRADE TOURING(RBG) IDN 		8-97560-100-0 01 1 0612-
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-97560-069-0 01 1 0612-
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97560-101-0 01 1 0612-
136 SEAL; DOOR INNER,FRT DOOR
OD=25 BLACK 		1-76798-019-0 02 1 0612-
140 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 0612-
150 BUFFER; FRT DOOR
IDN 		8-97957-223-0 04 1 0612-
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-422-3 01 1 0612-
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-421-3 01 1 0612-
216 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 0612-
268 SCREW; WEATHER STRIP
M4X8 TAPPING W/PL WASHER 		0-74160-408-0 04 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
