6-30 — FRONT DOOR AND HINGE (#95803) — 30 parça

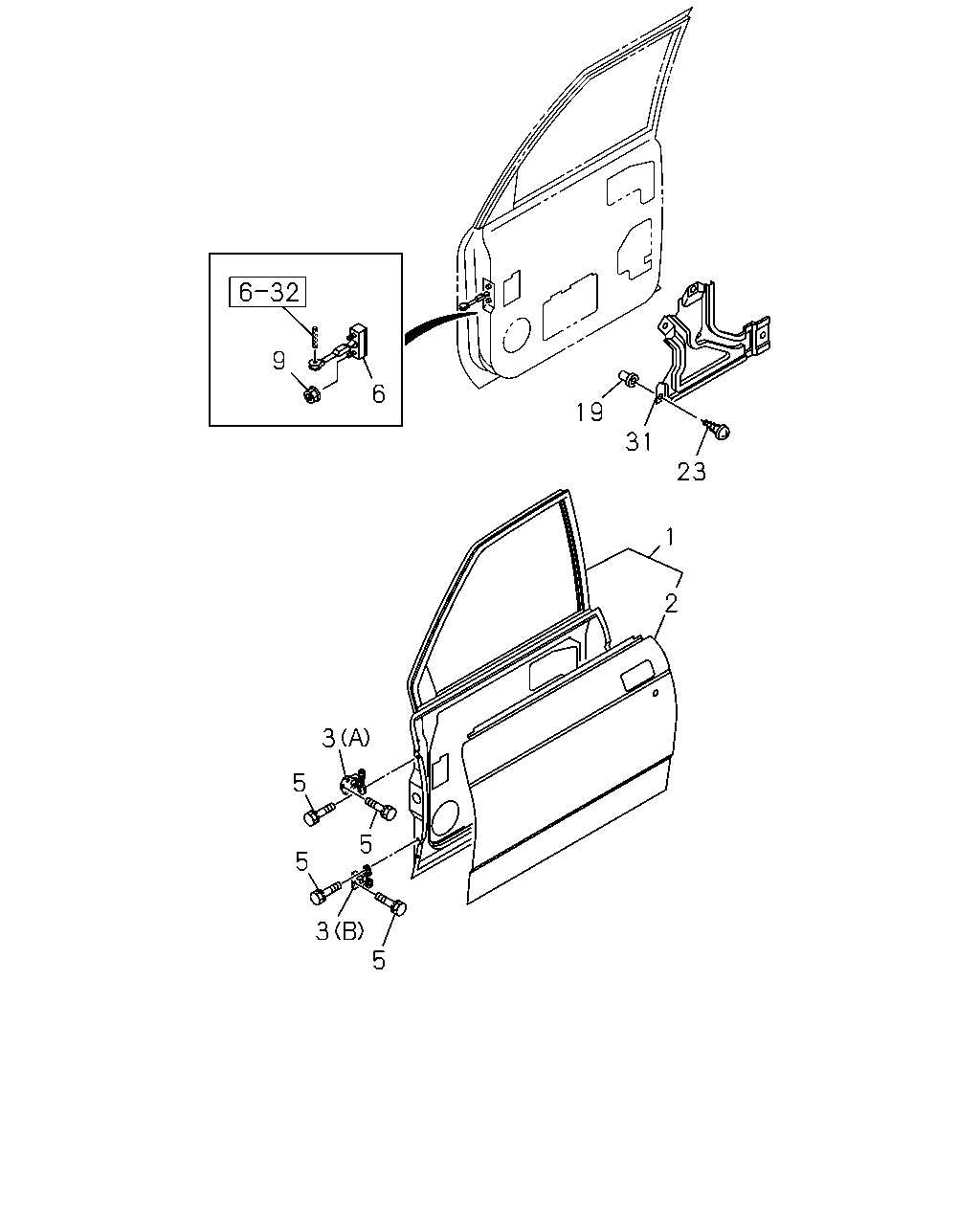

çizim 288589
9 19 23 6 31 1 2 3 5 5 5 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) POWER WINDOW<A30> IDN 		8-97959-842-0 01 1 0612-
1 DOOR ASM; FRT,WO/TRIM
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. POWER WINDOW<A30> IDN 		8-97959-817-0 01 1 0612-
1 DOOR ASM; FRT,WO/TRIM
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97959-818-0 01 1 0612-
1 DOOR ASM; FRT,WO/TRIM
GRADE TOURING(RBG) IDN 		8-97959-826-0 01 1 0612-
1 DOOR ASM; FRT,WO/TRIM
GRADE TOURING(RBG) IDN 		8-97959-825-0 01 1 0612-
2 PANEL; FRT DOOR OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97955-919-0 01 1 0612-
2 PANEL; FRT DOOR OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97955-918-0 01 1 0612-
2 PANEL; FRT DOOR OUTER
GRADE TOURING(RBG) IDN 		8-97958-043-1 01 1 0612-
2 PANEL; FRT DOOR OUTER
GRADE TOURING(RBG) IDN 		8-97958-042-1 01 1 0612-
3 HINGE; DOOR FRT
(B) LOWER 		8-94155-314-2 01 1 0612-
3 HINGE; DOOR FRT
(A) UPPER 		8-94230-392-4 01 1 0612-
3 HINGE; DOOR FRT
(B) LOWER 		8-94155-315-2 01 1 0612-
3 HINGE; DOOR FRT
(A) UPPER 		8-94230-393-4 01 1 0612-
5 BOLT; HINGE
M8X23 FLANGE IDN 		8-94174-559-2 08 1 0612-
5 BOLT; HINGE
GRADE TOURING(RBG) M8X23 FLANGE IDN 		8-94174-559-2 08 1 0612-
5 BOLT; HINGE
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) M8X23 FLANGE IDN 		8-94174-559-2 04 1 0612-
5 BOLT; HINGE
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) M8X23 FLANGE IDN 		8-94174-559-2 04 1 0612-
6 ARM; CHECK,FRT DOOR 8-94358-619-1 02 1 0612-
9 NUT; CHECK ARM
M6 FLANGE IDN 		5-09440-004-0 04 1 0612-
19 GROMMET; SCREW,DOOR STOPPER
GRADE LS(RBD) POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 04 1 0612-
23 SCREW; DOOR
GRADE LS(RBD) POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> M5X16 TAPPING W/PL WASHER IDN 		0-74160-516-0 04 1 0612-
31 REINFORCEMENT; FRT DOOR
GRADE LS(RBD) POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> IDN 		8-97959-837-0 01 1 0612-

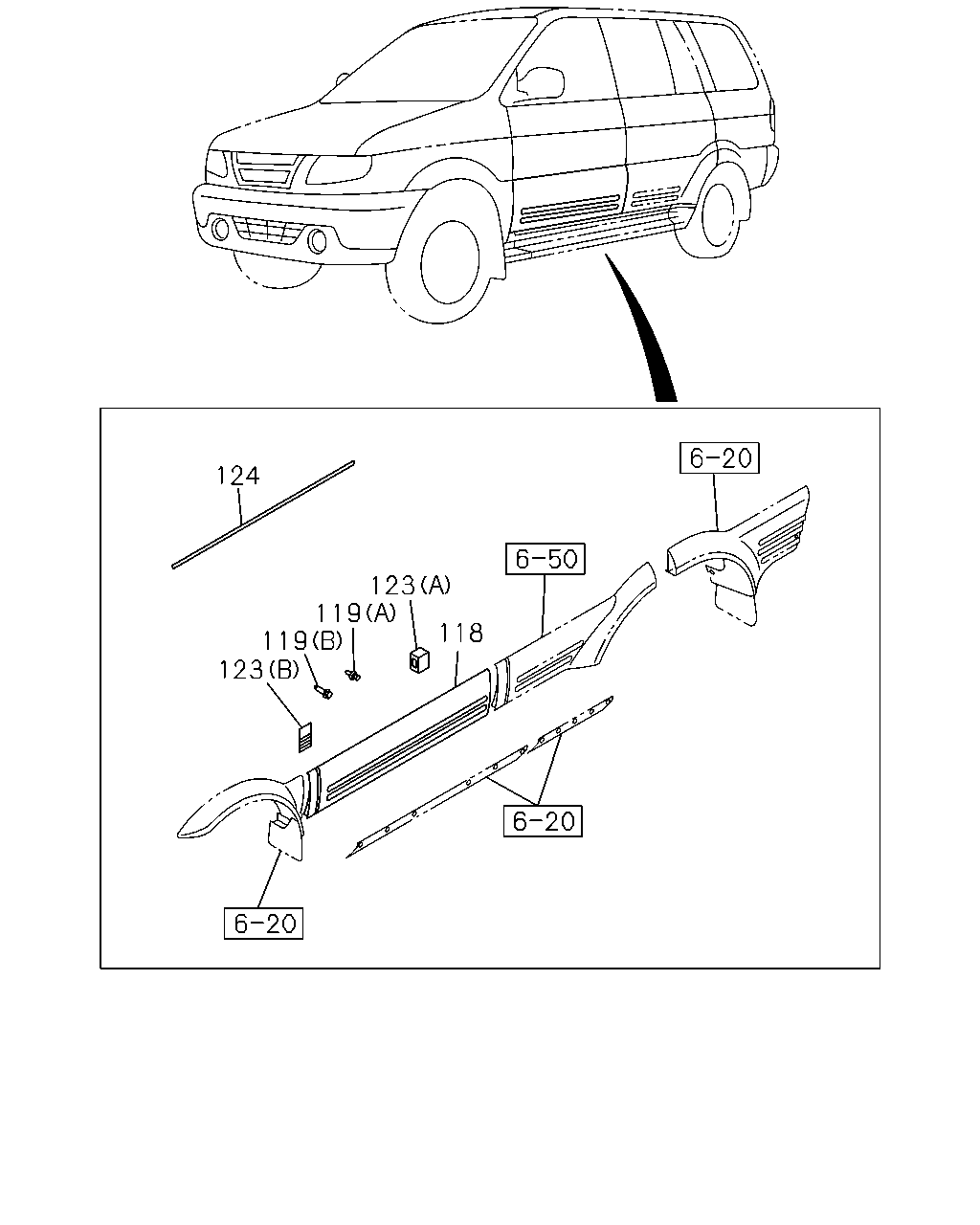

çizim 289475
123 124 119 119 123 118
BalonParca AdiParca NoAdetTipApplied Date
118 EXTENSION; FRT DOOR
OVER FENDER<6GH> IDN 		8-97959-998-0 01 1 0612-
118 EXTENSION; FRT DOOR
OVER FENDER<6GH> IDN 		8-97959-997-0 01 1 0612-
119 CLIP; EXTENSION
OVER FENDER<6GH> (A) IDN 		8-97105-922-0 02 1 0612-
119 CLIP; EXTENSION
OVER FENDER<6GH> (B) IDN 		8-97117-942-0 22 1 0612-
123 SPACER ASM; EXT DOOR
OVER FENDER<6GH> (A) IDN 		8-97959-963-1 10 1 0612-
123 SPACER ASM; EXT DOOR
OVER FENDER<6GH> (B) IDN 		8-97959-967-1 01 1 0612-
123 SPACER ASM; EXT DOOR
OVER FENDER<6GH> (B) IDN 		8-97959-966-1 01 1 0612-
124 FINISHER; EXT,FRT DOOR
OVER FENDER<6GH> IDN 		8-97307-379-1 02 1 0612-
