◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#95802) — 133 parça

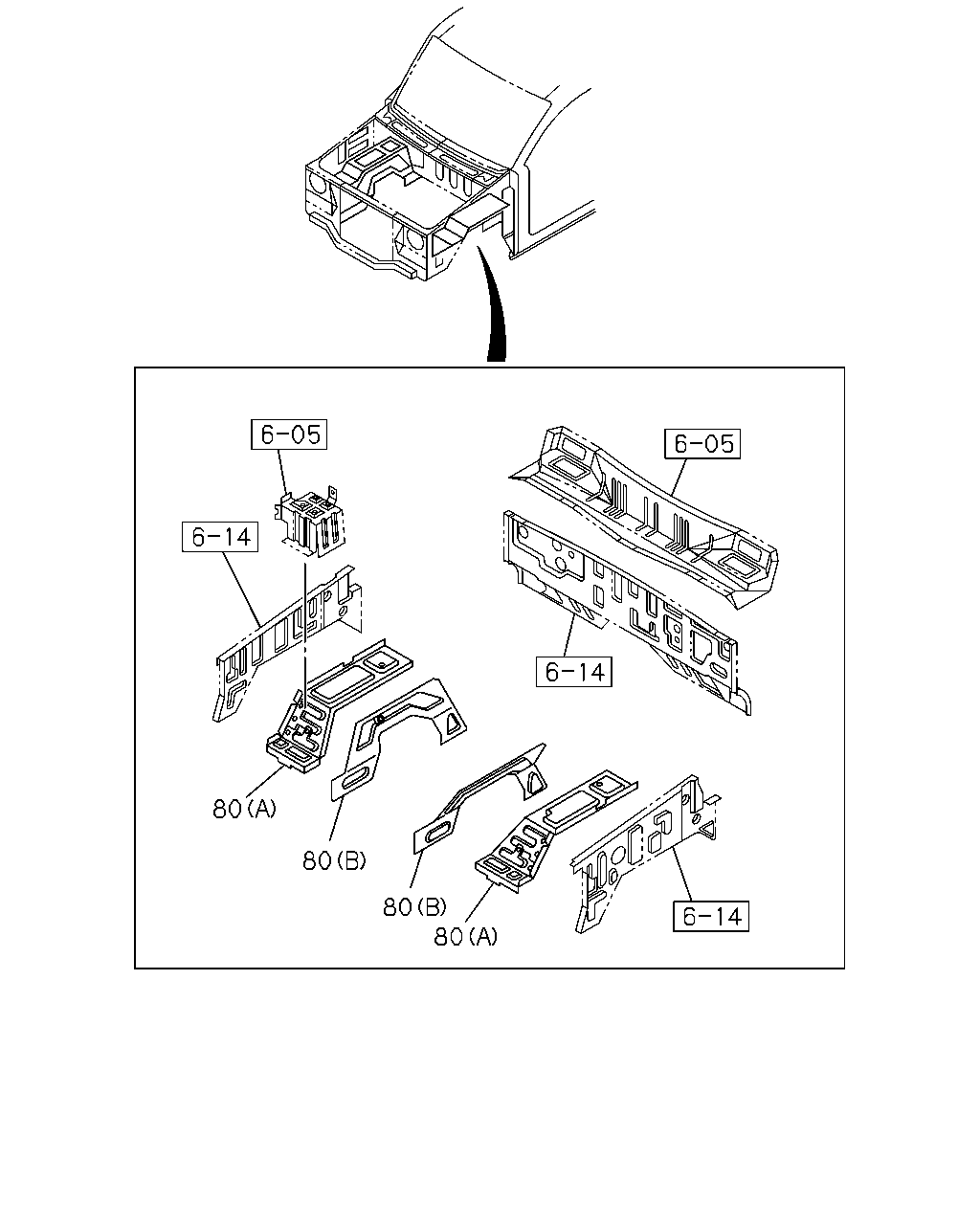

çizim 288585
80 80 80 80
BalonParca AdiParca NoAdetTipApplied Date
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97955-317-1 01 1 0612-
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97955-321-1 01 1 0612-
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97955-316-1 01 1 0612-
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97955-320-1 01 1 0612-

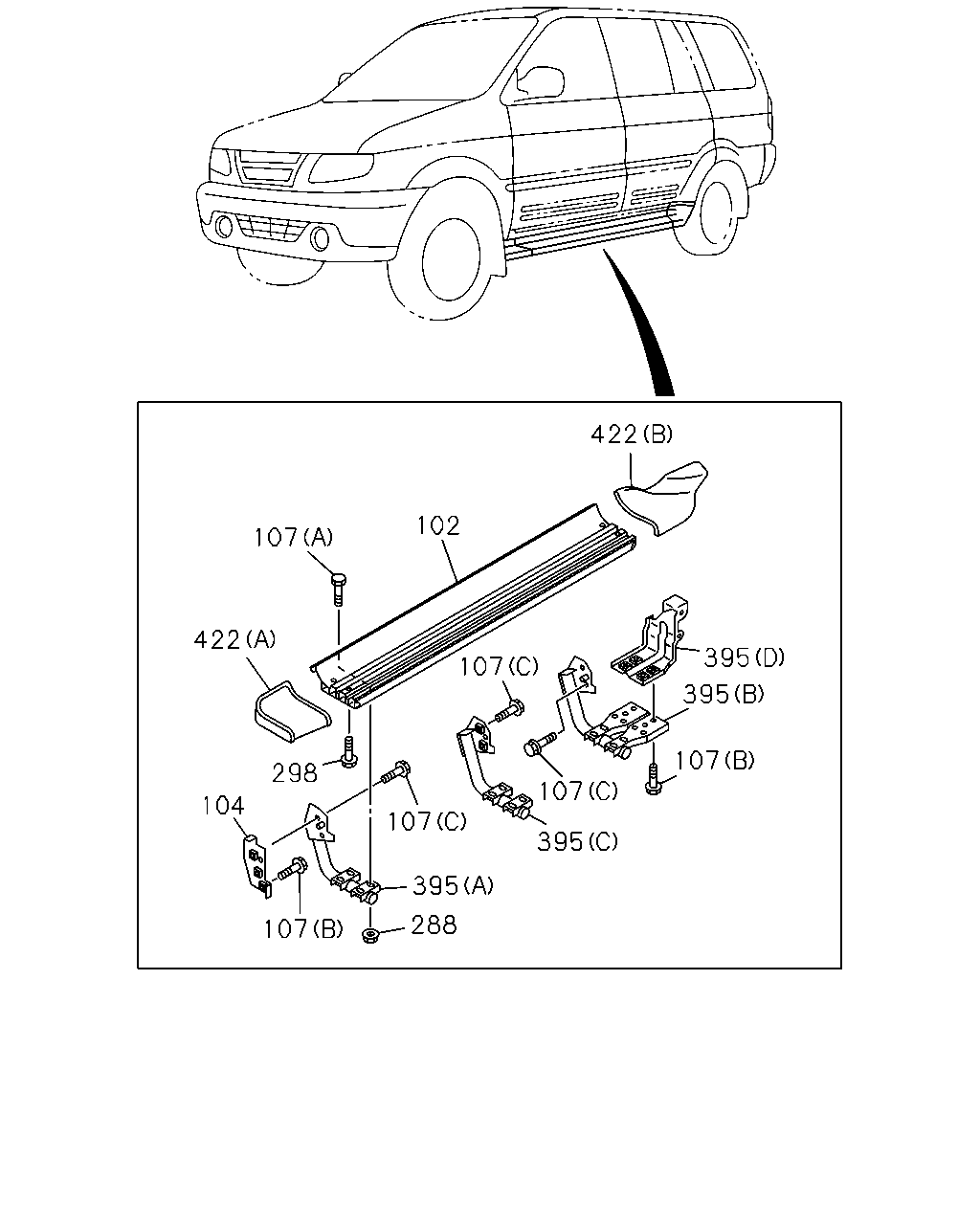

çizim 288600
422 102 107 422 107 395 395 107 107 395 107 298 104 395 288 107
BalonParca AdiParca NoAdetTipApplied Date
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97956-534-1 01 1 0612-
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97959-922-0 01 1 0612-
104 PLATE; SIDE STEP
SIDE STEP<6TC> IDN 		8-97956-507-2 01 1 0612-
104 PLATE; SIDE STEP
SIDE STEP<6TC> IDN 		8-97956-506-2 01 1 0612-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) M6X16 		0-20800-616-0 24 1 0612-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M6X12 FLANGE 		0-28050-612-0 02 1 0612-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M6X12 FLANGE 		0-28050-612-0 08 1 0612-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (C) M8X22 FLANGE 		8-97131-511-0 12 1 0612-
288 NUT; STEP
SIDE STEP<6TC> M6 FLANGE 		0-91180-106-0 24 1 0612-
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X12 TAPPING W/PL WASHER IDN 		0-74160-512-0 12 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97956-509-4 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) IDN 		8-97956-511-4 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (C) IDN 		8-97958-059-0 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (D) IDN 		8-97958-125-3 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97956-508-4 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) IDN 		8-97956-510-4 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (C) IDN 		8-97958-058-0 01 1 0612-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (D) IDN 		8-97958-124-3 01 1 0612-
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97958-055-1 01 1 0612-
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) DARK GRAY IDN 		8-97959-465-2 01 1 0612-
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97958-054-1 01 1 0612-
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) DARK GRAY IDN 		8-97959-464-2 01 1 0612-

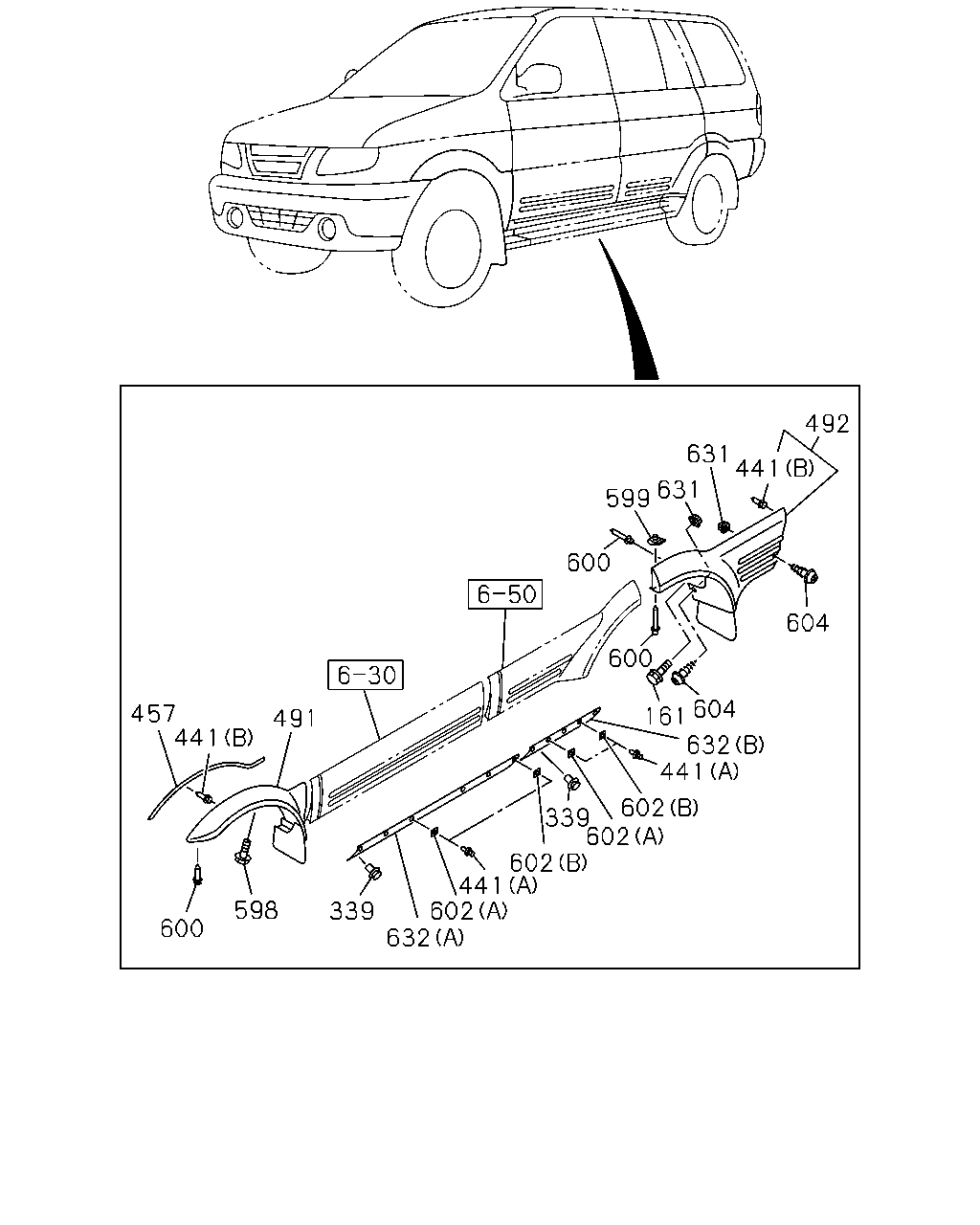

çizim 288604
492 631 631 599 604 600 600 604 161 632 441 602 491 441 457 600 339 632 441 339 602 602 602 598 441
BalonParca AdiParca NoAdetTipApplied Date
161 BOLT; FIX
OVER FENDER<6GH> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0612-
339 FASTENER; SIDE
GRADE TOURING(RBG) D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 20 1 0612-
441 CLIP
BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656), BODY COLOR COPPER HEAT BROWN MICA(660) GRADE TOURING(RBG) (A) OD=14.2 L=19.0 IDN 		8-94340-505-0 10 1 0612-
441 CLIP
GRADE TOURING(RBG) (A) OD=14.2 L=19.0 IDN 		8-94340-505-0 12 1 0612-
441 CLIP
OVER FENDER<6GH> (B) IDN 		8-97117-942-0 26 1 0612-
457 FINISHER
OVER FENDER<6GH> IDN 		8-97307-301-1 01 1 0612-
457 FINISHER
OVER FENDER<6GH> IDN 		8-97307-300-1 01 1 0612-
491 EXTENSION; WHL,FRT
OVER FENDER<6GH> IDN 		8-97959-994-1 01 1 0612-
491 EXTENSION; WHL,FRT
OVER FENDER<6GH> IDN 		8-97959-993-1 01 1 0612-
492 EXTENSION; WHL,RR
OVER FENDER<6GH> LIGHT SILVER IDN 		8-97959-374-1 01 1 0612-
492 EXTENSION; WHL,RR
OVER FENDER<6GH> LIGHT SILVER IDN 		8-97959-373-1 01 1 0612-
598 BOLT; EXTENSION
OVER FENDER<6GH> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0612-
599 NUT; EXTENSION
OVER FENDER<6GH> 		8-94334-769-0 16 1 0612-
600 RIVET; EXTENSION
OVER FENDER<6GH> 		8-97122-143-0 10 1 0612-
602 PLATE
BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656), BODY COLOR COPPER HEAT BROWN MICA(660) GRADE TOURING(RBG) (B) IDN 		8-97958-012-1 02 1 0612-
602 PLATE
GRADE TOURING(RBG) (B) IDN 		8-97958-012-1 02 1 0612-
602 PLATE
BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656), BODY COLOR COPPER HEAT BROWN MICA(660) GRADE TOURING(RBG) (A) IDN 		8-97958-010-1 04 1 0612-
602 PLATE
BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656), BODY COLOR COPPER HEAT BROWN MICA(660) GRADE TOURING(RBG) (A) IDN 		8-97958-011-1 04 1 0612-
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-010-1 05 1 0612-
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-011-1 05 1 0612-
604 SCREW; EXTENSION
OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 02 1 0612-0805
604 SCREW; EXTENSION
OVER FENDER<6GH> M6X20 W/PL WASHER 		8-98059-504-0 02 1 0806-
631 GROMMET; SCREW
OVER FENDER<6GH> D=9.7X9.7 L=8 		8-94222-314-0 02 1 0612-
632 EXTENSION; ROCKR FRT
BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656), BODY COLOR COPPER HEAT BROWN MICA(660) GRADE TOURING(RBG) (B) IDN 		8-97560-024-0 01 1 0612-
632 EXTENSION; ROCKR FRT
BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656), BODY COLOR COPPER HEAT BROWN MICA(660) GRADE TOURING(RBG) (B) IDN 		8-97560-023-0 01 1 0612-
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) (A) IDN 		8-97560-020-0 01 1 0612-
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) (A) IDN 		8-97560-019-0 01 1 0612-

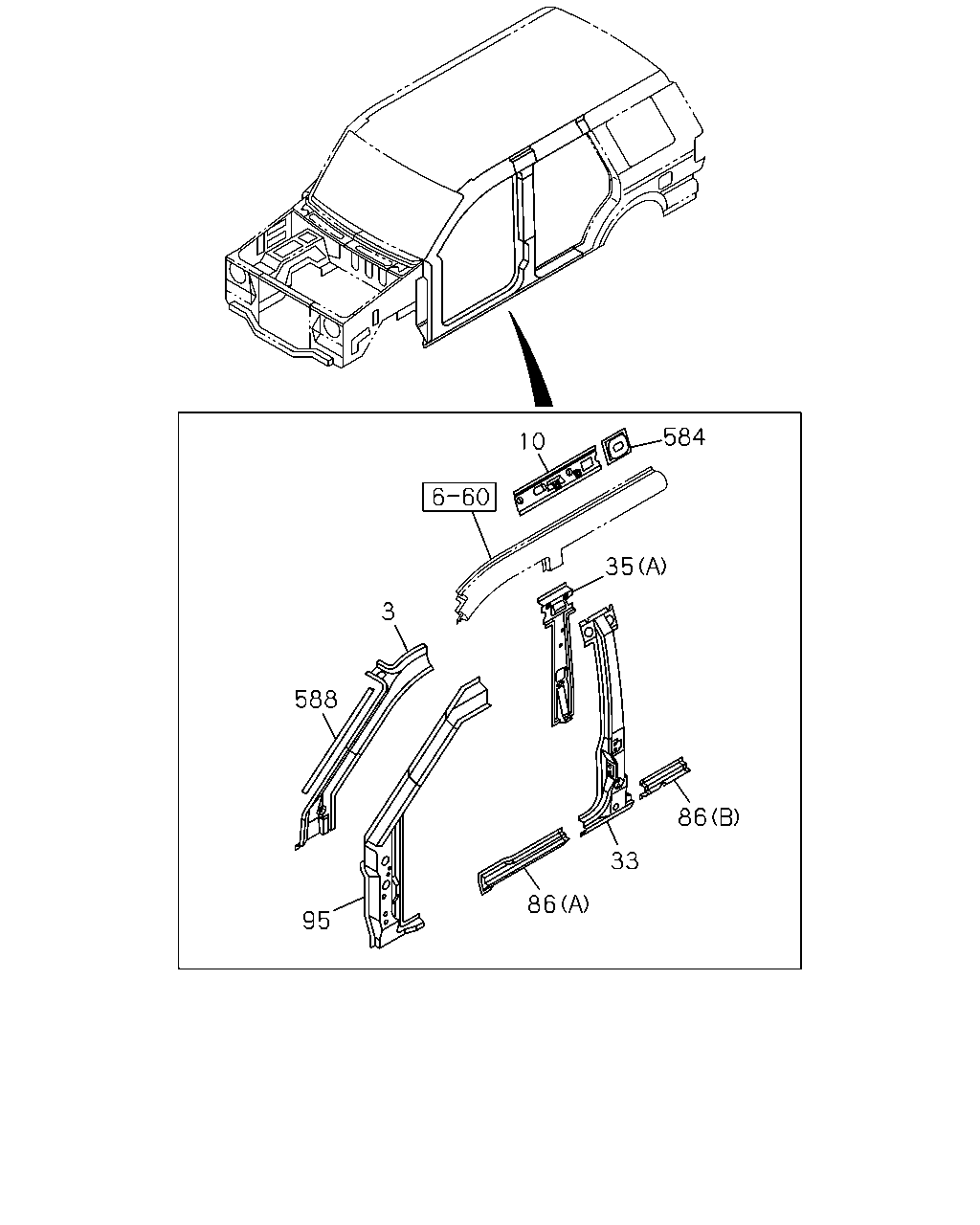

çizim 288605
584 10 35 3 588 95 86 33 86
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-733-0 01 1 0612-
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-732-0 01 1 0612-
10 CLOSING; ROOF SIDE
IDN 		8-97955-771-1 01 1 0612-
10 CLOSING; ROOF SIDE
IDN 		8-97955-770-1 01 1 0612-
33 PANEL; CENTER PILLAR,OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97955-745-0 01 1 0612-
33 PANEL; CENTER PILLAR,OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97955-744-0 01 1 0612-
33 PANEL; CENTER PILLAR,OUTER
GRADE TOURING(RBG) IDN 		8-97958-866-0 01 1 0612-
33 PANEL; CENTER PILLAR,OUTER
GRADE TOURING(RBG) IDN 		8-97958-865-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-753-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97956-739-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-752-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97957-163-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97957-163-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-116-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0612-
86 PANEL; ROCKER OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) (B) IDN 		8-97955-778-0 02 1 0612-
86 PANEL; ROCKER OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) (A) IDN 		8-97956-570-0 01 1 0612-
86 PANEL; ROCKER OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) (A) IDN 		8-97956-569-0 01 1 0612-
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (A) IDN 		8-97958-029-2 01 1 0612-
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-033-1 01 1 0612-
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (A) IDN 		8-97958-028-2 01 1 0612-
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-032-1 01 1 0612-
95 PILLAR; FRT
IDN 		8-97955-379-0 01 1 0612-
95 PILLAR; FRT
IDN 		8-97955-377-0 01 1 0612-
584 PALTE; ROOF SIDE
IDN 		8-97957-590-0 02 1 0612-
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-892-0 01 1 0612-
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-891-0 01 1 0612-

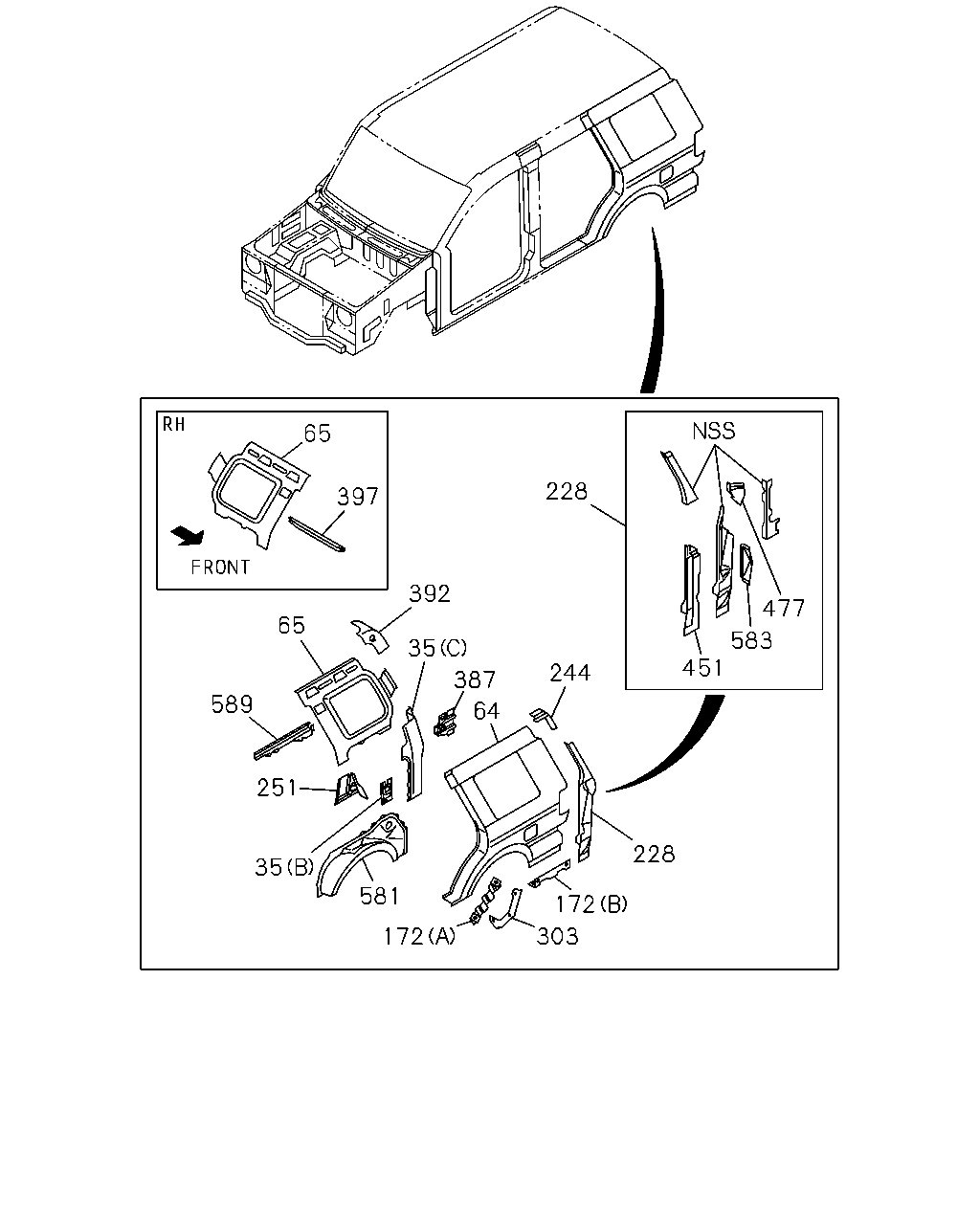

çizim 288610
65 397 65 589 251 35 35 392 228 477 583 451 387 244 64 228 172 303 172 581
BalonParca AdiParca NoAdetTipApplied Date
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-753-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97956-739-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-752-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97957-163-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97957-163-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-116-0 01 1 0612-
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0612-
64 PANEL; QUARTER OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97561-141-0 01 1 0612-
64 PANEL; QUARTER OUTER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97561-140-0 01 1 0612-
64 PANEL; QUARTER OUTER
GRADE TOURING(RBG) IDN 		8-97561-145-0 01 1 0612-
64 PANEL; QUARTER OUTER
GRADE TOURING(RBG) IDN 		8-97561-144-0 01 1 0612-
65 PANEL; QUARTER,INNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97956-064-0 01 1 0612-
65 PANEL; QUARTER,INNER
GRADE TOURING(RBG) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97956-064-0 01 1 0612-
65 PANEL; QUARTER,INNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-160-0 01 1 0612-
65 PANEL; QUARTER,INNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-161-0 01 1 0612-
65 PANEL; QUARTER,INNER
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-161-0 01 1 0612-
65 PANEL; QUARTER,INNER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-810-0 01 1 0612-
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-159-0 01 1 0612-
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-809-0 01 1 0612-
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (A) IDN 		8-97958-107-0 01 1 0612-
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (B) IDN 		8-97958-109-1 01 1 0612-
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (A) IDN 		8-97958-106-0 01 1 0612-
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (B) IDN 		8-97958-108-1 01 1 0612-
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-814-0 01 1 0612-
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-813-0 01 1 0612-
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-836-0 01 1 0612-
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-835-0 01 1 0612-
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-800-0 01 1 0612-
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-799-0 01 1 0612-
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-915-1 01 1 0612-
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-914-1 01 1 0612-
387 BRACKET; 3RD SEAT
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97956-457-0 01 1 0612-
387 BRACKET; 3RD SEAT
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97956-457-0 01 1 0612-
387 BRACKET; 3RD SEAT
GRADE TOURING(RBG) IDN 		8-97956-457-0 02 1 0612-
392 GUSSET; RR PILLAR
IDN 		8-97955-832-0 01 1 0612-
392 GUSSET; RR PILLAR
IDN 		8-97955-831-0 01 1 0612-
397 REINFORCEMENT; QUARTER PILLAR INNER
IDN 		8-97956-608-1 01 1 0612-
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97955-827-0 01 1 0612-
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97955-826-0 01 1 0612-
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-818-1 01 1 0612-
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-817-1 01 1 0612-
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97955-796-0 01 1 0612-
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97955-795-0 01 1 0612-
583 BRACKET; STRIKER,BACK DOOR
IDN 		8-97955-893-0 01 1 0612-
589 REINFORCEMENT; COOLER UNIT
IDN 		8-97956-610-1 01 1 0612-

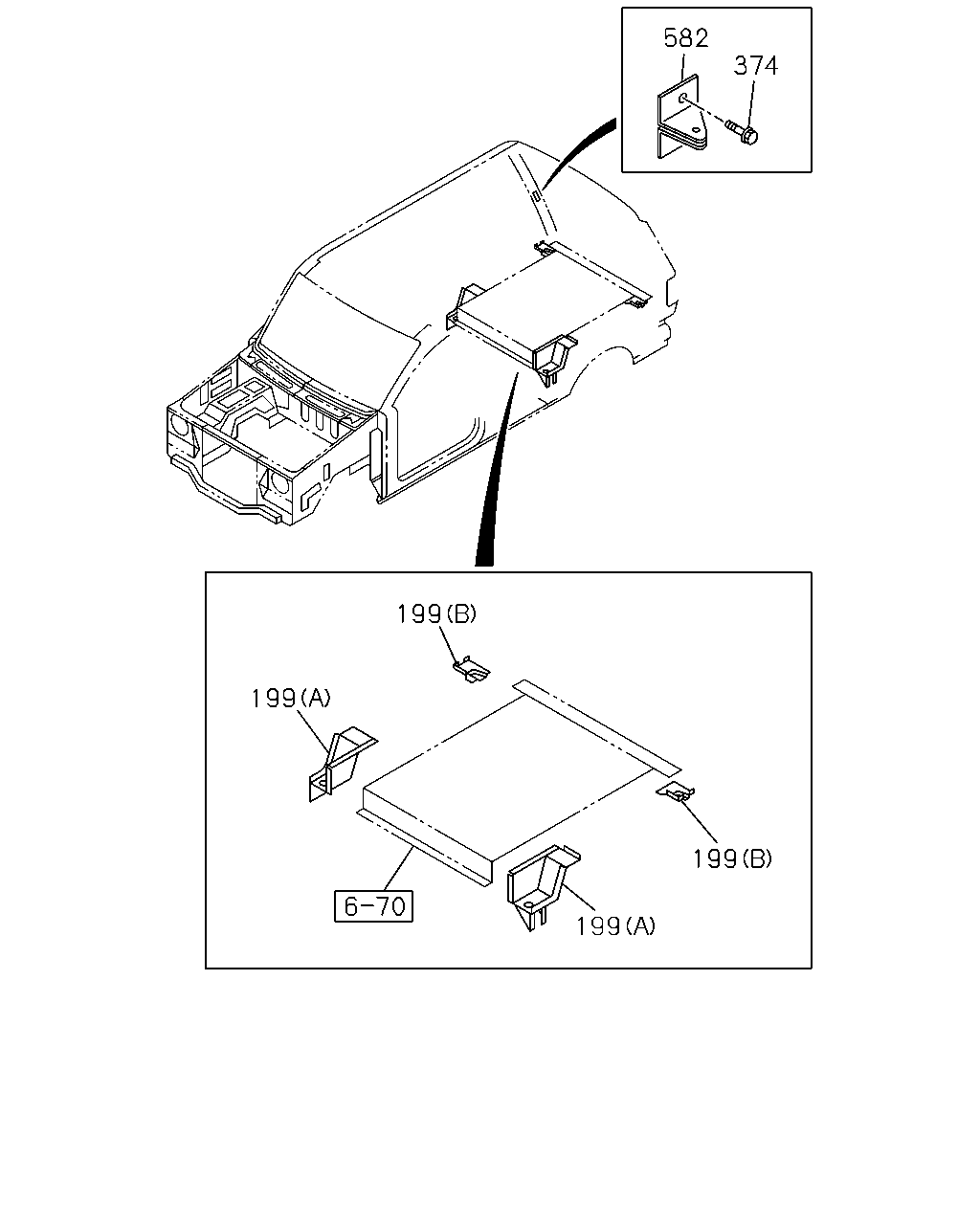

çizim 289474
582 374 199 199 199 199
BalonParca AdiParca NoAdetTipApplied Date
199 PANEL; RR SIDE
(A) IDN 		8-97955-264-0 01 1 0612-
199 PANEL; RR SIDE
(A) IDN 		8-97955-265-0 01 1 0612-
199 PANEL; RR SIDE
(B) IDN 		8-97956-091-1 01 1 0612-
199 PANEL; RR SIDE
(B) IDN 		8-97956-092-1 01 1 0612-
374 BOLT; BRKT
M6X16 FLANGE IDN 		0-28050-616-0 02 1 0612-
582 BRACKET; CHECK ARM
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97956-002-0 01 1 0612-
