5-01 — FRAME AND OTHER PARTS (#9580) — 172 parça

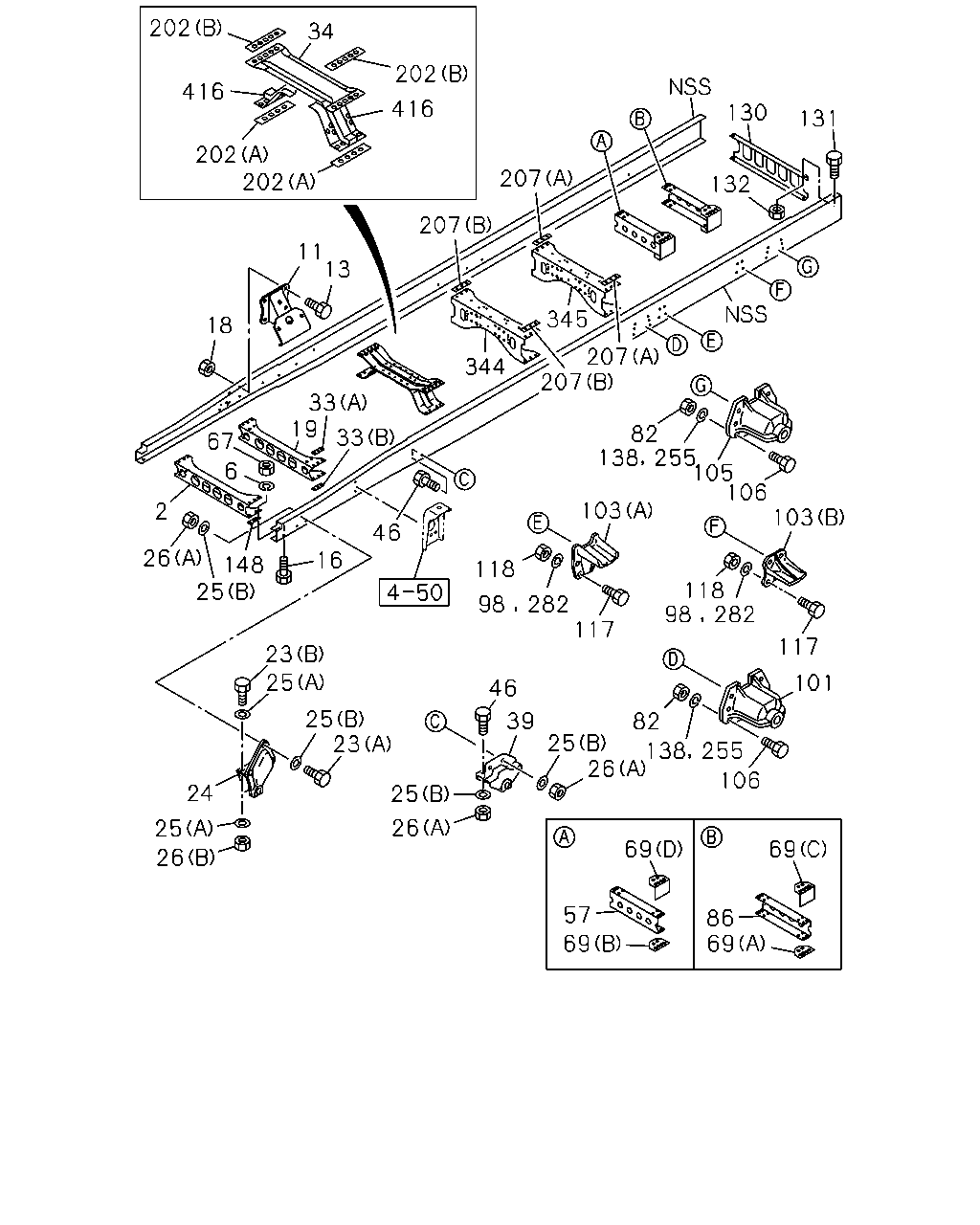

çizim 100144
202 34 202 416 416 130 131 202 202 207 132 207 344 11 13 18 207 207 33 19 82 105 106 103 67 33 6 103 2 46 26 16 148 25 118 118 117 117 23 25 101 46 25 23 39 82 25 26 106 24 25 26 25 69 69 26 57 86 69 69 98 282 98 282 138 255 138 255 345
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 1-53181-696-6 01 1 0005-0210 ● ●
2 MEMBER; CROSS,1ST 1-53181-939-1 01 1 0211-0405 ● ●
2 MEMBER; CROSS,1ST 1-53181-939-2 01 1 0406- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0211-0405 ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0406-0603 ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0005-0210 ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0211-0405 ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0406- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0005-0210 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0211-0405 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0406-0512 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0211-0405 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0406-0512 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0005-0210 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0211-0405 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0406-0602 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-7 01 1 0005-0210 ● ●
19 MEMBER; CROSS,2ND 1-53181-940-1 01 1 0211-0405 ● ●
19 MEMBER; CROSS,2ND 1-53181-940-1 01 1 0406- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005-0210 ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0211-0405 ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0406- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0005-0210 ● ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0211-0405 ● ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0406- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0211-0405 ●
24 BRACKET; FRT SPR,FRT
STD CAB(FT**M*) 		1-53351-260-0 01 1 0211-0405 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0406- ●
24 BRACKET; FRT SPR,FRT
STD CAB(FT**M*) 		1-53351-260-0 01 1 0406- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0211-0405 ●
24 BRACKET; FRT SPR,FRT
STD CAB(FT**M*) 		1-53351-259-0 01 1 0211-0405 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0406- ●
24 BRACKET; FRT SPR,FRT
STD CAB(FT**M*) 		1-53351-259-0 01 1 0406- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0005-0210 ● ●
24 BRACKET; FRT SPR,FRT
DOUBLE CAB(FT**W*) 		1-53351-149-3 01 1 0211- ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0005-0210 ● ●
24 BRACKET; FRT SPR,FRT
DOUBLE CAB(FT**W*) 		1-53351-148-3 01 1 0211- ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0005-0210 ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0211-0405 ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0406- ● ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 0005-0210 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 0211-0405 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 0406-1201 ● ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 28 1 1202- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0210 ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0211-0405 ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0406-0512 ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0210 ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0211-0405 ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0406-0512 ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0211-0405 ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0406- ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0211-0405 ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0406- ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0005-0210 ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0211-0405 ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0406- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005-0210 ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0211-0405 ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0406- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005-0210 ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0211-0405 ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0406- ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0210 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0211-0405 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0406- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0005-0210 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0211-0405 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0406- ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0211-0405 ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0406-0512 ● ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-099-4 02 1 0005-0210 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-099-4 02 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-099-4 02 1 0406- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-100-3 02 1 0005-0210 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-100-3 02 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-100-3 02 1 0406- ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-248-1 01 1 0005-0210 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-248-1 01 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-248-1 01 1 0406- ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-309-0 01 1 0005-0210 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-309-0 01 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-309-0 01 1 0406- ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-247-1 01 1 0005-0210 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-247-1 01 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-247-1 01 1 0406- ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-310-0 01 1 0005-0210 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-310-0 01 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-310-0 01 1 0406- ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 0005-0210 ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 0211-0405 ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 0406-0512 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-815-1 01 1 0005-0210 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-815-1 01 1 0211-0405 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-815-1 01 1 0406- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0005-0210 ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0005-0210 ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0211-0405 ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0406- ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0005-0210 ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0211-0405 ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0406- ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0005-0210 ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0211-0405 ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0406- ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0005-0210 ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0211-0405 ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0406- ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 0005-0210 ● ●
106 BOLT; BRKT
M14X45 		9-92061-445-0 20 1 0211-0405 ● ●
106 BOLT; BRKT
M14X45 		9-92061-445-0 20 1 0406- ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0005-0210 ● ●
117 BOLT; STOPPER
M14X45 		9-92061-445-0 16 1 0211-0405 ● ●
117 BOLT; STOPPER
M14X45 		9-92061-445-0 16 1 0406- ● ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0005-0210 ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0211-0405 ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0406-0512 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005-0210 ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0211-0405 ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0406- ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0210 ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0211-0405 ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0406-0512 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0210 ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0211-0405 ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0406-0602 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 10 1 0005-0210 ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 0005-0210 ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0211-0405 ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0406- ● ● ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-102-0 02 1 0005-0210 ● ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-102-0 02 1 0211-0405 ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-102-0 02 1 0406- ● ●
202 SPACER; 3RD C/MBR
(B) 		1-53168-351-1 02 1 0005-0210 ● ●
202 SPACER; 3RD C/MBR
(B) 		1-53168-351-1 02 1 0211-0405 ● ●
202 SPACER; 3RD C/MBR
(B) 		1-53168-351-1 02 1 0406- ● ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-162-2 02 1 0005-0210 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-162-2 02 1 0211-0405 ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-162-2 02 1 0406- ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-163-1 02 1 0005-0210 ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-163-1 02 1 0211-0405 ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-163-1 02 1 0406- ● ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 20 1 0211-0405 ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 20 1 0406-1201 ● ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 20 1 1202- ● ● ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0211-0405 ● ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0406-1201 ● ● ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 1202- ● ● ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0005-0210 ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0211-0405 ● ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0406- ● ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0005-0210 ●
345 MEMBER; CROSS,5TH 1-53171-738-7 01 1 0005-0210 ●
345 MEMBER; CROSS,5TH 1-53171-953-2 01 1 0211-0405 ●
345 MEMBER; CROSS,5TH 1-53171-953-2 01 1 0406- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0005-0210 ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0211-0405 ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0406- ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0005-0210 ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0211-0405 ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0406- ● ● ●
