Isuzu WW
▶
AUV
▶
TBR
▶
51135 - TBR-WAGON(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

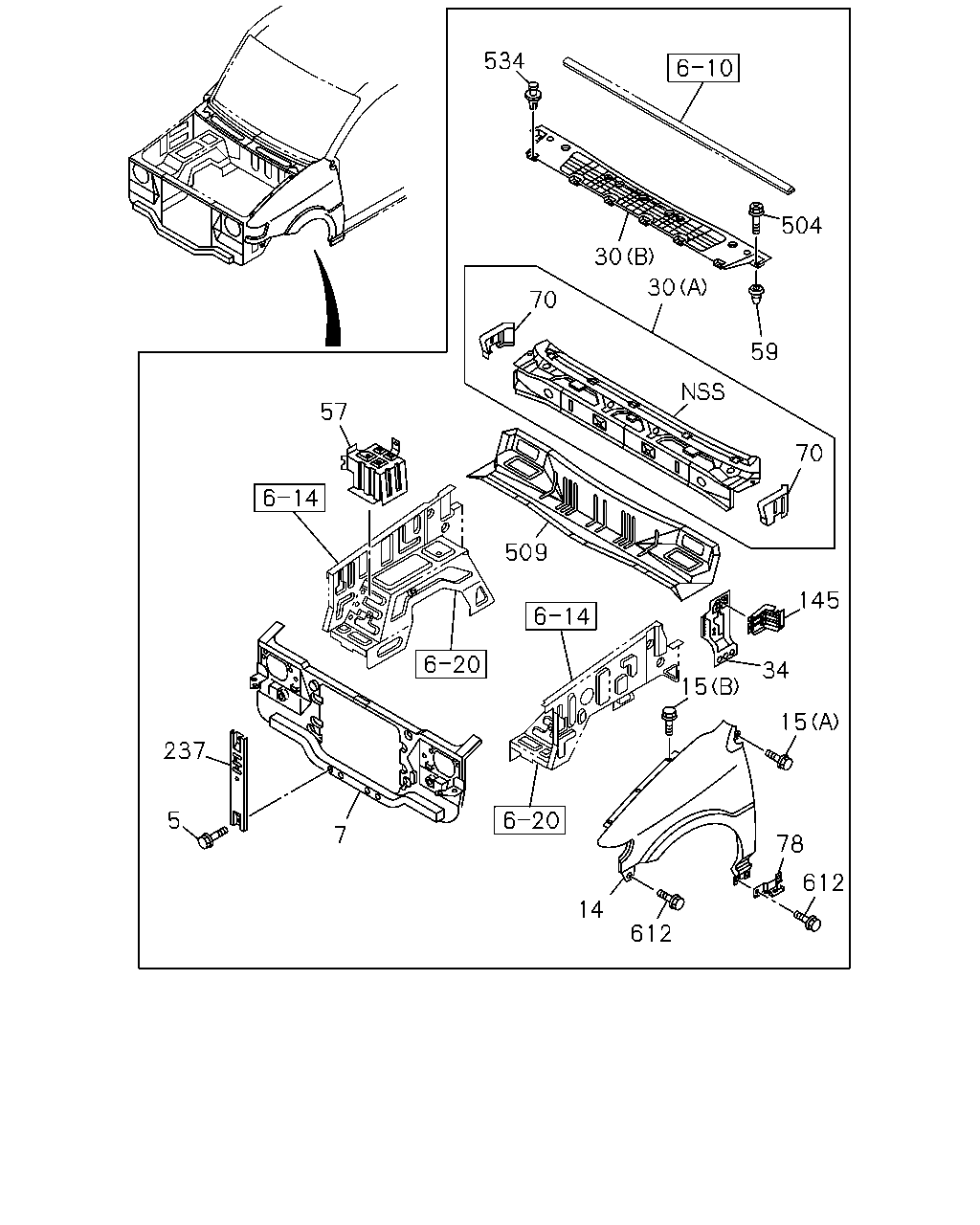

6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#95798) — 27 parça
534
504
30
30
59
70
70
57
509
145
34
15
15
7
5
237
612
78
612
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BOLT; SUPPORT
M6X18
8-94408-386-1
02
1
0612-
7
PANEL; DEFLECTOR
IDN
8-97562-302-2
01
1
0612-
14
FENDER; FRT
EXC. CAB UP<W60> IDN
8-97562-295-1
01
1
0612-
14
FENDER; FRT
EXC. CAB UP<W60> IDN
8-97562-294-1
01
1
0612-
14
FENDER; FRT
GRADE LV(RBB) CAB UP<W60> IDN
8-97589-090-1
01
1
0612-
14
FENDER; FRT
GRADE LV(RBB) CAB UP<W60> IDN
8-97589-089-1
01
1
0612-
14
FENDER; FRT
GRADE TOURING(RBG) CAB UP<W60> IDN
8-97562-291-1
01
1
0612-
14
FENDER; FRT
GRADE TOURING(RBG) CAB UP<W60> IDN
8-97562-290-1
01
1
0612-
15
BOLT; FENDER
(A) M6X16 FLANGE
0-28650-616-0
02
1
0612-
15
BOLT; FENDER
(B) M6X12 W/PL WASHER
8-94232-078-0
06
1
0612-
30
PANEL; COWL UPR
(A) IDN
8-97562-660-0
01
1
0612-
30
PANEL; COWL UPR
(B) IDN
8-97955-905-4
01
1
0612-
34
PANEL; DASH SIDE
IDN
8-97955-738-0
01
1
0612-
34
PANEL; DASH SIDE
IDN
8-97955-737-0
01
1
0612-
57
TRAY; BATTERY
IDN
8-97956-566-0
01
1
0612-
59
GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN
8-94441-539-0
07
1
0612-
70
PANEL ASM; COWL SIDE
IDN
8-97955-346-3
01
1
0612-
70
PANEL ASM; COWL SIDE
IDN
8-97955-345-3
01
1
0612-
78
BRACKET; FENDER
GRADE TOURING(RBG) IDN
8-97958-105-0
01
1
0612-
78
BRACKET; FENDER
GRADE TOURING(RBG) IDN
8-97958-104-0
01
1
0612-
145
GUSSET; FRT PILLAR,UPR
IDN
8-97955-361-1
01
1
0612-
145
GUSSET; FRT PILLAR,UPR
IDN
8-97955-360-1
01
1
0612-
237
SUPPORT; DEFLECTOR
IDN
8-97562-314-0
01
1
0612-
504
SCREW; COWL
M5X19
8-97142-720-1
07
1
0612-
509
PANEL; DASH
IDN
8-97955-061-6
01
1
0612-
534
FASTENER
D=5.8 SCREW & GROMMET NYLON IDN
8-94242-150-0
06
1
0612-
612
SCREW; TAP,FENDER
M6X16 W/PL WASHER IDN
8-94204-636-0
08
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
