◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#95797) — 54 parça

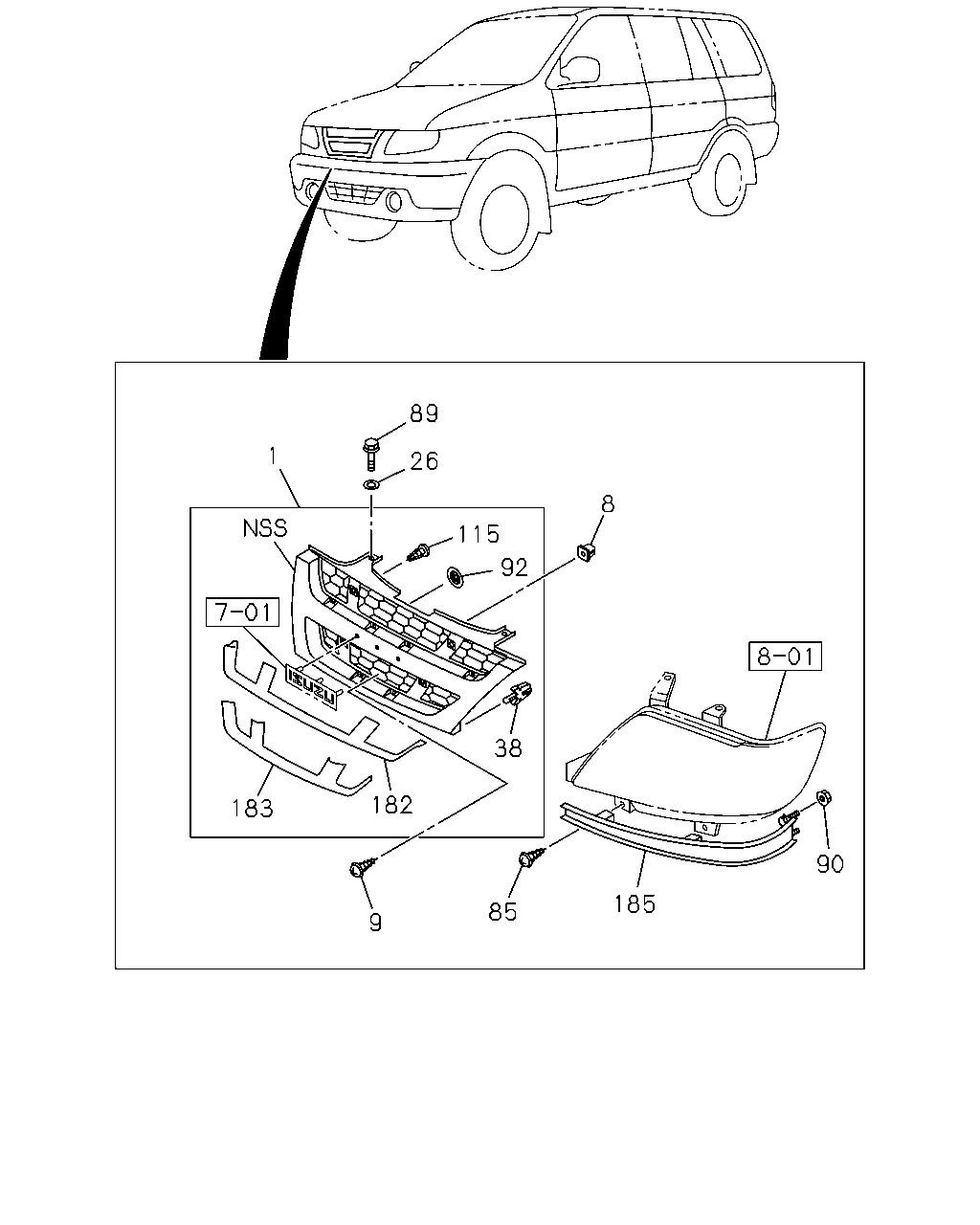

çizim 288565
90 185 85 9 182 38 183 92 8 115 26 89 1
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-532-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-524-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-530-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-522-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-528-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-518-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97399-519-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR COPPER HEAT BROWN MICA(660) BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-531-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR COPPER HEAT BROWN MICA(660) EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-523-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-517-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-534-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-526-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-533-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-525-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-529-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-521-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97399-520-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-527-2 01 1 0612-
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-516-2 01 1 0612-
8 GROMMET; SCREW,RAD GRILLE
D=7X7 L=7.5 IDN 		8-94291-927-0 01 1 0612-
9 SCREW; RAD GRILLE
M5X16 IDN 		8-94380-268-0 01 1 0612-
26 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 02 1 0612-
38 CLIP; GRILLE
BLACK 		8-94218-027-0 02 1 0612-
85 SCREW; RAD GRILLE SIDE
M5X16 IDN 		8-94380-268-0 04 1 0612-
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 02 1 0612-
90 NUT; RAD GRILLE
M6 FLANGE 		0-91180-106-0 02 1 0612-
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0612-
115 SCREW; FRT GRILLE
IDN 		8-97944-140-0 14 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR ARCTIC SILVER MET(672) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-260-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR ASTRA BLUE MICA(656) EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-256-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR BRILLIANT RED MICA(605) EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97944-248-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR BRONZE BLUE MICA(607) EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97944-250-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR COPPER HEAT BROWN MICA(660) EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97944-258-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR HONEY SILVER MET(603) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-246-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR MINERAL BLUE MET(674) EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-264-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR MISTY QUARTZ MET(673) EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97944-262-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR MOONMIST GRAY MICA(652) EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97944-254-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR ORGANIC GREEN MICA(608) EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97944-252-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BODY COLOR PLATINUM SILVER MET(602) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-244-0 01 1 0612-
182 MOLDING; RAD GRILLE,UPR
BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-977-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ARCTIC SILVER MET(672) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-261-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ASTRA BLUE MICA(656) EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-257-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR BRILLIANT RED MICA(605) EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97944-249-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR BRONZE BLUE MICA(607) EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97944-251-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR COPPER HEAT BROWN MICA(660) EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97944-259-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR HONEY SILVER MET(603) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-247-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR MINERAL BLUE MET(674) EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-265-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR MISTY QUARTZ MET(673) EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97944-263-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR MOONMIST GRAY MICA(652) EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97944-255-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR ORGANIC GREEN MICA(608) EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97944-253-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BODY COLOR PLATINUM SILVER MET(602) EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-245-0 01 1 0612-
183 MOLDING; RAD GRILLE,LWR
BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-979-0 01 1 0612-
185 MOLDING; RAD GRILLE,SIDE
BLACK THA 		8-97944-035-2 01 1 0612-
185 MOLDING; RAD GRILLE,SIDE
BLACK THA 		8-97944-034-2 01 1 0612-
