◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51135 - TBR-WAGON(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#95796) — 30 parça

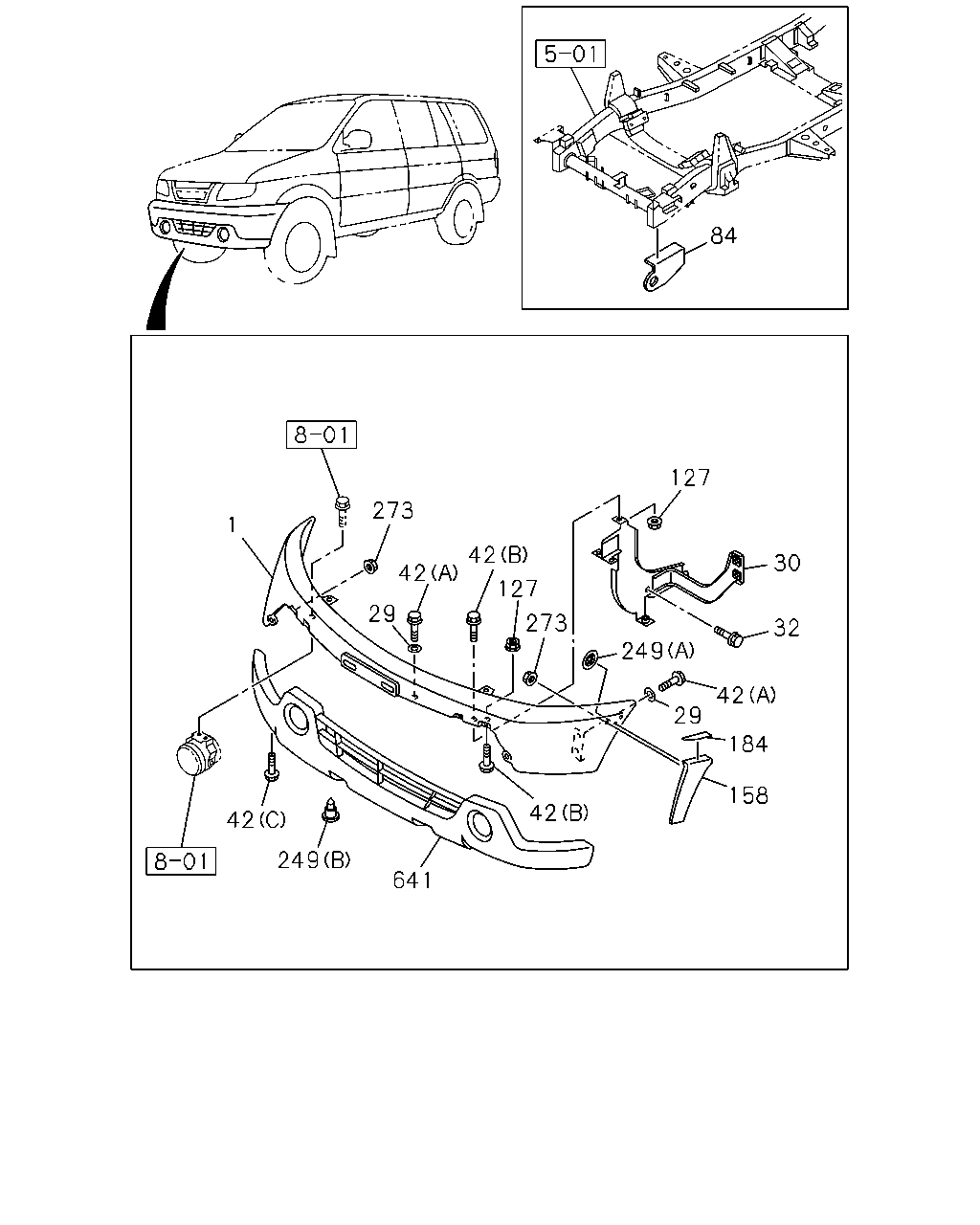

çizim 288563
84 127 30 32 42 184 158 29 249 273 127 42 42 273 29 42 249 641 1 42
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) PLEASE PAINT TO MATCH BODY COLOR TAI 		8-97943-990-3 01 1 0612-
1 BUMPER ASM; FRT
GRADE TOURING(RBG) PLEASE PAINT TO MATCH BODY COLOR TAI 		8-97943-991-3 01 1 0612-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 04 1 0612-
30 BRACKET; FRT BUMPER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. CAB UP<W60> TAI 		8-97944-017-2 01 1 0612-
30 BRACKET; FRT BUMPER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) EXC. CAB UP<W60> TAI 		8-97944-016-2 01 1 0612-
30 BRACKET; FRT BUMPER
GRADE LV(RBB) CAB UP<W60> TAI 		8-97944-019-2 01 1 0612-
30 BRACKET; FRT BUMPER
GRADE TOURING(RBG) TAI 		8-97944-019-2 01 1 0612-
30 BRACKET; FRT BUMPER
GRADE LV(RBB) CAB UP<W60> TAI 		8-97944-018-2 01 1 0612-
30 BRACKET; FRT BUMPER
GRADE TOURING(RBG) TAI 		8-97944-018-2 01 1 0612-
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28661-230-0 04 1 0612-
42 BOLT; BUMPER
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 0612-
42 BOLT; BUMPER
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 0612-
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 06 1 0612-
42 BOLT; BUMPER
(C) M6X12 FLANGE 		8-97351-109-0 06 1 0612-
84 HOOK
IDN 		8-97562-381-0 01 1 0612-
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 06 1 0612-0805
127 NUT; FRT BUMPER
M8 FLANGE 		8-97581-233-0 06 1 0806-
158 EXTENSION; FRT BUMPER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) TAI 		8-97943-994-0 01 1 0612-
158 EXTENSION; FRT BUMPER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) TAI 		8-97943-993-0 01 1 0612-
158 EXTENSION; FRT BUMPER
GRADE TOURING(RBG) TAI 		8-97943-996-0 01 1 0612-
158 EXTENSION; FRT BUMPER
GRADE TOURING(RBG) TAI 		8-97943-995-0 01 1 0612-
184 TAPE; FRONT BUMPER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97562-554-0 01 1 0612-
184 TAPE; FRONT BUMPER
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) IDN 		8-97562-553-0 01 1 0612-
184 TAPE; FRONT BUMPER
GRADE TOURING(RBG) IDN 		8-97562-557-0 01 1 0612-
184 TAPE; FRONT BUMPER
GRADE TOURING(RBG) IDN 		8-97562-556-0 01 1 0612-
249 RETAINER; BEAM LWR
(B) THA 		8-97301-188-0 02 1 0612-
249 RETAINER; BEAM LWR
GRADE LM(RBA),GRADE LV(RBB),GRADE LS(RBD) (A) IDN 		8-97182-223-0 02 1 0612-
273 NUT; BUMPER TO EXT
M6 FLANGE 		0-91180-106-0 06 1 0612-
273 NUT; BUMPER TO EXT
GRADE TOURING(RBG) M6 FLANGE 		0-91180-106-0 04 1 0612-
641 BUMPER; FRT,LWR
IDN 		8-97944-041-0 01 1 0612-
