5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

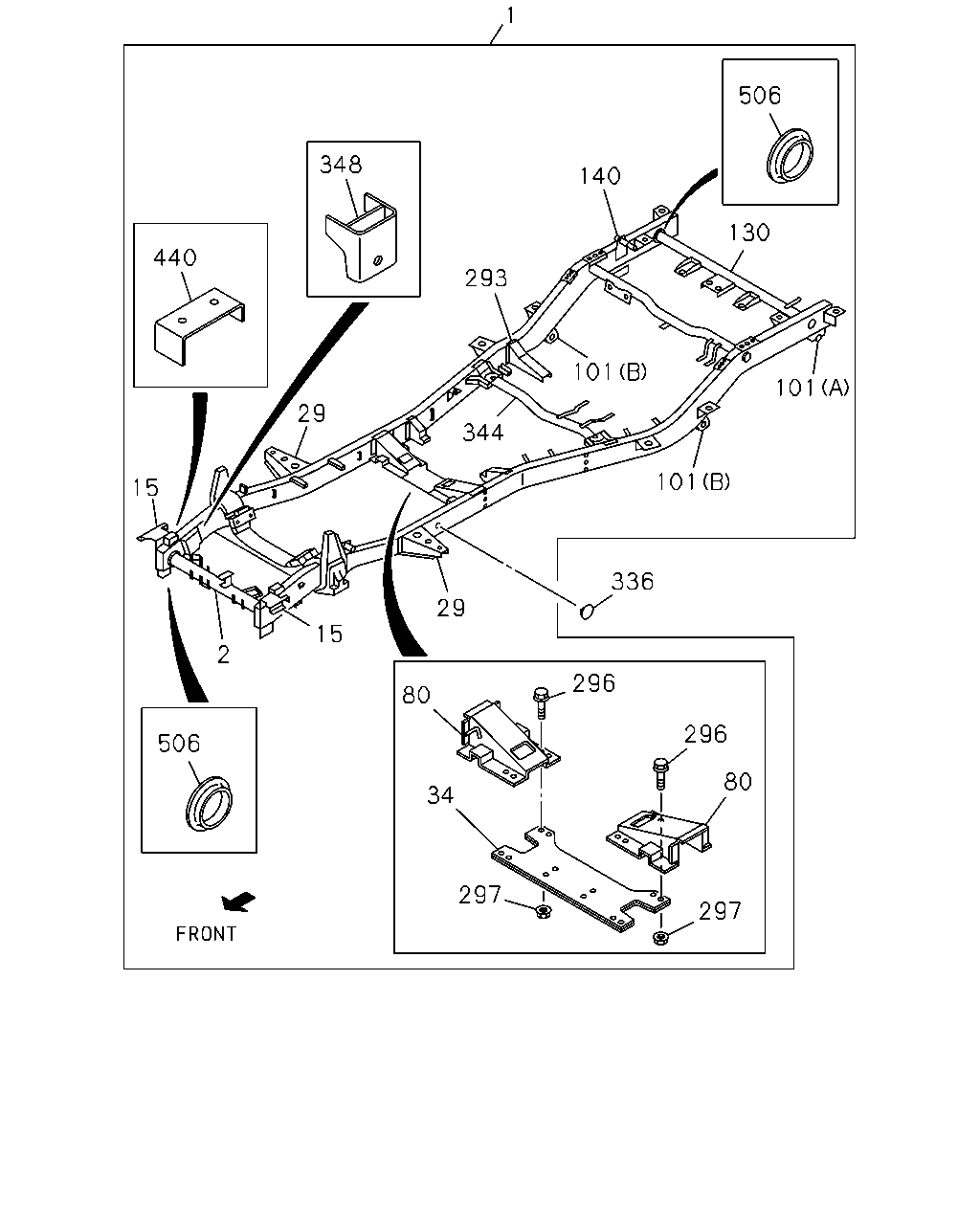

5-01 — FRAME AND OTHER PARTS
(#95791) — 24 parça
297
80
296
296
34
297
80
29
15
2
506
336
101
101
101
344
29
15
293
140
506
130
1
348
440
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
CAB UP<W60> IDN
8-97562-770-0
01
1
0612-
1
FRAME ASM
EXC. CAB UP<W60> IDN
8-97562-769-0
01
1
0612-
2
MEMBER; CROSS,1ST
IDN
8-97956-145-1
01
1
0612-
15
BRACKET; BODY MTG,FRT
IDN
8-97956-585-0
01
1
0612-
15
BRACKET; BODY MTG,FRT
IDN
8-97956-584-0
01
1
0612-
29
BRACKET; CAB MTG
IDN
8-97956-586-0
02
1
0612-
34
MEMBER; CROSS,3RD
IDN
8-97956-156-3
01
1
0612-
80
BRACKET; C/MBR
IDN
8-97956-171-1
01
1
0612-
80
BRACKET; C/MBR
IDN
8-97956-170-1
01
1
0612-
101
BRACKET; RR SPR,FRT
(A) IDN
8-97956-591-0
02
1
0612-
101
BRACKET; RR SPR,FRT
(B) IDN
8-97959-862-0
01
1
0612-
101
BRACKET; RR SPR,FRT
(B) IDN
8-97959-861-0
01
1
0612-
130
MEMBER; CROSS,END
CAB UP<W60> IDN
8-97562-434-0
01
1
0612-
130
MEMBER; CROSS,END
EXC. CAB UP<W60> IDN
8-97956-168-2
01
1
0612-
140
BRACKET; S/ABS,RR
IDN
8-97956-129-0
01
1
0612-
140
BRACKET; S/ABS,RR
IDN
8-97956-128-0
01
1
0612-
293
BRACKET; FUEL TANK,FRT
IDN
8-97956-130-0
01
1
0612-
296
BOLT; 3RD C/MBR
M10X25 FLANGE IDN
0-28651-025-0
08
1
0612-
297
NUT; 3RD C/MBR
M10 FLANGE
0-91180-210-0
08
1
0612-
336
PLUG; HOLE
OD=40 BLACK
8-97806-918-0
02
1
0612-
344
MEMBER; CROSS,4TH
IDN
8-97562-768-0
01
1
0612-
348
BRACKET; STRG STOPPER
IDN
8-97956-111-2
02
1
0612-
440
BRACKET; HOSE
IDN
8-97958-972-0
02
1
0612-
506
REINFORCEMENT; C/MBR
IDN
8-97958-974-0
04
1
0612-
