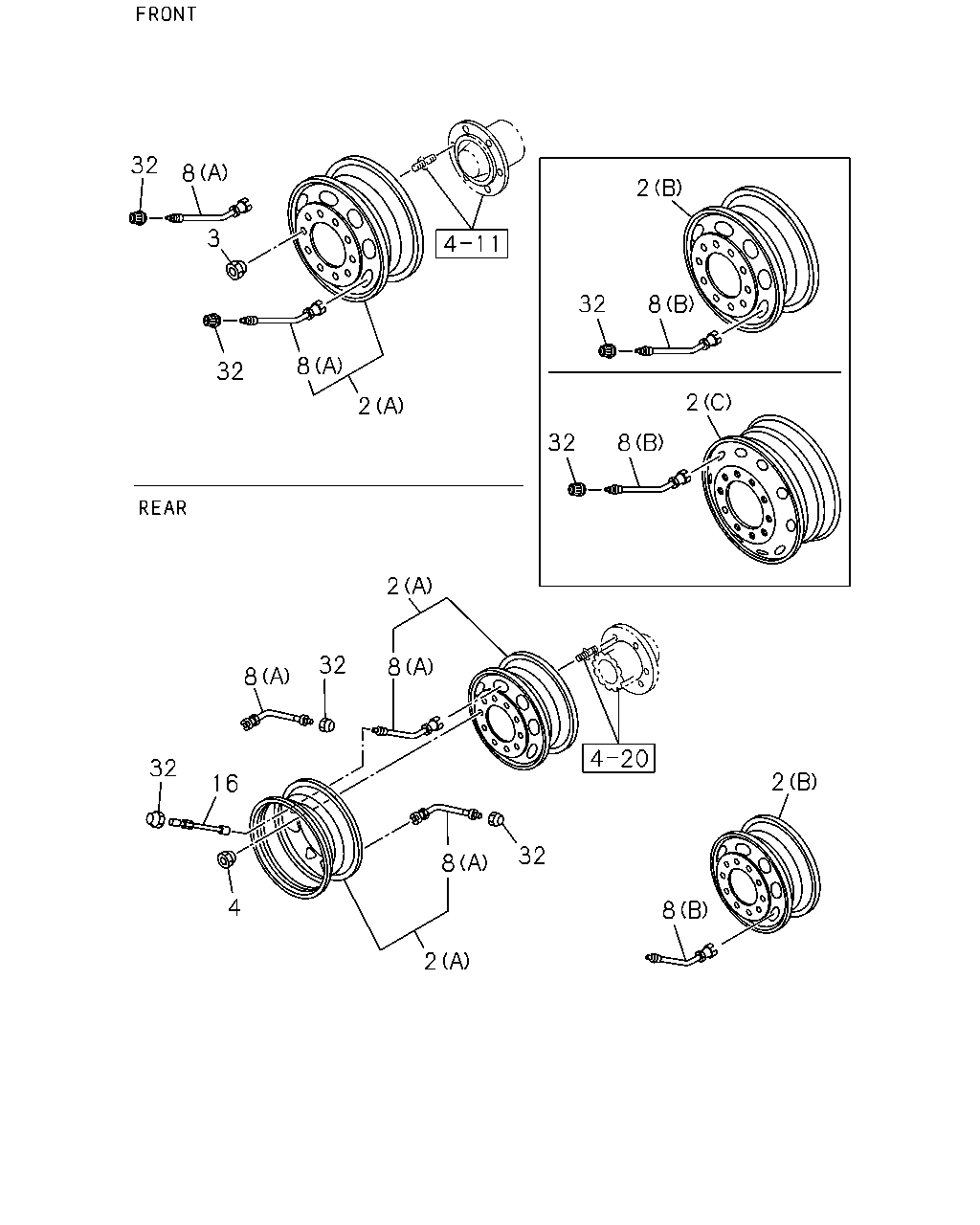

4-80 — ROAD WHEEL (#9579) — 28 parça

32 8 2 3 8 32 8 32 2 2 32 8 2 32 8 8 32 2 16 32 8 4 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC (A)	1-42350-539-0	07	1	0005-0210	●
2	WHEEL; DISC (A)	1-42350-538-0	07	1	0211-0302	●	●
2	WHEEL; DISC (A)	1-42350-637-0	07	1	0303-0304	●	●
2	WHEEL; DISC (A)	1-42350-538-0	07	1	0305-0310	●	●
2	WHEEL; DISC (A)	1-42350-637-1	07	1	0311-0511	●	●
2	WHEEL; DISC (C)	1-42350-729-0	07	1	0512-	●	●
2	WHEEL; DISC (B)	1-42350-544-0	07	1	0005-0210		●
3	NUT; WHEEL,FRT AXLE M22	1-42333-043-0	20	1	0005-0604	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-050-1	20	1	0605-0907	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	0908-	●	●
4	NUT; WHEEL,RR AXLE M22	1-42333-043-0	20	1	0005-0604	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-050-1	20	1	0605-0907	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	20	1	0908-	●	●
8	VALVE; TIRE (A)	1-42370-041-1	07	1	0311-0511	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0512-	●	●
8	VALVE; TIRE (A)	1-42370-041-0	07	1	0304-0304	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0005-0210	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0005-0210	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0211-0302	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0211-0302	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0303-0304	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0305-0310	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0305-0310	●	●
8	VALVE; TIRE (B)	1-42370-020-3	07	1	0311-0506	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	02	1	0005-1003	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	02	1	1004-	●	●
32	CAP; VALVE	1-42374-001-0	07	1	0512-	●	●
32	CAP; VALVE	1-42374-001-0	05	1	0005-0410	●	●
