4-40 — STEERING UNIT (#95784) — 10 parça

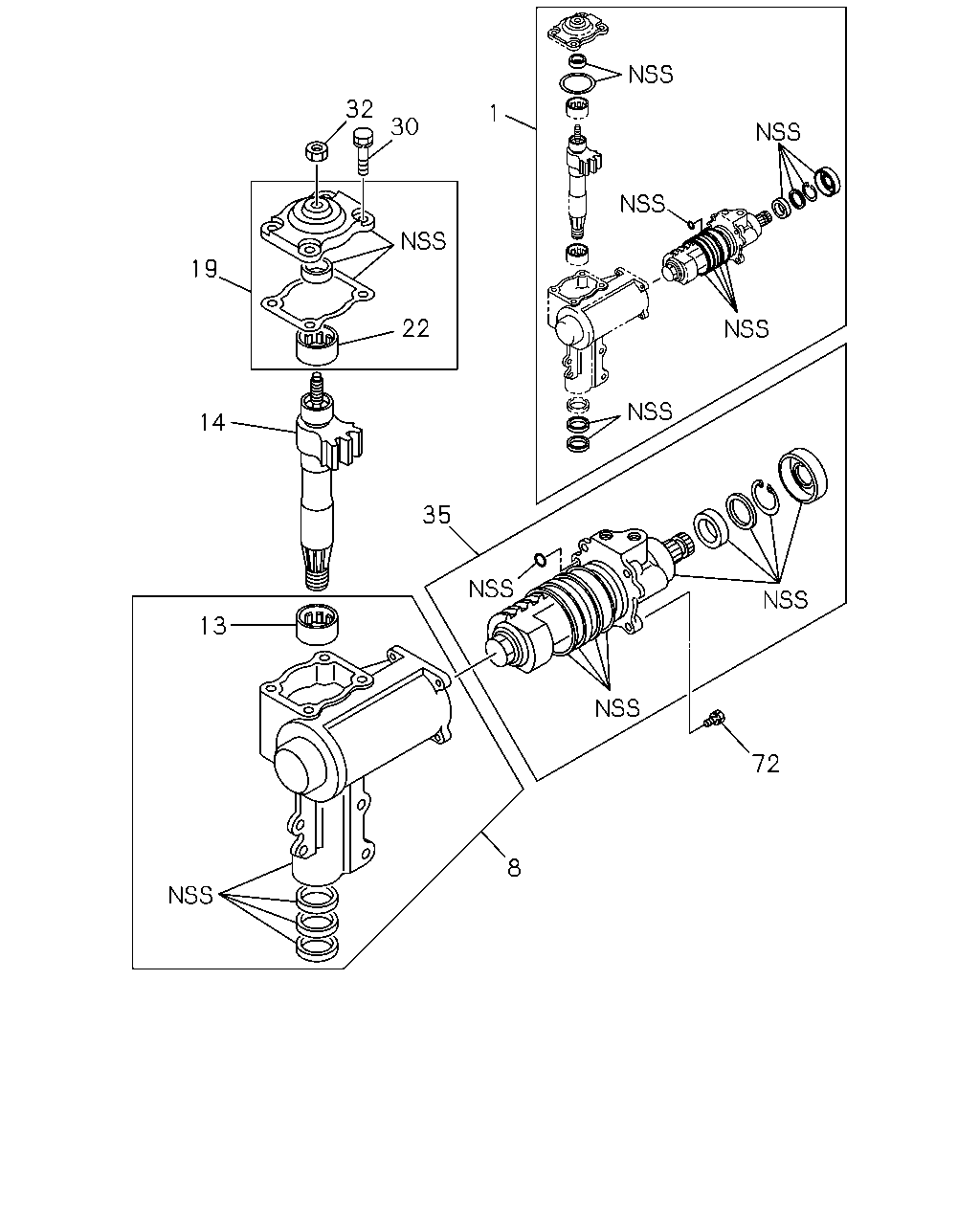

çizim 288477
32 30 19 22 1 35 14 13 8 72
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97175-632-5 		8-97029-945-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97103-780-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-94240-933-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97202-715-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-942-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-94240-939-0 01 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97175-632-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-944-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97102-697-3 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X22 ASM PART: A = 8-97175-632-5 		9-01911-022-0 04 1 -
