4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#95782) — 28 parça

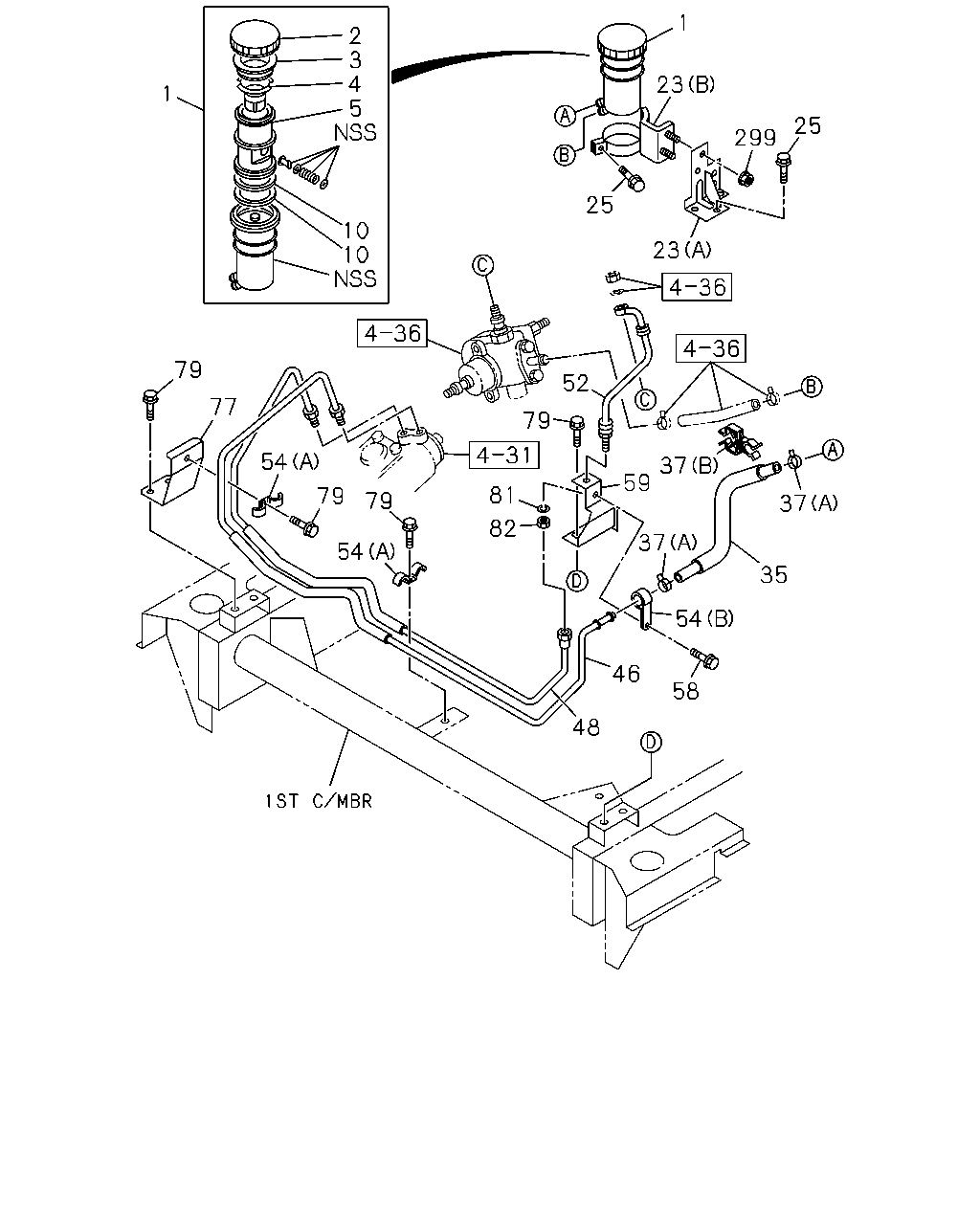

çizim 288460
1 2 5 4 3 10 10 1 23 25 299 23 25 37 37 59 37 35 54 58 46 48 82 81 52 79 54 79 79 54 77 79
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-94105-282-8 01 1 0612-
2 CAP; OIL TANK,P/S 5-21241-001-2 01 1 0612-
3 GASKET; OIL TANK,P/S 8-94246-510-0 01 1 0612-
4 FILTER; OIL TANK,P/S 8-94204-441-1 01 1 0612-
5 STRAINER; OIL TANK,P/S 8-97351-631-0 01 1 0612-
10 SEAL; OIL TANK,P/S 8-94405-457-0 02 1 0612-
23 BRACKET; OIL TANK,P/S
(A) IDN 		8-97957-742-2 01 1 0612-
23 BRACKET; OIL TANK,P/S
(B) IDN 		8-97957-744-0 01 1 0612-
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0612-
25 BOLT; OIL TANK BRKT
AIR CONDITIONER ROOF MOUNTED<C69> M6X16 FLANGE 		0-28450-616-0 03 1 0612-
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28450-616-0 03 1 0612-
25 BOLT; OIL TANK BRKT
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X16 FLANGE 		0-28450-616-0 03 1 0612-
35 HOSE; RETURN,P/S TANK
CAB UP<W60> 		8-97204-869-1 01 1 0612-
35 HOSE; RETURN,P/S TANK
EXC. CAB UP<W60> L=450 		0-09809-450-0 01 1 0612-
37 CLIP; HOSE,P/S
(A) ID=16 IDN 		8-94238-568-0 02 1 0612-
37 CLIP; HOSE,P/S
(B) D=14.5 /22 		8-94317-707-0 01 1 0612-
46 PIPE; OIL,P/S UNIT TO OIL TANK
IDN 		8-97957-578-1 01 1 0612-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
IDN 		8-97957-579-1 01 1 0612-
52 HOSE; FLEX,P/S CONT VLV 8-97255-065-2 01 1 0612-
54 CLIP; OIL PIPE
(A) IDN 		8-94222-795-1 02 1 0612-
54 CLIP; OIL PIPE
(B) ID=11 L=45 IDN 		8-94296-897-1 01 1 0612-
58 BOLT; CLIP
M6X16 FLANGE 		0-28450-616-0 01 1 0612-
59 BRACKET; CLIP,OIL PIPE
IDN 		8-97148-544-0 01 1 0612-
77 BRACKET; POWER STEERING HOSE
IDN 		8-97120-709-0 01 1 0612-
79 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 05 1 0612-
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0612-
82 NUT; FLEX HOSE,P/S
M16 IDN 		0-91111-516-0 01 1 0612-
299 NUT; OIL TANK BRKT
M6 FLANGE IDN 		5-09440-004-0 02 1 0612-
