51135 - TBR-WAGON(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

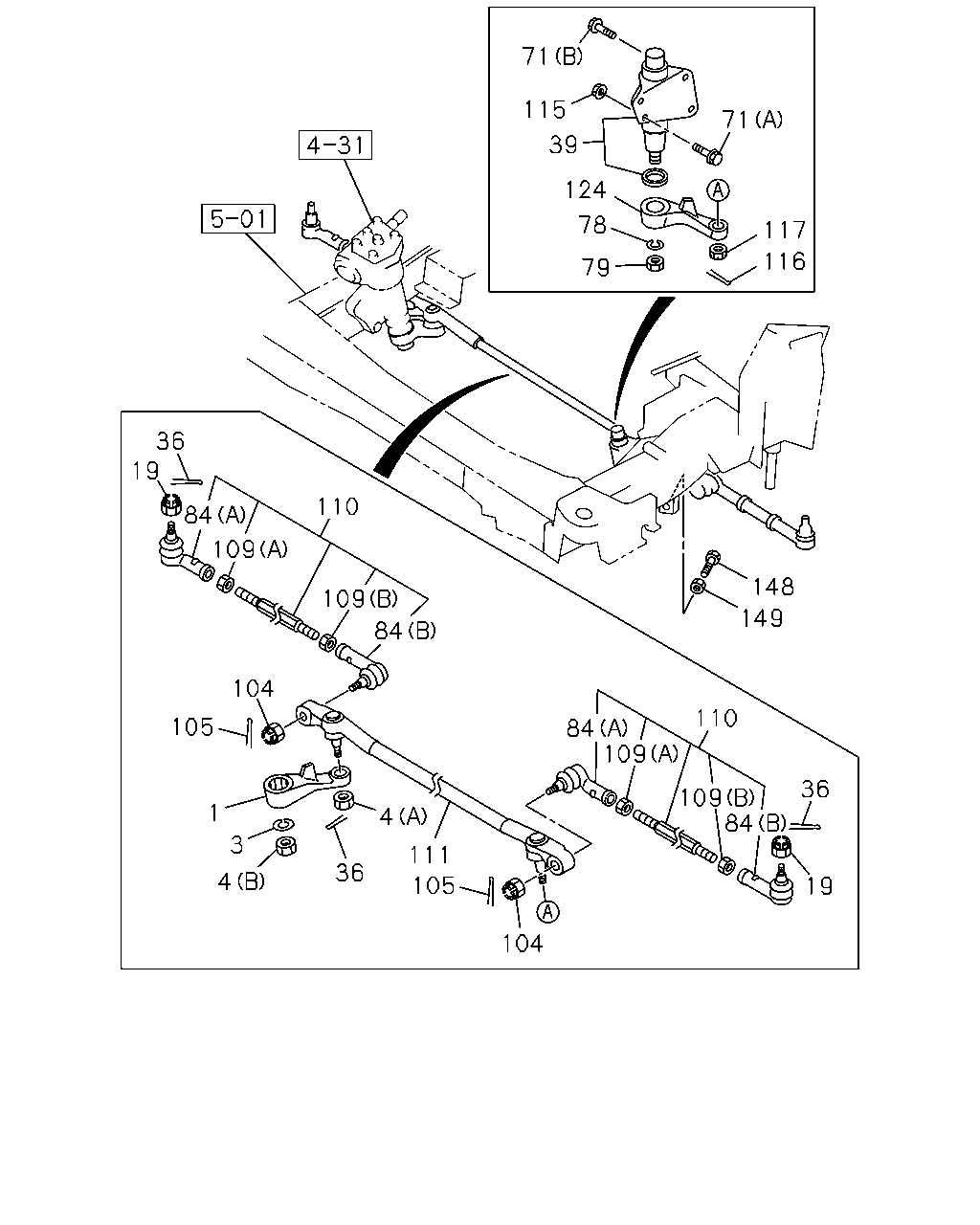

4-33 — STEERING LINKAGE
(#95781) — 25 parça
71
115
124
39
78
116
117
79
71
148
149
110
36
19
84
109
109
84
104
105
4
111
36
4
1
3
105
84
104
109
110
109
84
19
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
8-97315-931-0
01
1
0612-
3
WASHER; LK,PITMAN ARM
ID=22.5
0-91510-522-0
01
1
0612-
4
NUT; PITMAN ARM
(B) M22
0-91111-522-0
01
1
0612-
4
NUT; PITMAN ARM
(A) M14
8-94465-411-0
01
1
0612-
19
NUT; PITMAN ARM,STOPPER
M14
8-94465-411-0
02
1
0612-
36
PIN; SPLIT,DRAG LINK
OD=2.8 L=25
0-81123-025-0
03
1
0612-
39
LEVER ASM; RELAY,STRG LINKAGE
8-97175-395-0
01
1
0612-
71
BOLT; RELAY LEVER BRKT
(A) M10X92 FLANGE
8-94313-798-1
03
1
0612-
71
BOLT; RELAY LEVER BRKT
(B) M10X20
8-94366-554-1
01
1
0612-
78
WASHER; LINK,RELAY LEVER
ID=16.2
0-91510-816-0
01
1
0612-
79
NUT; RELAY LEVER
M16 IDN
0-91111-516-0
01
1
0612-
84
ROD END; TRACK ROD
(B) RH THREAD IDN
8-97956-902-1
02
1
0612-
84
ROD END; TRACK ROD
(A) LH THREAD IDN
8-97956-903-1
02
1
0612-
104
NUT; ROD END
M14
8-94465-411-0
02
1
0612-
105
PIN; SPLIT,ROD END
OD=2.8 L=25
0-81123-025-0
02
1
0612-
109
NUT; ROD
(B) M14
0-91110-514-0
02
1
0612-
109
NUT; ROD
(A) M14 LH THREAD
5-09400-010-0
02
1
0612-
110
ROD; TRACK,OUTER
IDN
8-97956-896-0
02
1
0612-
111
ROD; TRACK,CENTER
8-97316-966-1
01
1
0612-
115
NUT; RELAY LEVER BRKT
M10 FLANGE
8-94313-797-0
03
1
0612-
116
PIN; SPLIT,TRACK ROD,CENTER
OD=2.8 L=20
0-81123-020-0
01
1
0612-
117
NUT; DRAG LINK
M12 SLOTTED
0-91117-512-0
01
1
0612-
124
LEVER; RELAY,STRG LINKAGE
IDN
8-94440-893-3
01
1
0612-
148
BOLT; STOPPER
L=35
9-09802-280-0
02
1
0612-
149
NUT; LK,STOPPER BOLT
M10
0-91111-510-0
02
1
0612-
