◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#9578) — 38 parça

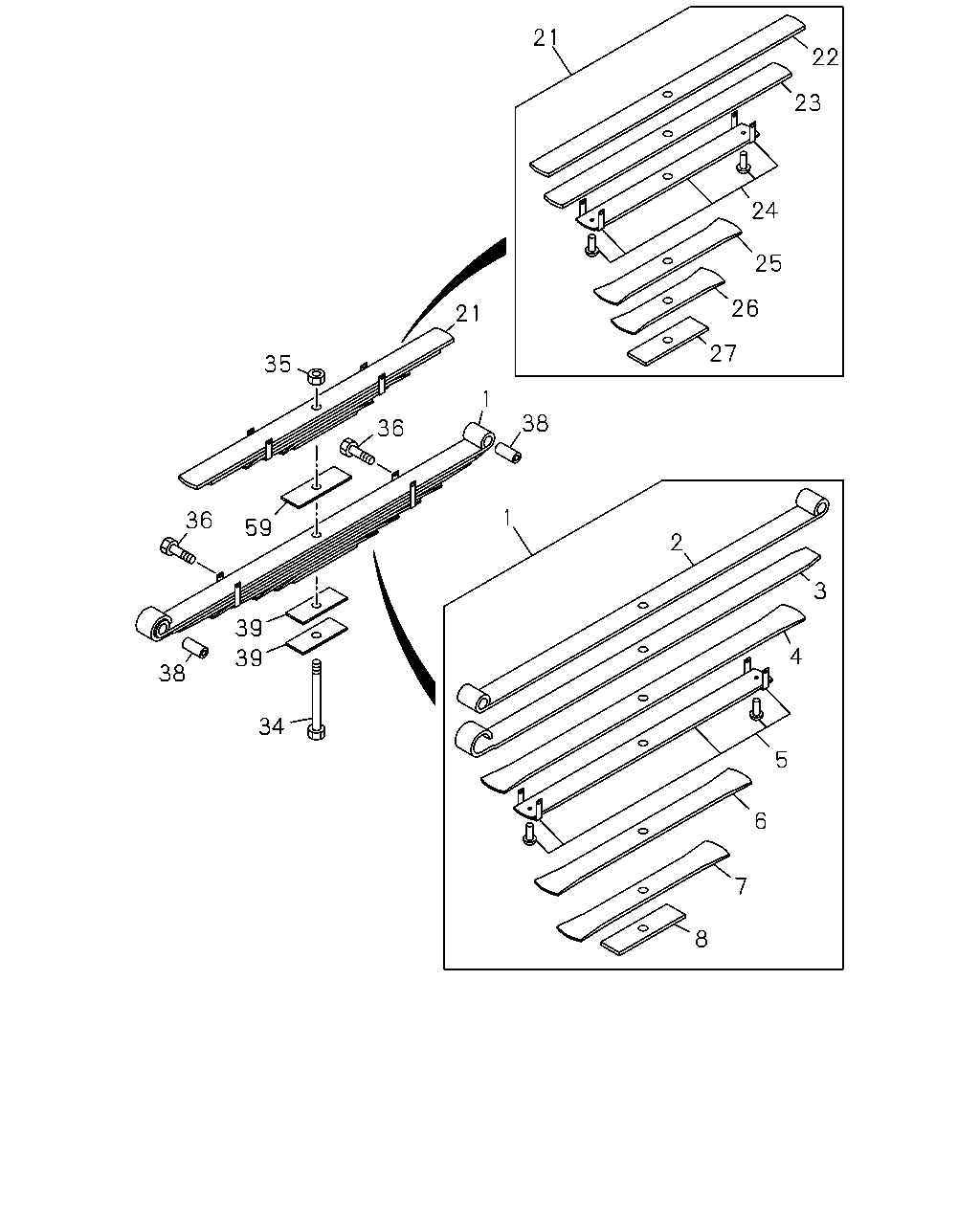

çizim 40431
21 22 23 24 25 26 21 27 35 1 38 36 1 36 59 2 3 39 4 39 38 34 5 6 7 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51310-716-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51310-717-2 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51311-716-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51311-717-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51312-716-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51312-717-2 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51313-716-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51313-717-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: A = 1-51300-333-2 		1-51314-716-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: B = 1-51300-334-3 		1-51314-717-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51315-716-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51315-717-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51316-716-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51316-717-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51317-716-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51317-717-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-333-2 		1-51340-444-1 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-334-3 		1-51340-445-1 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-333-2 		1-51341-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-334-3 		1-51341-445-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-333-2 		1-51342-444-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-334-3 		1-51342-445-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: A = 1-51300-333-2 		1-51343-444-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: B = 1-51300-334-3 		1-51343-445-1 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 1-51300-333-2 		1-51344-444-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-334-3 		1-51344-445-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-333-2 		1-51345-444-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-334-3 		1-51345-445-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-333-2 		1-51346-444-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-334-3 		1-51346-445-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=215 ASM PART: A = 1-51300-333-2 		1-51356-190-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-334-3 		1-51356-233-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		1-09000-328-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: B = 1-51300-334-3 		1-51377-175-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 1-51300-333-2 		1-51377-175-0 02 1 -
59 SEAT; RR SPRING,SUB
T=12 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		1-51377-171-0 01 1 -
